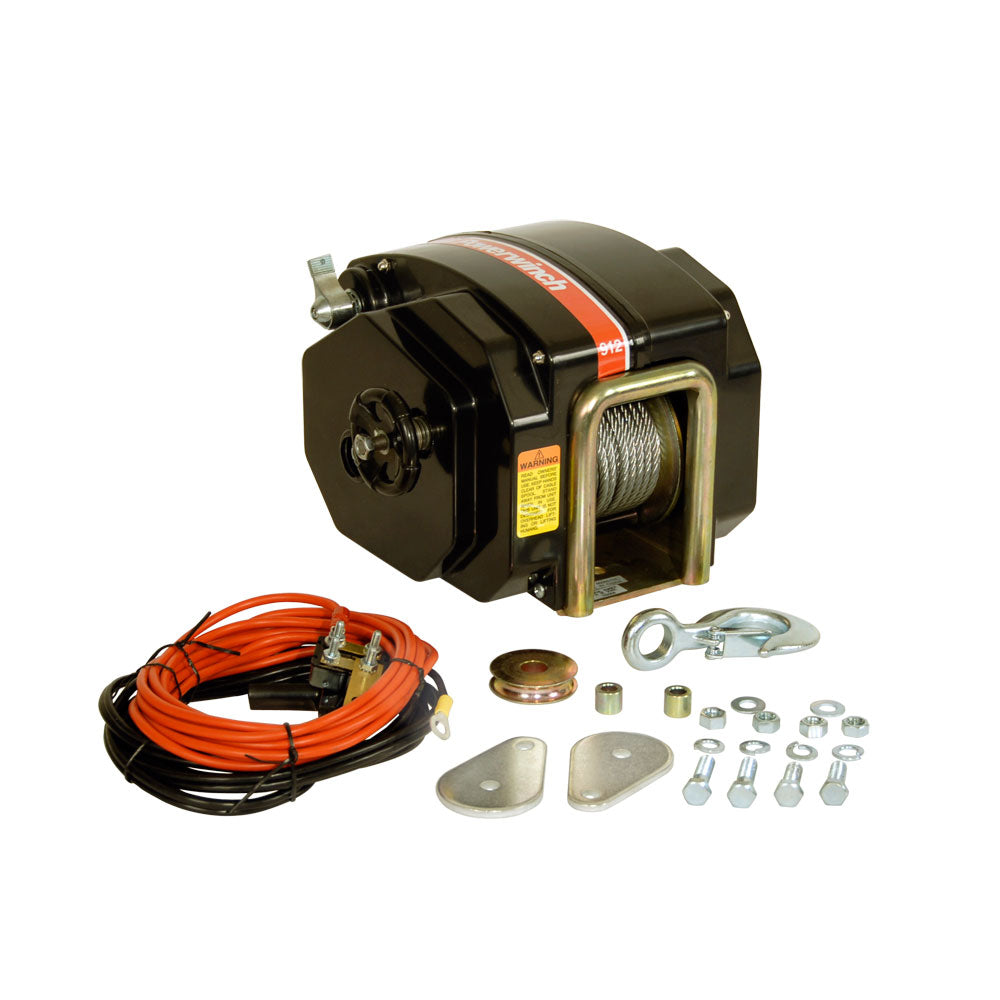

Powerwinch 912 Trailer Winch

Description :

12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

• Remote power-in/freewheel-out operation

• 60 amp standard wiring harness

• Pulley block for double line applications

• One year limited warranty

Model 912

• suggested max boat length

• Max. boat weight of 11,500 lbs

• 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications

Max. Boat Weight: 11500

Line Speed: 8 FPM

Vertical Lift Capacity: 4000 lbs

Remote Control: No

Light: No

Double Line Capacity: 7500 lbs

Gear Ratio: 450:1

Power Source: 12V

Circuit Breaker: 60 amp

Unit Weight: 35 lbs

Depth: 10"

Width; 10"

Height: 8"

Cable Length and Diameter: 40' x 7/32"

Quick Guide	View (pdf)
Owners Manual	View (pdf)
