HighPoint SSD7104F - 4 Channel M.2 PCIe 3.0 x16 NVMe RAID Controller

Description :

HighPoint SSD7104F - 4 Channel M.2 PCIe 3.0 x16 NVMe RAID Controller

HighPoint's SSD710x Series are the industry's fastest PCIe Gen3 4-Port M.2 NVMe RAID controllers, and are capable of delivering up to 14,000MB/s of sustained transfer performance. The compact single-width, full-height controller cards can directly host up to four M.2 NVMe SSDs of any form factor (2242/2260/2280/22110) in one or more RAID 0, 1, 10 and JBOD configurations.

Universal Compatibility

The SSD710x Series can be installed into any computing platform with an industry-standard PCIe 4.0 or 3.0 x16 slot. Like all SSD7000 series NVMe RAID controllers, the SSD710x Series does not require a host platform with Bifurcation support, and is not dependent on a specific brand or model of motherboard.

Cross Sync RAID Technology

Customers can link two SSD710x controllers to act as a single storage device. Cross-Sync technology can effectively double available storage capacity and deliver transfer speeds up to 28,000MB/s!

Cross-Sync RAID Technology has been sucessfully integrated into a variety of professional grade NVMe-based storage solutions for 8K/16 uncompressed video content and Industrial applications, including large-scale LED projection, color grading and correction systems, and rendering projects for game development, animation, VR and simulations.

Comprehensive RAID Storage Solution

The SSD710x Series Controllers can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. Optional UEFI downloads and complete installation guides are available for each supported platform.

Ultra-Efficient, Low-Noise Hyper Cooling Solution | Complete Fan Control

SSD710x Series NVMe RAID controllers now feature Fan Control via the WebGUI Management software. Customers can adjust fan-speed using the SHI tab, and select from 3 speed settings. In addition, the fan can be completely powered off for silent operation.

Administrators can monitor temperatures of each NVMe SSD using SHI, which can track the state of individual devices via SMART attributes, and adjust fan speeds to keep temperatures in check.

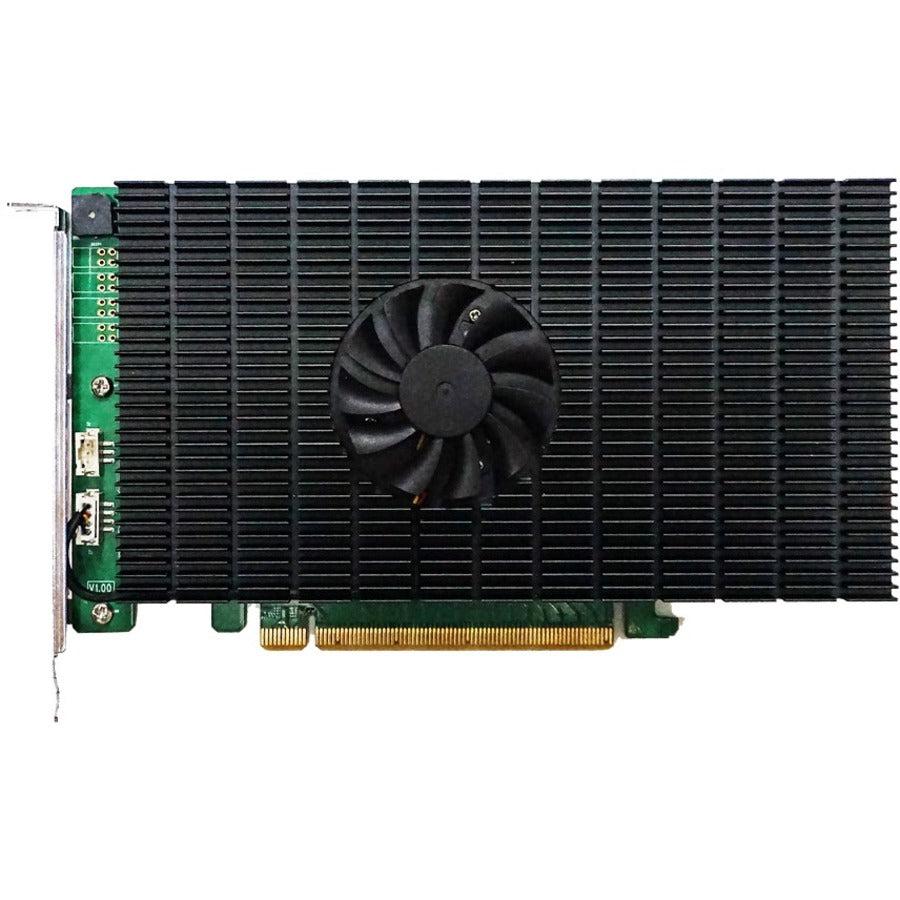

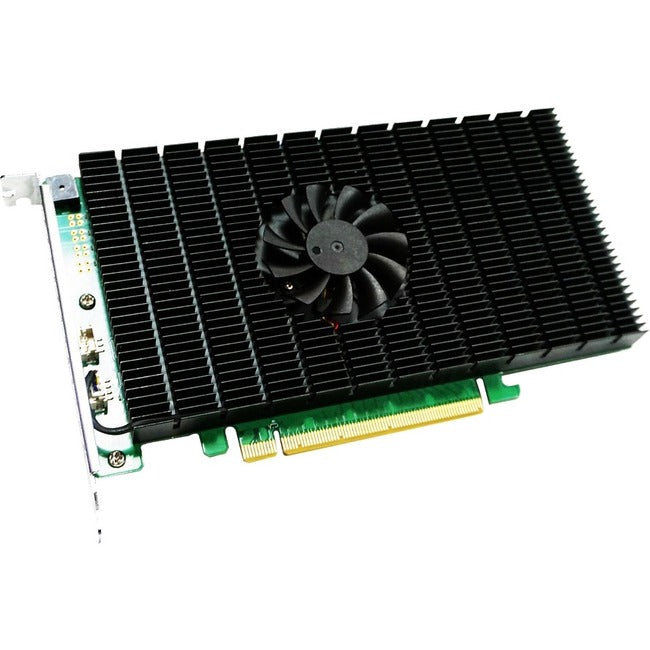

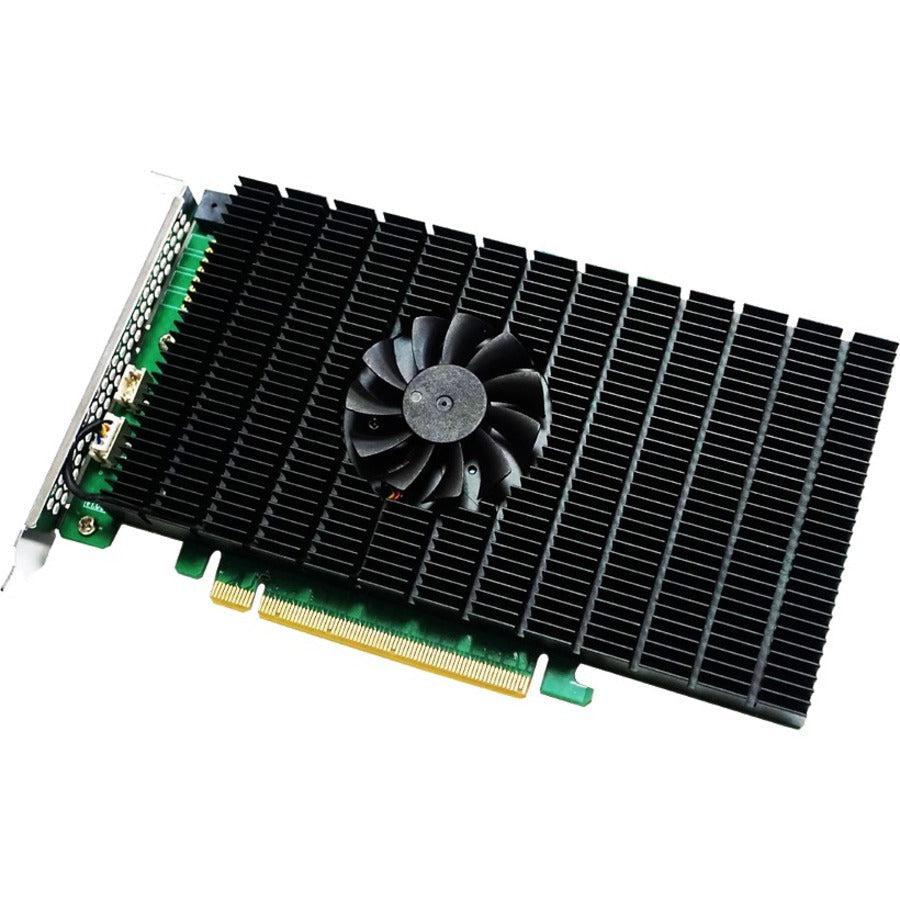

The SSD7104F employs HighPoint's 2nd Generation Low-Noise Hyper-Cooling solution ensures hosted NVMe SSD's consistently operate within their recommended temperature thresholds, even under sustained heavy I/O, by combining a full length anodized aluminum heat sink with an ultra-durable, near-silent fan, and high-conductivity thermal pad. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.

Product Type: NVMe Controller
Environmentally Friendly: Yes
Environmental Certification: REACH
Product Series: SSD7000
Brand Name: HighPoint
Form Factor: Plug-in Card
Manufacturer: HighPoint Technologies, Inc
Product Model: SSD7104F
Product Name: SSD7104F - 4 Channel M.2 PCIe 3.0 x16 NVMe RAID Controller
Manufacturer Part Number: SSD7104F
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:

• SSD7104F - 4 Channel M.2 PCIe 3.0 x16 NVMe RAID Controller
• 1 x Quick Installation Guide
