142x2.5x0.9mm, Nilon, White

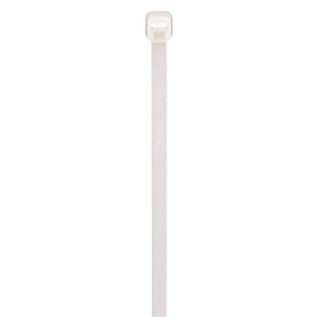

Pan-Ty® PLT1.5M-XMR Reel-Fed Cable Tie, Natural, PA 6.6, PK5000, 5.6"L, 18 lbs
Automated Cable Tie
Reel-Fed cable tie for PAT1.5M system, miniature cross section, 5.6 (142mm) length, nylon 6.6, natural.
Manufacturer Website: www.panduit.com
Part Number: PLT1.5M-XMR
Panduit PLT1.5M-XMR continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 5.6” (142mm) cable ties for use with PAT1.5M4.0 and PDM4.0 system. Made of all Nylon with 18lb loop tensile strength, are natural in color and come 5,000 ties per reel.
| Application |
Reel-fed cable ties for automated tooling |
| Product Type |
Reel-Fed Cable Tie |
| Color |
Natural |
| Sub Brand |
Pan-Ty® |
| Environment |
Indoor |
| For Use With |
PAT1.5M4.0 System |
| Material |
Nylon 6.6 |
| Maximum Bundle Diameter (In.) |
1.31 |
| Maximum Bundle Diameter (mm) |
33.3 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Operating Temperature (°F) |
185 |
| Minimum Bundle Diameter (In.) |
0.02 |
| Minimum Bundle Diameter (mm) |
0.5 |
| Minimum Loop Tensile Strength (N) |
80 |
| Minimum Loop Tensile Strength (lb) |
18 |
| Minimum Operating Temperature (°C) |
-60 |
| Minimum Operating Temperature (°F) |
-76 |
| Overall Length (In.) |
5.6 |
| Overall Length (mm) |
142 |
| Body Width (In.) |
0.1 |
| Body Width (mm) |
2.5 |
| Body Thickness (In.) |
0.036 |
| Body Thickness (mm) |
0.9 |
| Standards Met |
UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant |
| Military Cross Reference Number |
MS3367-4-9 |
| Number of Ties per Reel |
5000 |
