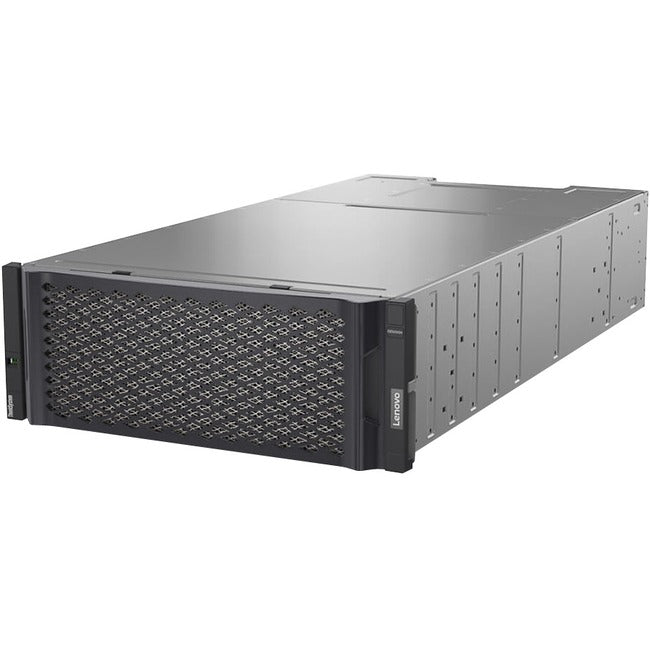

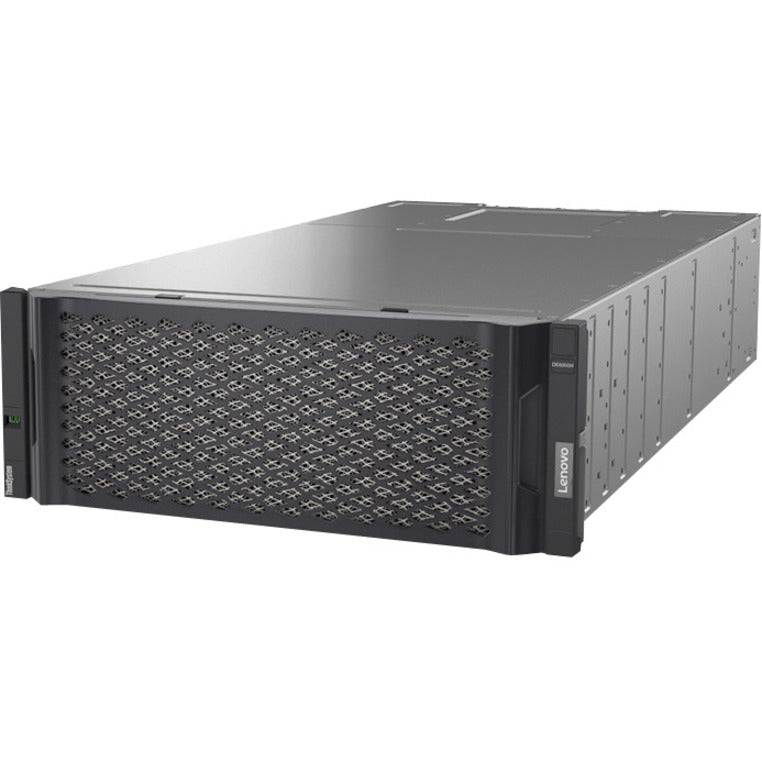

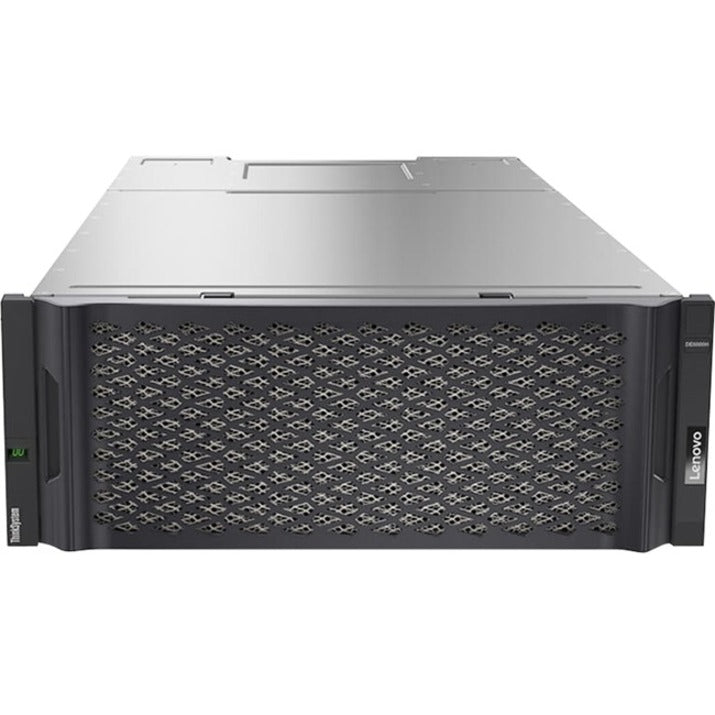

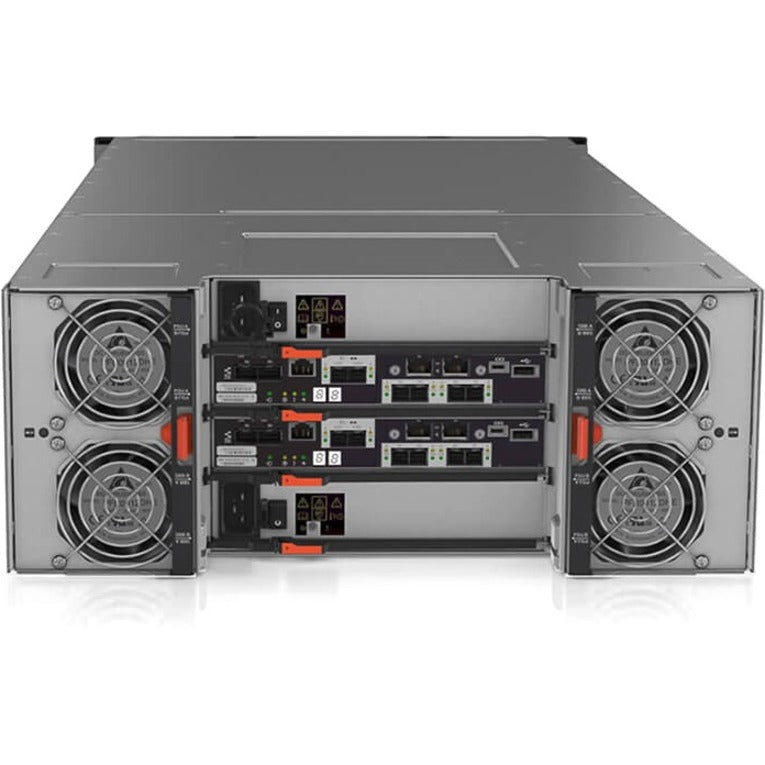

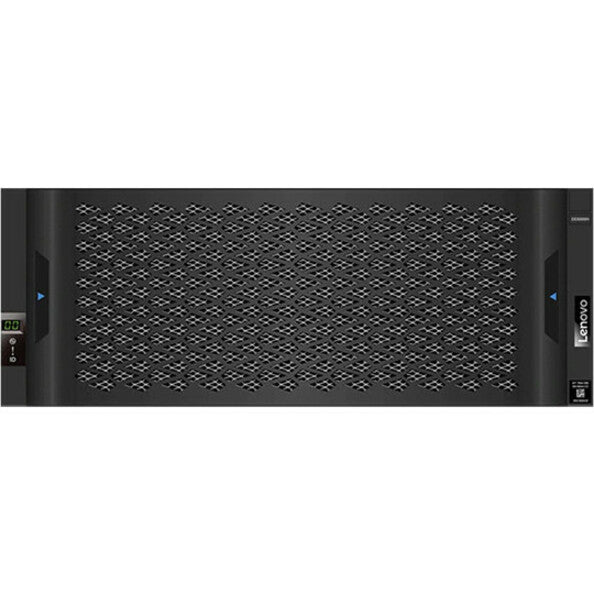

Lenovo Thinksystem De4000H Fc Hybrid Flash Array 4U60

Description :

Lenovo ThinkSystem DE4000H FC Hybrid Flash Array 4U60

Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

• Scalable entry-level hybrid storage with dual active/active controller configurations with 8 GB cache per controller for high availability and performance.


• Improved performance and data protection with Dynamic Disk Pools (DDP) technology, as well as support for traditional RAID 0, 1, 3, 5, 6, and 10.


• Flexible host connectivity to match diverse client needs with support for 10 Gb iSCSI or 8/16 Gb FC, and 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connectivity at the same time.


• 12 Gb SAS drive-side connectivity with support for up to 24x 2.5-inch small form factor (SFF) drives in the 2U24 SFF enclosures, up to 12x 3.5-inch large form factor (LFF) drives in the 2U12 LFF enclosures, or up to 60x 3.5-inch LFF drives in the 4U60 LFF enclosures.


• Scalability to up to 192 SFF or LFF drives with the attachment of the ThinkSystem DE240S 2U24 SFF, DE120S 2U12 LFF, or DE600S 4U60 LFF expansion enclosures to satisfy growing needs for storage capacity and performance.


• Rich set of standard storage management functions available at no extra cost, including Dynamic Disk Pools, SSD read cache, snapshots, volume copy, and thin provisioning.


• Optional licensed functions, including higher number of snapshots for greater scalability and asynchronous mirroring for continuous data availability.


• Intuitive, web-based GUI for easy system setup and management.


• Designed for 99.999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, cooling modules (4U60 LFF enclosures only), proactive maintenance, and non-disruptive firmware upgrades.

Product Type: SAN Storage System
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Product Series: DE
Rack Height: 4U
Brand Name: Lenovo
Form Factor: Rack-mountable
Manufacturer: Lenovo Group Limited
Product Model: DE4000H
Product Name: ThinkSystem DE4000H FC Hybrid Flash Array 4U60
Product Line: ThinkSystem
Manufacturer Part Number: 7Y77A001WW
Manufacturer Website Address: http://www.lenovo.com/us/en/
Package Contents:

• ThinkSystem DE4000H FC Hybrid Flash Array 4U60
• Lenovo ThinkSystem Storage Rack Mount Kit
• Lenovo ThinkSystem Storage USB Cable (USB Type A to Micro-USB) 2 m
• Quick Installation Guide
• Electronic Publications Flyer
• 2 x Power Cables
