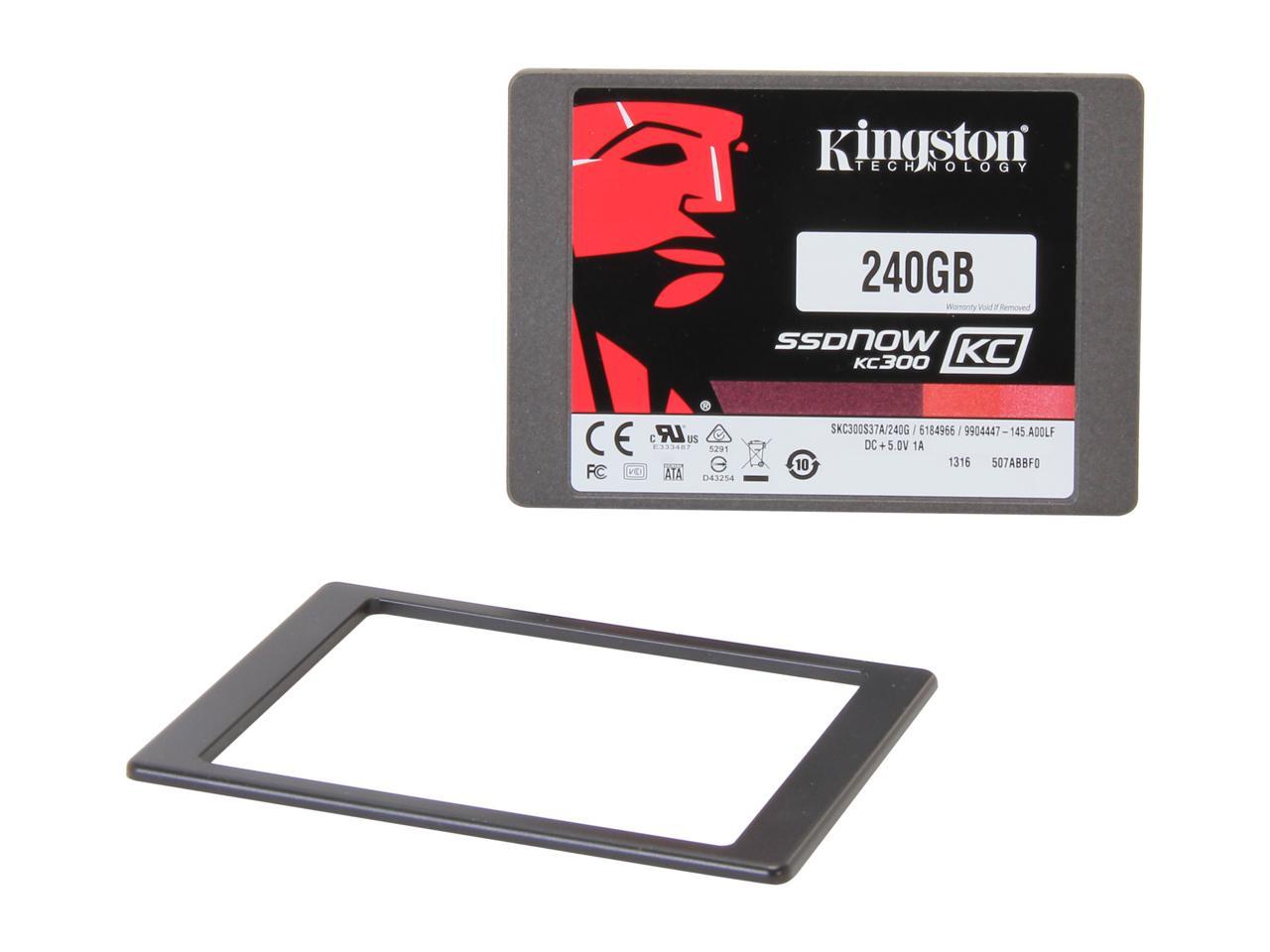

Description
- 2.5"
- 240GB
- SATA III
Introduction
10x Faster than a HDD (Source: PCMark Vantage)
With read/write speeds of 525/500MB/s the KC300 SSDs will not only increase performance, but can also be used to breathe new life into older systems.
Driven by a LSI SandForce® Controller
Featuring a proven SandForce controller with SATA Rev 3.0 (6Gb/s) performance Kingston KC300 SSDs will keep your system feeling new.
Kingston® Reliability
KC300 SSDs are backed by legendary Kingston® reliability.
3-Year Warranty with Free Technical Support
With Kingston KC300 SSDs, you get a three-year warranty and free technical support to help you with any questions you might have.
Specifications
|
Form Factor |
2.5" |
|
Interface |
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
|
Capacities 2 |
60GB, 120GB, 180GB, 240GB, 480GB |
|
Controller |
SandForce SF2281 |
|
Encryption |
Automatic Encryption (AES 128-bit) |
|
Sequential Read/Write 3 |
SATA Rev. 3.0 All capacities: 525MB/s Read and 500MB/s Write |
|
Maximum 4k Read/Write 4 |
60GB – up to 85,000/64,000 IOPS 120GB – up to 85,000/64,000 IOPS 180GB – up to 85,000/64,000 IOPS 240GB – up to 85,000/52,000 IOPS 480GB – up to 73,000/32,000 IOPS |
|
Random 4k Read/Write 5 |
60GB – up to 10,500/64,000 IOPS 120GB – up to 17,000/64,000 IOPS 180GB – up to 32,000/56,000 IOPS 240GB – up to 32,000/56,000 IOPS 480GB – up to 47,000/22,000 IOPS |
|
PCMARK® Vantage HDD Suite Score |
60,000 |
|
Enterprise SMART Tools |
Reliability tracking, usage statistics, life remaining, wear leveling, temperature |
|
Total Bytes Written (TBW) 6 |
60GB – 193TB 3 DWPD7 120GB – 290TB 2 DWPD8 180GB – 531TB 3 DWPD9 240GB – 765TB 3 DWPD10 480GB – 1,785TB 3 DWPD11 |
|
Power Consumption |
0.08 W Idle / 0.16 W Avg / 1.73 W (MAX) Read / 2.49 W (MAX) Write |
|
Storage Temperature |
-40°C ~ 85°C |
|
Operating Temperature |
0°C ~ 70°C |
|
Dimensions |
69.8mm x 100.1mm x 7.0mm |
|
Weight |
60GB, 120GB, 180GB, 240GB — 86.0g 480GB — 92.3g |
|
Vibration Operating |
2.17G Peak (7–800Hz) |
|
Vibration Non-operating |
20G Peak (10–2000Hz) |
| MTBF |
1 million hours |
|
Warranty/Support |
Three-year warranty with free technical support |
General Information
| Manufacturer | Kingston Technology Company |
|---|---|
| Manufacturer Part Number | SKC300S37A/240G |
| Manufacturer Website Address | http://www.kingston.com |
| Brand Name | Kingston |
| Product Line | SSDNow |
| Product Model | KC300 |
| Product Name | SSDNow KC300 Solid State Drive |
| Product Type | Solid State Drive |
| UPC | 740617217285 |
| Drive Type | Internal |
|---|
| Height | 0.3" |
|---|---|
| Width | 2.7" |
| Depth | 3.9" |
| Weight (Approximate) | 3.03 oz |
| Limited Warranty | 3 Year |
|---|
