IO Crest USB 3.2 Gen 2x2 PCIe x4 Card SY-PEX20230

Description :

IO Crest USB 3.2 Gen 2x2 PCIe x4 Card

The new expansion card adds full support for the new specification on motherboards with a PCIe x4 slot. With the USB Type-C port design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers an affordable way for users to upgrade to the USB 3.2 Gen 2x2 specification without having to get a new motherboard.

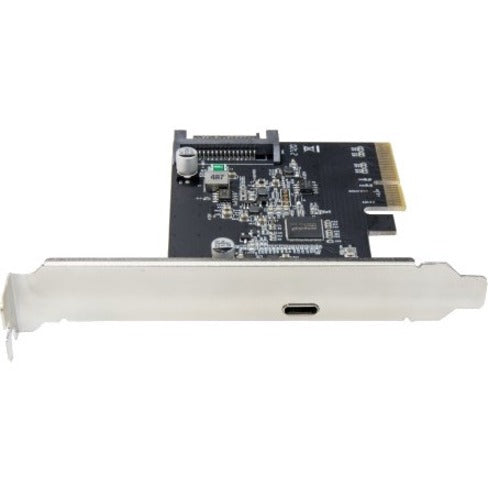

• One USB 3.2 20Gbps Type-C downstream receptacle port. Up to 20Gbps data transfer speed.


• Built with ASMedia ASM3242. Fully RoHS compliant. Note: The card does not support DP Alt Mode or USB Power Delivery.

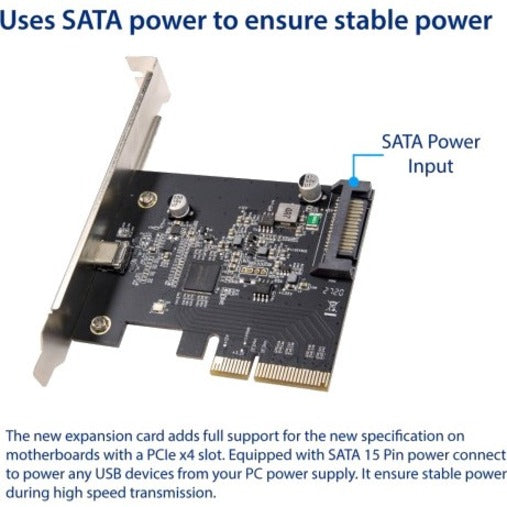

• Equipped with SATA 15 Pin power connect to power any USB devices from your PC power supply. It ensure stable power during high speed transmission.

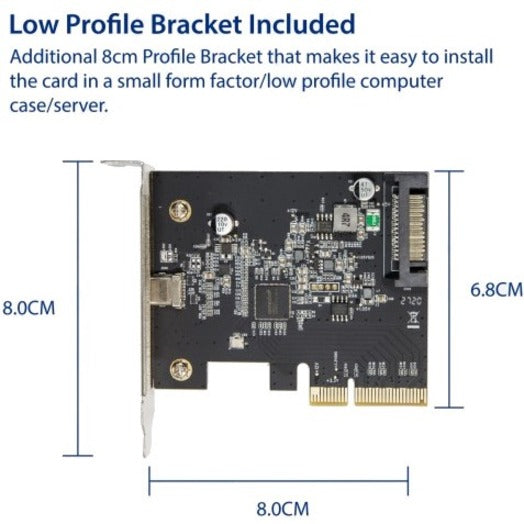

• Low Profile board. Regular size PCIe bracket on board and Low Profile PCIe bracket included. PCIe 3.0 x4 card fits in PCIe x4 or x8 or x16 slot.

Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: IO Crest
Form Factor: Plug-in Card
Manufacturer: SYBA Multimedia, Inc
Product Name: USB 3.2 Gen 2x2 PCIe x4 Card
Manufacturer Part Number: SY-PEX20230
Manufacturer Website Address: http://www.syba.com
Platform Supported: PC
Package Contents:

• 1 x USB 3.2 Gen 2x2 PCIe x4 Card
• 1 x Low Profile Bracket
• 1 x Driver CD
• 1 x Manual
