HighPoint 4-Bay M.2 NVMe RAID Storage Solution SSD6540M

HighPoint 4-Bay M.2 NVMe RAID Storage Solution SSD6540M

SKU:SSD6540M

Regular price $908.93
Regular price Sale price $908.93
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HighPoint 4-Bay M.2 NVMe RAID Storage Solution

          The Fastest External Desktop Storage - 14,000MB/s! Powered by M.2 NVMe SSD's

          • Blistering 14,000 MB/s Transfer Performance!
          • 4x Faster than Thunderbolt™ 3!
          • Up to four M.2 NVMe SSD's
          • PCIe 3.0 x16 Host Interface
          • Windows, Linux & macOS platforms

          The SSD6540M is designed for professional grade, performance-hungry applications that demand uncompromised transfer bandwidth.

          The unique NVMe architecture provides dedicated PCIe 3.0 x4 bandwidth for each drive-bay; this allows each M.2 SSD to interface directly with the platform's CPU, and deliver sustained transfer performance in excess of 14,000MB/s - faster than any other external desktop RAID storage solution in today's marketplace!

          PCIe Gen3 x16 NVMe RAID Turnkey Solution

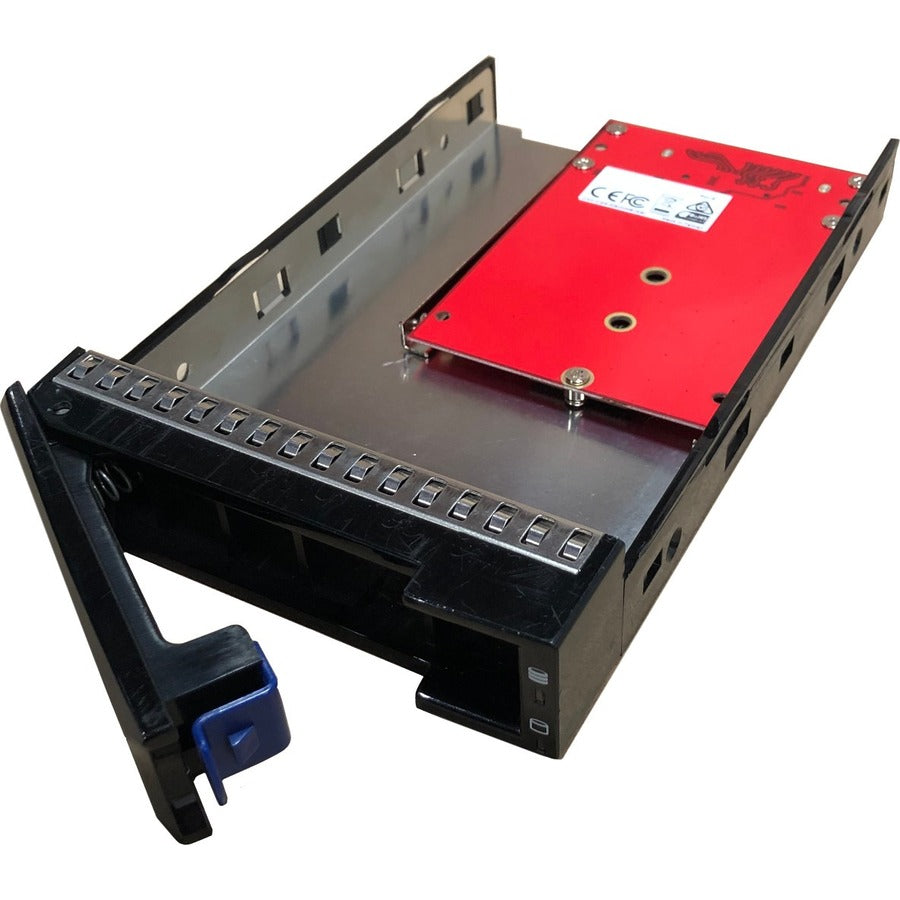

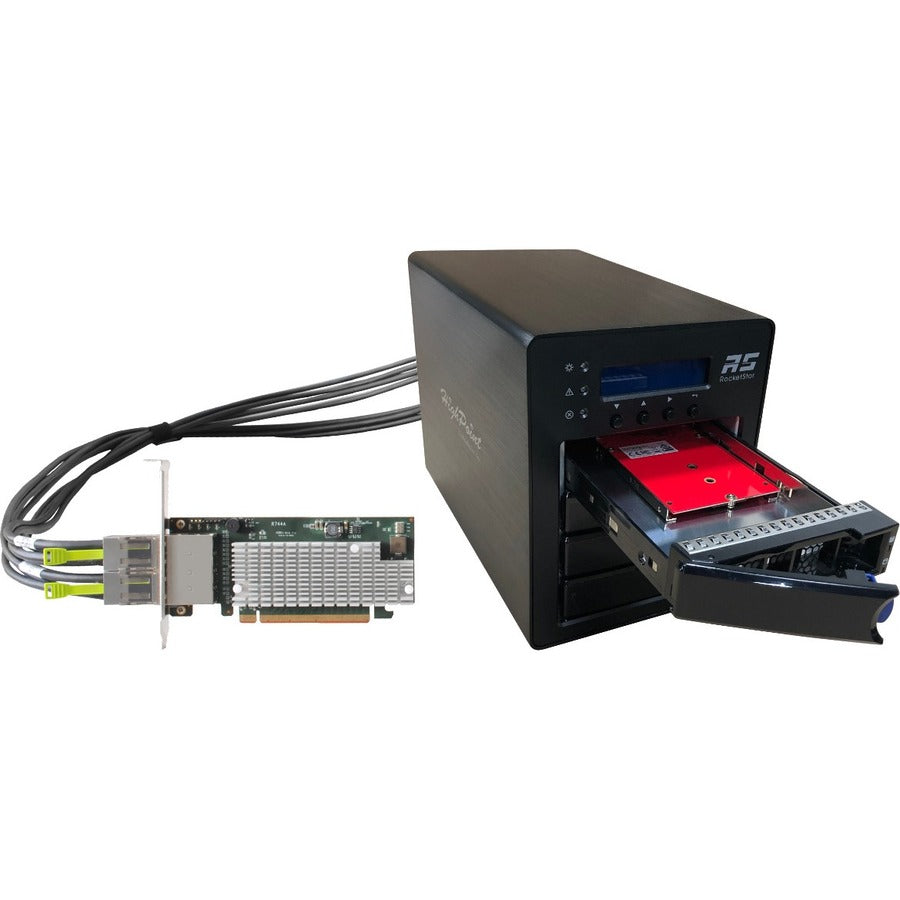

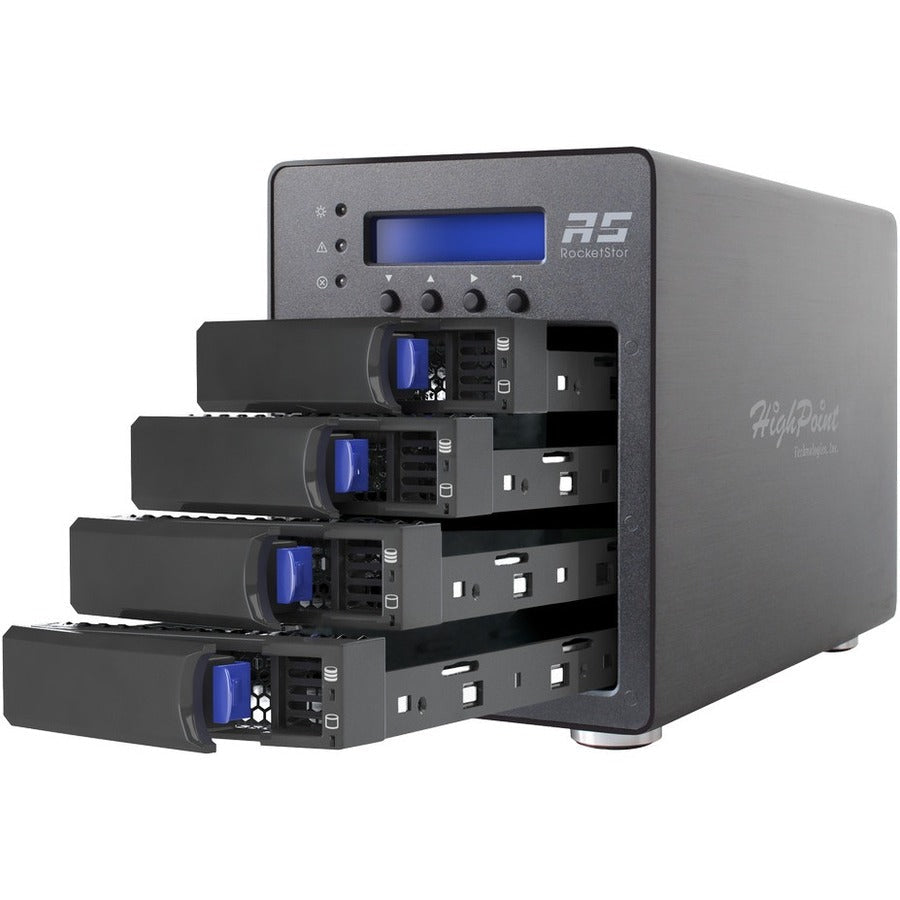

          The SSD6540M is the industry's first external NVMe storage solution to deliver uncompromised end-to-end PCIe Gen 3.0 x16 transfer bandwidth. Our innovative external data cables work in conjunction with the removable M.2 drive bays to deliver dedicated PCIe 3.0 x4 transfer bandwidth; this unique, performance-focused architecture ensures each M.2 SSD operates at peak performance. The SSD6540M is a complete, stand-alone solution, and includes a 4-Bay NVMe M.2 enclosure, PCIe 3.0 x16 controller card with external SFF-8644 connectors, two SFF- 8644 PCIe Gen3 x8 data cables, and all necessary fastening and power accessories.

          Powered by Proven RAID Technology

          The SSD6540M is powered by our industry proven NVMe RAID technology, and can accommodate a variety of RAID and non-RAID storage configurations, including single M.2 SSD's and multiple RAID arrays.


          • RAID 0: Also known as a "stripe" array. This mode delivers Maximum Performance, and requires 2 to 4 M.2 SSD's.

          • RAID 1: This mode creates a hidden duplicate of the target M.2 SSD, and requires 2 drives.

          • RAID 1/0: Mirrored Stripe arrays. This mode requires 4 M.2 SSD's - it will mirror the data of one stripe array to a second, hidden stripe array for security.

          Robust & Simple NVMe RAID Management

          Each SSD6540M RAID Enclosure includes a simple, intuitive web-based management interface. A Quick Configuration menu allows new users to get everything up and running with a few simple clicks. Experienced Pros can fine tune configurations for specific applications using the Advanced Options menu.

          Integrated TRIM & S.M.A.R.T. Monitoring with Terabyte Written (TBW) Tracking: TRIM streamlines performance and expands the lifespan of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check the temperature, voltage and TBW of each NVMe SSD.

          Rapidly Adapts to Changing Workflows

          The SSD6540M's flexible architecture enables you to
          adapt or transform NVMe storage to meet the needs of
          each application.

          A single SSD6540M enclosure can be shared between multiple desktops and workstations - the included controller card is also available as a standalone accessory, and can be installed into any system with a free dedicated PCIe 3.0 x16 slot.

          In addition, M.2 SSD's hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array and data will remain intact and accessible.


          • DAS Storage System is the single answer to all your desired storage needs

          • Through RAID levels (0, 1, 10), RAID provides data reliability, fault tolerance and improves overall performance

          • Through RAID levels (0, 1, 10), RAID provides data reliability, fault tolerance and improves overall performance

          • Desktop form factor for added reliability and dependability

          Product Type: DAS Storage System
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Country Of Origin: China
          Brand Name: HighPoint
          Form Factor: Desktop
          Manufacturer: HighPoint Technologies, Inc
          Product Model: SSD6540M
          Product Name: 4-Bay M.2 NVMe RAID Storage Solution
          Manufacturer Part Number: SSD6540M
          Manufacturer Website Address: http://www.highpoint-tech.com
          Packaged Quantity: 1

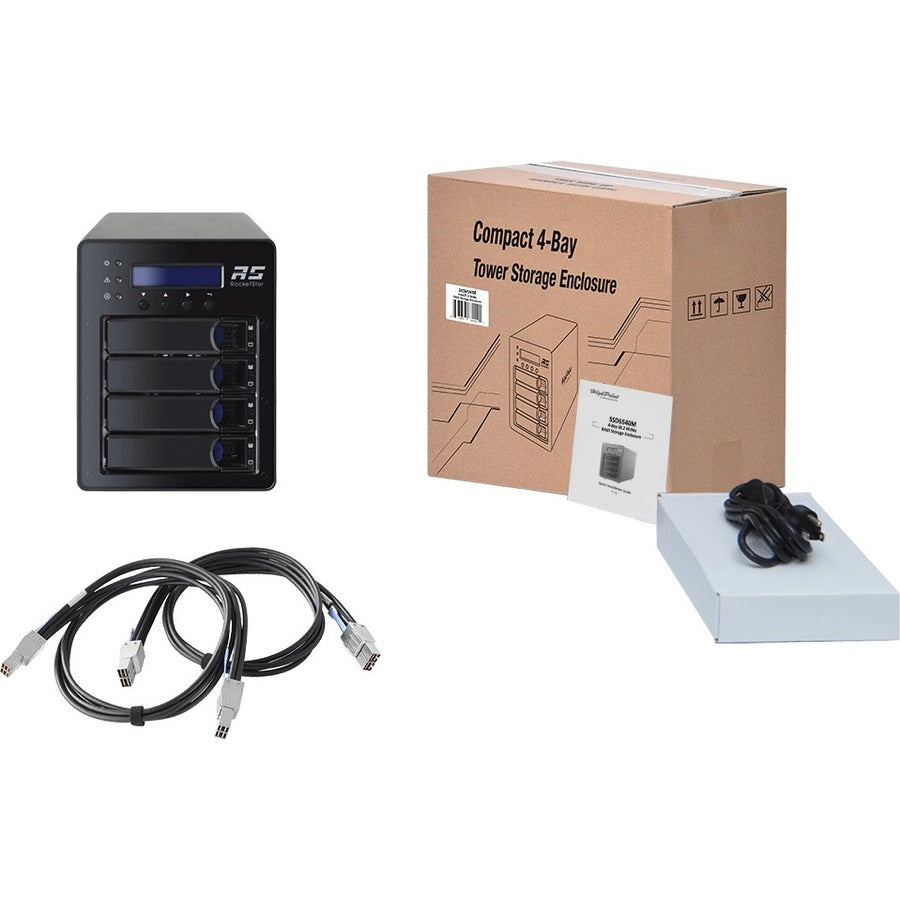

          Package Contents:

          • 4-Bay M.2 NVMe RAID Storage Solution
          • 1 x PCIe 3.0 x16 RAID Controller
          • 2 x SFF-8644 8X Cables
          • 1 x Quick Installation Guide

          Limited Warranty: 2 Year
          Weight (Approximate): 12.10 lb

          Specifications :

          General Information

          Manufacturer HighPoint Technologies, Inc
          Manufacturer Part Number SSD6540M
          Manufacturer Website Address http://www.highpoint-tech.com
          Brand Name HighPoint
          Product Model SSD6540M
          Product Name 4-Bay M.2 NVMe RAID Storage Solution
          Product Type DAS Storage System
          UPC 643653654024

          Power Description

          Maximum Power Supply Wattage250 W
          Height7.7"
          Width5.7"
          Depth10.2"
          Weight (Approximate)12.10 lb

          Miscellaneous

          Package Contents
          • 4-Bay M.2 NVMe RAID Storage Solution
          • 1 x PCIe 3.0 x16 RAID Controller
          • 2 x SFF-8644 8X Cables
          • 1 x Quick Installation Guide
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
