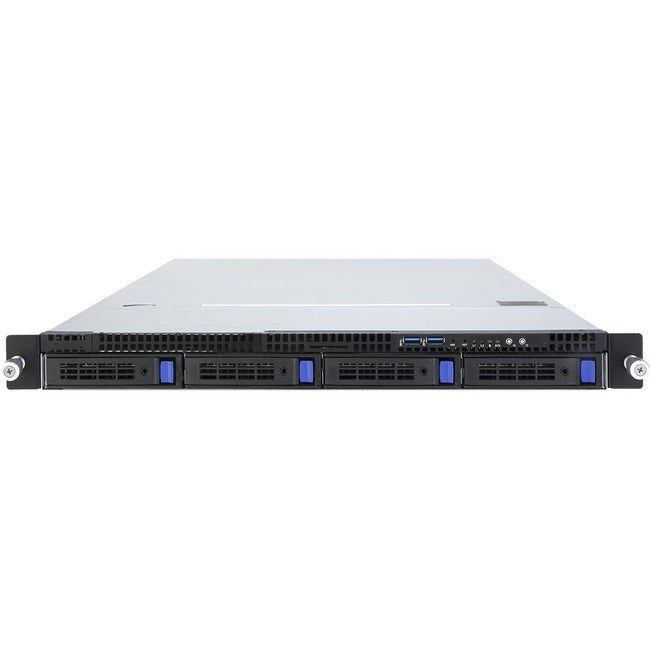

Gigabyte R121-X30 Barebone System - 1U Rack-Mountable - Socket H4 Lga-1151 - 1 X Processor Support


Price:
Sale price$619.27
 More payment options

Description

Gigabyte R121-X30 Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support
Supports the Intel Xeon E3-1200 V5 Processors

Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.

Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.

M.2 Slot Onboard

The R121-X30 comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.


  • Intel® Xeon® processor E3-1200 V5 product family

  • 4 x UDIMM slots, DDR4 2133MHz

  • 4 x 3.5" hot-swappable HDD/SSD bays

  • Supports SAS 6Gb/s / SATA III 6Gb/s connections

  • 2 x GbE LAN ports (Intel® I210)

  • 1 x M.2 slot

  • 1 x 250W 80 PLUS Bronze 100~220V AC PSU

Product Type: Barebone System
Rack Height: 1U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: R121-X30
Product Name: R121-X30 Barebone System
Manufacturer Part Number: R121-X30
Manufacturer Website Address: http://www.gigabyte.us
Package Contents:

  • R121-X30 Barebone System
  • 1 x Quick Start Guide
  • 1 x CPU Heat Sink
  • 1 x Rail kit

Weight (Approximate): 16.53 lb

General Information

Manufacturer GIGABYTE Technology, Inc
Manufacturer Part Number R121-X30
Manufacturer Website Address http://www.gigabyte.us
Brand Name Gigabyte
Product Model R121-X30
Product Name R121-X30 Barebone System
Product Type Barebone System
UPC 0813567022756

Chipset

Chipset ManufacturerIntel
Graphics Controller ManufacturerASPEED
Graphics Controller ModelAST2400
Ethernet TechnologyGigabit Ethernet
Total Number of USB Ports9

Power Description

Maximum Power Supply Wattage250 W
Height1.7"
Width16.9"
Depth21"
Weight (Approximate)16.53 lb

Miscellaneous

Package Contents
  • R121-X30 Barebone System
  • 1 x Quick Start Guide
  • 1 x CPU Heat Sink
  • 1 x Rail kit
