GIGABYTE Technology, Inc

Gigabyte Mw51-Hp0 Server Motherboard - Intel C422 Chipset - Socket R4 Lga-2066 - Ssi Ceb

Gigabyte Mw51-Hp0 Server Motherboard - Intel C422 Chipset - Socket R4 Lga-2066 - Ssi Ceb


Regular price $474.37
Regular price Sale price $474.37
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

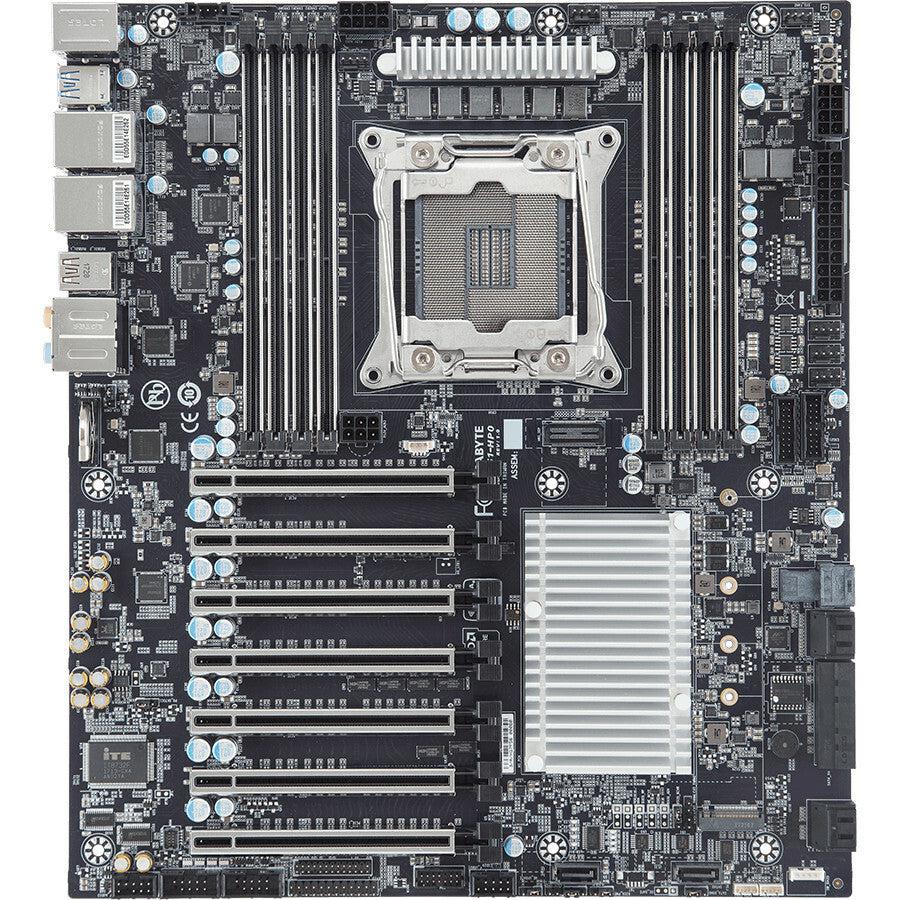

          Gigabyte MW51-HP0 Server Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - SSI CEB

          • Intel® Xeon® W-series Processor Family
          • Intel® C422 Express Chipset
          • Quad Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
          • Intel® VROC ready
          • ASMedia 2142 USB 3.1 Gen 2 USB controller
          • Realtek ALC1150 HD audio codec
          • 2 x GbE LAN ports (Intel® I210)
          • 8 x SATA III 6Gb/s ports from C422, supports SATA DOM
          • 2 x SATA III 6Gb/s ports from Marvell® 88SE9172 controller
          • Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface
          • 4 x Full speed PCIe Gen3 x16 slots; total 7 x expansion PCIe x16 slots

          Intel® Xeon® W
          - Engineered For Your Enterprise

          GIGABYTE brings Intel's Skylake architecture to the SOHO segment with a new offering: the 'Basin Falls' single-socket platform for workstations. This new build offers a wealth of I/O options, including multiple PCIe lanes to support graphics, and other add-on card options, as well as direct SATA and USB ports.
          GIGABYTE's precision engineering enables you to fulfil your workstation workload needs with ease.

          Intel® Xeon® W - Key Features

          Intel's Skylake-W (Basin Falls) platform brings increases in compute, I/O and memory compared to the previous generation. This functionality, with multiple USB and SATA connections from the chipset, allows for:

          • I/O Options
            20% more PCIe lanes gen-on-gen
            Extra 16 PCIe lanes from the PCH
            Supports USB and SATA connectors

          • Memory
            11% more bandwidth vs. previous generation
            4 channels - maximum 2666MT/s at 1DPC or 2DPC

          • Compute
            1S: up to 18 cores; Intel HS Hyper-threading; per core power management

          Dense Add-On Slot Design

          GIGABYTE's Intel Xeon W motherboards are designed to provide serious PCIe options, with options for the fully optimized 100% use of the 48 PCIe lanes available.
          The addition of an active PCIe switch and three pass-through switches allows for the following permutations:

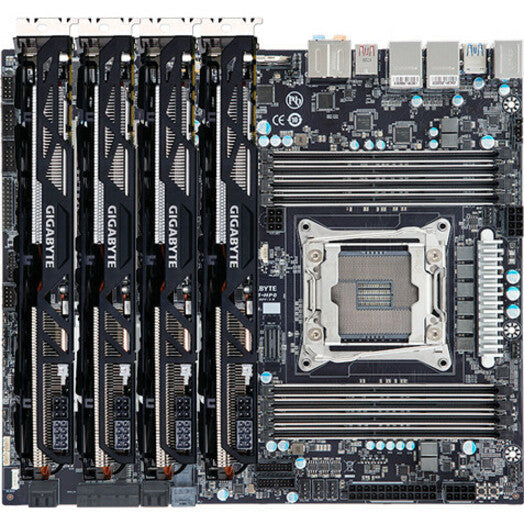

          • 4 x dual-slot GPU card
          • or
          • Up to 4x alternative PCIe x8 or PCIe x16 cards simultaneously

          Dense Storage/USB Design

          GIGABYTE's engineers have maximized the storage and external connection scope of this board with 10 SATA ports and 8 USB ports.

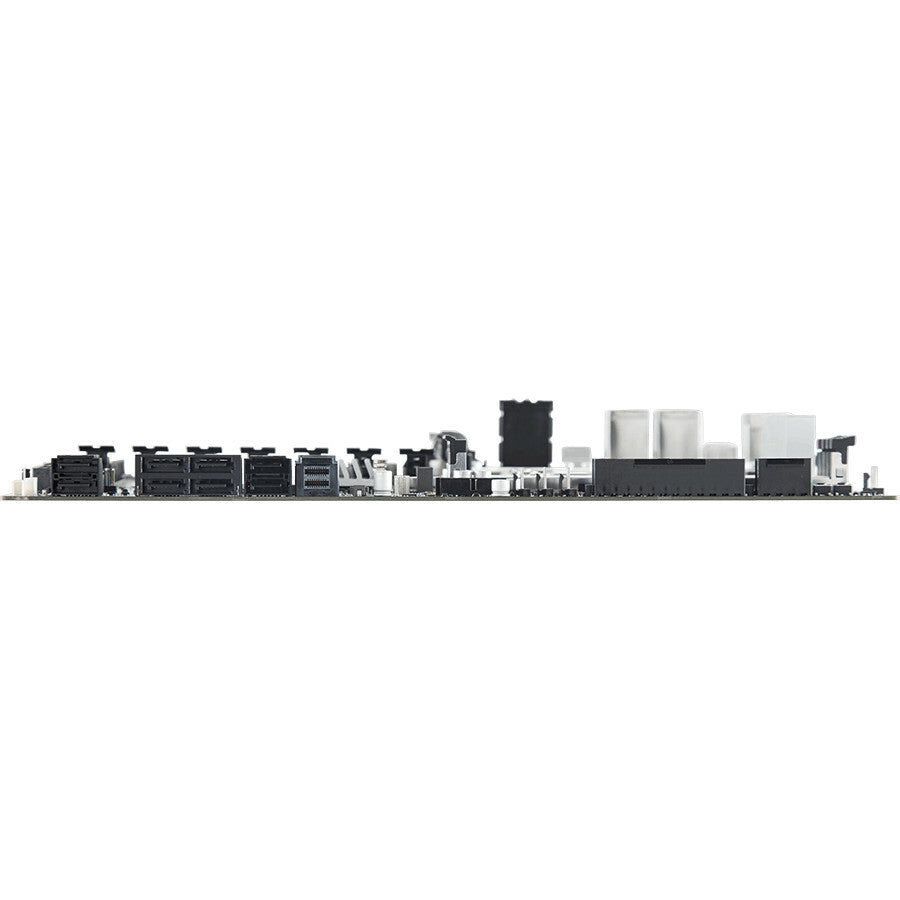

          SATA Ports

          • 8x SATA from the chipset
          • 2x 'GSATA' via the onboard Marvell 9172 SATA controller (from PCIe)

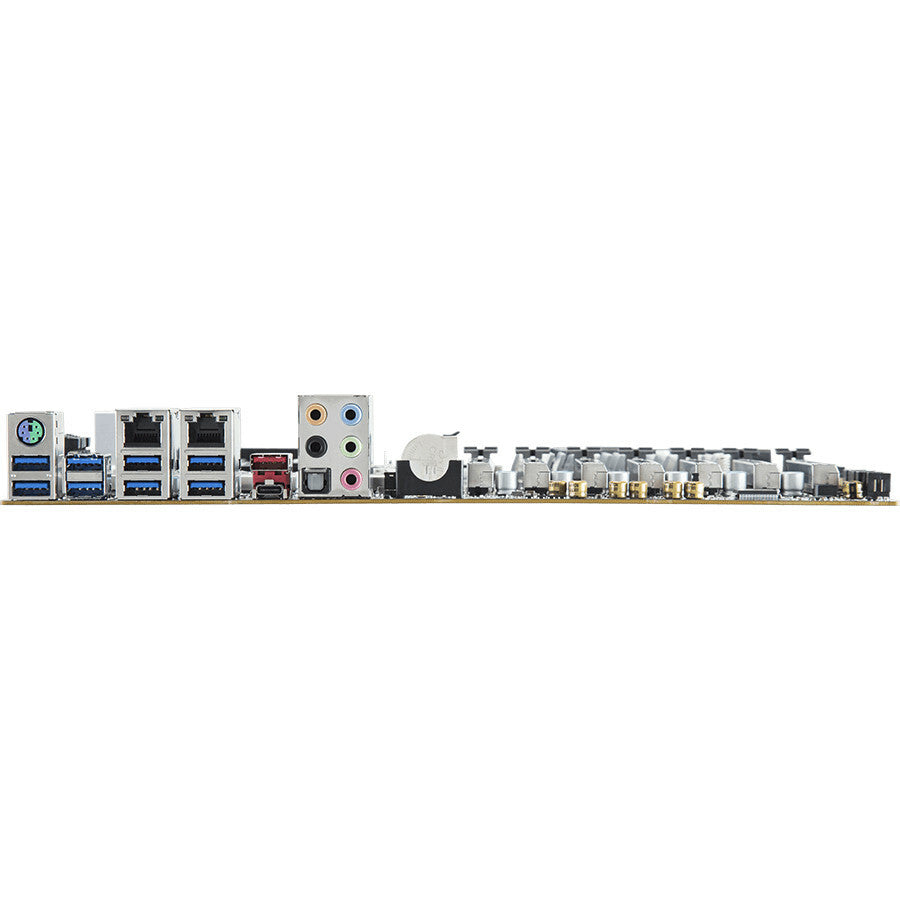

          USB Sockets

          • 8x USB 3.0
          • 2x USB 3.1 - one Type 'A' and one Type 'C'

          U.2 Connectors

          • Mini-SAS HD type
          • PCIe Gen3 x4 (NVMe) connection offering 32Gb/s for high-speed boot

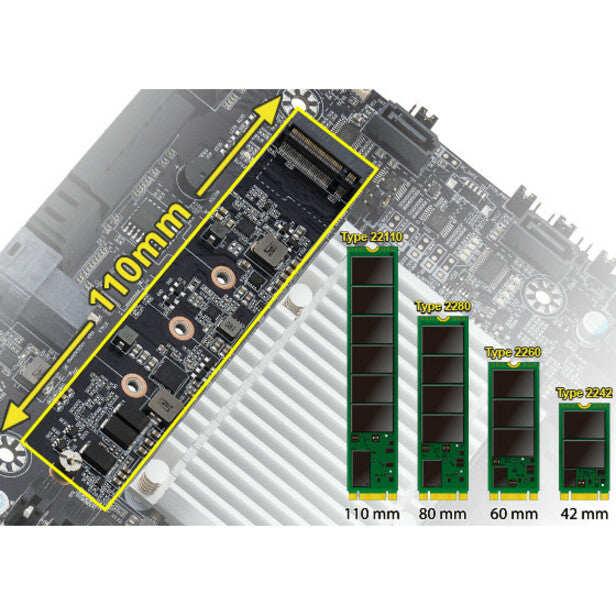

          Onboard M.2

          GIGABYTE's MW51-HP0 platforms are designed to support on-board 'M.2' storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks.

          Delivering up to 32 Gb/s data transfer speeds through a PCIe connection, M.2 offers users considerably faster storage performance than current mSATA devices.

          Compliant with four different M.2 form factors.

          TPM 2.0 Header

          GIGABYTE's MW51-HP0 platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

          VROC Module

          VROC Module Supplied For PCIe RAID Management

          • Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor

          • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput

          • Supported 10 RAID levels provide data reliability and fault tolerance

          • With 8 USB 3.0 port(s), transfer multiple or large files without any error

          • Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI CEB server motherboard

          Product Type: Server Motherboard
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Brand Name: Gigabyte
          Form Factor: SSI CEB
          Manufacturer: GIGABYTE Technology, Inc
          Product Model: MW51-HP0
          Product Name: MW51-HP0 (Rev. 1.0) Server Motherboard
          Manufacturer Part Number: MW51-HP0
          Manufacturer Website Address:
          Limited Warranty: 3 Year
