Fractal Design

Fractal Design Lumen S36 Aspect 12 Pwm X3 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S3601

Fractal Design Lumen S36 Aspect 12 Pwm X3 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S3601

SKU:FD-W-L1-S3601

Regular price $152.49
Regular price Sale price $152.49
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          • Mfr Part Number:FD-W-L1-S3601
          • Features:
            • Stealthy and illuminated looks controlled from your motherboard
            • Removable top turns at 90 for a horizontal logo in any orientation
            • Thermal paste is pre-applied to ensure a simple installation
            • Fits Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
            • Fits AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
            • Aspect fans for low turbulence and chaining support
            • Articulating elbow fittings make the tubes easier to route
            • Fittings reduce cold plate housing tension
            • Current certifications include Asus AURA, Gigabyte Fusion and more
            • Low permeability rubber tubes with braided nylon sleeve
          • Series:Lumen
          • Block Specifications:
            • Block Compatibility:
              - Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
              - AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
            • Block Height: 43 mm
            • Block Dimensions: 79 x 67 mm (with fittings)
            • Block Diameter: 67 mm
            • Block Material: Copper
            • Thermal Paste: Pre-applied
          • Pump Specifications:
            • Pump Bearing Type: Ceramic
            • Pump Noise Level:22 dBA
            • Pump Rotational Speed: 4000 +/- 10% RPM
            • Pump Max Pressure: 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
            • Pump PWM Control: No
            • Pump input voltage: 12V
            • Pump input current: 0.34A
            • Pump MTTF: 50,000 hours
            • Pump power cable length: 775 mm
            • Pump ARGB cable length: 500 mm
          • Fan Specifications:
            • Fans Included:3 x 120 mm
            • Fan Type:Aspect 12 PWM
            • Fan Dimensions: 120 x 120 x 25 mm
            • Fan Power Connector: 4-pin
            • Fan Color: Black
            • Fan LED:No
            • Fan Rotational Speed: 500 - 2000 RPM
            • Fan Bearing Type: Rifle
            • Fan Noise Level: <10 - 33.2 dBA
            • Fan Air Flow:13 - 56 CFM
            • Fan Static Pressure: 0.23 - 2.34 mm H2O
            • Fan input voltage: 12V
            • Fan input current (max):0.37A
            • Fan MTTF:90,000 hours
            • Fan Power Cable Length: 500 mm
            • Fan ARGB Cable Length: N/A
          • Tube Specifications:
            • Tube Length: 400 mm
            • Tube Material: Low-permeability rubber with braided nylon sleeve
            • Fittings, block side: Articulating 90-degree Elbow (fixed)
            • Fittings, radiatorside: Barbed fitting (fixed)
          • Radiator Specifications:
            • Radiator Dimensions: 392 x 120 x 27 mm
            • Radiator Material: Aluminum
            • Fan screw threads: UNC 6-32
          • Dimensions & Weight:
            • Package Dimensions: 448 x 205 x 137 mm
            • Package Weight: 2.2 kg

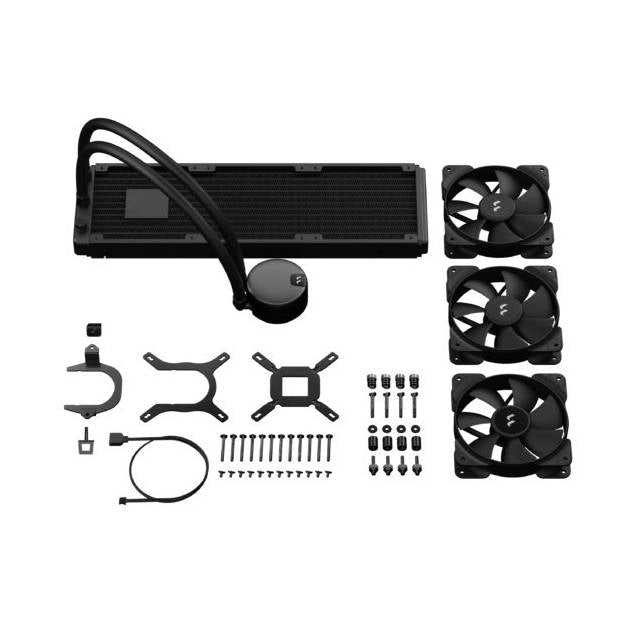

          • Package Contents:
            • CPU Cooler Assembly
            • Aspect PWM Black 120 mm fans x3
            • User Manual
            • Thumb screw x4
            • 6-32 Mounting Screw (short/long) x12
            • Bracket for Intel
            • Washer x4
            • Spacer x4
            • Intel 115X Backplate
            • Intel 115X Mounting Standoff x4
            • Intel 2011 Mounting Standoff x4
            • AMD Mounting Standoff x2
            • Bracket for AMD
            • 5V ARGB cable
          • Warranty:5 years

          Specifications :

          General Information

          UPC 843276103439
