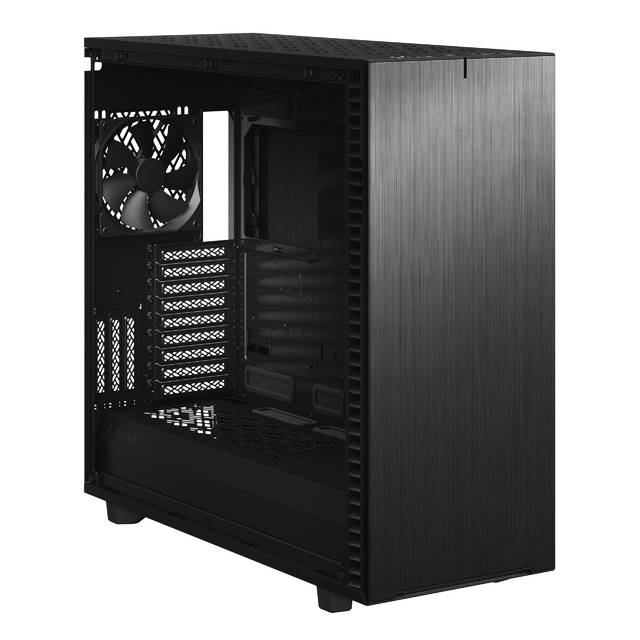

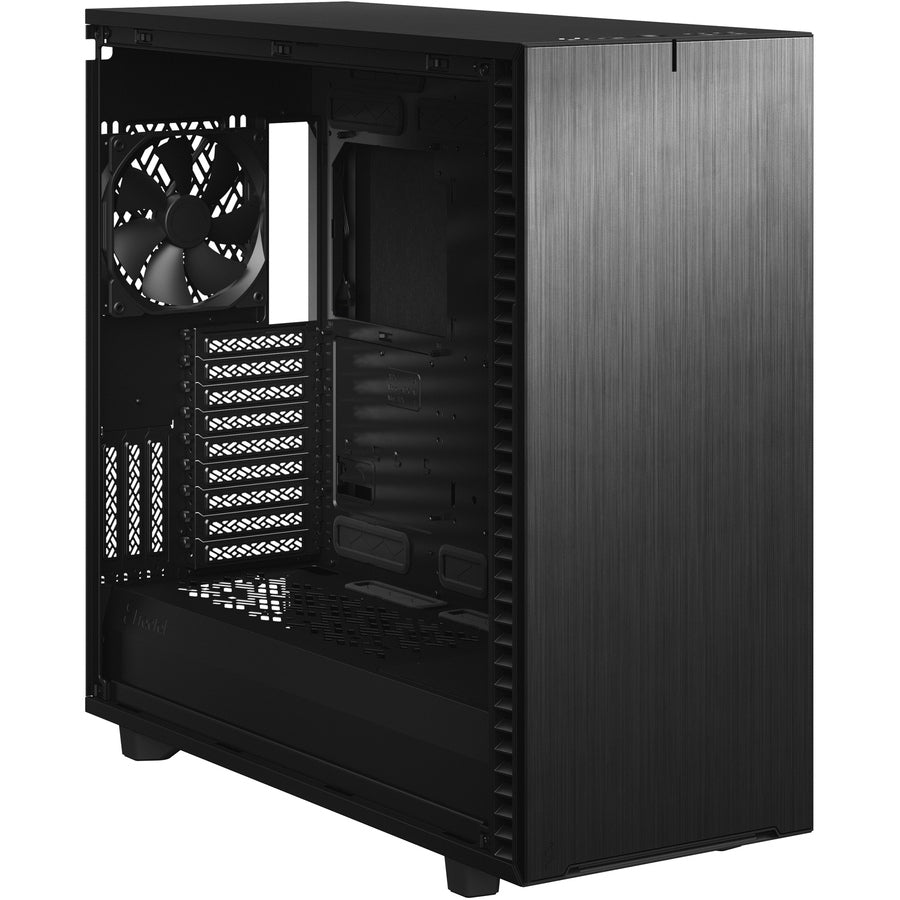

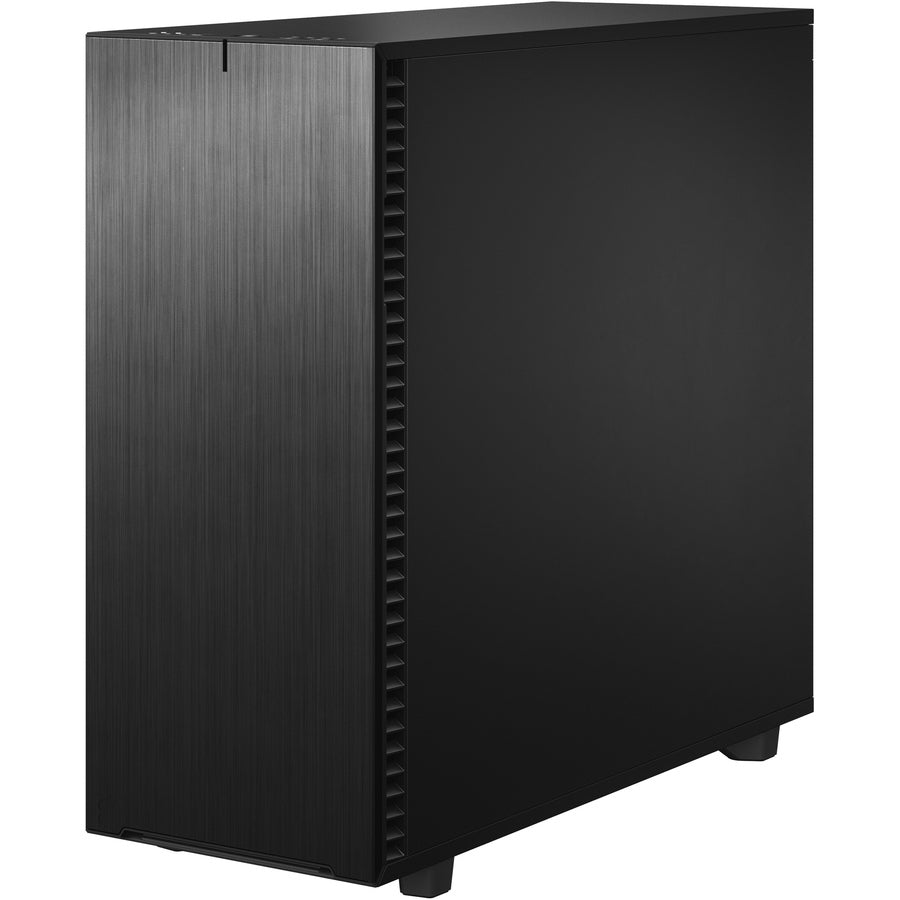

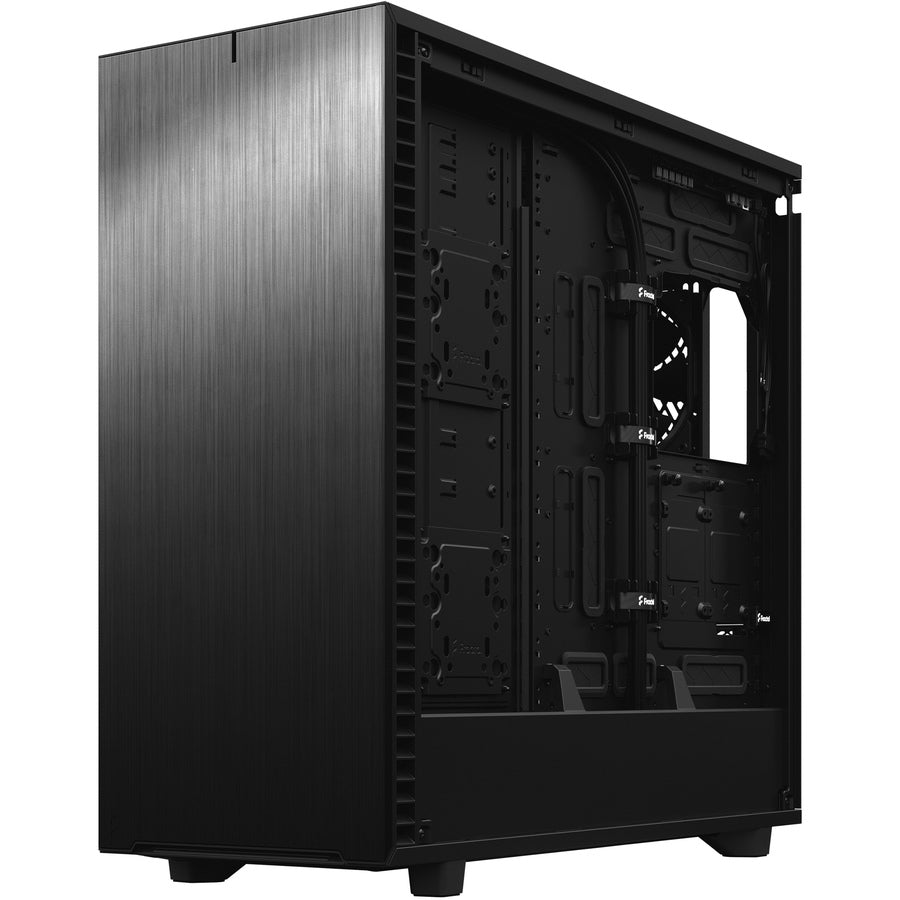

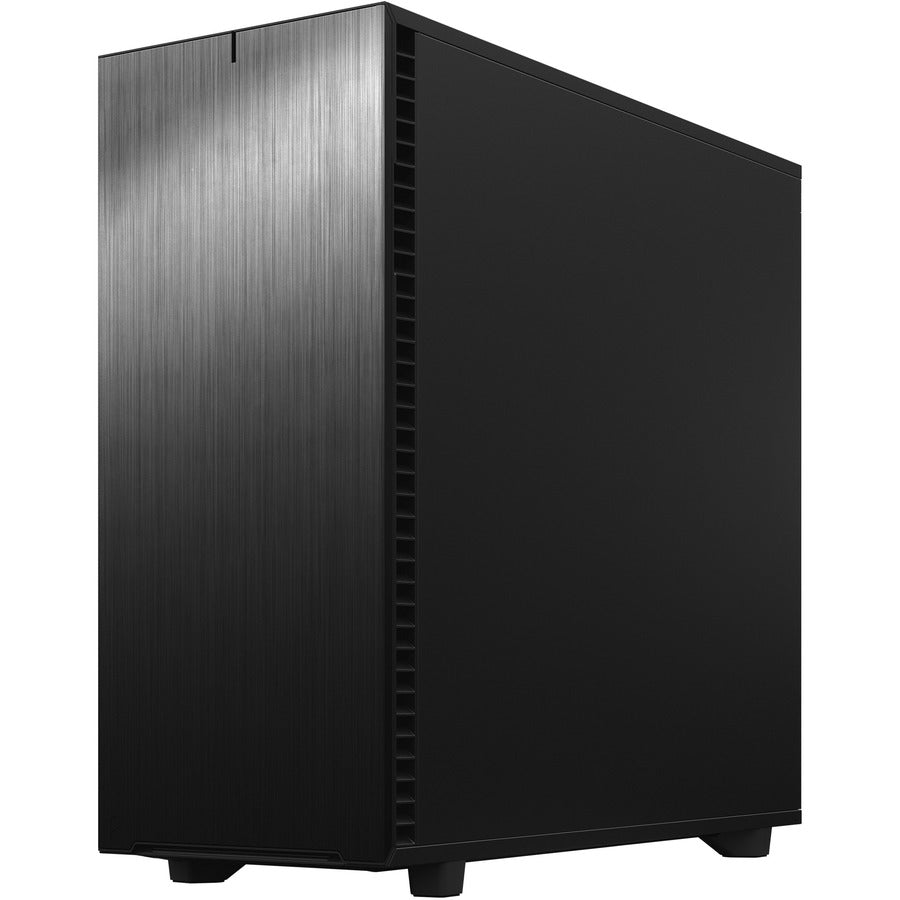

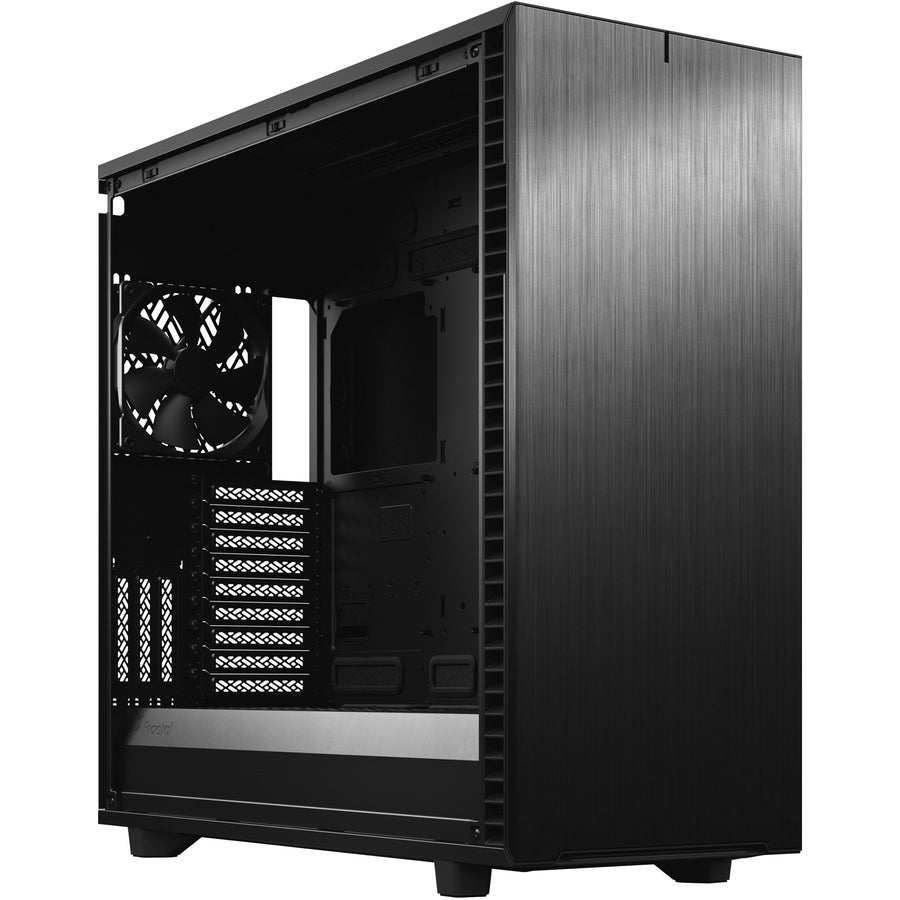

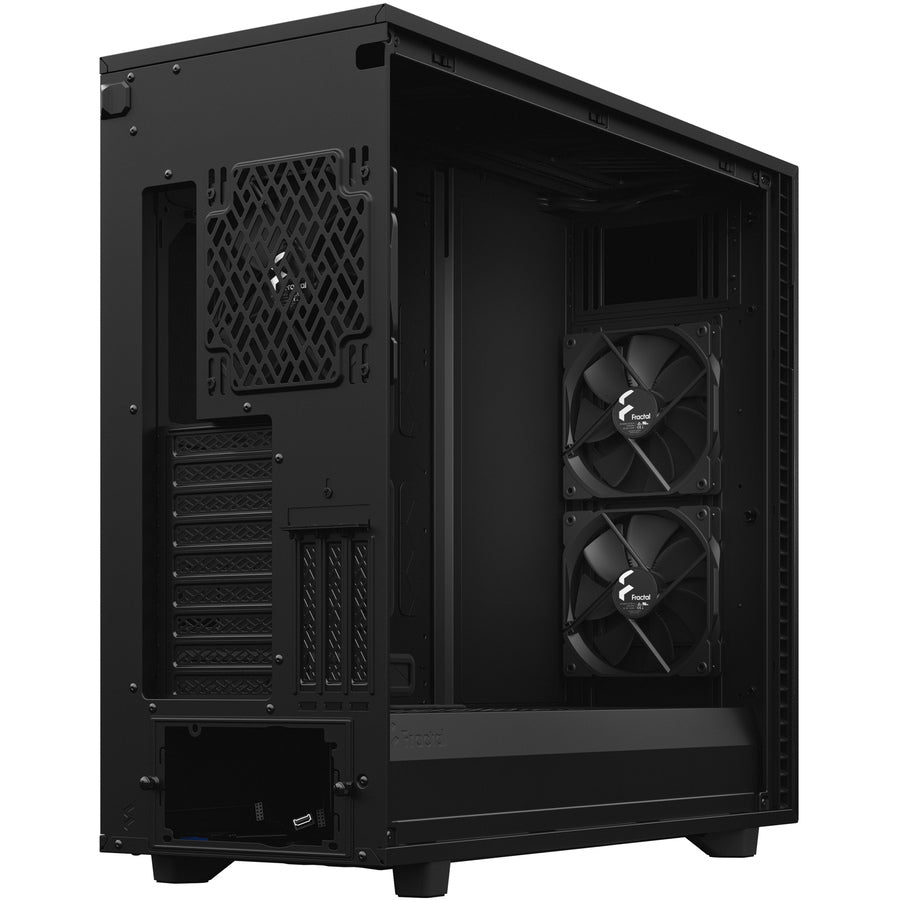

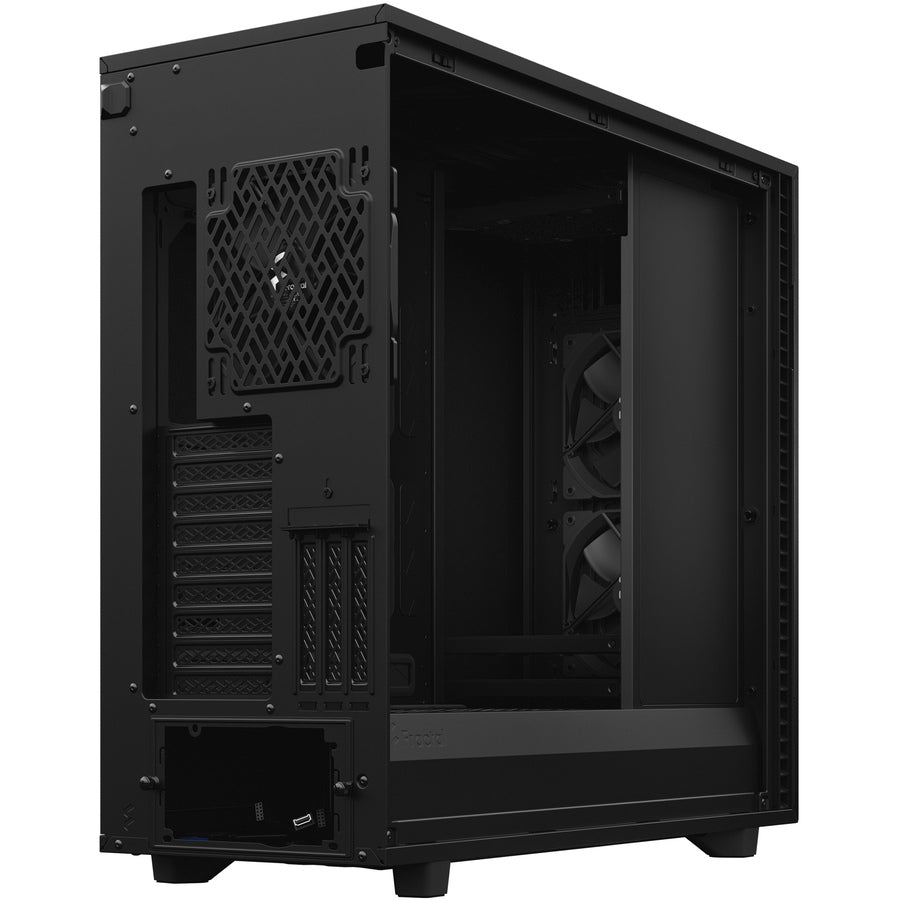

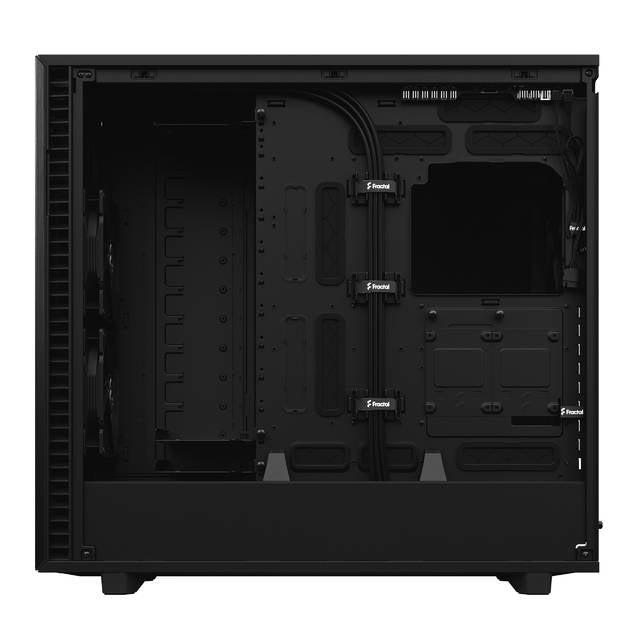

Name: Fractal Design Fd-C-Def7X-03 Define 7 Xl Black Tg Dark Tint /Brushed Aluminum/Steel E-Atx Silent
Brand: Fractal Design
SKU: FD-C-DEF7X-03
Price: 295.76 USD
Availability: InStock

Fractal Design Fd-C-Def7X-03 Define 7 Xl Black Tg Dark Tint /Brushed Aluminum/Steel E-Atx Silent

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email sales@tecisoft.com

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

Mfr Part Number: FD-C-DEF7X-03
Features:
- Dual-layout interior easily fits motherboards up to E-ATX and SSI-EEB

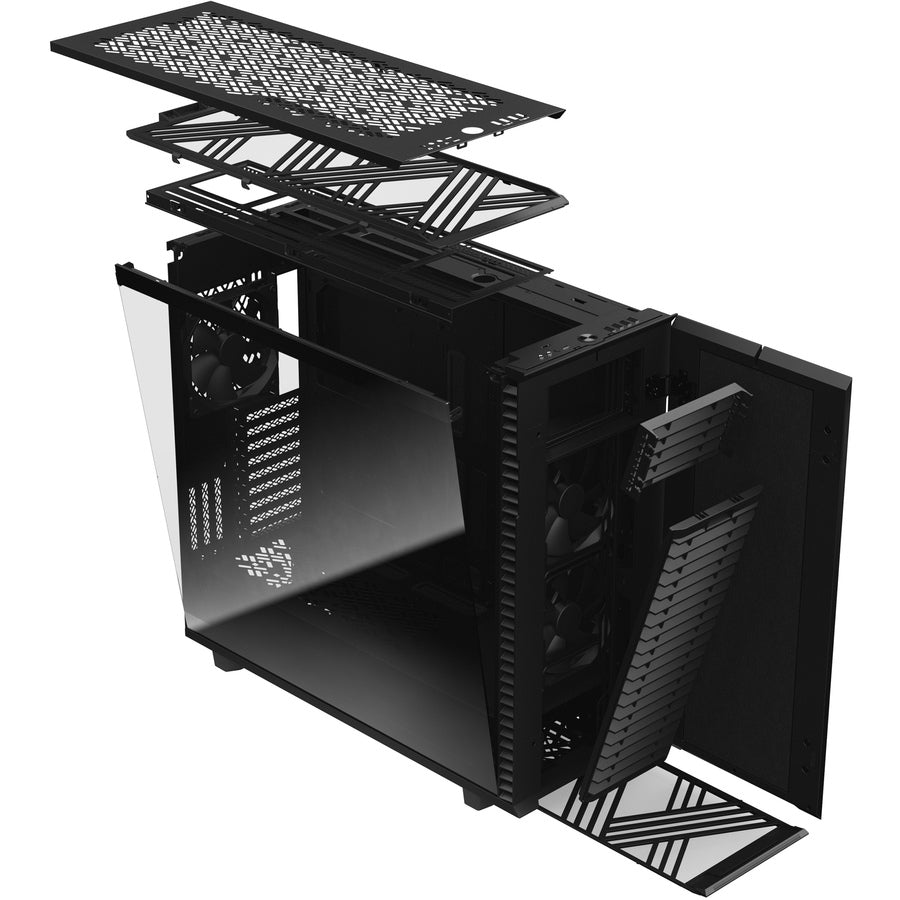

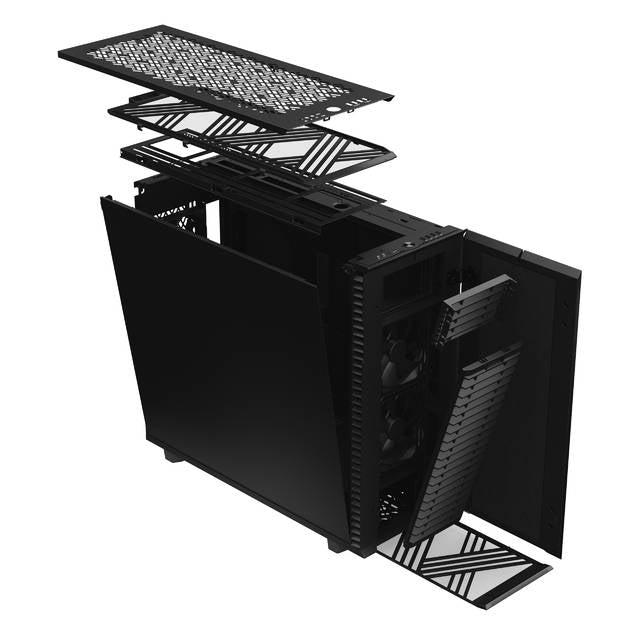

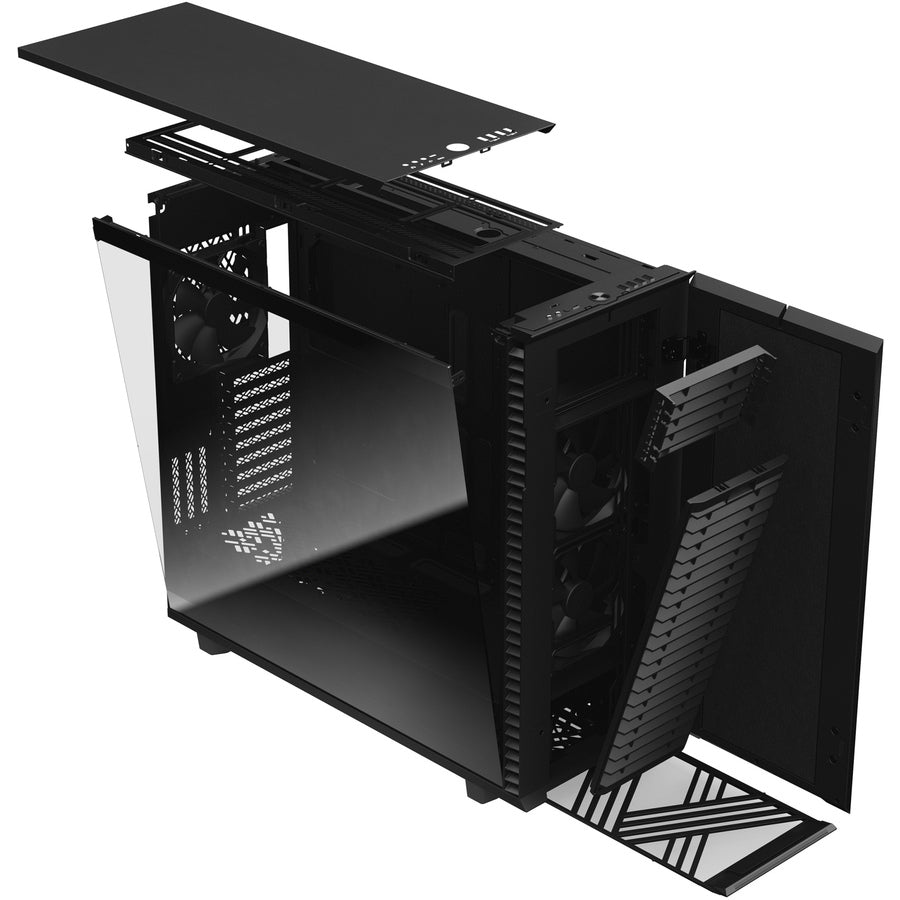

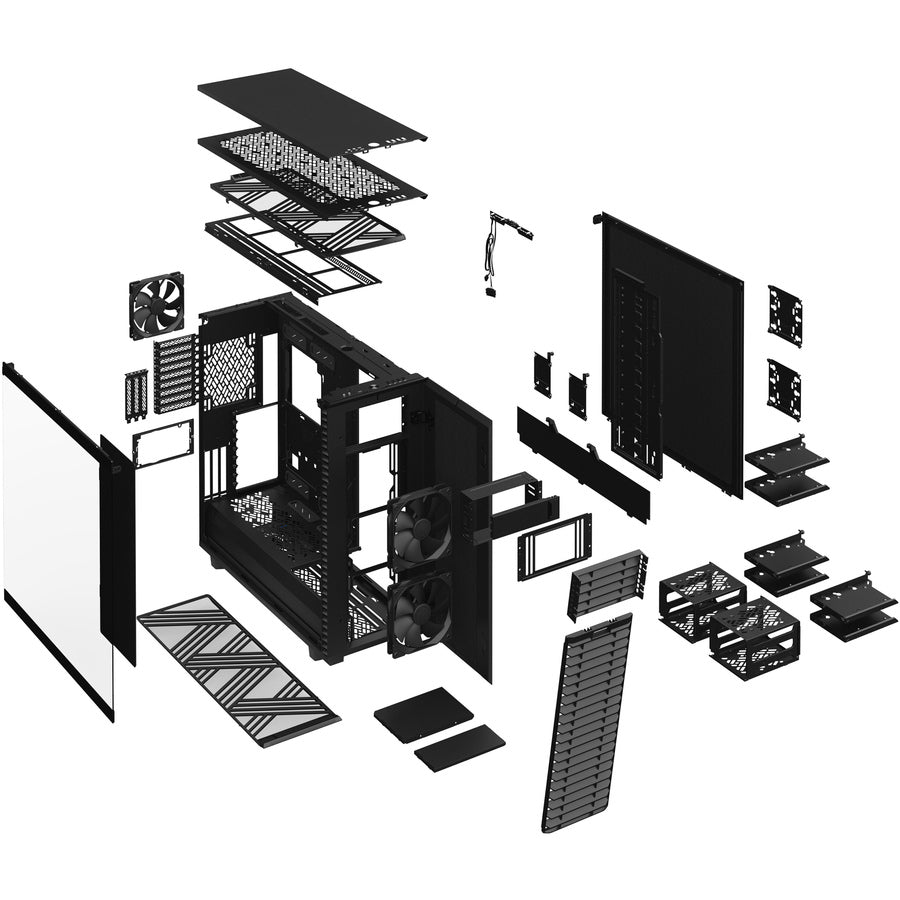

- New chassis design opens to fully expose the interior on three sides
- Supports up to 18 HDDs and 5 SSD mounts in default Storage Layout
- Exceptional water-cooling with radiators up to 480 mm, front or top
- Silence-optimized construction with industrial sound-damping
- Top panel effortlessly swaps from solid steel to filtered ventilation

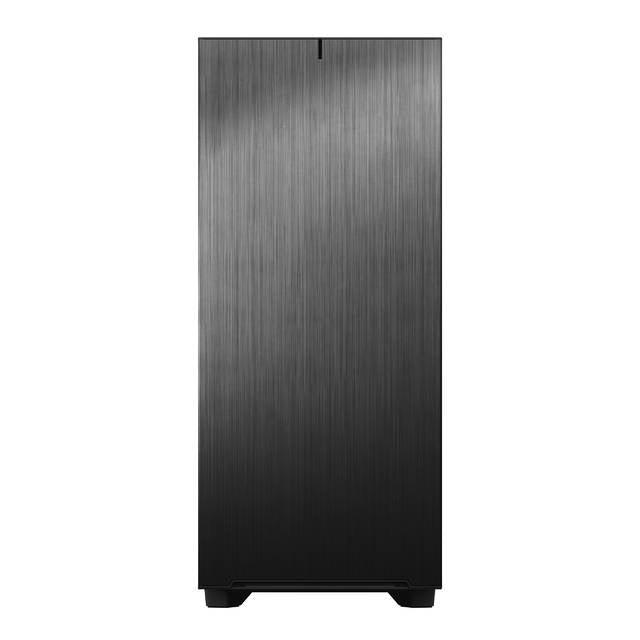

- Aluminum front panel with dual-handed hinges and magnetic latching
- 9 x 140 mm or 11 x 120 mm fan positions
- 3 x vertical slots for use with the Flex VRC riser (sold separately)

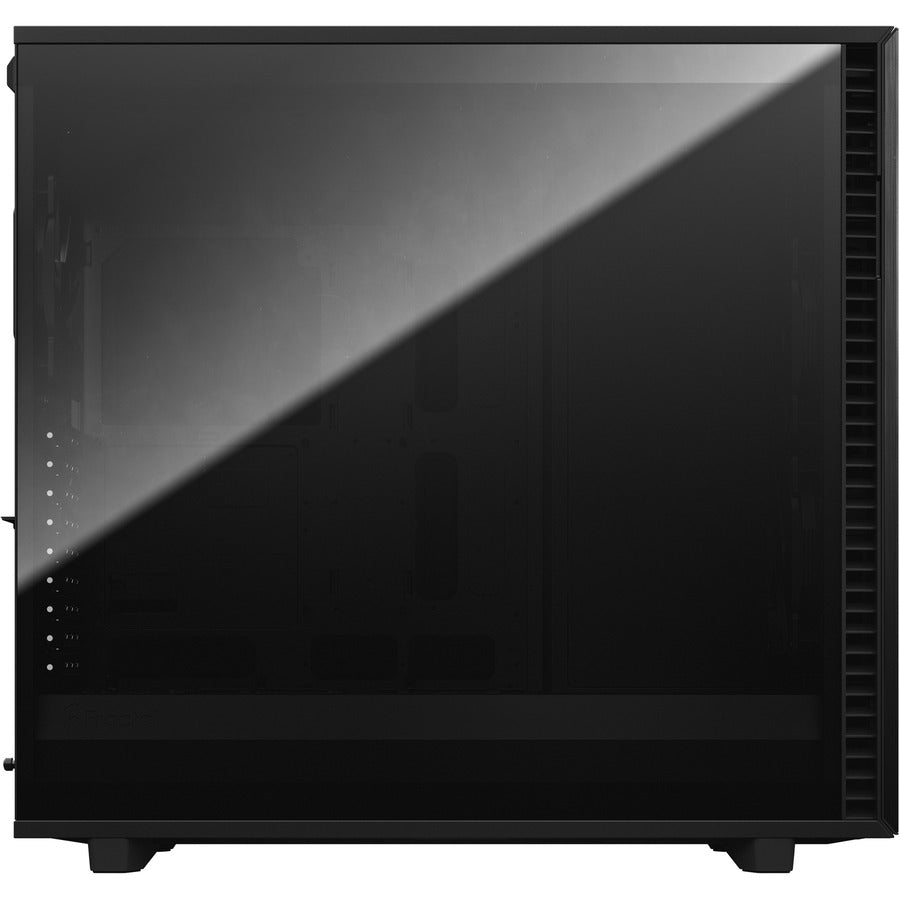

- Seamless dark-tinted TG panel with tool-less top-latching
Case Type:ATX Full Tower
Color:Black
Material:Steel
With Power Supply:No
Power Supply Mounted:Bottom
Power Supply:ATX
M/B Type:E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Side Panel Window: No
Drive Bays:
- External Bay:2x 5.25"
- Internal Bay:8x 3.5"8 positions total, 2x2.5"5 positions total
Expansion Slots:9+ 3vertical

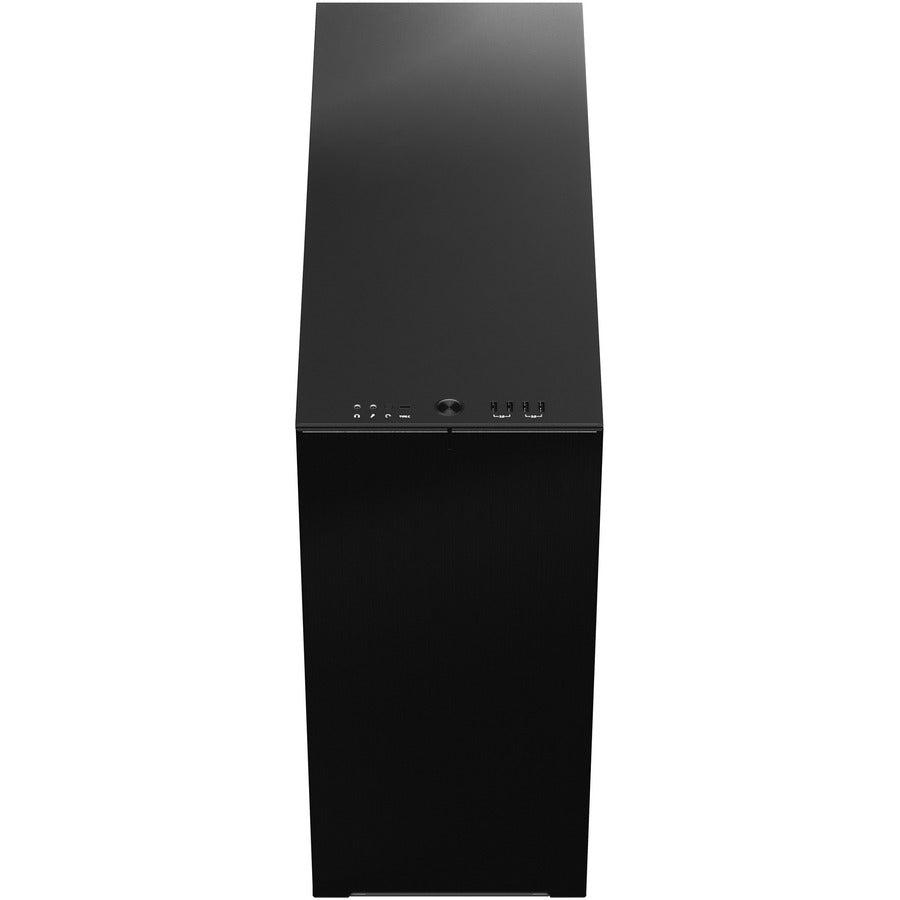

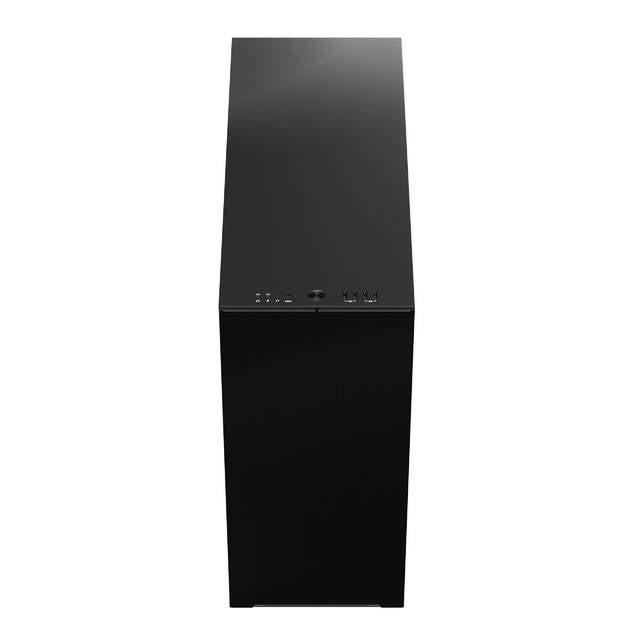

Front Ports:1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
Fan Options:
- Total fan mounts:11 x 120 mm or 9 x 140 mm
- Front:4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
- Top:4 x 120 mm or 3 x 140 mm
- Rear:1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
- Bottom:2 x 120/140 mm
Radiator Options:
- Front: Up to 480/420 mm
- Top: Up to 480/420 mm
- Bottom: Up to 240/280 mm
- Rear:120 mm
Dimensions & Weight:
- Max GPU Length: 549mm
- Max CPU Cooler Height: 185 mm
- Max PSU Length:250 mm (with HDD cage installed)
- Case Dimensions (LxWxH):604 x 240 x 566 mm;590 x 240 x 548 mm w/o feet/protrusions/screws
- Weight:16.64kg
- Package Dimensions (LxWxH):646 x 357 x 708 mm
- Package Weight: 18.84kg

General Information

Manufacturer	Fractal Design
Manufacturer Part Number	FD-C-DEF7X-03
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Define 7 XL
Product Name	Define 7 XL Black TG Dark Tint
Product Type	Computer Case
UPC	843276102067

Total Number of USB Ports	5

Product Color	Black
Height	22.3"
Width	9.4"
Depth	23.8"
Weight (Approximate)	36.68 lb

Miscellaneous

Package Contents	Define 7 XL Black TG Dark Tint Accessory Box User Manual Ventilated Top Panel ODD Bracket ODD Bay Cover 2 x HDD/SSD Trays

Warranty

Limited Warranty	2 Year
