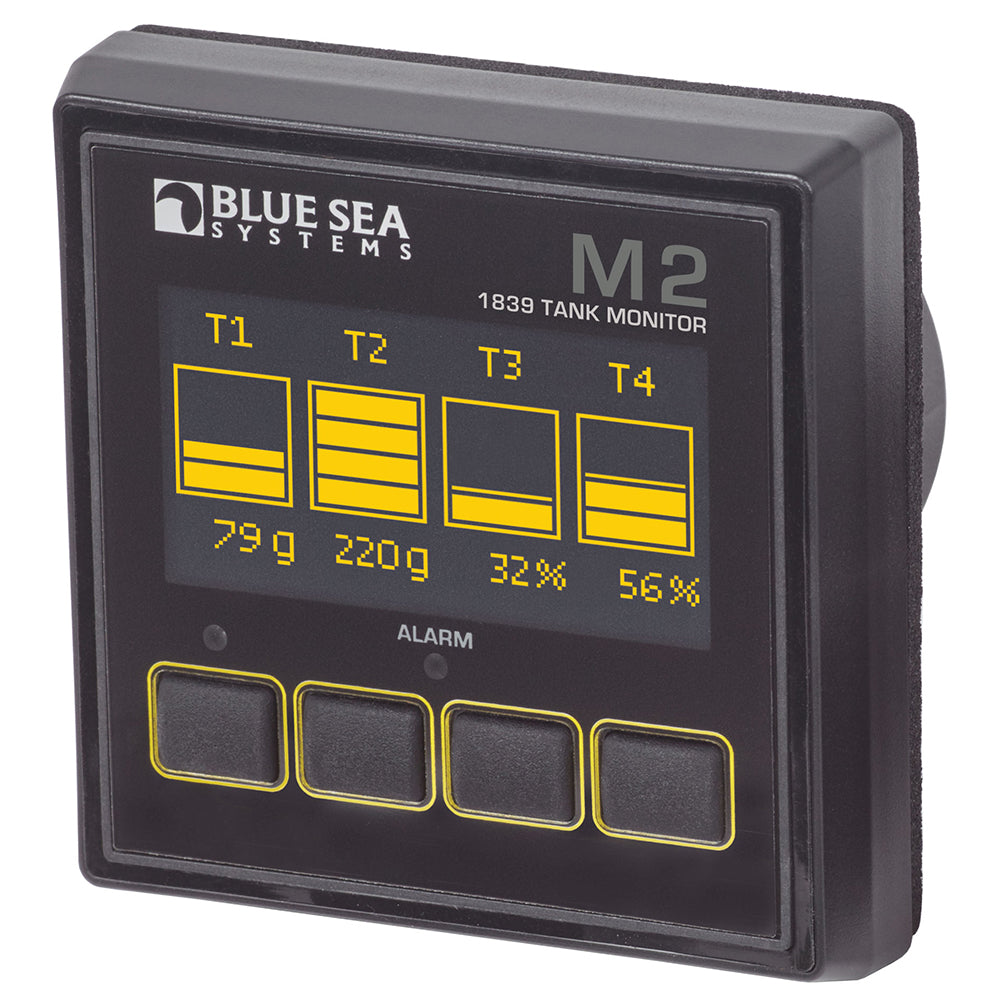

Blue Sea 1839 M2 OLED Tank Monitor
Blue Sea 1839 M2 OLED Tank Monitor
SKU:64341-cwr
Regular price
$364.20
Regular price
Sale price
$364.20
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
M2 OLED Tank MonitorThe M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
Features:
- Auto-dimming, bright Organic LED display is easy to read
- 80dB alarm on all models
- Isolated 500mA MOSFET relay
- Includes external DC Shunt or AC Current Transformer when required
- Intuitive tank level monitoring
- Monitor up to 4 tanks
- Auto calibration for unique tank shapes
- Compatible with common sending units
Specifications:
- Meter: Tank
- Function: Monitors tank volume in up to 4 tanks
- Resolution: 1%
- Display Size: 55mm x 28mm
- Input Voltage: 7-70V DC - Variable with voltage, display intensity, and sleep mode
- Range: 0.3W-1.0W
- Tank Alarms: 80dB
- Tank Shapes: Custom shapes, auto calibration
- Weight: 0.25lb (0.11 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Installation Guide | View (pdf) |
| Video | View (video) |
Specifications :
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 1839 |
| Product Type | Electrical | Meters & Monitoring |
| UPC | 632085018399 |
