Black Box Hdmi Edid Ghost

Description :

Black Box HDMI EDID Ghost
Frequently, the graphics card in one of your source devices can't read the top resolution supported by an attached display. For example, there may be a KVM switch in between the source and the display.

In that case, it will output video at a default or native resolution that could be lower than what the display is capable of.

In a PC, you could go into the video settings table and change the video output to match the display, if you even know this information. But that's not exactly a plug-and-play solution.

This is where the value of a device that supports EDID comes in. EDID provides for optimal source-to-screen performance.

EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display.

The unit works with a variety of devices, such as Blu-ray DVD players, game consoles, HD set-top boxes, LCD displays, and digital TVs.

• Records and stores up to 15 different sets of EDID data.


• Three separate modes: PC mode, AV mode, and memory mode.

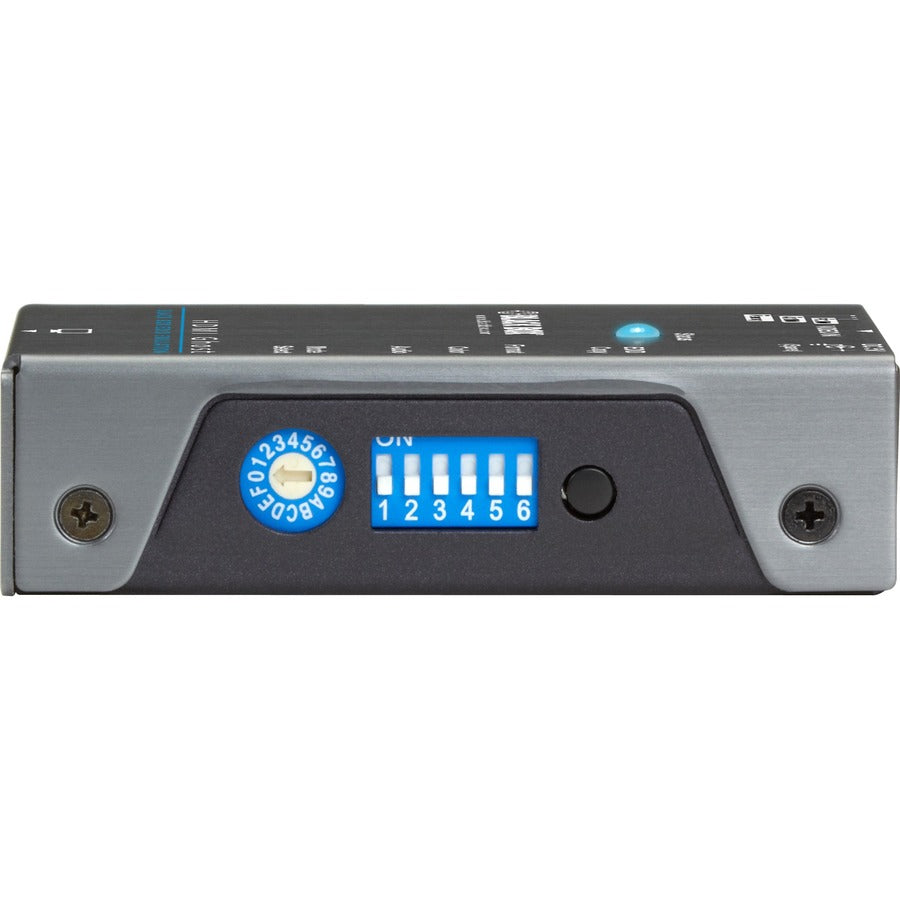

• Built-in rotary switch enables you to manually select and compare video resolutions.


• Unique Audio Inventory feature provides two-channel, 5.1 Channel, and 7.1 Channel audio EDID learning; ideal for home theater applications.


• EDID learning functionality prevents computers from deactivating ports.


• Supports resolutions up to 1920 x 1080.


• Displays either the default or the copied EDID for connected displays.


• Ghost function saves the EDID of your displays and enables the source to boot with the correct settings.


• Learns EDID data from a display and ensures that your video source conforms to optimal resolution settings.

Product Type: Video Emulator
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: External
Manufacturer: Black Box Corporation
Product Name: HDMI EDID Ghost
Manufacturer Part Number: VG-HDMI
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• HDMI EDID Ghost


• USB Power Cable


• CD with User's Manual


• Foot Pad Set
