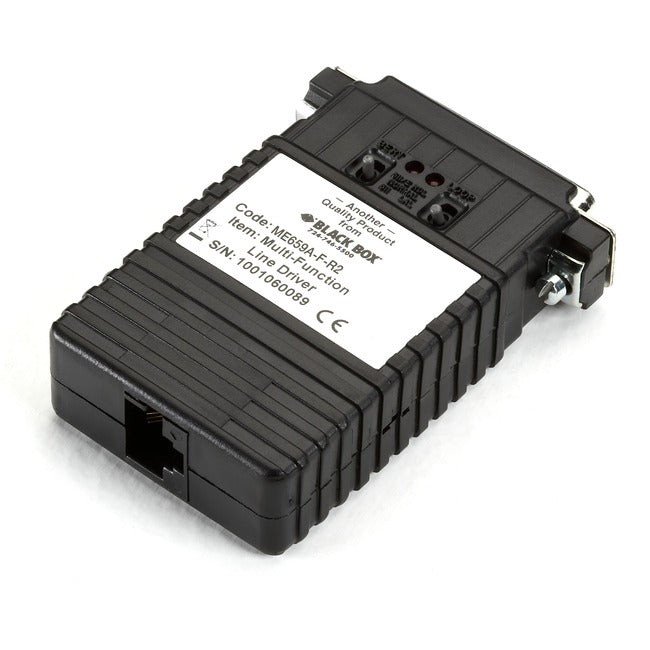

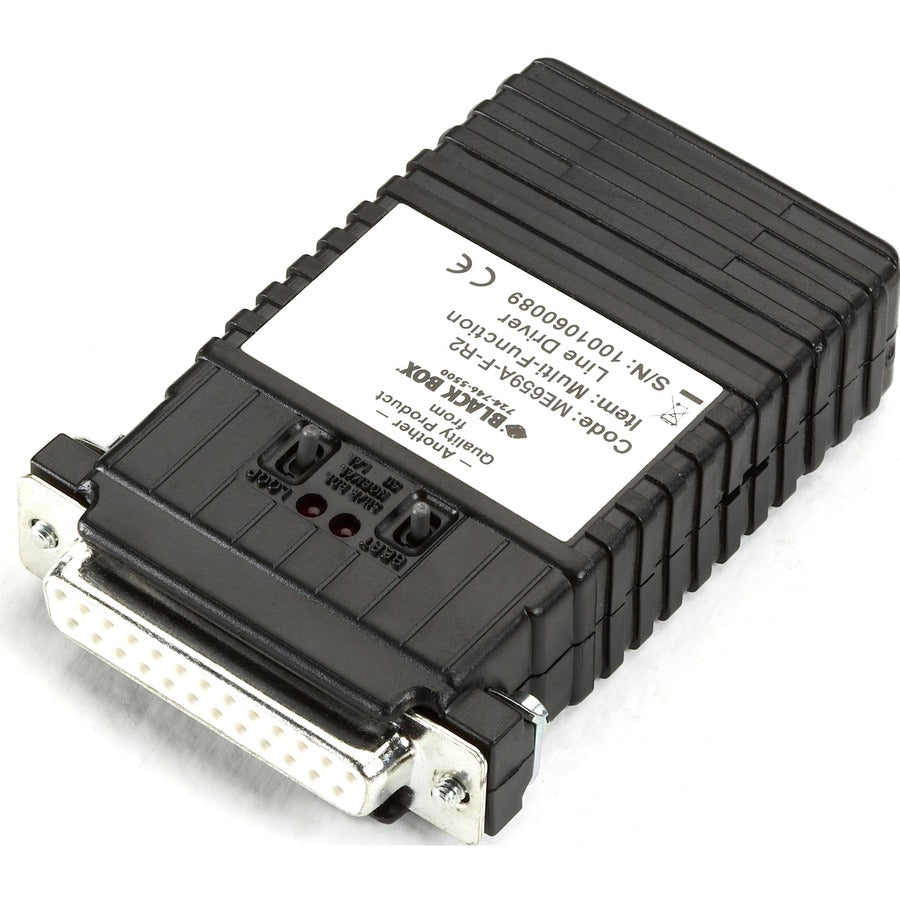

Black Box Async/Sync RS232 Extender over CATx - DB25 Female to RJ-11/RJ-45/Terminal Block ME659A-F-R2

Description :

Black Box Async/Sync RS232 Extender over CATx - DB25 Female to RJ-11/RJ-45/Terminal Block

• Nonpowered, so you can install it where it's most convenient.
• Supports RJ-45, RJ-11, and terminal block connections.
• Internal, external, or receive loopback clocking in sync mode.
• V.54 loopback and V.52 BERT pattern generator.
• Built-in LEDs enable you to monitor test mode operation.
• Transformer isolation and surge protection guard against data loss.
• Automatic line equalization.

The Universal Sync/Async Short-Haul Modem gives you the flexibility to use it in almost any UTP or STP application. It's non-powered to you can use it almost anywhere without worrying about power. It provides data rates up to 38.4 Kbps and distances up to 12 miles (19.3 km.). In synchronous mode, the SHM supports internal, external, or receive loopback clocking.

The SHM incorporates two V.54 and two V.52 BER test modes, which can be activated via the RS-232 interface. Monitor test mode operation via the built-in LEDs. The SHM also has transformer isolation and surge protection to guard against data loss. It's designed to plug directly into the RS-232 interface. The UTP or STP cable is connected via RJ-11, RJ-45, or a terminal block.

• Supports RJ-45, RJ-11, and terminal block connections.


• Interface powered by data and handshake signals no AC power required


• full or half duplex


• V.52 & V.54 test modes


• Internal, external, or receive loopback clocking in sync mode.


• Synchronous or asynchronous operation


• Supports data rates up to 38.4 kbps


• Two-wire/half duplex or four-wire

Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Async/Sync RS232 Extender over CATx - DB25 Female to RJ-11/RJ-45/Terminal Block
Manufacturer Part Number: ME659A-F-R2
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
