- AMD A320

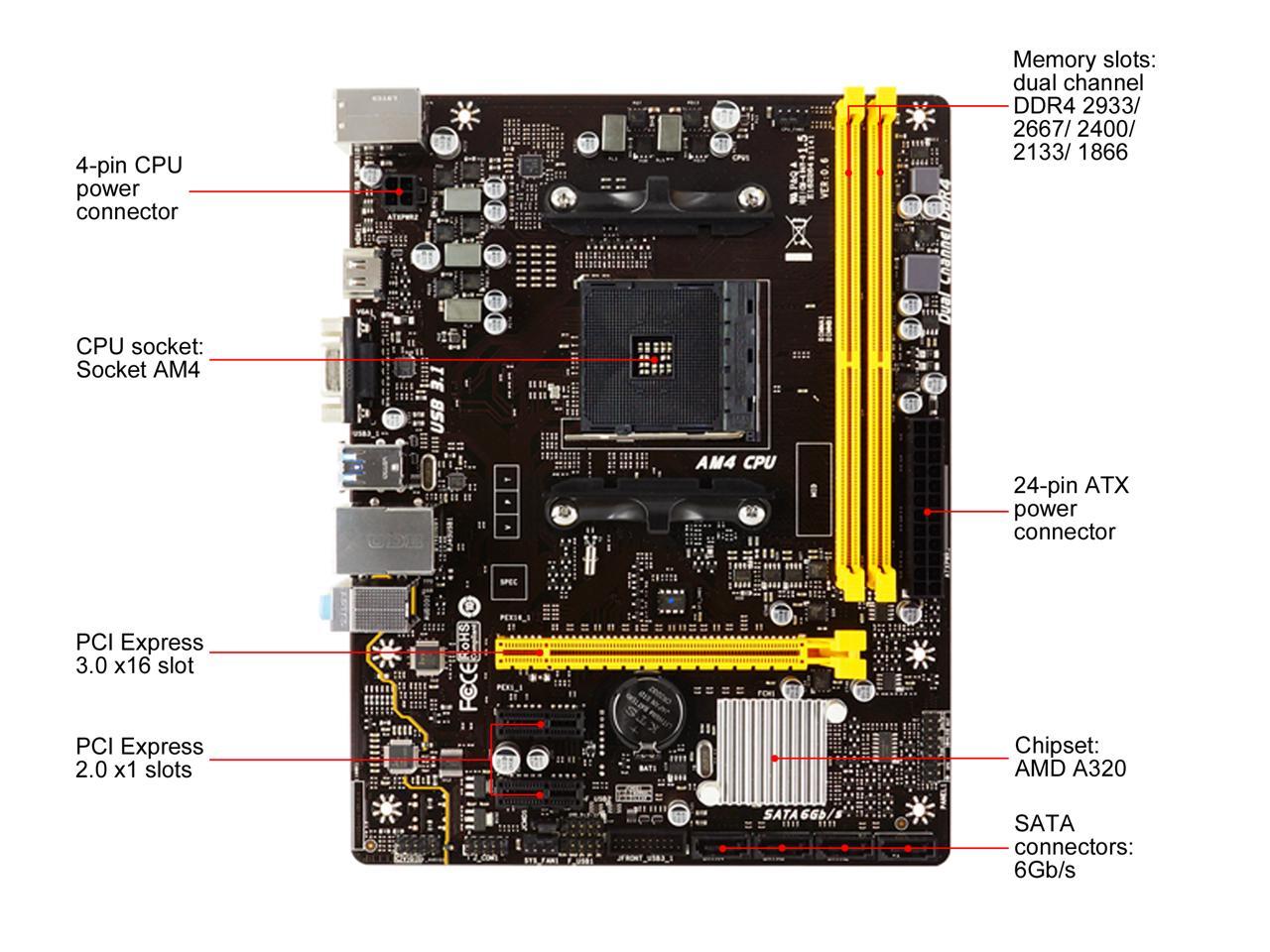

- Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen / 2nd and 1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / 7th Gen A-Series/Athlon X4 Processors
- DDR4 2933/ 2667/ 2400/ 2133/ 1866 MHz
- Support Non-ECC & ECC Un-buffered DIMM Memory modules

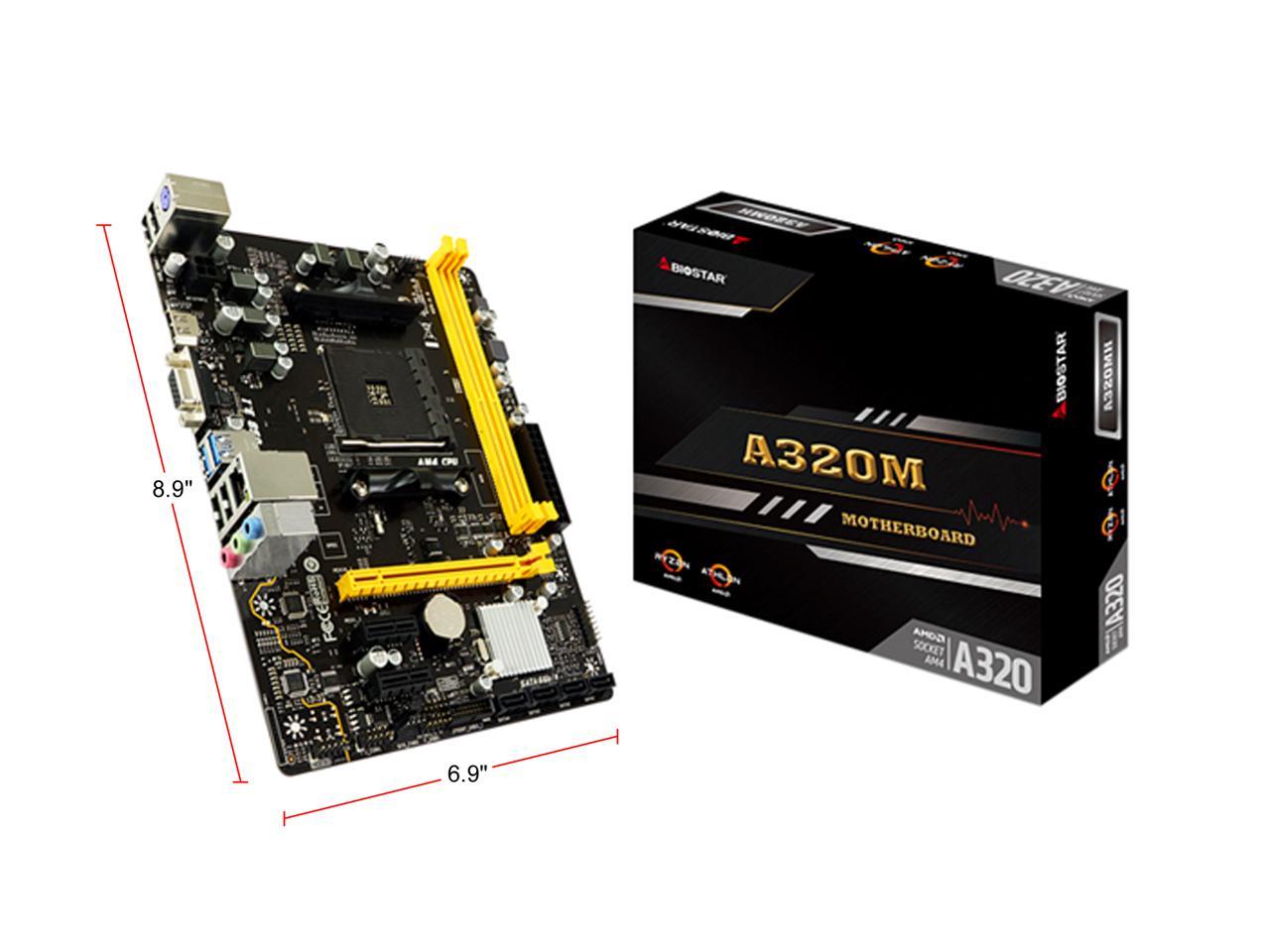

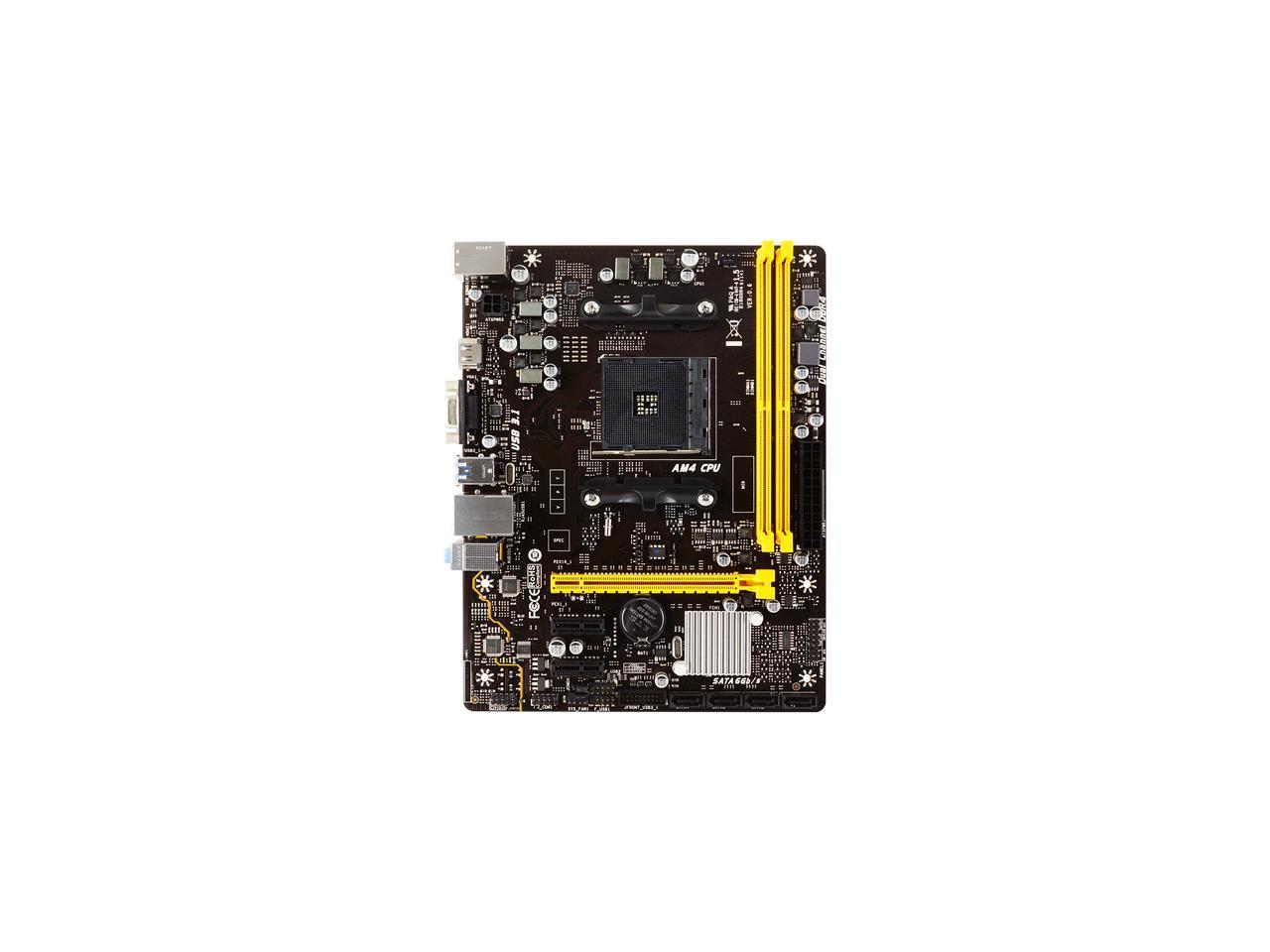

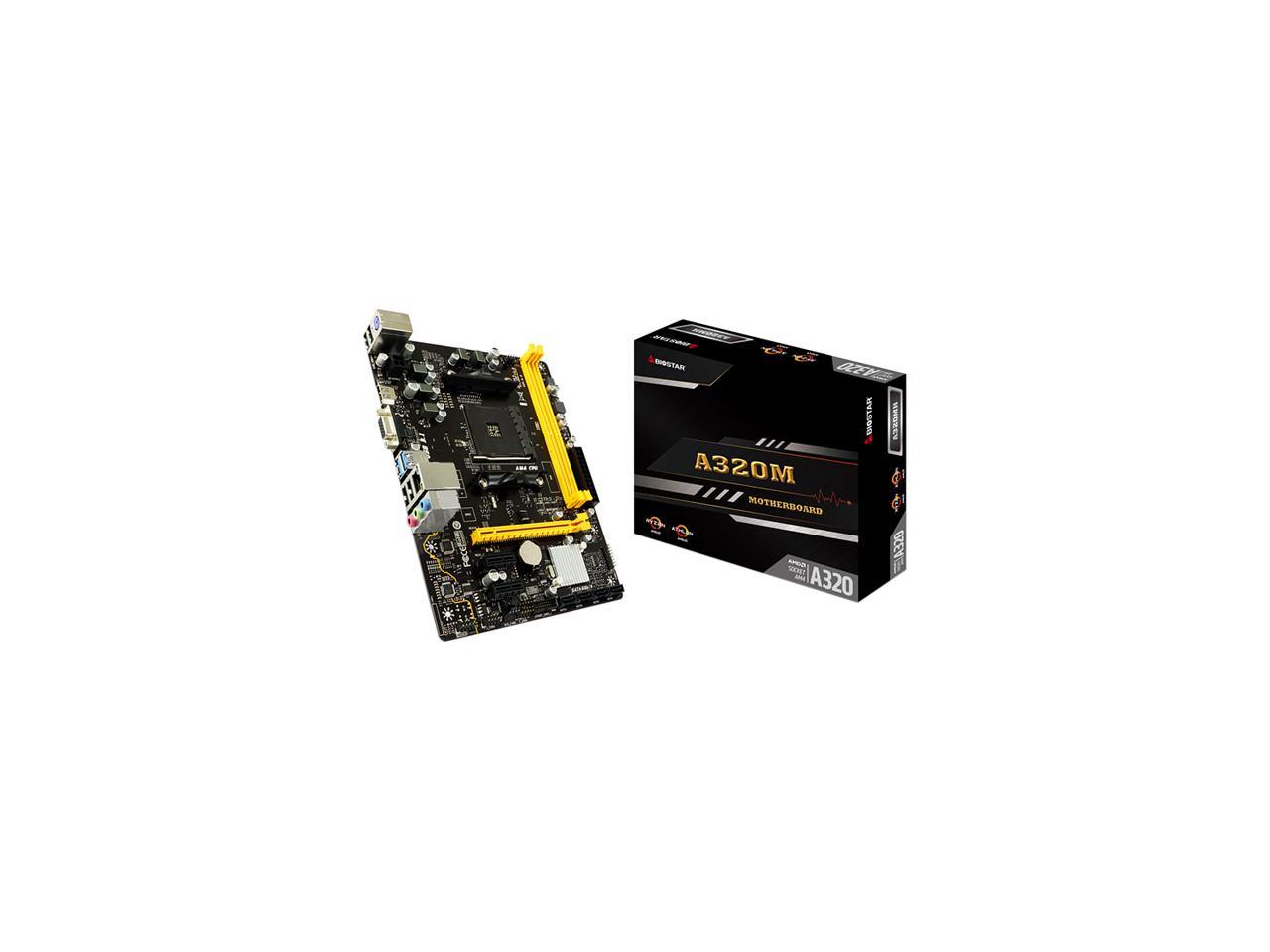

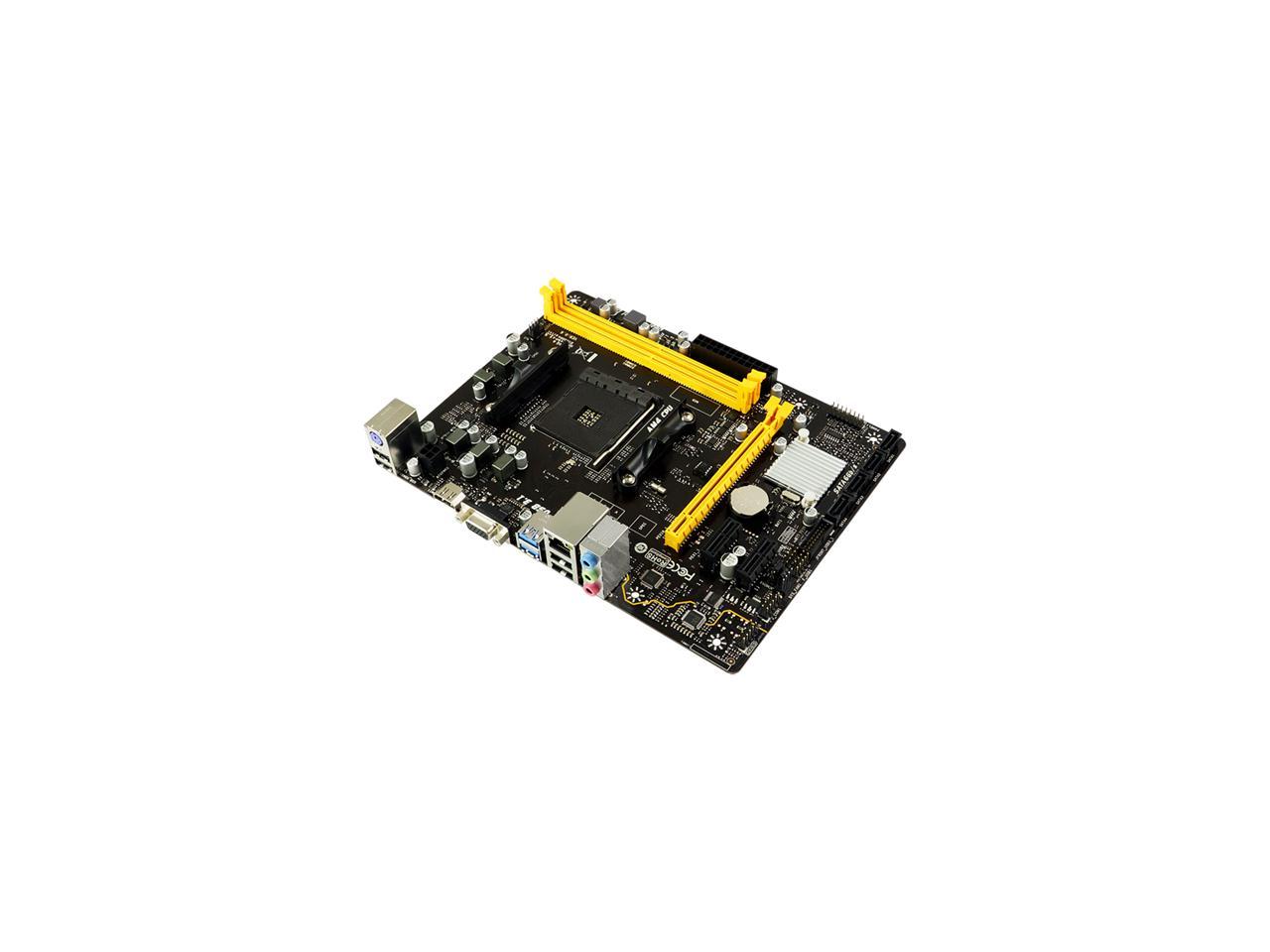

Biostar A320MH

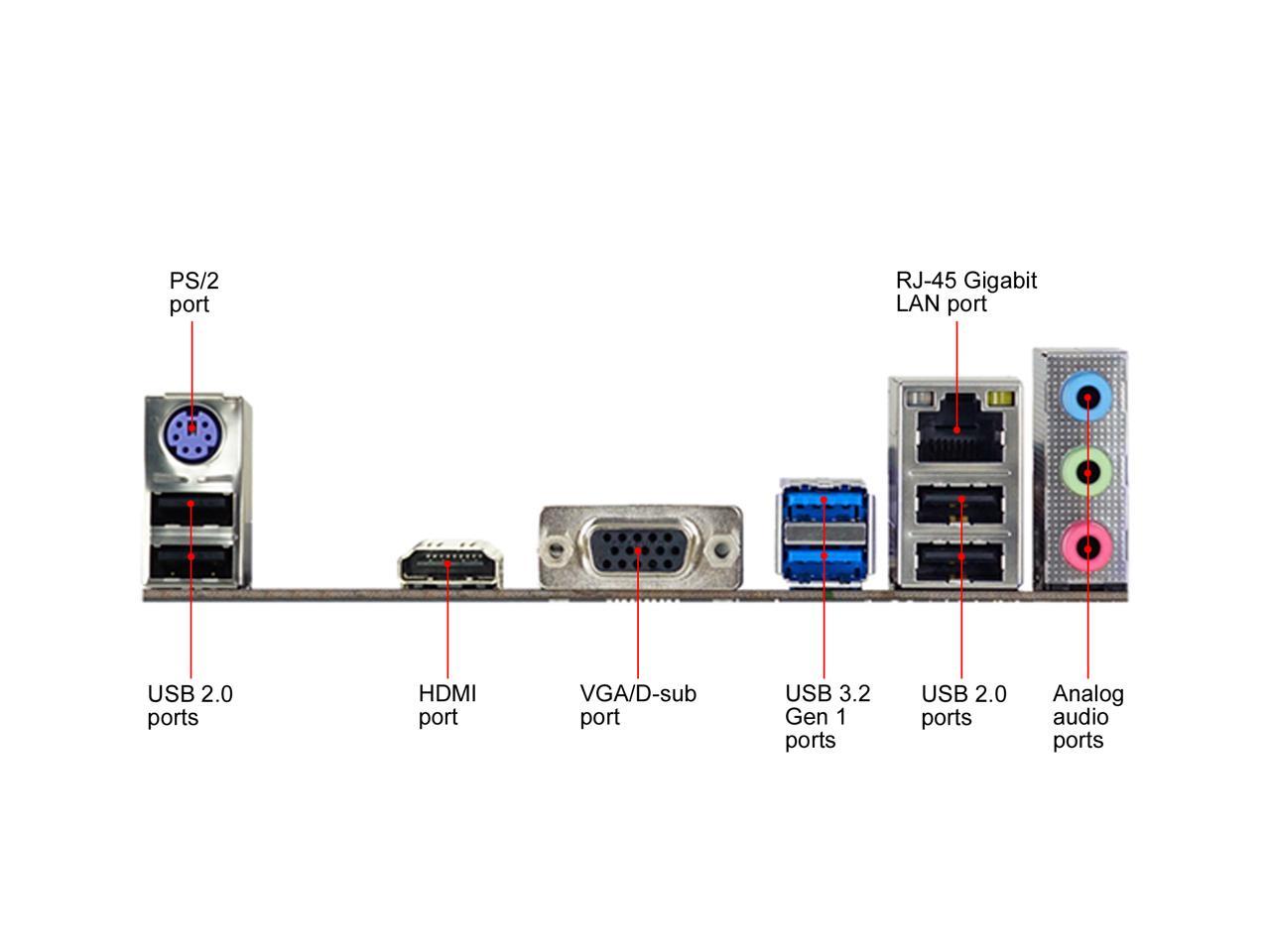

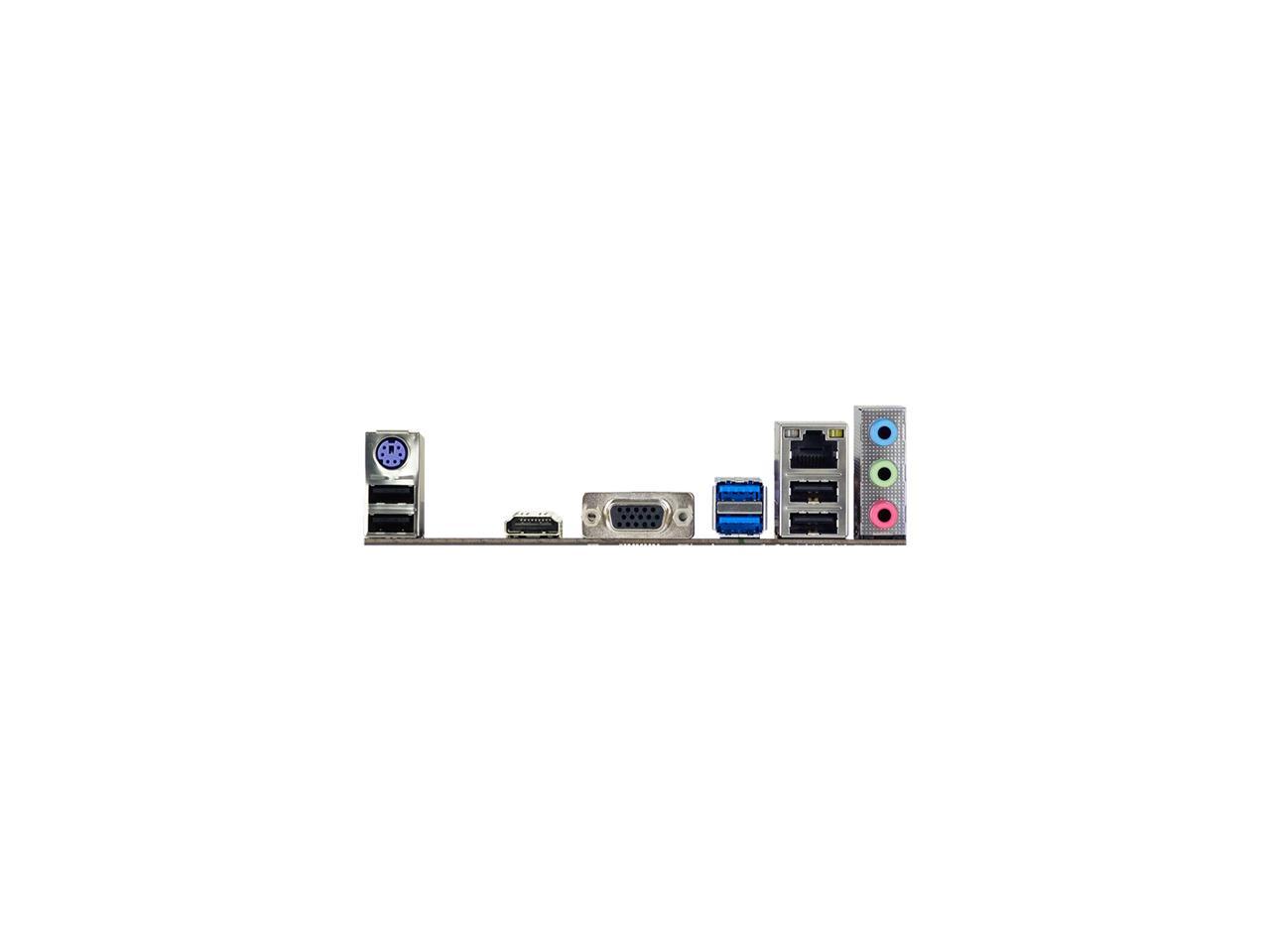

A budget-friendly motherboard that offers a great entry point for you to enjoy the performance and features of 3rd/2nd/1st generation AMD Ryzen processors. This micro ATX motherboard is built using premium quality components, features contrasting yellow slots on black PCB, and comes with OC / OV / OH / ESD / USB protection to safeguard your components. An HDMI and a VGA outputs offer compatibility with both new and legacy display devices.*
* Processors with integrated graphics are required to use onboard video outputs.
AMD A320 chipset
AMD's A320 chipset provides a simple, stable platform and more than enough connectivity and bandwidth options to satisfy both demanding home users and media aficionados.
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
PCIe Gen 3.0
PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD. 4K2K display faithfully expresses bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
Moistureproof of PCB
The popularity of PC usage and working environment is getting deteriorating and moist (rural, coastal, etc.). The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moisture-proof PCB meets high density and high reliability requirements for moisture proof.
Low RdsOn P-Pak MOS
Low resistance design can significantly reduce the current out of energy loss. Low temperature, small size, excellent thermal conductivity.
100% Solid Caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices connect to a PC, which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS.
USB Polyswitch
On board dedicated power fuse to help prevent USB port failure. It prevents USB Port overcurrent and safe guard your system and device lifespan.
OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system.
