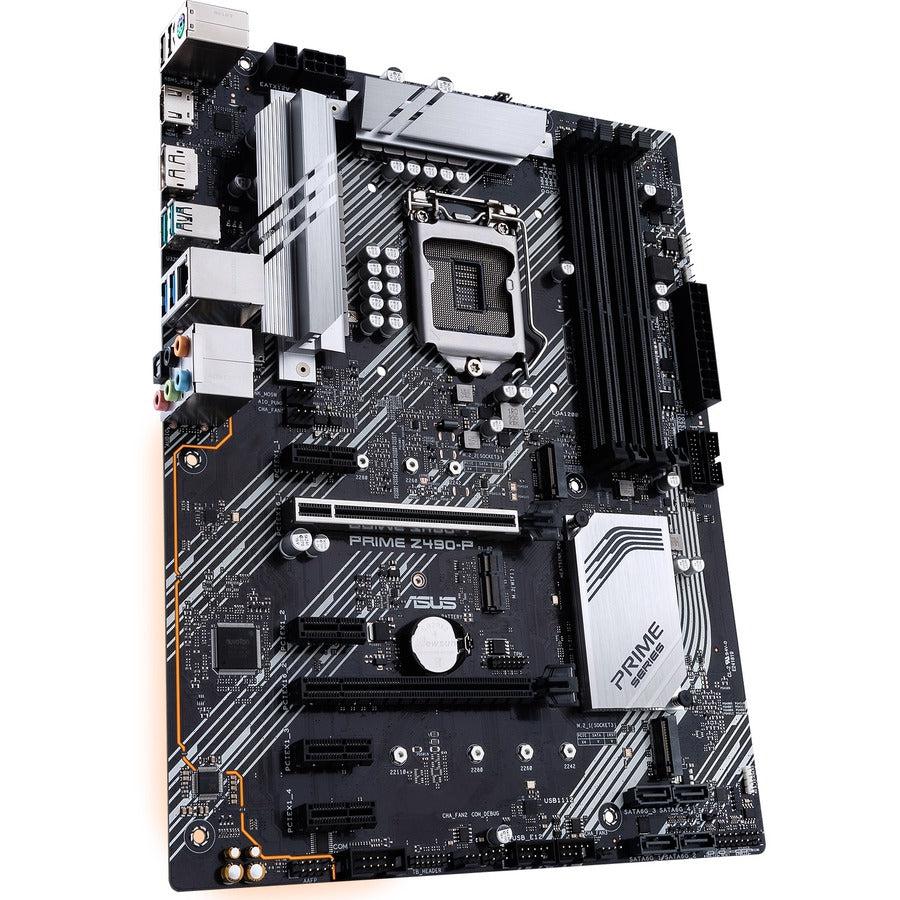

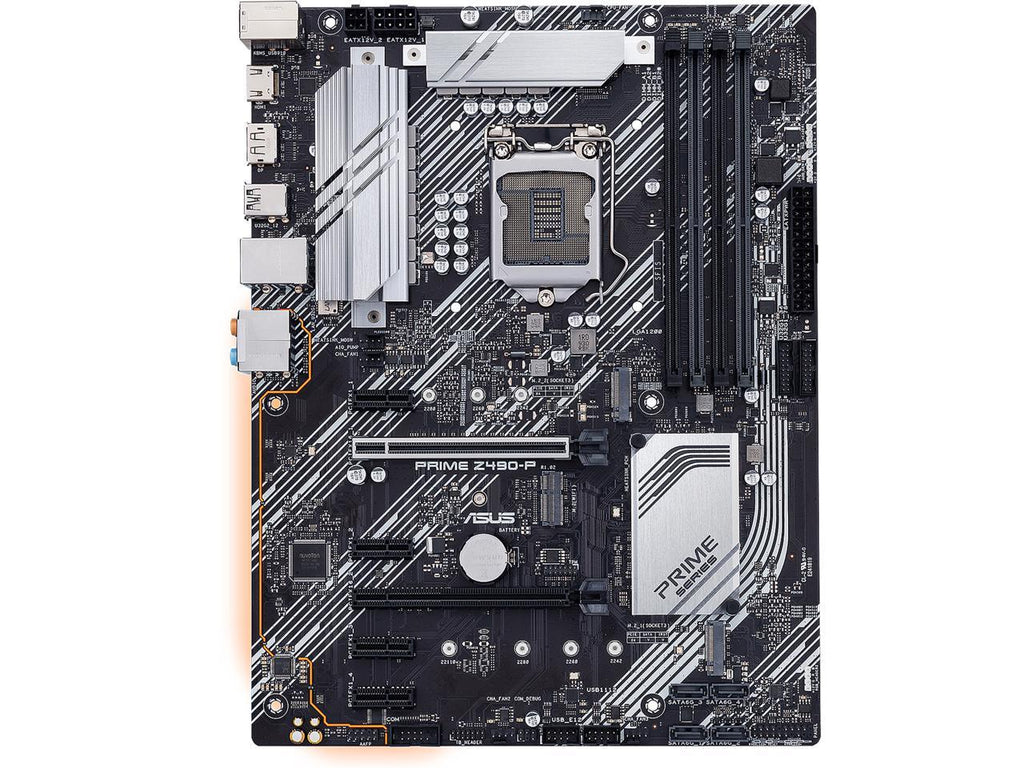

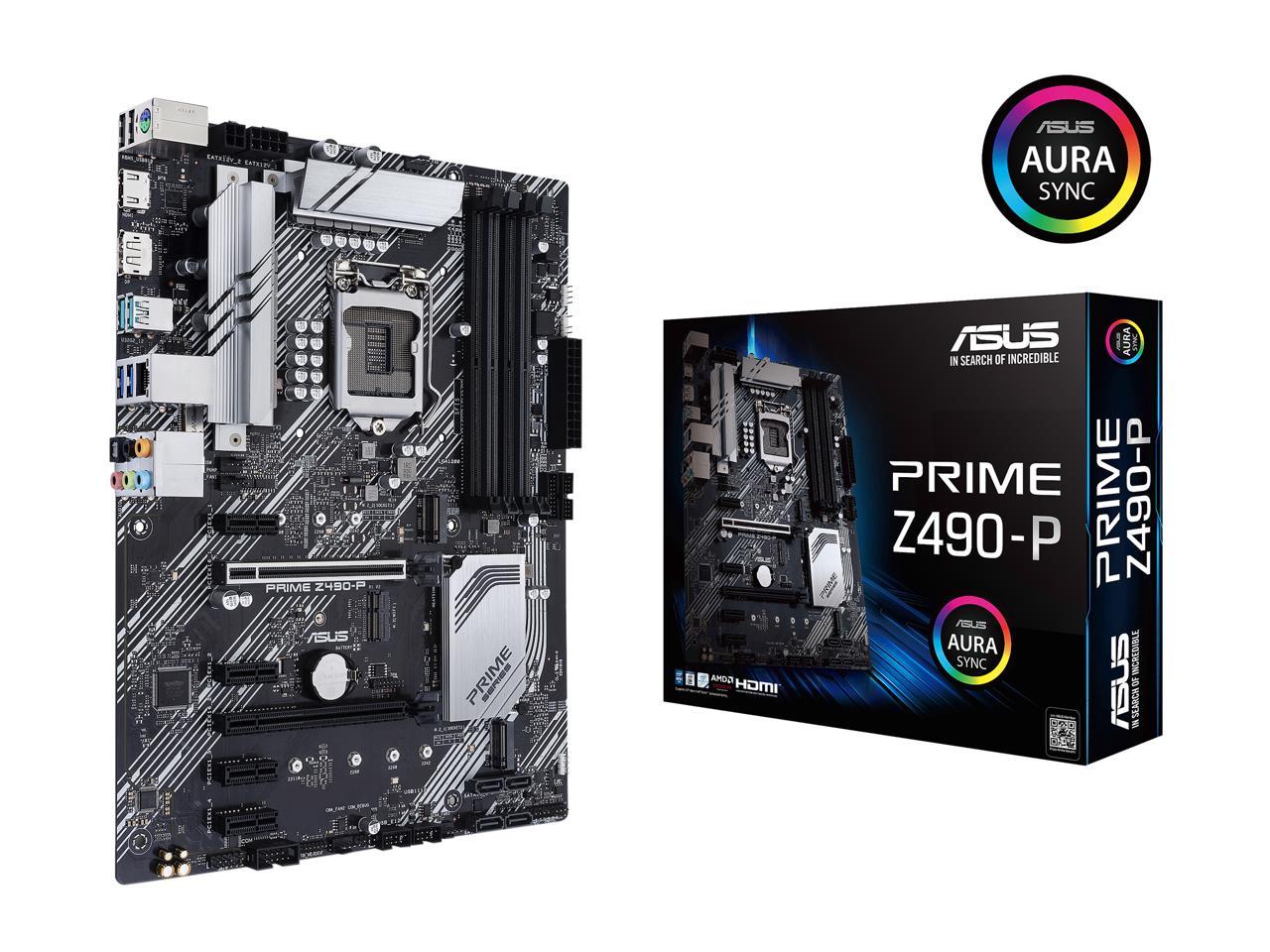

Name: Asus Prime Z490-P Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard (Dual M.2,
Brand: ASUS
SKU: PRIME Z490-P
Price: 299.99 USD
Availability: InStock

Asus Prime Z490-P Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard (Dual M.2,

Roll over image to zoom in Click on image to zoom

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

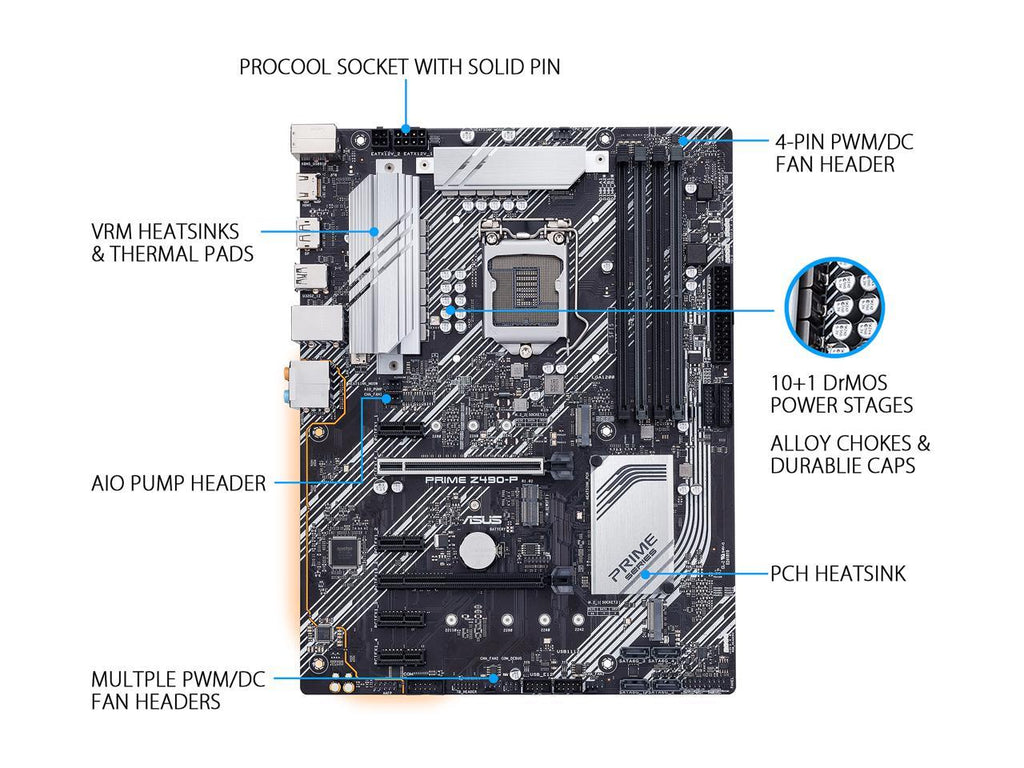

Enhanced Power Solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility

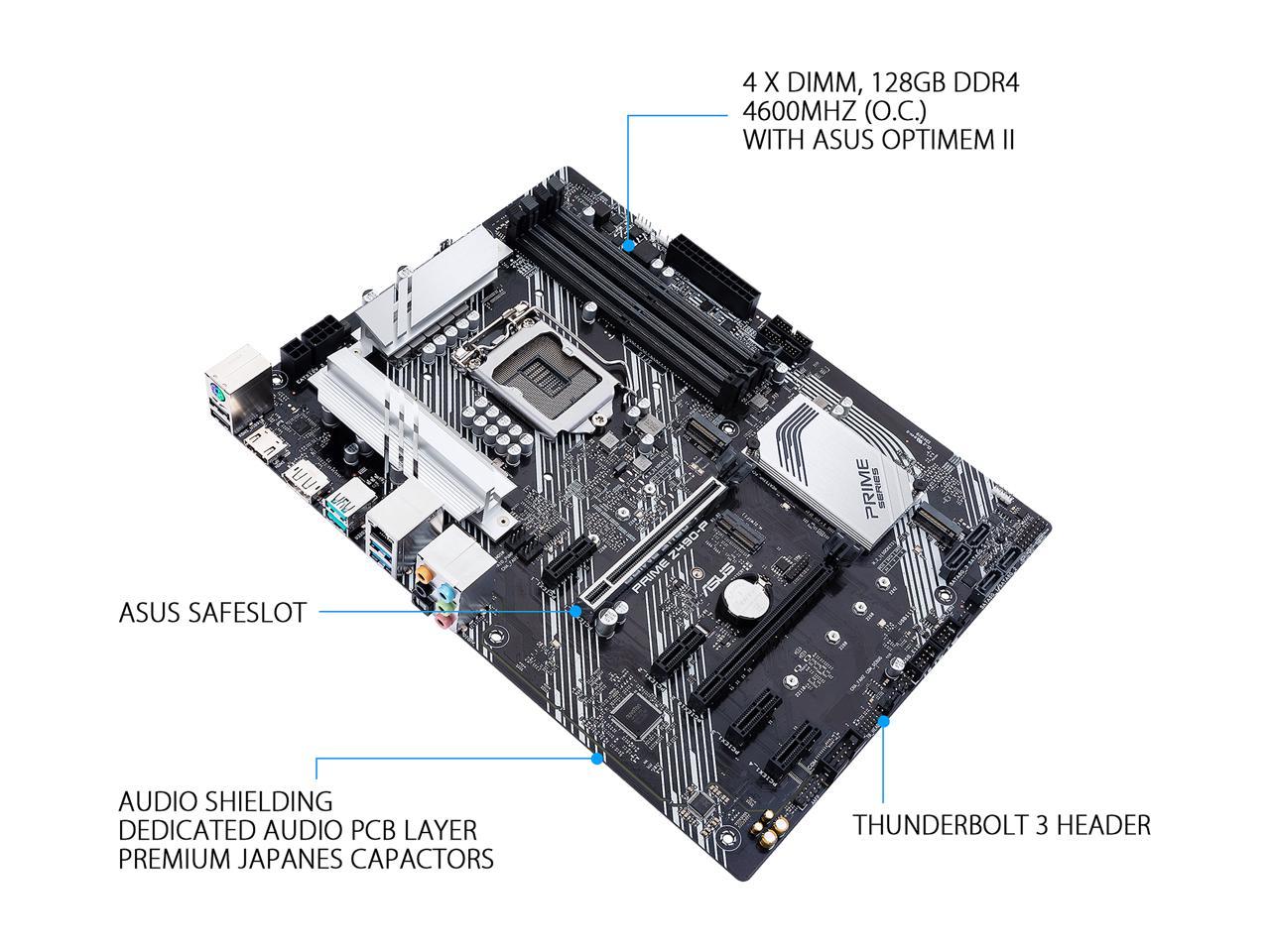

Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance
Ultrafast Connectivity: Dual M.2, 1Gb Ethernet, USB 3.2 Gen 2 Type-A and Thunderbolt 3 support

**Model**
Brand	ASUS
Series	Prime
Model	PRIME Z490-P

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z490

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	Intel 10th Gen Processors* 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel Z490 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) * Support PCIe bifurcation for RAID on CPU function.
PCI Express x1	4 x PCIe 3.0 x1 slots
Other Slots	M.2 slot (Key E) (Wi-Fi module is sold separately)

**Storage Devices**
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports SATA & PCIe 3.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x4 mode) * When a device in SATA mode is installed on the M.2_1 socket, SATA6G_2 port cannot be used.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

**Onboard LAN**
LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

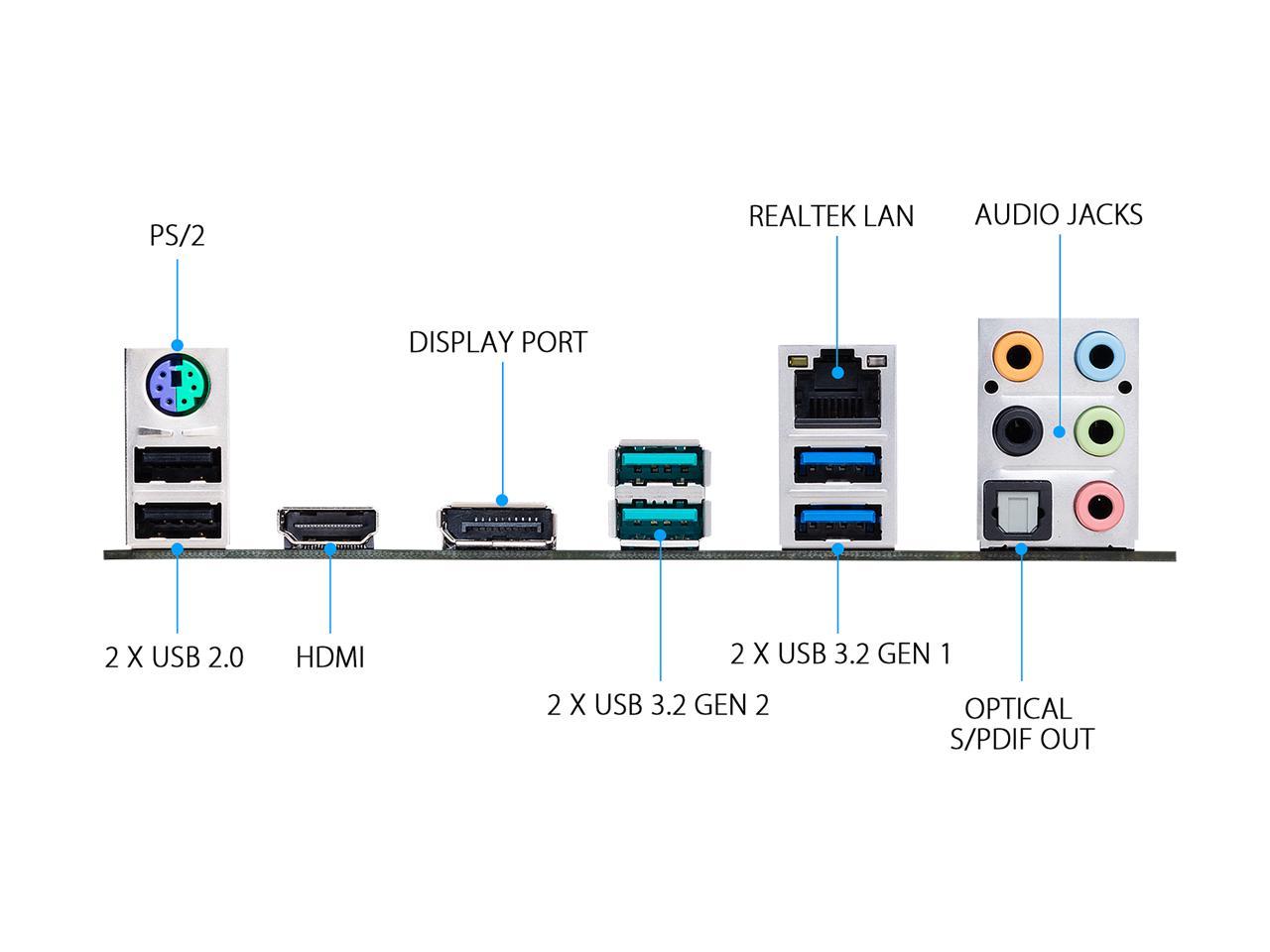

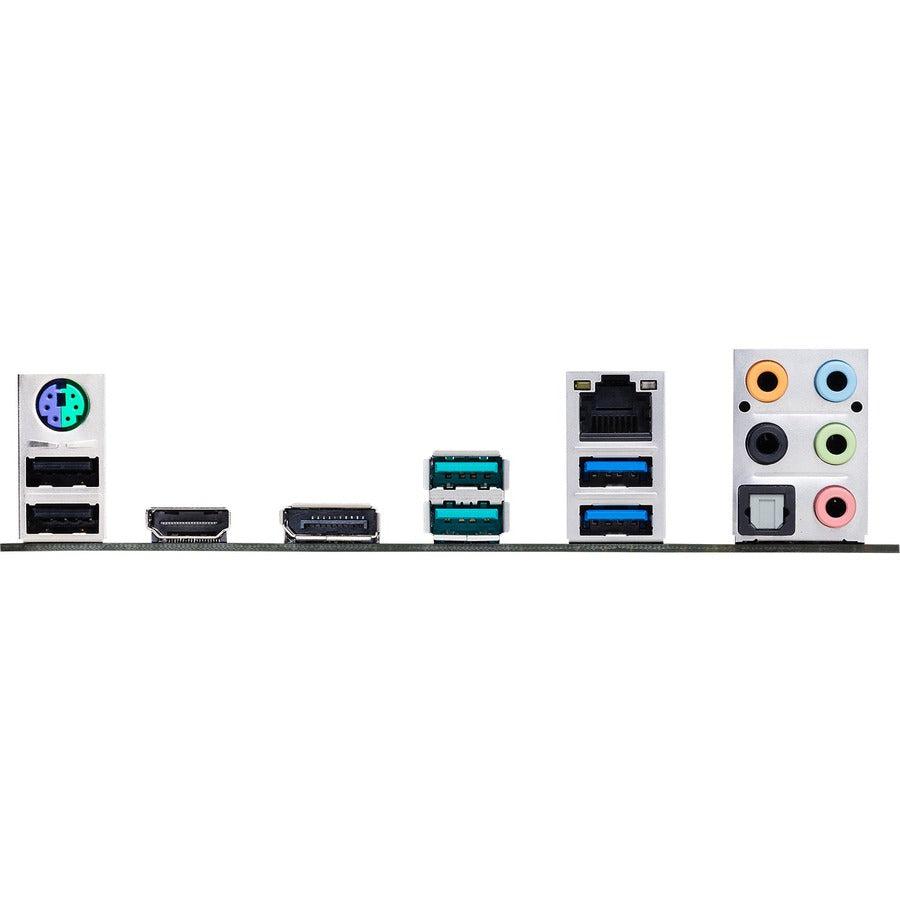

Back I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek RTL8111H 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port

**Internal I/O Connectors**
Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * The USB_E1 port, USB_E2 port, ADD_Gen2 header and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.

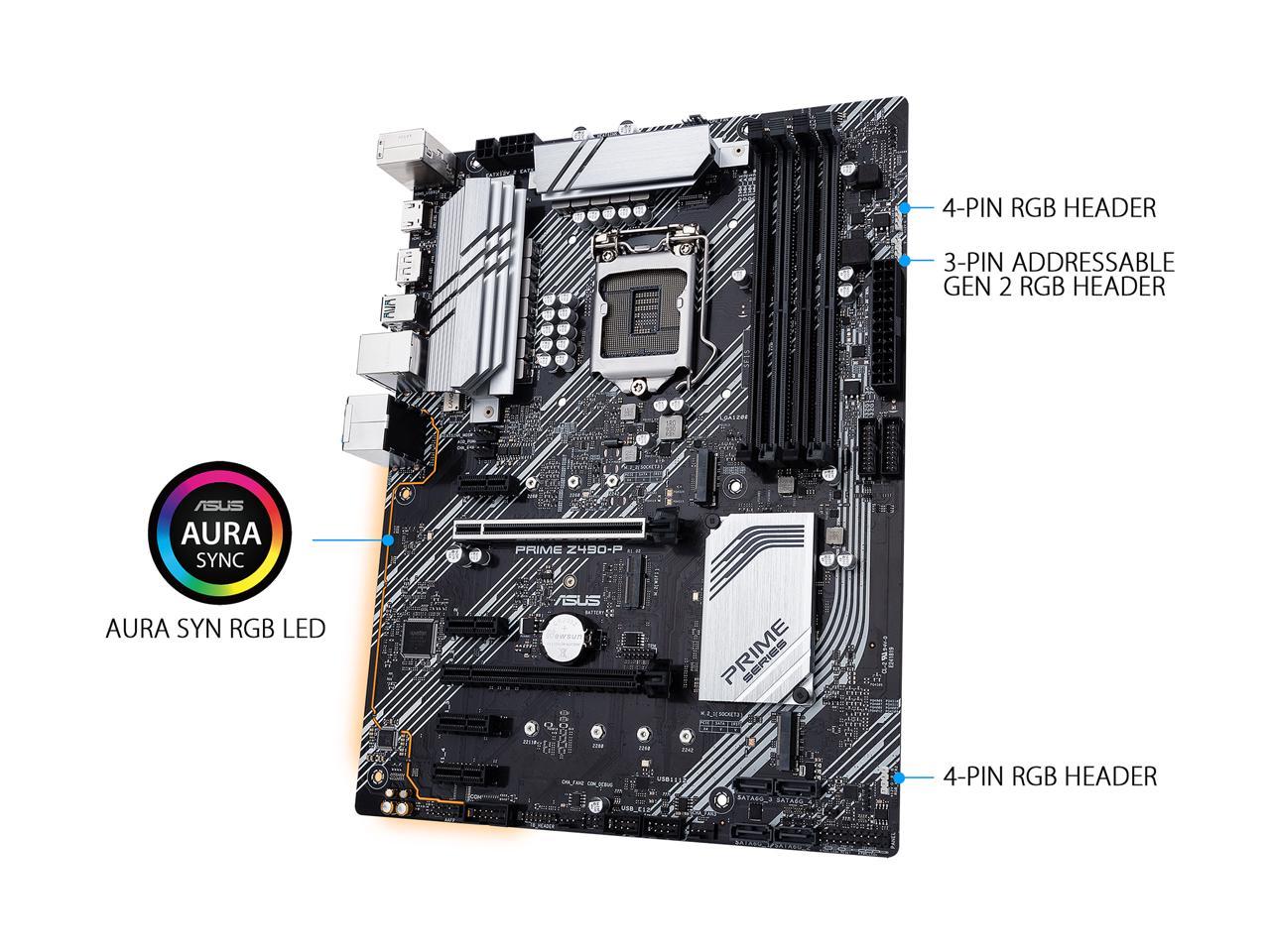

Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 1 x AURA Addressable Gen 2 header* 2 x AURA RGB headers* 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header * The USB_E1 port, USB_E2 port, ADD_Gen2 header and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

**Windows Compatibility**
Windows 11	Supported

**Features**
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

**Packaging**

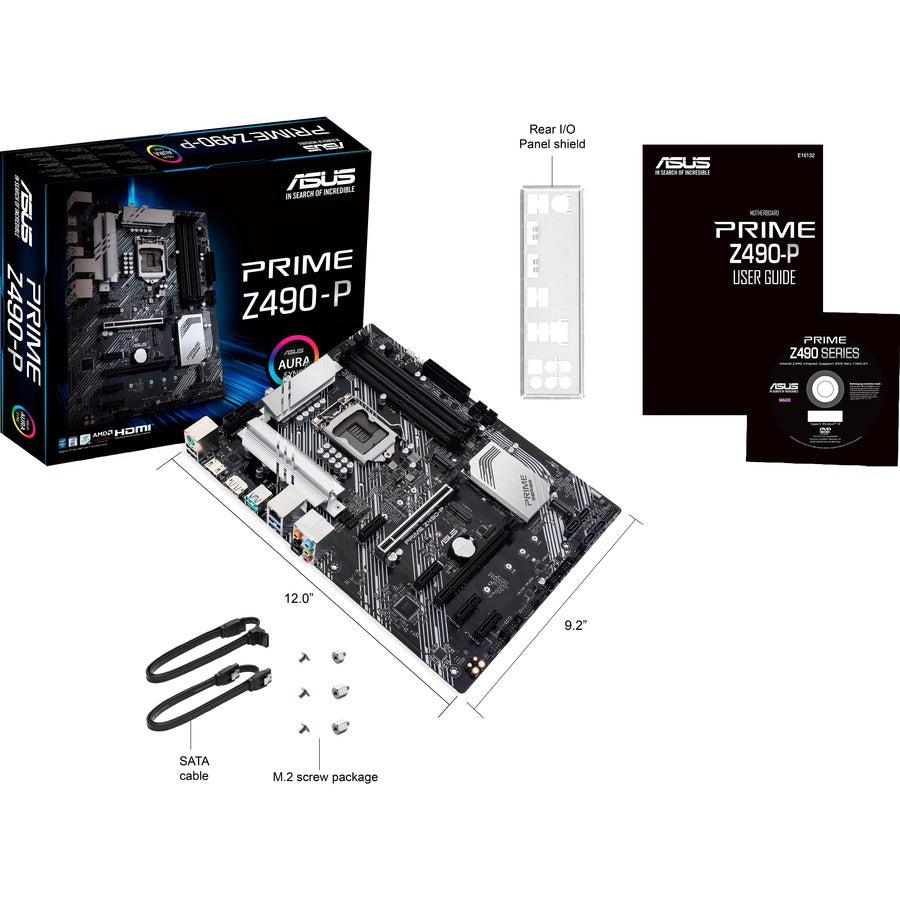

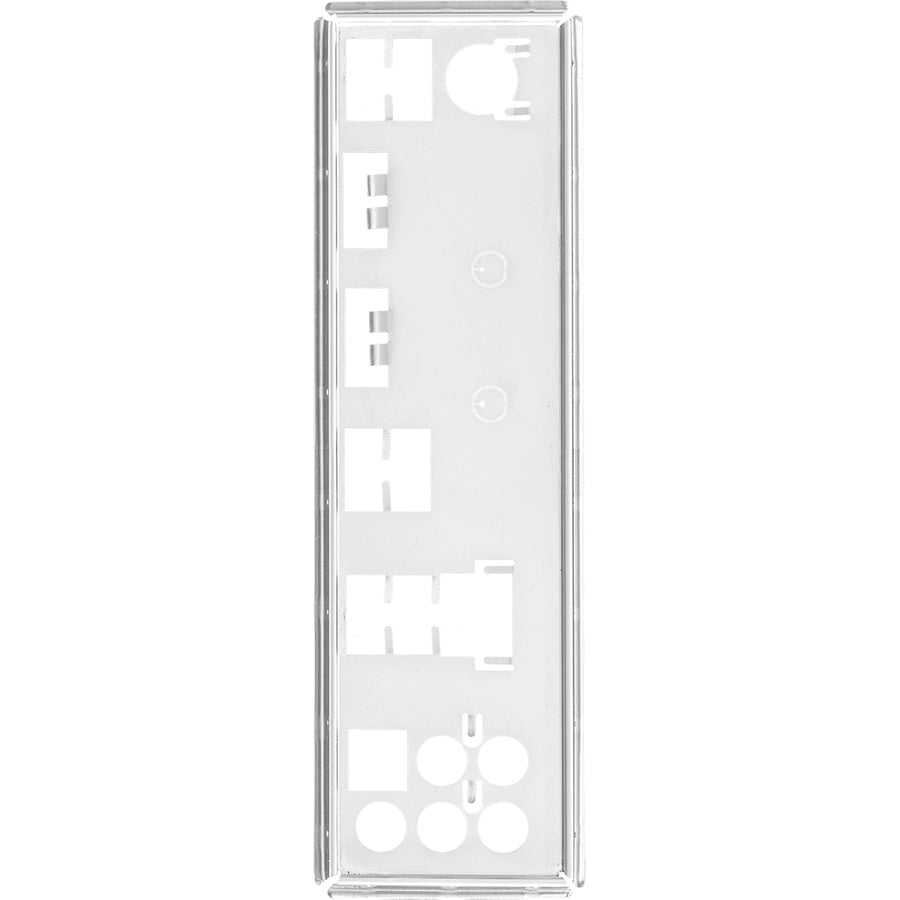

Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User manual

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	PRIME Z490-P
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Line	Prime
Product Model	Z490-P
Product Name	Prime Z490-P Desktop Motherboard
Product Type	Desktop Motherboard
UPC	192876666050

Chipset

Chipset Manufacturer	Intel

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6

Width	12"
Depth	9.2"

Miscellaneous

Package Contents	Prime Z490-P Desktop Motherboard User's Manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) 1 xM.2 Key E screw package(s)
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year
