6In1 Dome Antenna 2Xlte Gnss,3Xwifi 2.4/5Ghz Boltmount 5M Blk

Description :

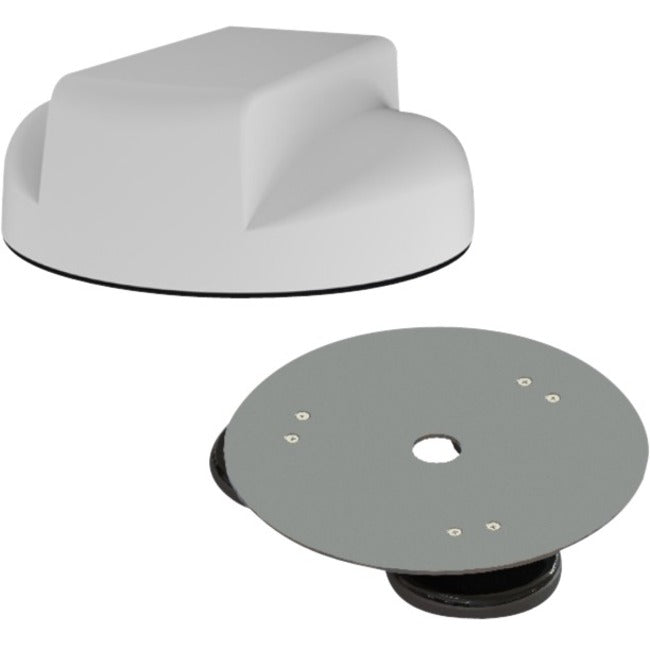

Sierra Wireless Wireless AirLink Antenna: 6-in-1 Dome

AirLink® Antenna: 6-in-1 Dome

The 6-in-1 Dome has been tested and certified to operate with AirLink LTE routers and gateways.

It has a low profile design that contains six isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 698-2700MHz support MiMo/diversity at LTE frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and three dualband 2.4/5GHz Wi-Fi elements that provide 3x3 MiMo Wi-Fi.

The antenna is ground plane independent, and maintains a high level of performance even when mounted on a non-metallic surface.

• Due to its broader casting range, it provides improved cellular network signals


• Antenna can be mounted as screw mount

Product Type: Antenna
Product Color: Black
Diameter: 6.93"
Brand Name: Sierra Wireless
Compatibility: AirLink LTE Routers and Gateways
Form Factor: Screw Mount
Manufacturer: Sierra Wireless
Product Name: Wireless AirLink Antenna: 6-in-1 Dome
Product Line: AirLink
Application/Usage: GPS
Manufacturer Part Number: 6001129
Manufacturer Website Address: http://www.sierrawireless.com
Weight (Approximate): 2.83 lb
