5 Port Unmanaged Gigabit 802.3At Mode B Poe Network Switch; 46-58Vdc Wire Term I

Description :

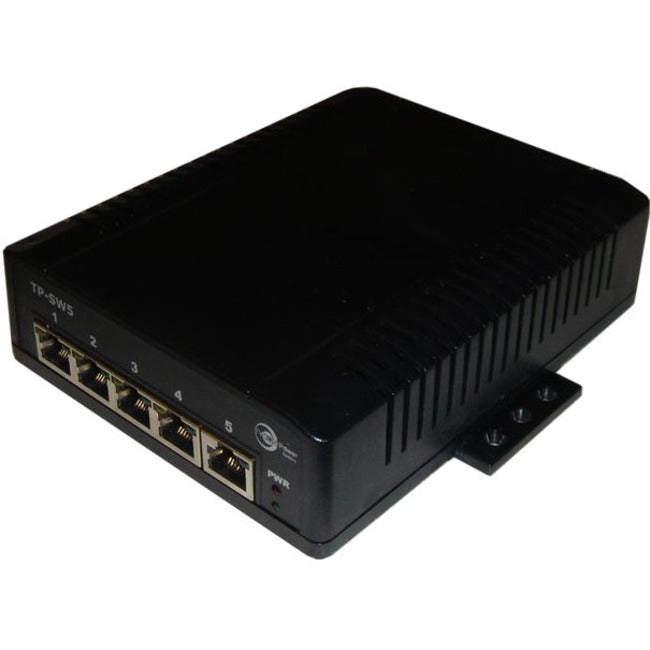

Tycon Power POE 5 Port Switch

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:

TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.

TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.

TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.

TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.

On the universal voltage models ("-NC") the POE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device. The Switches accept connections for up to two power supplies if additional power is required or if a backup power source is desired.

Tycon Power Systems sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.

• Quickly and easily set up a wired network with 5 networking ports


• Cascade to other network devices through the uplink port to expand your local area network


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks


• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


• Managed switch provides a reliable foundation for your network


• The switch is rail mountable, you can easily install it in racks with concrete stability

Product Type: Ethernet Switch
Product Series: TP-SW5
Brand Name: Tycon Power
Form Factor: Rail-mountable
Manufacturer: Tycon Power Systems
Product Model: TP-SW5G-D
Product Name: POE 5 Port Switch
Manufacturer Part Number: TP-SW5G-D
Manufacturer Website Address: http://www.tyconpower.com
Package Contents:

• POE 5 Port Switch
• DIN Rail Mounting
