TYCON SYSTEMS, INC

5 PORT POE SWITCH. 802.3AT/AF

SKU: TCN-TP-SW5G-24

Regular price $252.66
Regular price Sale price $252.66
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

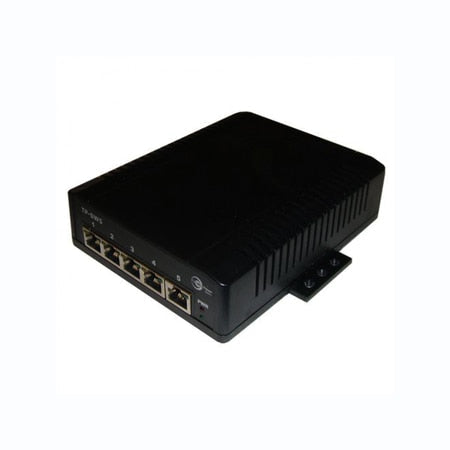

          Tycon Power POE 5 Port Switch
          The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:
          TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.
          TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.
          TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.
          TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.


          • Quickly and easily set up a wired network with 5 networking ports

          • Cascade to other network devices through the uplink port to expand your local area network

          • Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones

          • Gigabit Ethernet port for ultra-fast network speeds

          • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree

          • No need for power lines and outlets, the switch is capable of obtaining power from the PoE source

          Product Type: Ethernet Switch
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Product Series: TP-SW5
          Brand Name: Tycon Power
          Form Factor: Rail-mountable
          Manufacturer: Tycon Power Systems
          Product Model: TP-SW5G-24
          Product Name: POE 5 Port Switch
          Manufacturer Part Number: TP-SW5G-24
          Manufacturer Website Address: http://www.tyconpower.com
          Package Contents:


          • POE 5 Port Switch

          • DIN Rail mounts


          Limited Warranty: 2 Year
          Weight (Approximate): 13.51 oz
