4Port Usb 3.0 4K Hdmi Dual,Display Kvmp Switch Cs1842

Description :

ATEN 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch

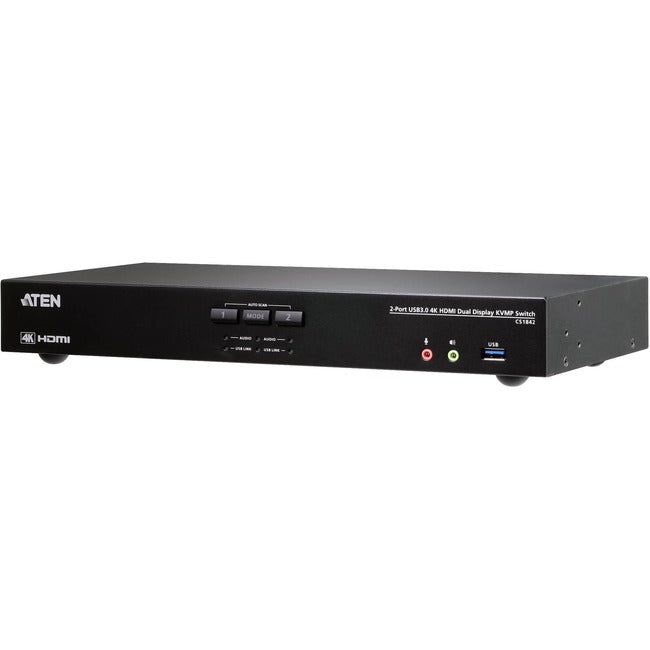

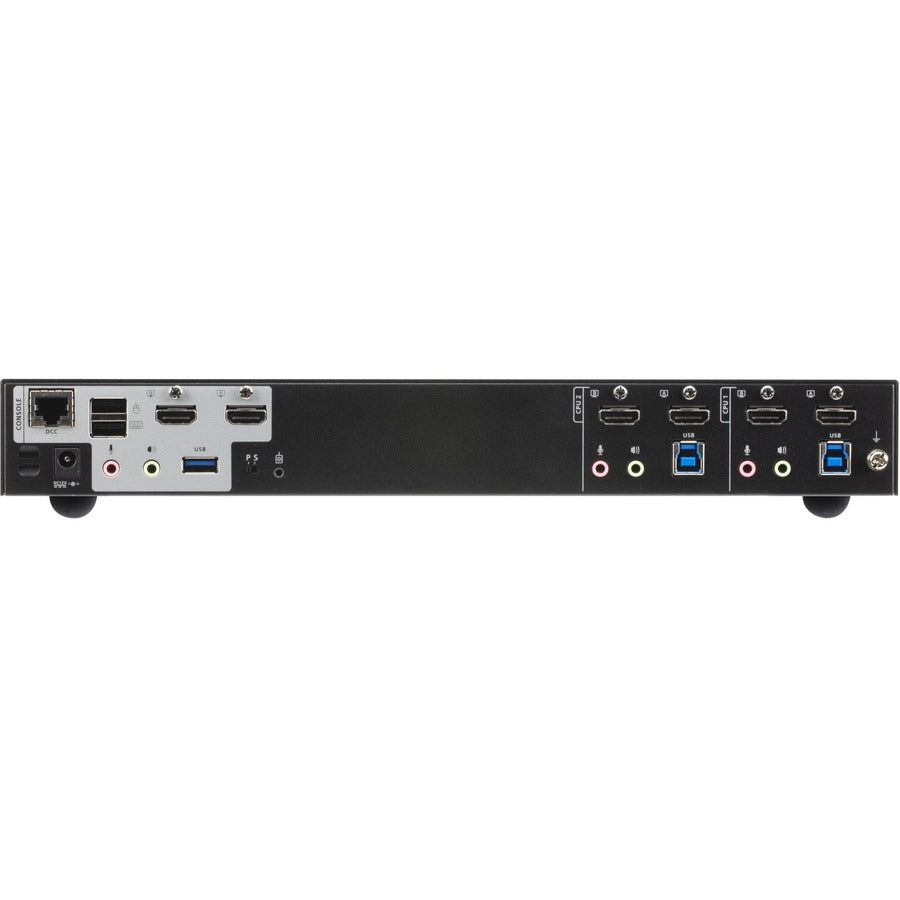

The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

In addition, with patented ATEN technology - Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.

As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

• One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals


• Supports Quad Display by connecting two Dual Display KVM switches


• Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources


• Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)


• Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands2


• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates


• Supports console keyboard emulation / bypass feature


• Supports console mouse emulation / bypass feature


• Independent switching of KVM, USB peripheral, and stereo audio focus


• Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards

Product Type: KVM Switchbox
Country Of Origin: Taiwan
Brand Name: ATEN
Manufacturer: ATEN Technology, Inc
Product Model: CS1842
Product Name: 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch
Manufacturer Part Number: CS1842
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:

• 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch
• 4 x HDMI 2.0 Cables
• 2 x USB 3.0 Cables
• 2 x Speaker Cables
• 2 x Microphone Cables
• 1 x Power Adapter
• 1 x Remote Port Selector
• 1 x User Instructions
