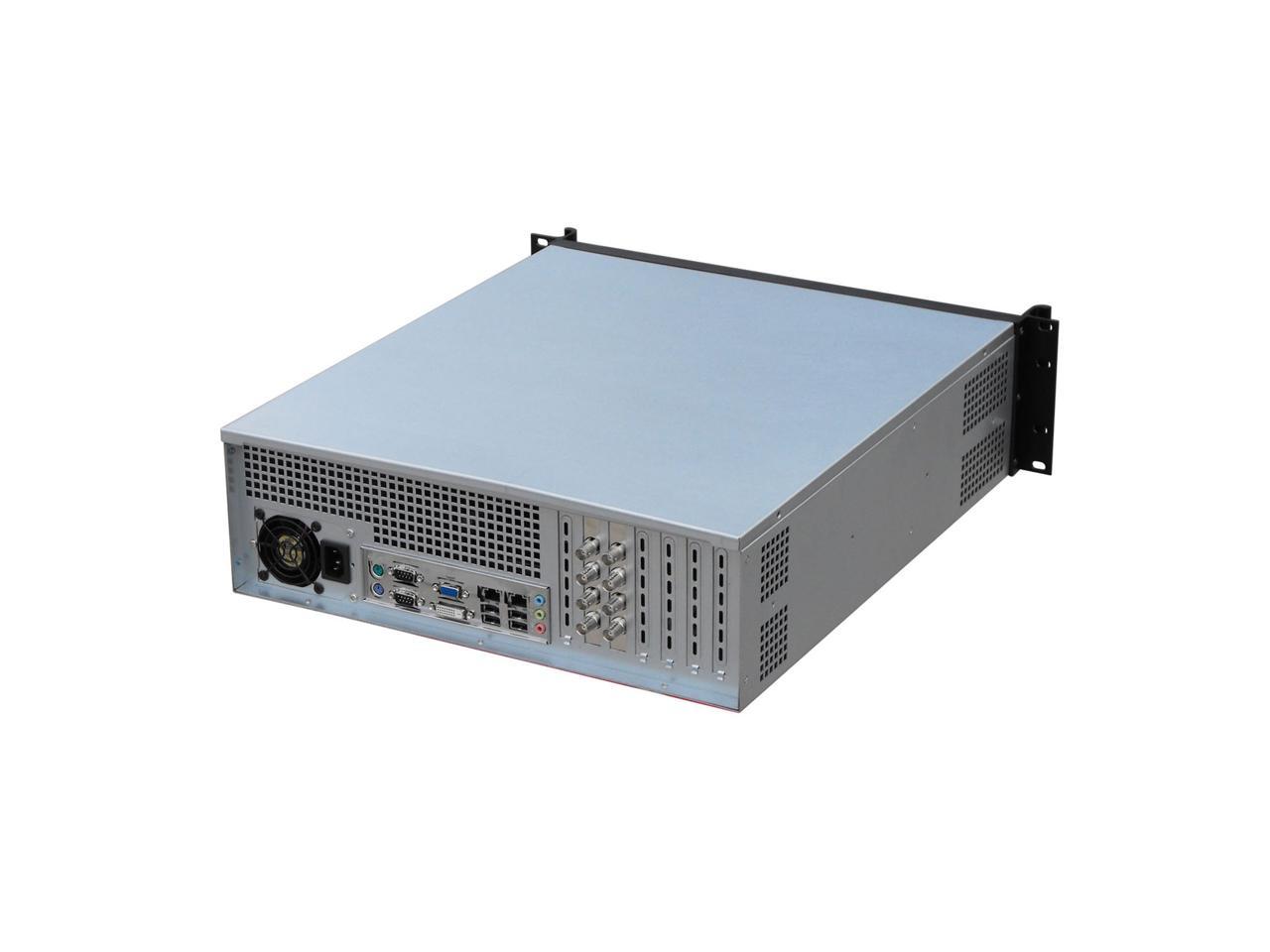

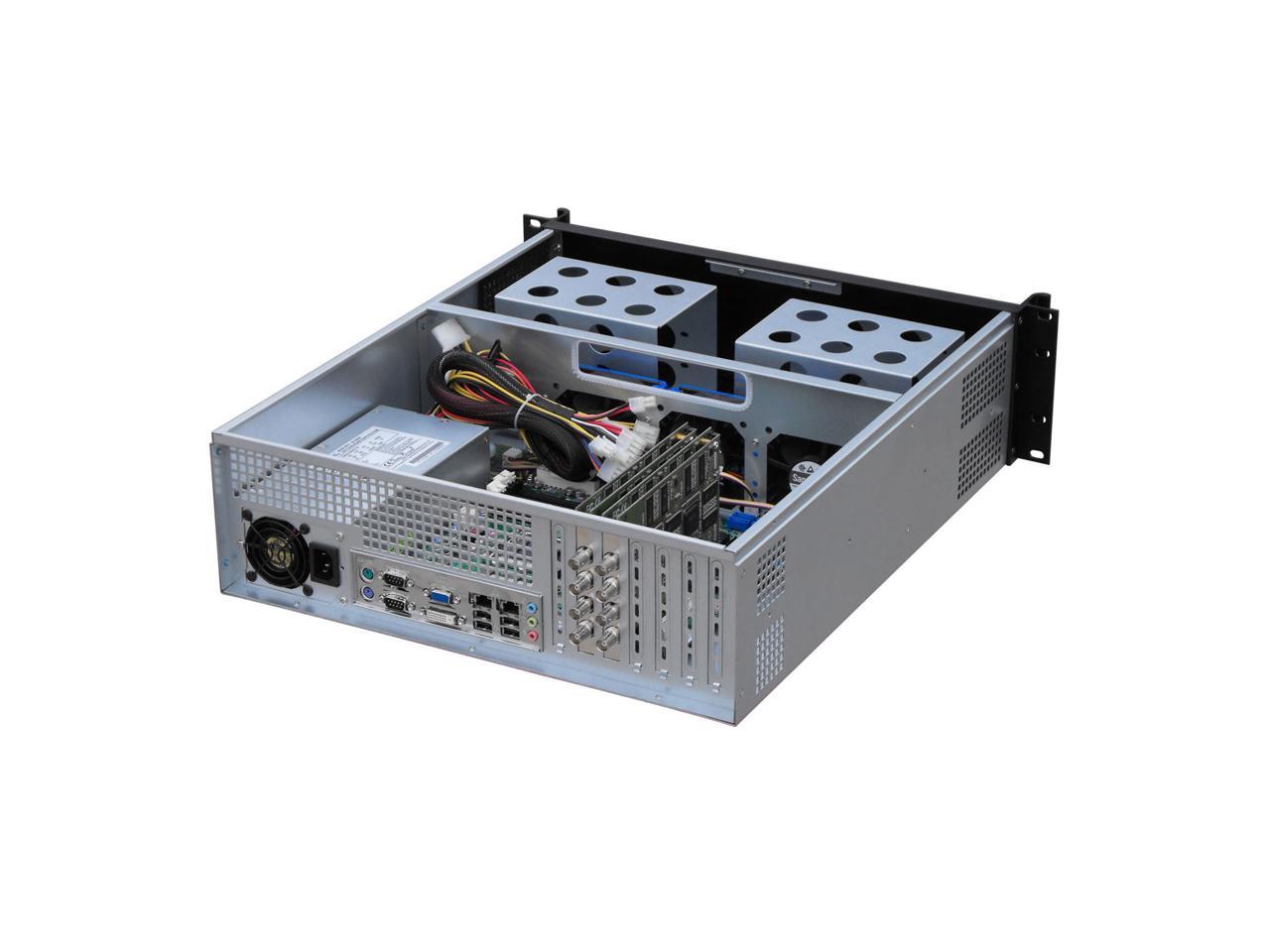

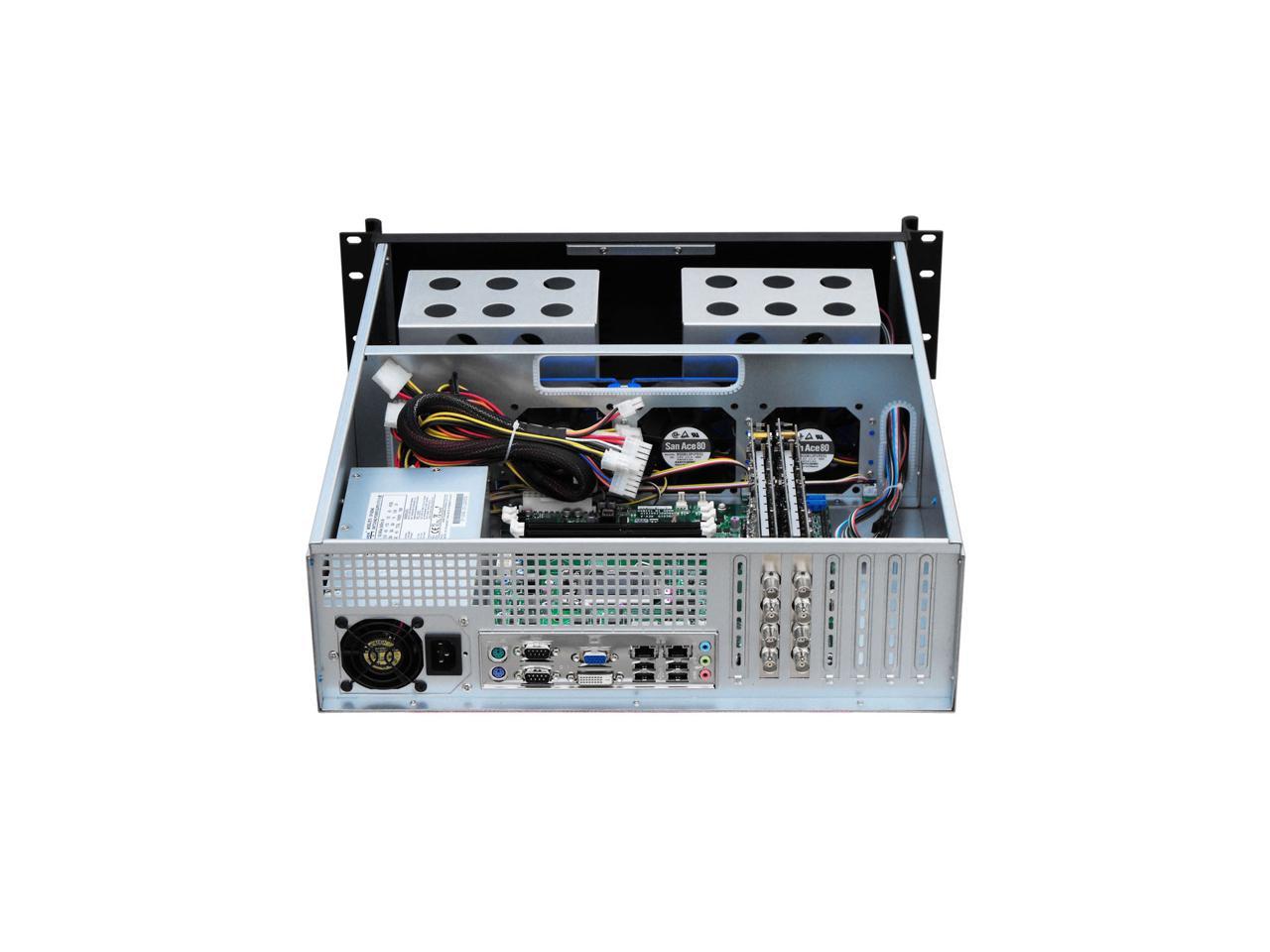

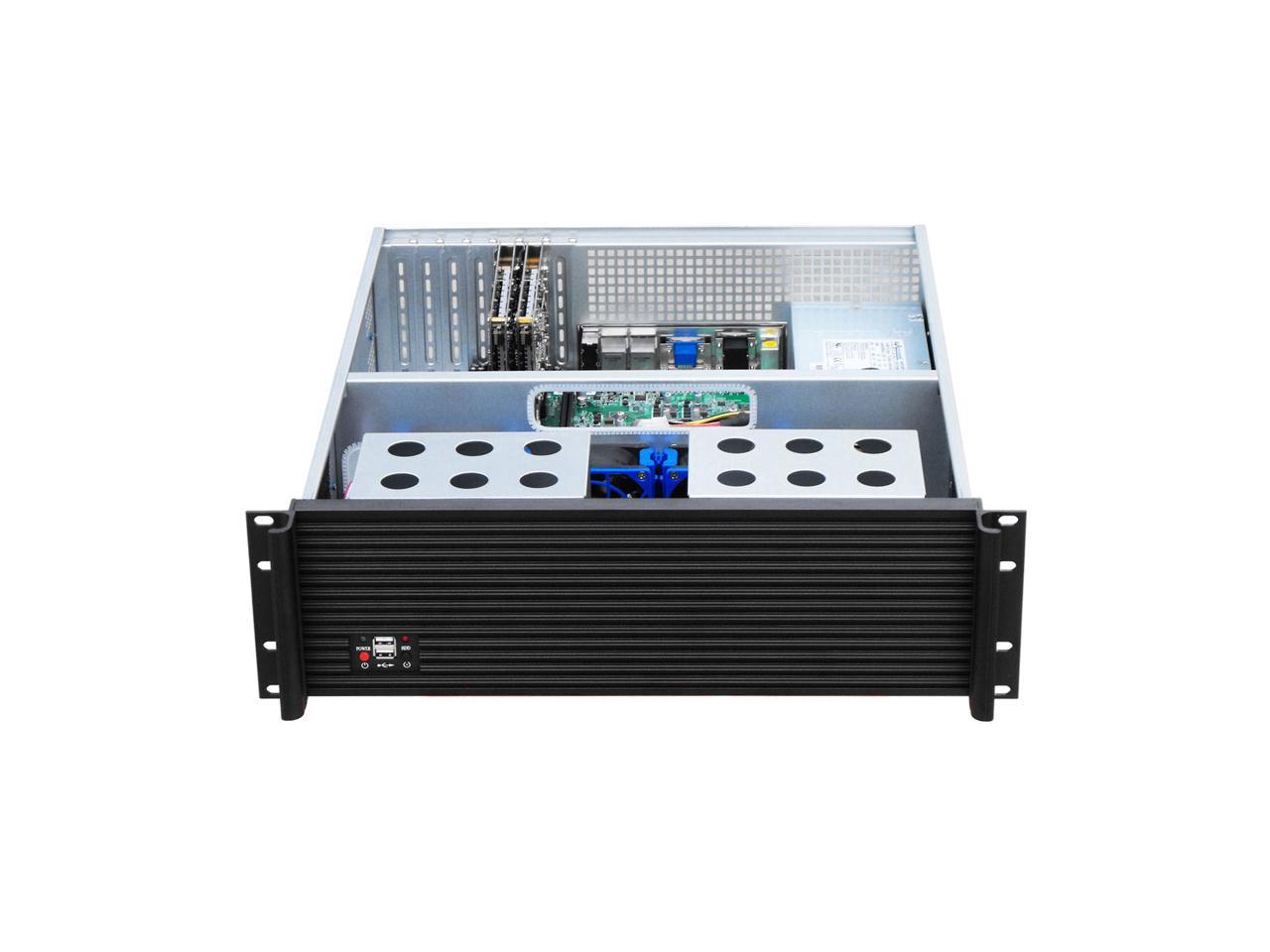

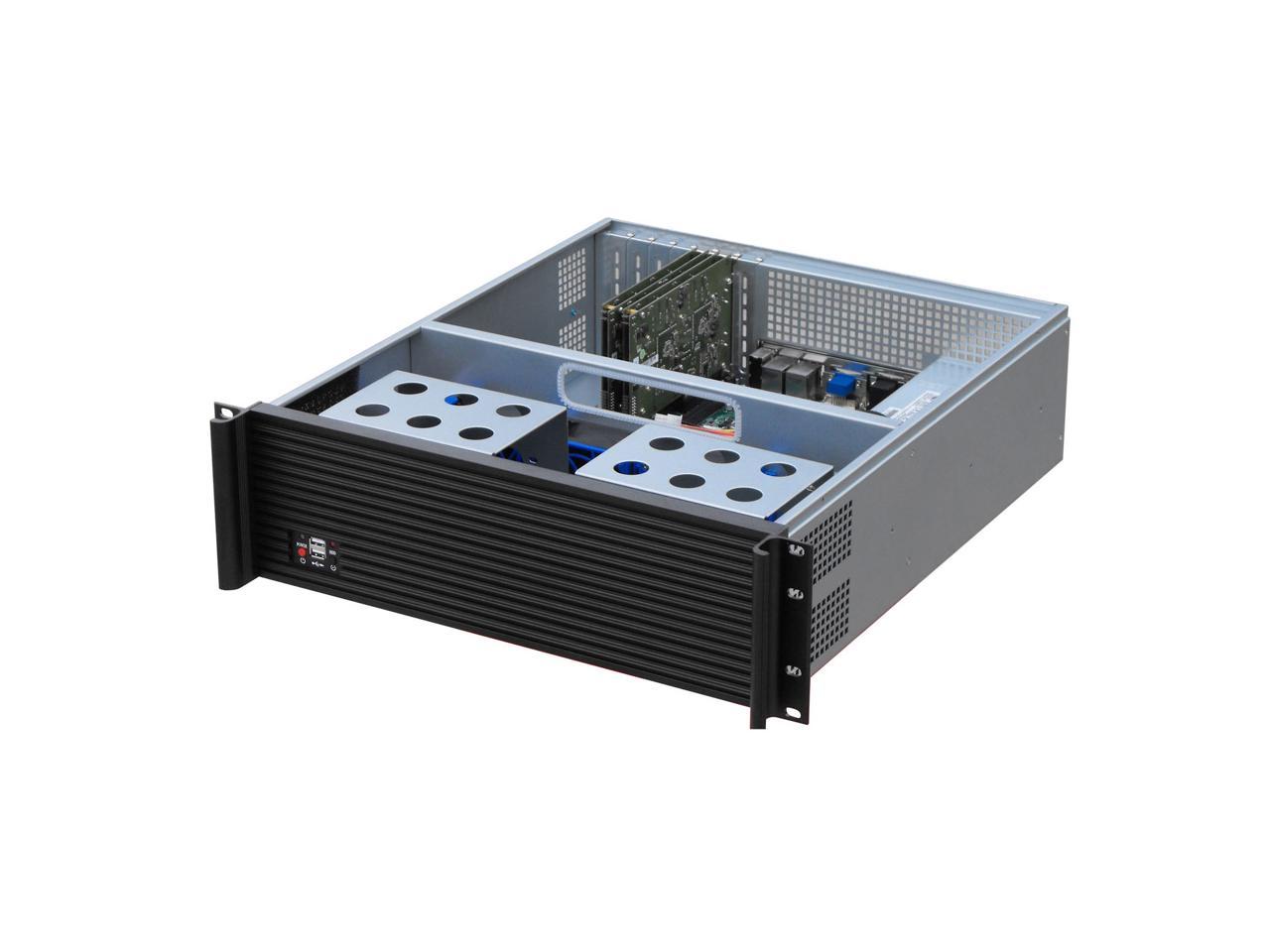

3U server chassis / standard 19-inch rack server chassis / suitable for installing various

Description :

• Dimensions: depth 450mm × width 430mm × height 133mm,
• Standard 19 "rack server chassis
• Material: Environmental protection, fingerprint resistance 1.2mm / SGCC
• HDD position: 8 standard 3.5 "HDD positions
• Expansion slots: 7 full-height PCI / PCIE expansion slots
• Fan position: Standard three 8038 hot-swappable ball fans

Suitable for motherboards: various motherboards of 12 "× 9.6" and below
USB interface: 2 front USB interfaces
System control: Power SW * 1, Reset * 1, HDD LED * 1, Power LED * 1
Power supply: Standard 2U power supply
Color: black sand on the front panel, natural color of other steel plates
Application areas: Widely used in cloud storage, big data, security monitoring, Internet of Things and other fields
