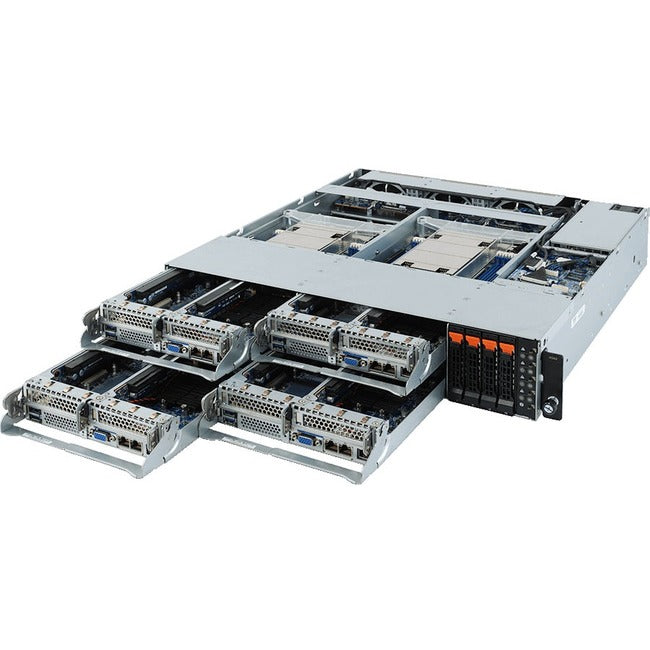

Gigabyte H242-Z11 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support

Description :

Gigabyte H242-Z11 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support

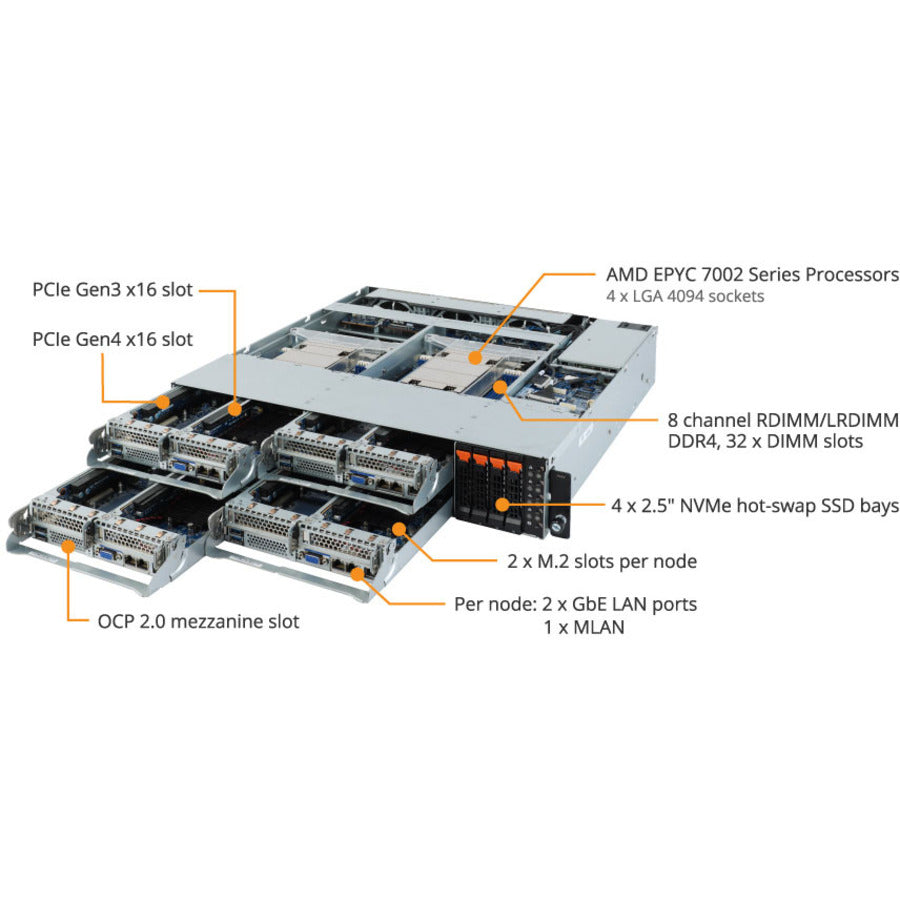

• Supports 5G network infrastructure
• 2U - 4 nodes front access server system for Edge Computing
• Single AMD EPYC™ 7002 series processor family
• 4 x LGA 4094 sockets
• 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
• 8 x 1Gb/s LAN ports (Intel® I350-AM2)
• 4 x 2.5" NVMe hot-swappable SSD bays
• 8 x M.2 with PCIe Gen3 x4 interface
• 8 x Low profile PCIe x16 expansion slots
• 4 x OCP 2.0 Gen3 x16 mezzanine slots
• Aspeed® AST2500 remote management controller

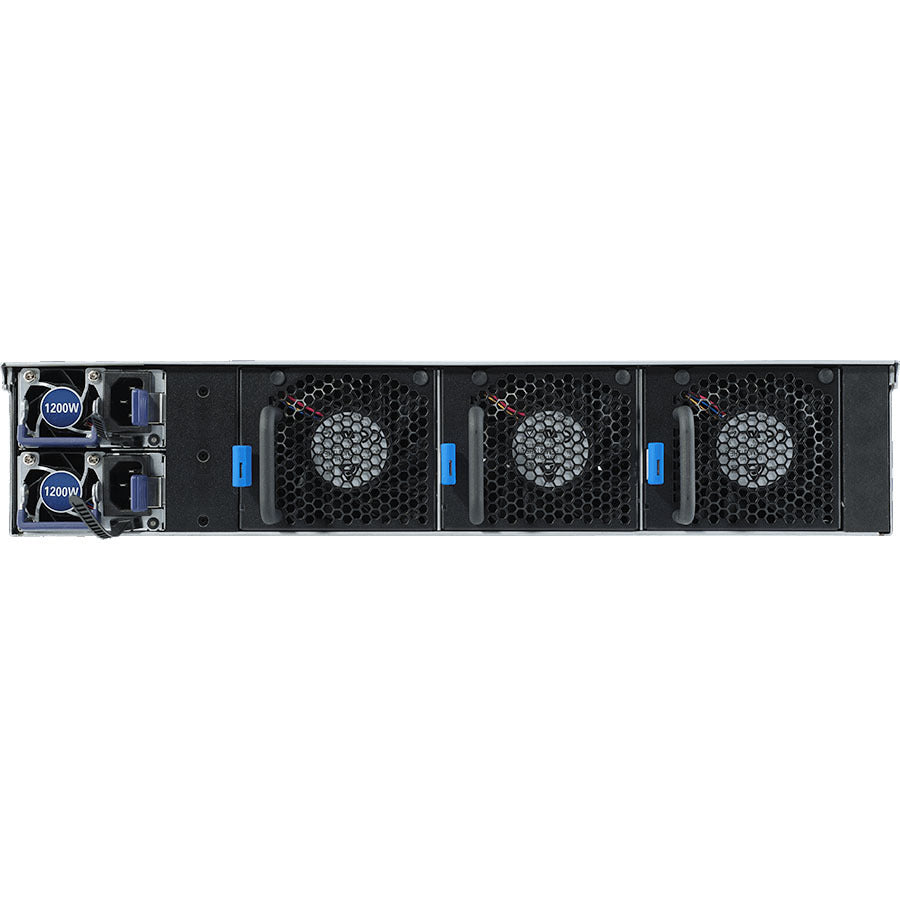

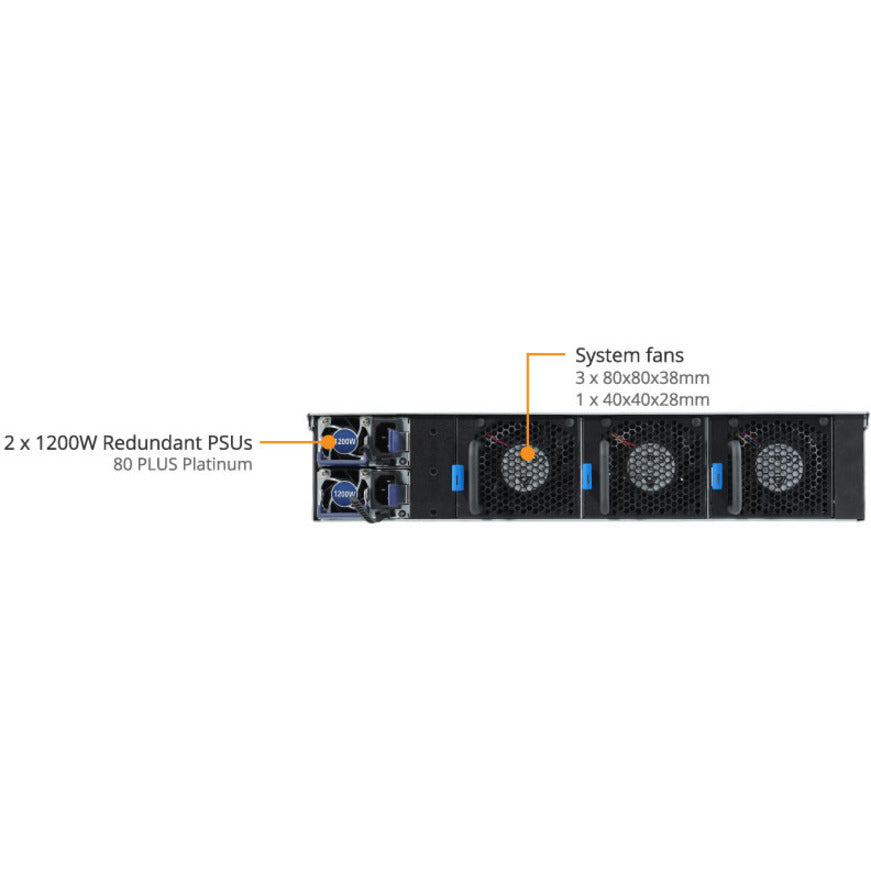

• 1200W 80 PLUS Platinum redundant PSU

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
•
  Embedded security protection to help defend your CPU, applications, and data

PCIe Gen 4.0 Ready

AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD's Radeon MI50 GPGPU.

Higher Memory Speed

AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

More M.2 Storage

GIGABYTE's AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage - both onboard M.2 slots and extra capacity via optional riser cards.

Max TDP Support

GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP)

Data Security

TPM 2.0 Module

GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

Optional CMC / Ring Topology Module

GIGABYTE's H242-Series servers include support for an optional CMC / Ring Topology Module, featuring an Aspeed CMC (Central Management Controller), LAN hub and dual MLAN ports for multi-node management (including iKVM support) by connecting internally to Aspeed BMCs integrated on each node. This results only in one MLAN connection required to perform management of all four nodes, resulting in less ToR (Top of Rack) cabling and switch connections.

In addition, the LAN hub and dual MLAN ports support the ability to create a "ring" connection for management of all servers in the rack - only two ToR (Top of Rack) switch connections are needed to create the ring system, and the ring will not be broken even if one server in the chain is shut down, reducing cabling and switch port usage for greater cost savings and management efficiency.

• Perform computational tasks effectively accrediting the EPYC processor


• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput


• Featuring Gigabit Ethernet port for ultra-fast network speeds


• Connect USB-enabled devices via 3 USB ports

Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: H242-Z11
Product Name: H242-Z11 (rev. 100) Barebone System
Manufacturer Part Number: H242-Z11
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:

• H242-Z11 (rev. 100) Barebone System
• 4 x CPU Heatsinks
• 1 x Rail Kit
