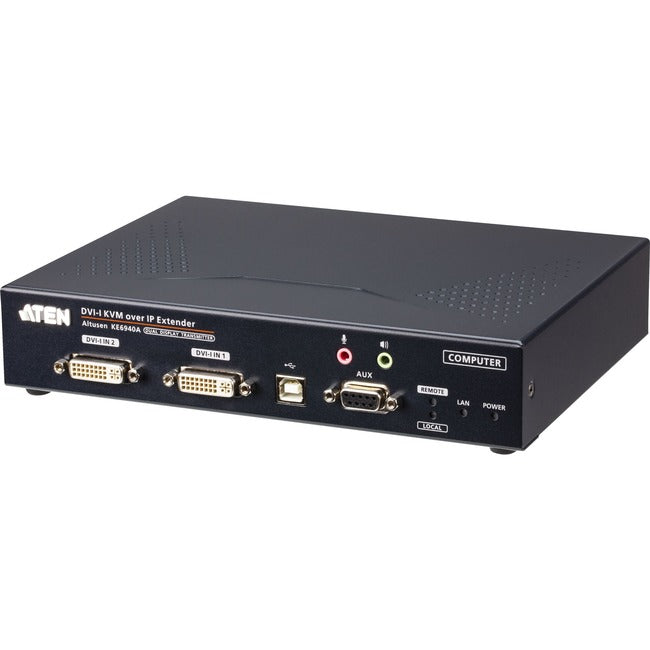

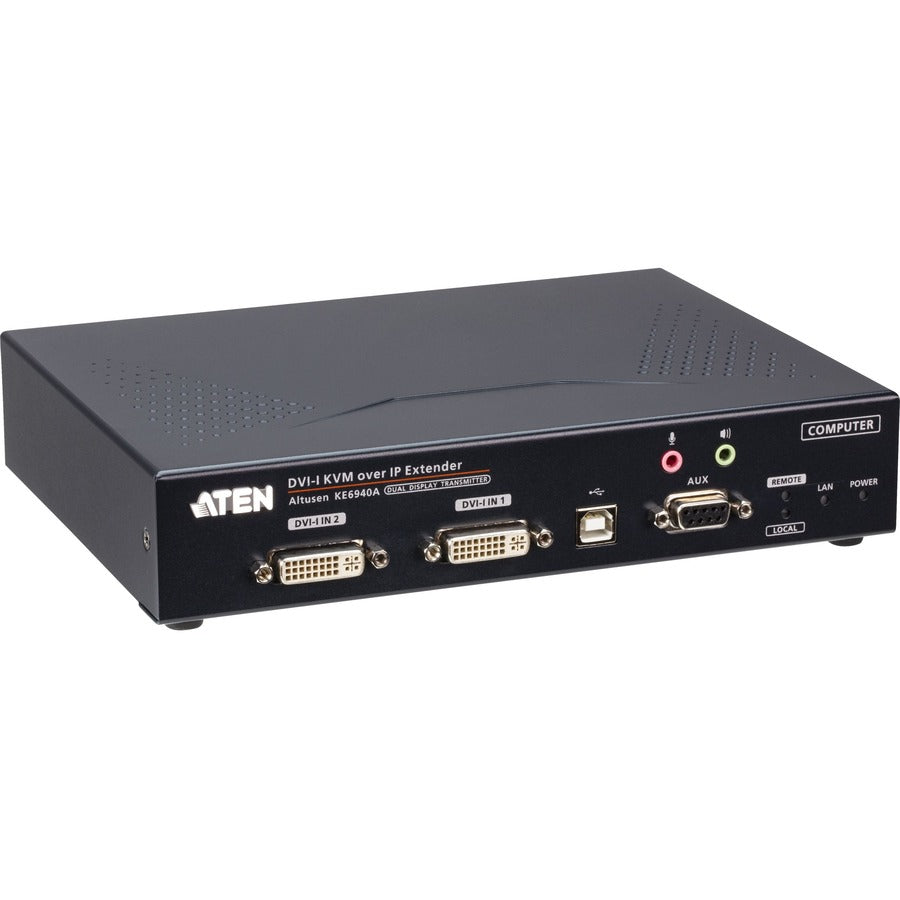

ATEN DVI-I Dual Display KVM over IP Transmitter KE6940AT

Description :

ATEN DVI-I Dual Display KVM over IP Transmitter

The KE6940A extender is consisted of a high performance IP-based transmitter (KE6940AT) that connects to the computer and a receiver (KE6940AR) that provides console access from a separate location. The KE6940A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.

The KE6940A DVI-I Dual Display KVM over IP Extender supports two DVI displays at each end and provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.

The KE6940A support connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6940A also features dual power supplies for redundancy to ensure dependable services.

As an IP-based matrix extender, the KE6940A can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

Implementing the KE Matrix Management Software (CCKM) with KE6940A, IT administrators can benefit from advanced features such as auto detection of all KE6940A devices on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES-128bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security. Moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6940A is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

• Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)


• "Push" and "Pull" - shares content instantly to/from a single Rx or video wall by just one click


• Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout


• Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date


• Virtual Transmitter - independently streams video, audio, USB, and serial sources from different Tx


• Internal and external authentication support - supports LDAP, Active Directory, RADIUS and TACACS+ external authentications


• Configurable user and group permissions for access and control of KE devices


• Rx access control - users at the Tx local console can enable / disable Rx access by simply pressing a control button


• Supports power/network failover - dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications


• Supports 1Gbps SFP fiber module expansions up to 10 km

Product Type: KVM Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.65"
Transmitter Width: 8.46"
Transmitter Depth: 6.43"
Transmitter Weight (Approximate): 2.58 lb
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology, Inc
Product Model: KE6940AT
Product Name: DVI-I Dual Display KVM over IP Transmitter
Product Line: ALTUSEN
Manufacturer Part Number: KE6940AT
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:

• DVI-I Dual Display KVM over IP Transmitter
• 1 x Power Adapter & Power Cord
• 1 x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
• 1 x DVI-D Cable 1.8 m
• 1 x Foot Pad Set (4 pcs.)
• 1 x Mounting Kit
• 1 x User Instructions
