VGA with Audio over Cat5 / Cat6 Extender, Box-Style Repeater, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.)
Tripp Lite VGA with Audio over Cat5 / Cat6 Extender, Box-Style Repeater, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.). Video port type: VGA. Maximum resolution: 1024 x 768 pixels, Product colour: Black, Country of origin: Taiwan. Width: 114.3 mm, Depth: 63.5 mm, Height: 27.9 mm. Package width: 182.9 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 589.3 mm, Master (outer) case length: 348 mm, Master (outer) case height: 221 mm

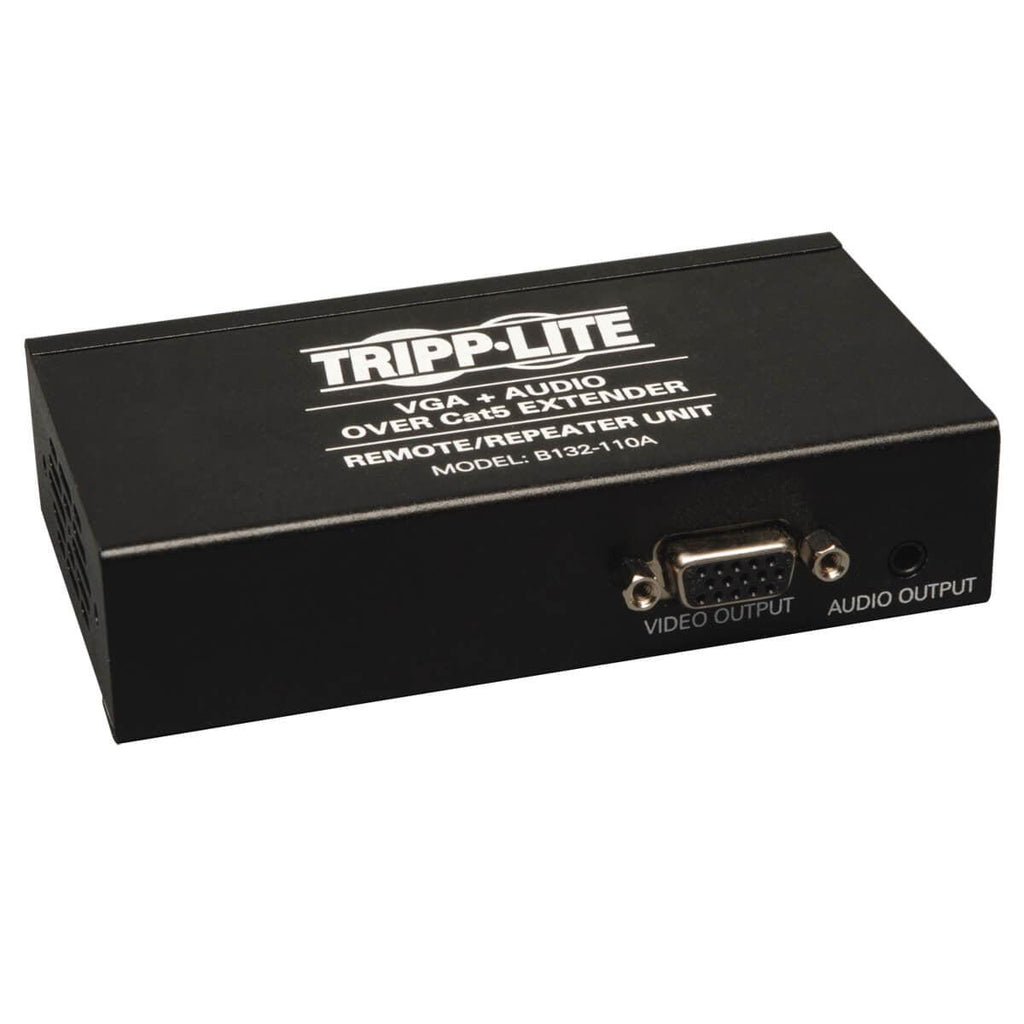

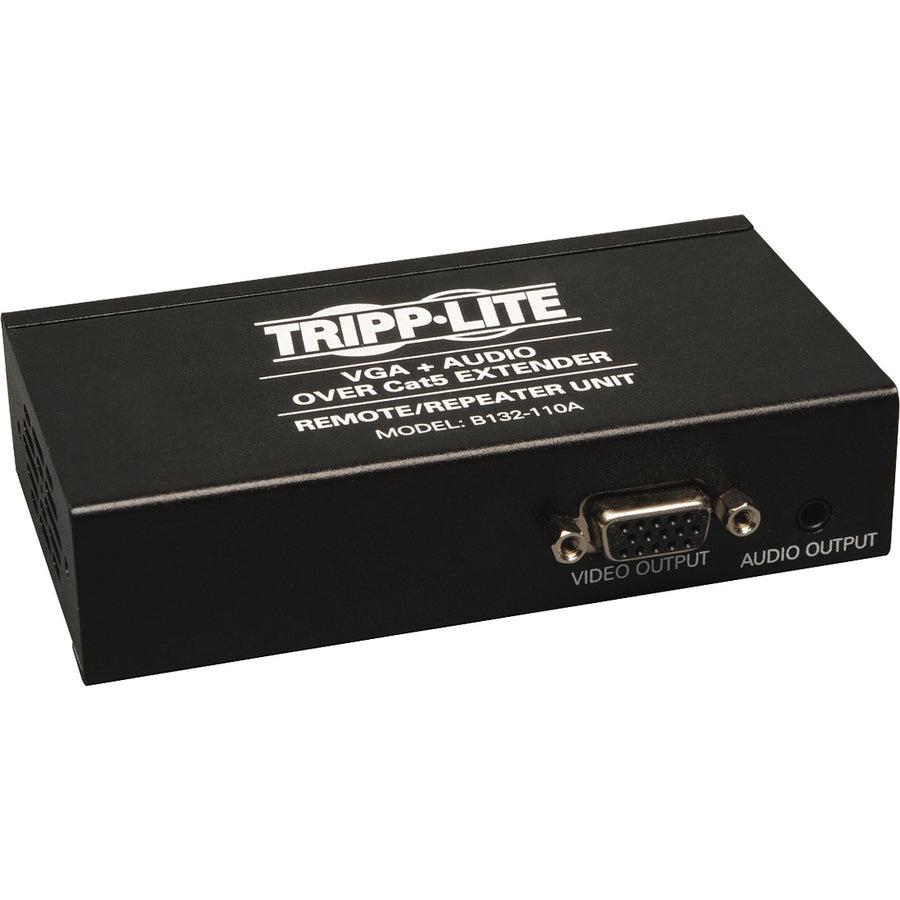

Tripp Lite’s B132-110A remote/repeater unit both extends and expands your VGA + Audio over Cat5 installation, allowing you to locate multiple monitors/speakers at different points in a chain of up to 609.6 m (2,000 ft.). With Tripp Lite’s standard transmitter and receiver units, a single set of monitor and speakers can be located up to 304.8 m (1,000-ft.) from the source. By inserting the B132-110A remote/repeater unit in between, the signal can be regenerated and extended to another set of monitor and speakers up to an additional 304.8 m (1,000-ft.) away. A set of monitor and speakers can be connected to both the remote/repeater and the receiver, allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing audio/video to up to 4 remote displays/speakers located at different points in the installation. With Tripp Lite’s wide assortment of VGA + Audio over Cat5 extender solutions, the B132-110A remote/repeater unit can be used in a variety of ways to create the installation best suited to your needs. Insert the B132-110A in between the local transmitter and remote receiver units of your B130-101A-2 or B130-101A-WP-2 extender kit Connect the B132-110A to the remote/repeater unit that comes with the B130-111A extender/repeater kit Connect the B132-110A to an available port on a B132-002A-2 or B132-004A-2 extender/splitter 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Unit features Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows the unit to be wall mounted, rackmounted, or pole mounted.
- Both extends and expands your Tripp Lite VGA + Audio over Cat5 installation, allowing you to locate multiple monitors/speakers at different points in a chain of up to 609.6 m (2,000 ft.) - Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing audio/video to up to 4 remote displays/speakers in a full chain - 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution - For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

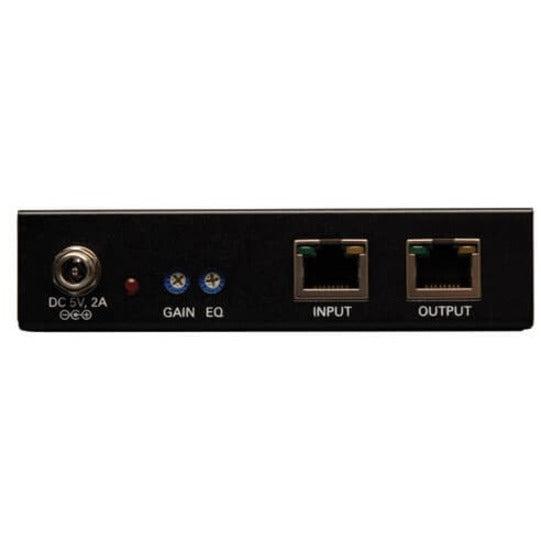

- Both extends and expands your Tripp Lite VGA + Audio over Cat5 installation, allowing you to locate multiple monitors/speakers at different points in a chain of up to 609.6 m (2,000 ft.) - Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing audio/video to up to 4 remote displays/speakers in a full chain. - 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. - For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. - Extend a 1920 x 1440 (60Hz) video and audio signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) video and audio signal up to 304.8 m (1,000-ft.), between the local transmitter and the first remote/repeater unit in the installation. - Extend a 1920 x 1440 (60Hz) video and audio signal up to an additional 152.4 m (500-ft.), or a 1024 x 768 (60Hz) video and audio signal up to an additional 304.8 m (1,000-ft.), from the first remote/repeater unit to the last set of display and speakers in the installation. - Features built-in Equalization and Gain controls for video image adjustment. - Includes mounting hardware that allows wall mounting, rackmounting or pole mounting. - International AC Adapter B110-INT required for use with UK, European, and Australian power connections
