Tripp Lite by Eaton

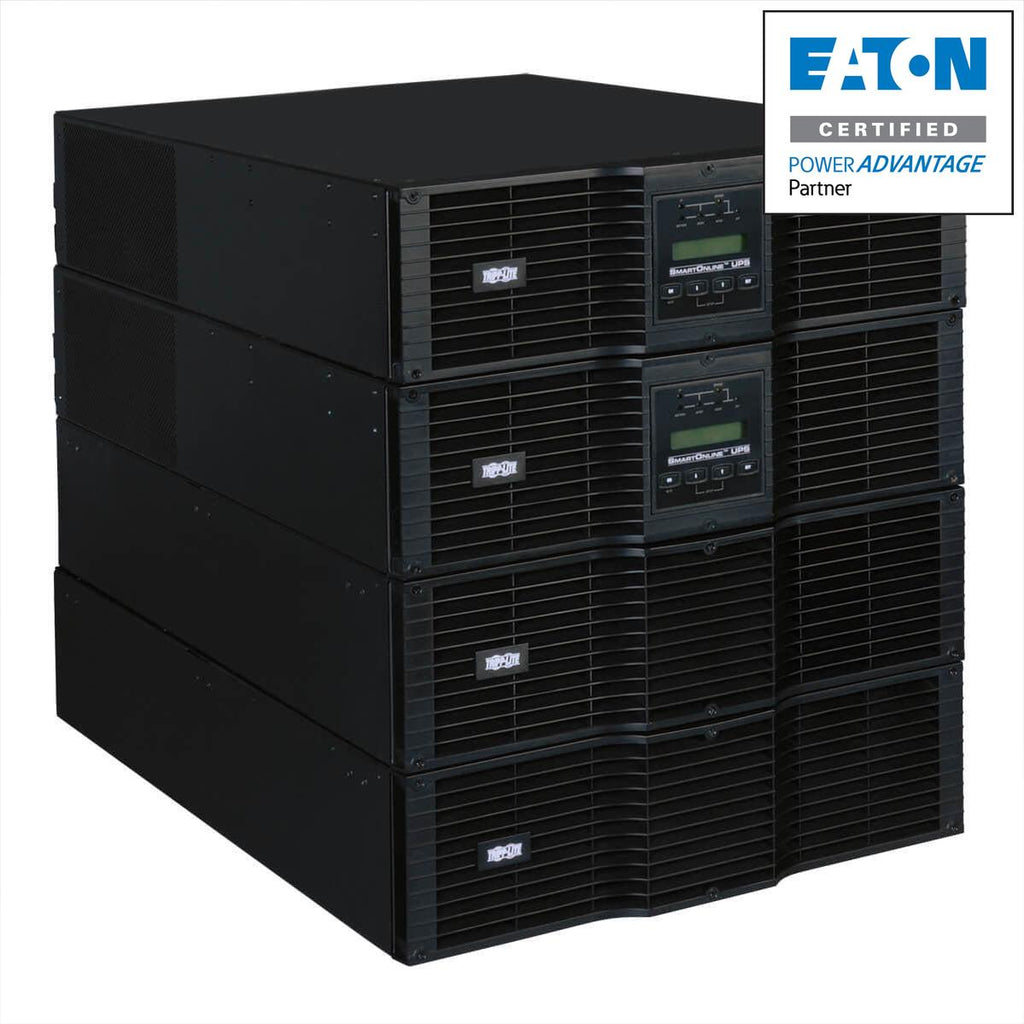

Tripp Lite Su16Krthw Smartonline 200-240V 16Kva 14.4Kw Double-Conversion Ups, N+1, 12U, Network Card Slot, Usb, Db9, Bypass Switch, Hardwire

Tripp Lite Su16Krthw Smartonline 200-240V 16Kva 14.4Kw Double-Conversion Ups, N+1, 12U, Network Card Slot, Usb, Db9, Bypass Switch, Hardwire

SKU:SU16KRTHW

Regular price $8,957.97
Regular price Sale price $8,957.97
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 200-240V 16kVA 14.4kW Double-Conversion UPS, N 1, 12U, Network Card Slot, USB, DB9, Bypass Switch, Hardwire

          Tripp Lite SU16KRTHW SmartOnline 200-240V 16kVA 14.4kW Double-Conversion UPS, N+1, 12U, Network Card Slot, USB, DB9, Bypass Switch, Hardwire. UPS topology: Double-conversion (Online), Output power capacity: 16 kVA, Output power: 14400 W. AC outlet types: Terminal, Power plug: Terminal. Typical backup time at full load: 5.5 min, Typical backup time at half load: 13.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Package width: 1022.4 mm, Package depth: 1295.4 mm, Package height: 914.4 mm

          Tripp Lite SU16KRTHW 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

          Tripp Lite SU16KRTHW 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 12U total rack/tower configuration
          Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under
          Included Parallel PDU with manual bypass switch enables hot-swap replacement power modules at any supported load level
          Hardwire input (3 wire) and hardwire output (3 wire) connections
          Supports North American (L1,L2,G) 208/240v hardwire input / output, plus International 230/220/240v (L,N,PE) hardwire input / output
          Optional SU6000XFMR2U transformer offers 120v output in North American 208/240V (L1,L2,G) input configurations
          Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal
          Supports 50/60Hz operation for worldwide frequency compatibility
          Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD (NOTE: Applications utilizing any supported network management card option, require the installation of two of the same model network card – install one card per included UPS power module)
          Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
          PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
          Expandable runtime with optional external battery packs
          Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          Battery independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries
          Intelligent battery management system with temperature-compensated charging extends battery life
          HID-compliant USB interface
          USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
          Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (4 required)
          Optional 2-9USTAND supports upright tower placement (2 required)
          Supports Emergency Power Off (EPO) via built-in interface
          Front panel LEDs and LCD readout with scroll controls
          LED / LCD display panel rotates for viewing in rackmount or tower configurations
          External battery packs are field replaceable and hot swappable
          Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU16KRTHW
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Series EZ
          Product Model SU16KRTHW
          Product Name SmartOnline EZ SU16KRTHW 16kVA Tower/Rack Mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332158239
          Height5.1"
          Width17.5"
          Depth26"
          Weight (Approximate)43 lb

          Miscellaneous

          Package Contents
          • SmartOnline EZ SU16KRTHW 16kVA Tower/Rack Mountable UPS
          • 2 x Power Modules
          • 2 x Battery Packs
          • Hardwire parallel PDU with Bypass switch
          • PowerAlert Software CD
          • USB Cable
          • Serial Cable
          • EPO Cable
          • 4 x Sets of Adjustable 4 Post Rack Rails
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
