Tripp Lite by Eaton

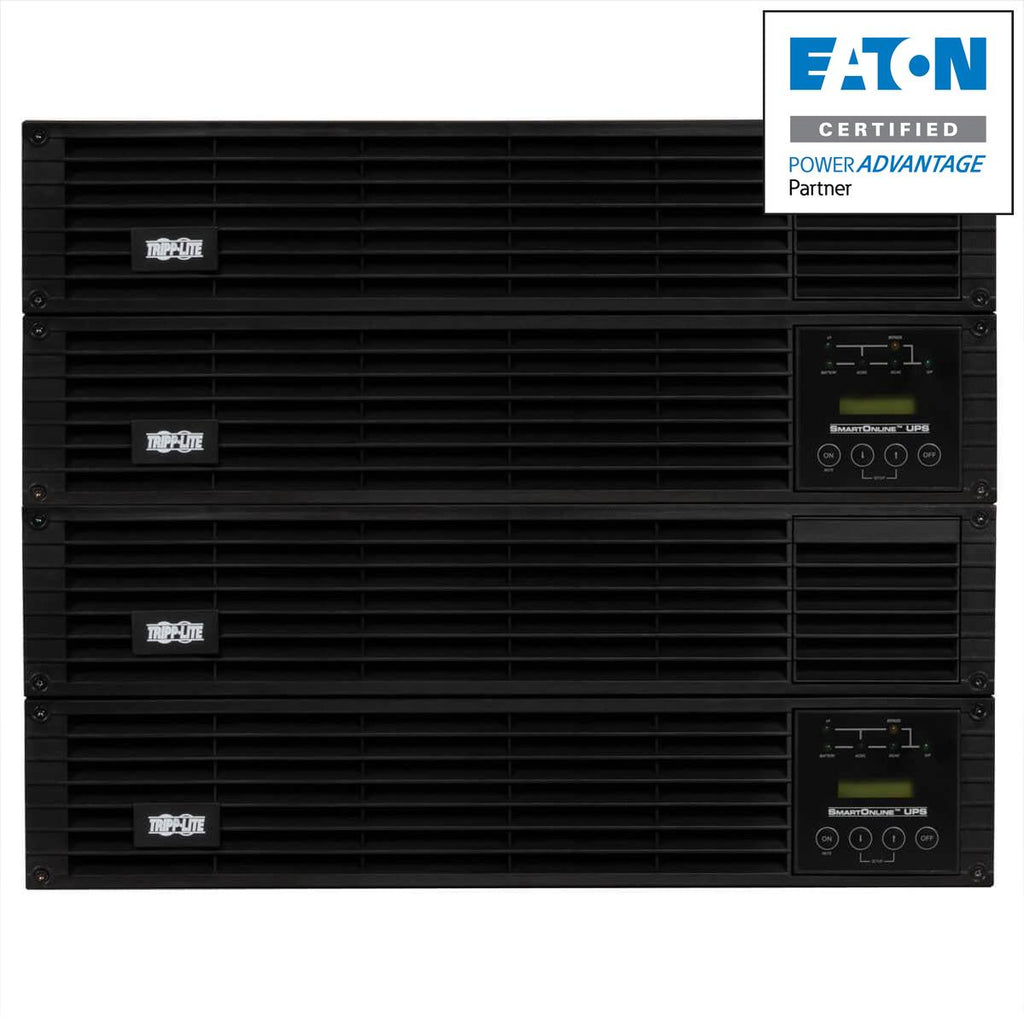

Tripp Lite Su12Krt4Uhw Smartonline 200-240V 12Kva 10.8Kw Double-Conversion Ups, N+1, 8U, Extended Run, Network Card Slot, Usb, Db9, Bypass, Hardwire

Tripp Lite Su12Krt4Uhw Smartonline 200-240V 12Kva 10.8Kw Double-Conversion Ups, N+1, 8U, Extended Run, Network Card Slot, Usb, Db9, Bypass, Hardwire


Regular price $6,780.14
Regular price Sale price $6,780.14
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

          SmartOnline 200-240V 12kVA 10.8kW Double-Conversion UPS, N 1, 8U, Extended Run, Network Card Slot, USB, DB9, Bypass, Hardwire

          Tripp Lite SU12KRT4UHW SmartOnline 200-240V 12kVA 10.8kW Double-Conversion UPS, N+1, 8U, Extended Run, Network Card Slot, USB, DB9, Bypass, Hardwire. UPS topology: Double-conversion (Online), Output power capacity: 12 kVA, Output power: 10800 W. AC outlet types: Terminal. Typical backup time at full load: 2 min, Typical backup time at half load: 8.5 min. Form factor: Rackmount/Tower, Product colour: Black, Display: LCD. Package width: 609.6 mm, Package depth: 863.6 mm, Package height: 1041.4 mm

          Tripp Lite SU12KRT4UHW 12,000VA / 12Kva / 10,800 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in an 8U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 6kVA, and non-redundant operation at loads between 6 and 12kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

          Tripp Lite SU12KRT4UHW 12kVA, 12,000VA / 10,800 watt on-line, double-conversion UPS system in 8U total rack/tower configuration
          Unique configuration offers 12kVA non-redundant operation and automatic N+1 redundancy at load levels of 6kVA and under
          Included Parallel PDU with manual bypass switch enables hot-swap replacement of power modules at any supported load level
          Hardwire input and output connections
          Maintains sine wave output within 2% of selectable 200/208/220/230/240V nominal
          Supports 50/60Hz operation for worldwide frequency compatibility
          Expandable runtime with optional external battery packs
          Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          Intelligent battery management system with temperature-compensated charging extends battery life
          Battery independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries
          Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
          Optional WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
          PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
          Optional RELAYIOMINI interface modules available (requires removal of USB interface module)
          Applications utilizing the optional network communications card require two compatible card accessories (install one per included power module)
          HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
          Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (2 required)
          Optional 2-9USTAND supports upright tower placement (1 required)
          Supports Emergency Power Off (EPO) via built-in interface
          Front panel LEDs and LCD readout with scroll controls
          LED / LCD display panel rotates for viewing in rackmount or tower configurations
          External battery packs are field replaceable and hot swappable
          Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
          $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
