Tripp Lite by Eaton

Tripp Lite Su10000Rt3Ug Smartonline 200-240V 10Kva 9Kw Double-Conversion Ups, 6U, Extended Run, Network Card Slot, Usb, Db9, Bypass Switch,C19

Tripp Lite Su10000Rt3Ug Smartonline 200-240V 10Kva 9Kw Double-Conversion Ups, 6U, Extended Run, Network Card Slot, Usb, Db9, Bypass Switch,C19

SKU:SU10000RT3UG-teci

Regular price $5,966.61
Regular price Sale price $5,966.61
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          SmartOnline 200-240V 10kVA 9kW Double-Conversion UPS, 6U, Extended Run, Network Card Slot, USB, DB9, Bypass Switch,C19

          Tripp Lite SU10000RT3UG SmartOnline 200-240V 10kVA 9kW Double-Conversion UPS, 6U, Extended Run, Network Card Slot, USB, DB9, Bypass Switch,C19. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 9000 W. AC outlet types: C19 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4.3 min, Typical backup time at half load: 12.5 min, Battery recharge time: 8 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Package width: 660.4 mm, Package depth: 1041.4 mm, Package height: 812.8 mm

          Tripp Lite SU10000RT3UG 10,000VA / 10kVA / 9000 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

          Tripp Lite SU10000RT3UG 10kVA / 10,000VA / 9000 watt on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack)

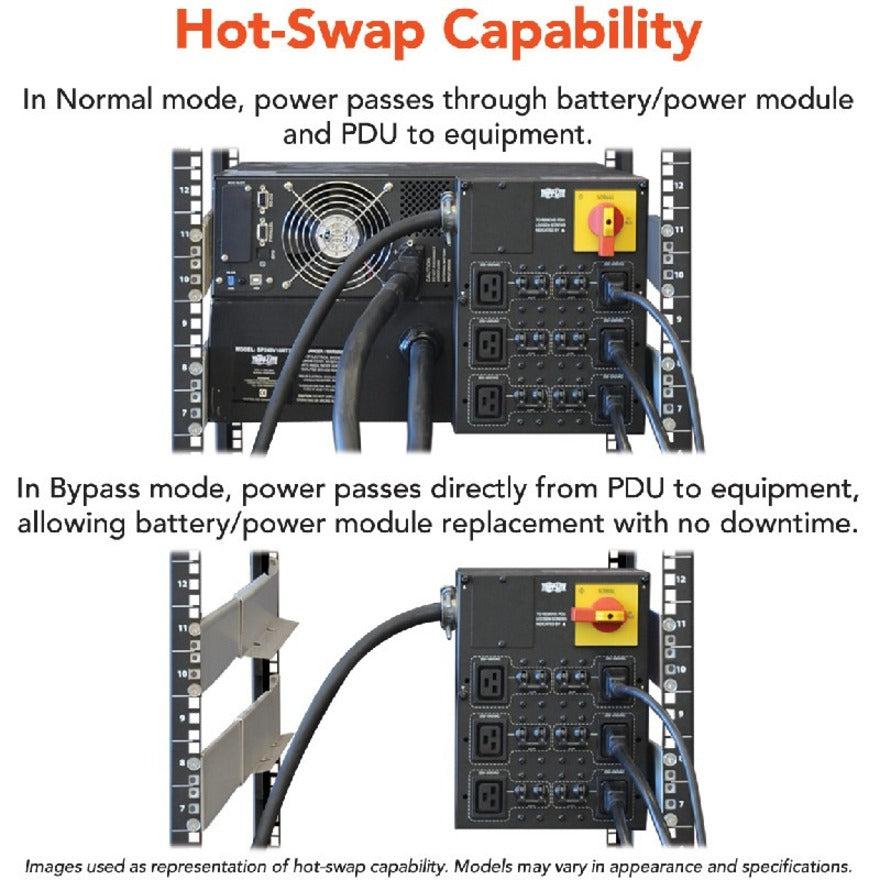

          Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment
          Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

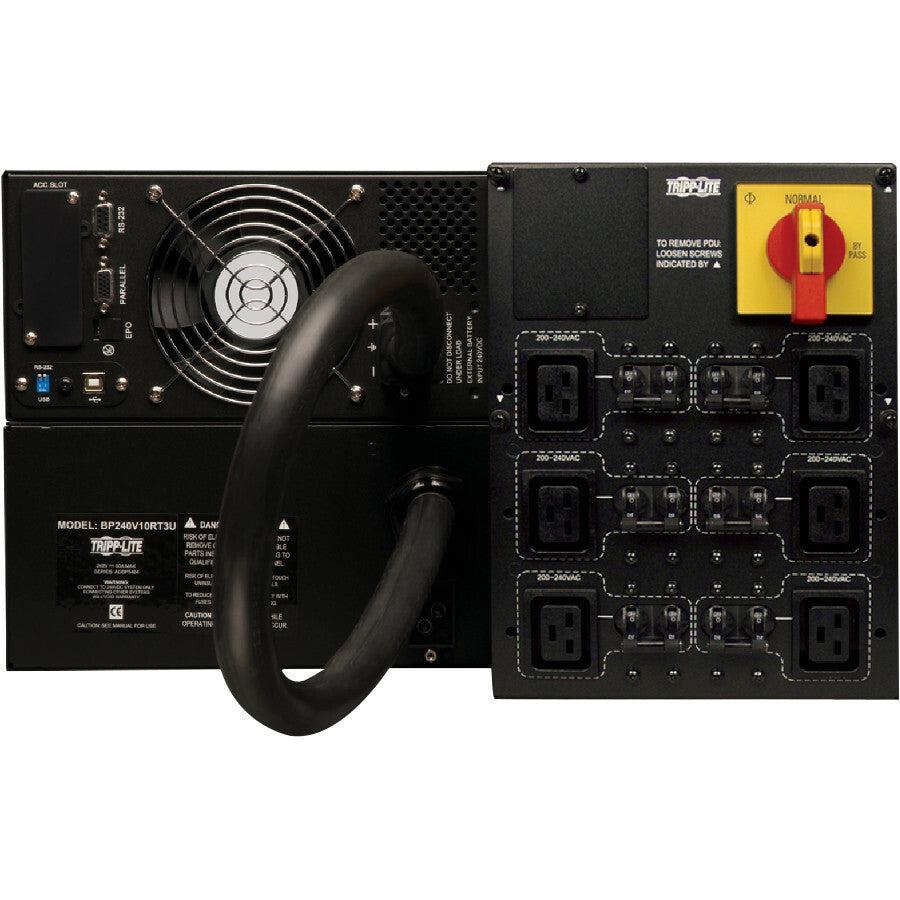

          Hardwire input; 6 C19 outlets
          Maximum installed rack depth of only 32.5 in. / 82.6cm
          Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
          Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
          Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V
          Supports 50/60Hz operation for worldwide frequency compatibility
          Expandable runtime is supported with optional BP240V10RT3U; BP240V787C-1PH external battery packs
          Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          Intelligent battery management system with temperature-compensated charging extends battery life
          Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs
          Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
          USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
          HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          Compatible Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD support a wide variety of UPS control and monitoring capabilities

          Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
          PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
          Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
          Supports Emergency Power Off (EPO) via built-in interface

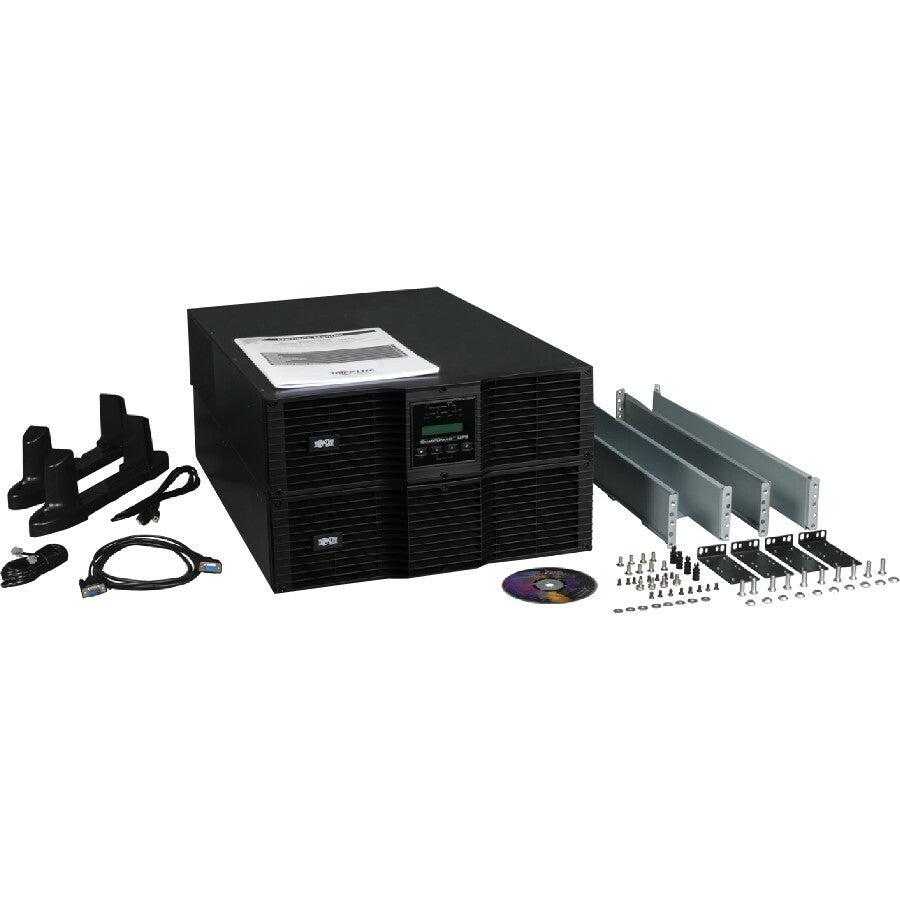

          Included rail kit supports 6U 19 inch rackmount installation in 4 post racks
          Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks
          Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
          LED / LCD display panel rotates for viewing in rackmount or tower configurations
          Network-grade AC surge and noise suppression
          Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
          Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
          External battery packs are field replaceable and hot swappable
