Tripp Lite by Eaton

Tripp Lite Srw6Udp Smartrack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

Tripp Lite Srw6Udp Smartrack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

SKU:SRW6UDP

Regular price $236.91
Regular price Sale price $236.91
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

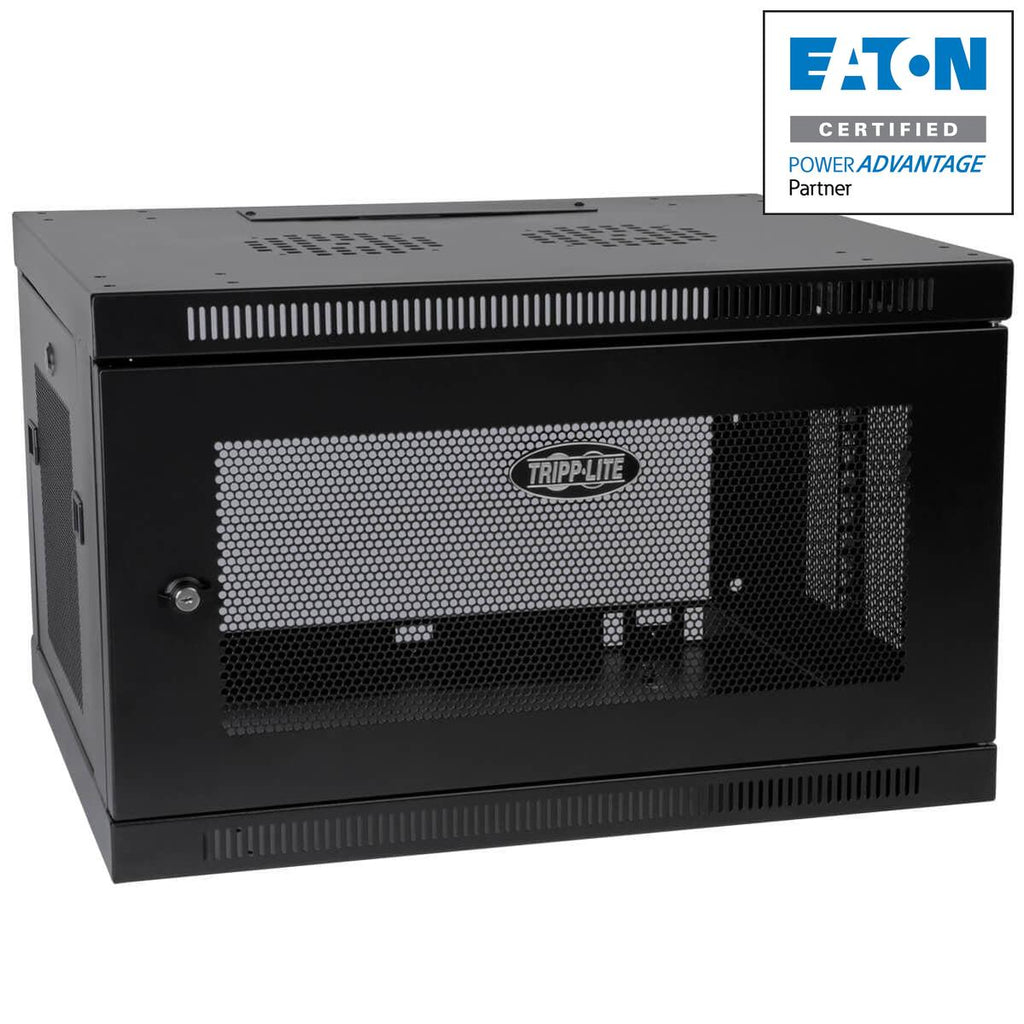

          SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

          Tripp Lite SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure. Type: Wall mounted rack, Rack capacity: 6U, Maximum weight capacity: 90.7 kg, Key lock. Weight: 20.5 kg. Product colour: Black

          The SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).

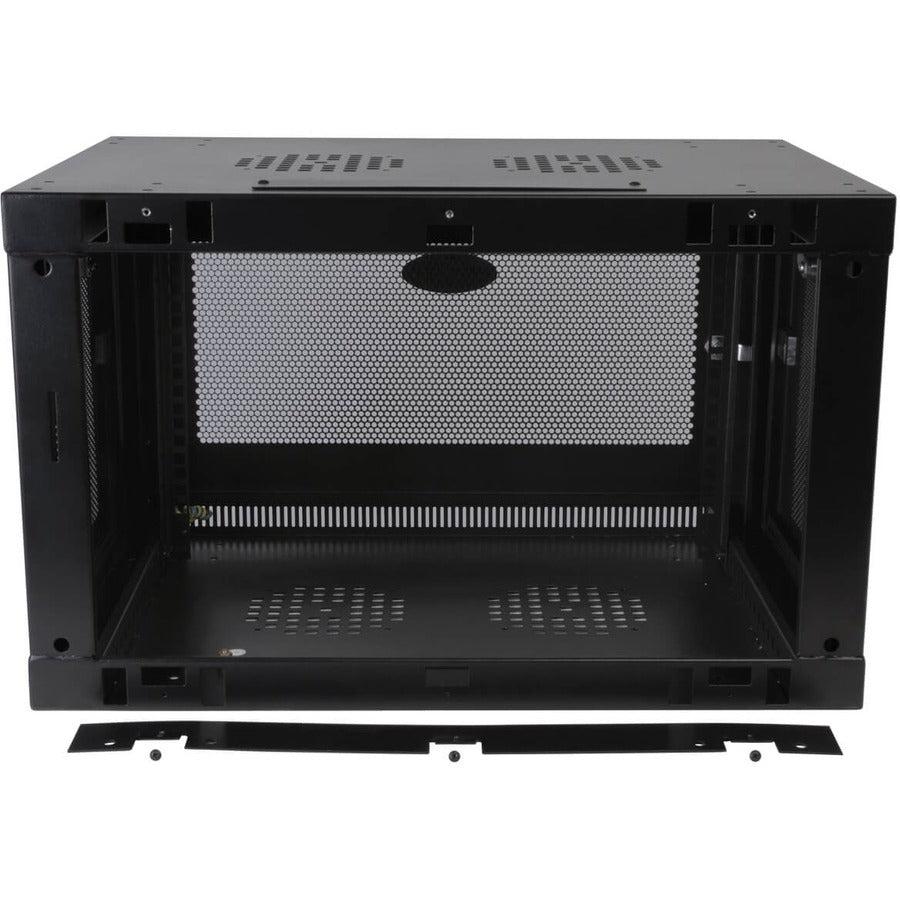

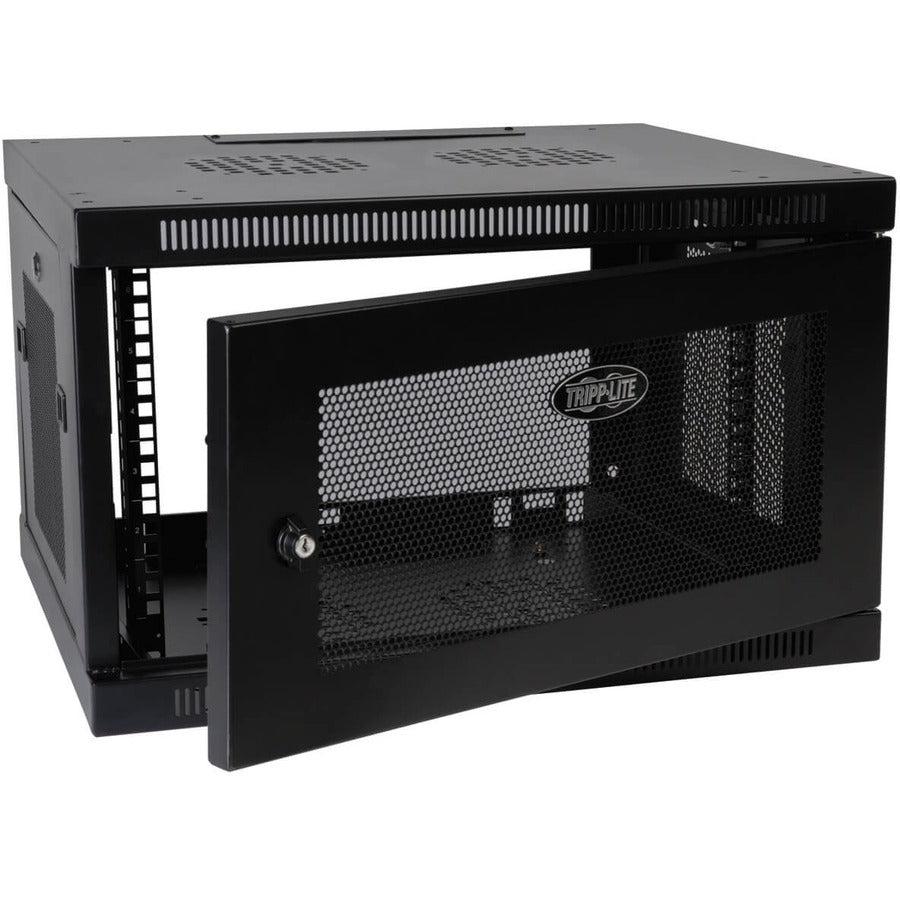

          The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

          The SRW6UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

          Saves Valuable Workspace
          Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
          Houses EIA-standard 19 in. rack equipment in 6U of space
          Maximum load capacity of 200 lbs (90.7 kgs)

          Keeps Important Equipment Secure
          Side panels and front door lock securely to help prevent damage, tampering or theft
          Vented panels allow generous airflow that keeps equipment cool
          Rotate cabinet 180° before mounting to open reversible front door left or right
          Convenient ports with removable covers allow cable routing through top and bottom

          Easy Enclosure and Equipment Installation
          Ships fully assembled for quick installation
          Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit
          Wall-mounting holes spaced 16 in. apart for standard wall stud placement

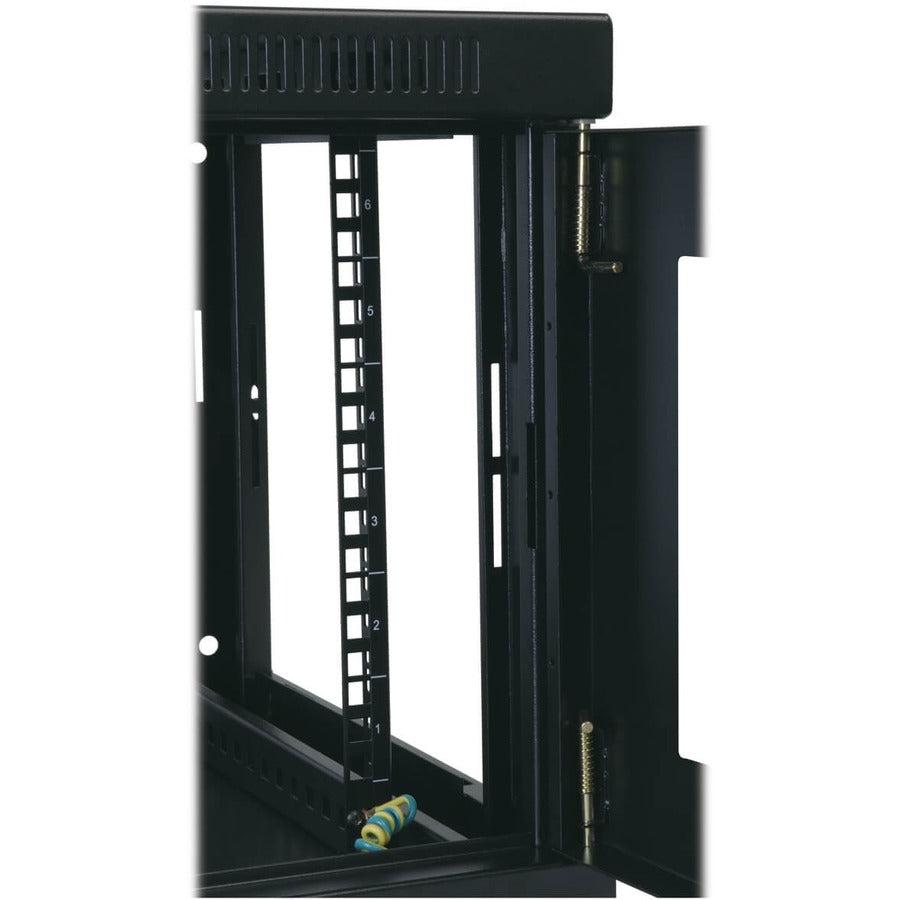

          Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels
          Rails support square-hole or 12-24 threaded-hole mounting
          Rack spaces numbered for easy reference

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
