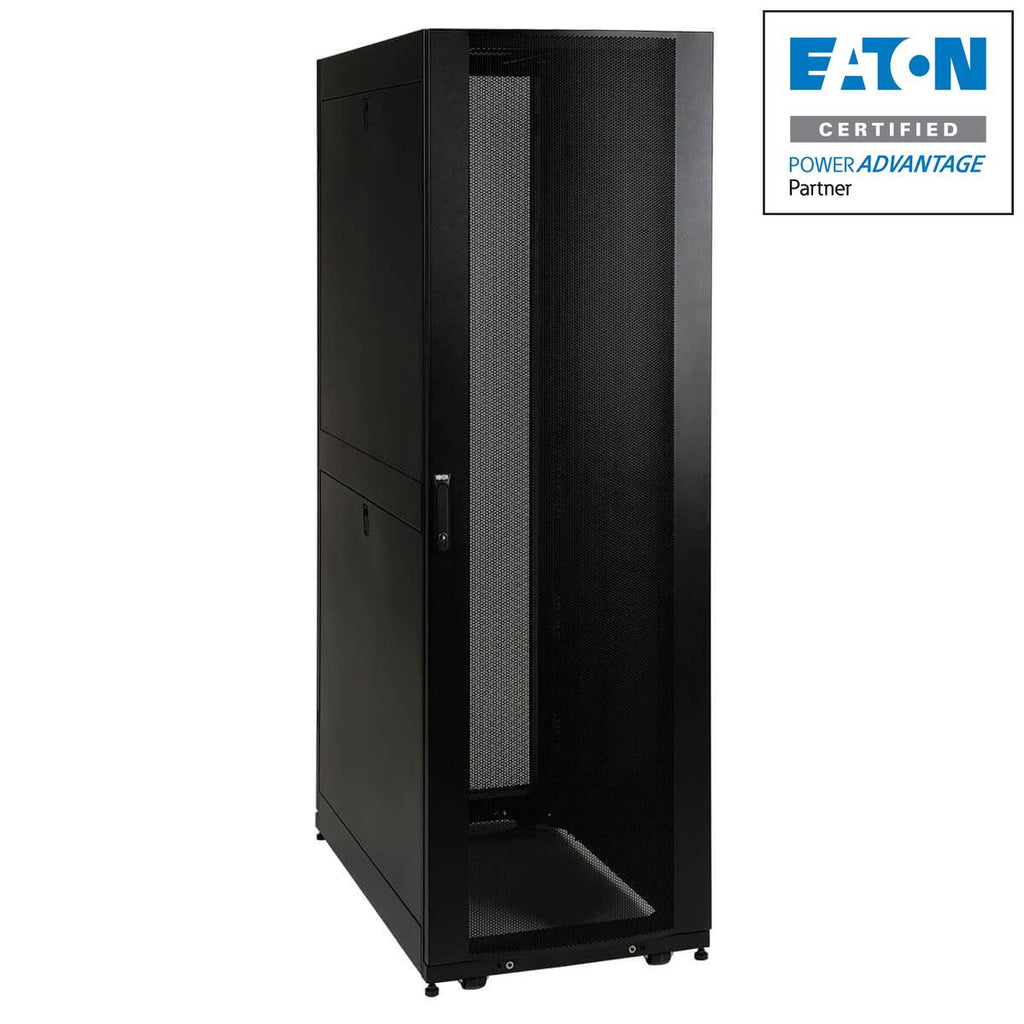

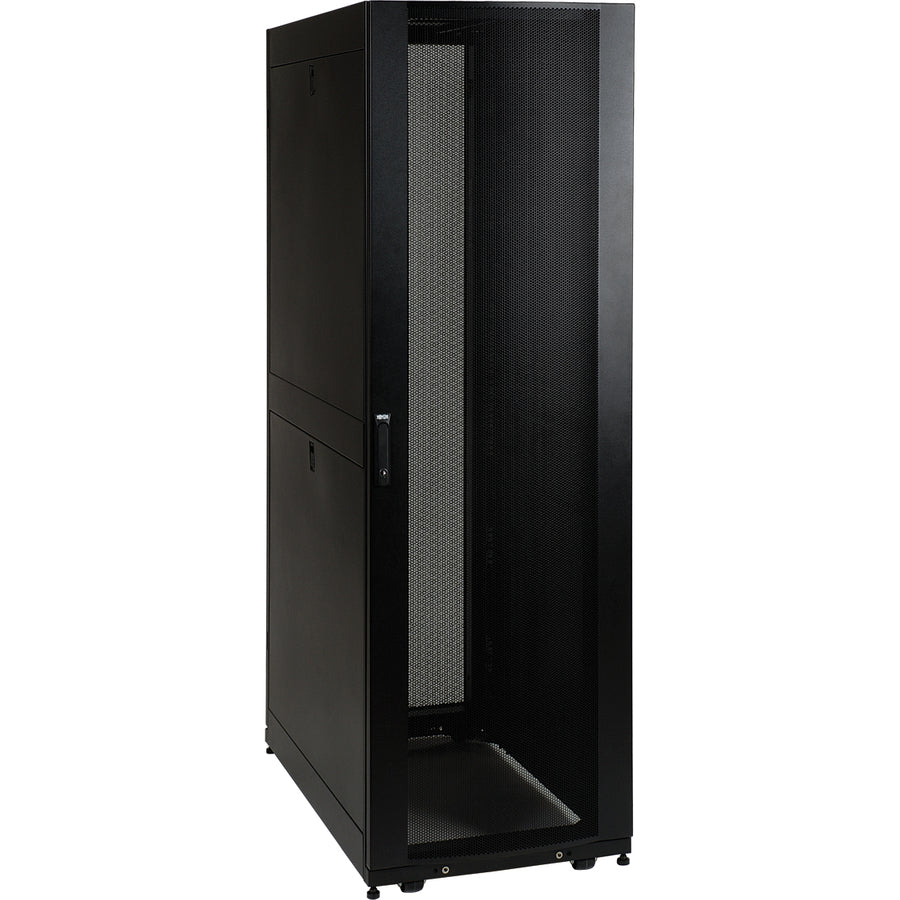

Tripp Lite Sr45Ubsp1 45U Smartrack Standard-Depth Rack Enclosure Cabinet With Doors, Side Panels & Shock Pallet Packaging

Tripp Lite Sr45Ubsp1 45U Smartrack Standard-Depth Rack Enclosure Cabinet With Doors, Side Panels & Shock Pallet Packaging

SKU:SR45UBSP1

Regular price $1,577.75
Regular price Sale price $1,577.75
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          45U SmartRack Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging

          Tripp Lite SR45UBSP1 45U SmartRack Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging. Type: Freestanding rack, Rack capacity: 45U, Maximum weight capacity: 1360.8 kg. Weight: 139.2 kg. Product colour: Black

          45U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR45UBSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.

          The SR45UBSP1 houses 3000 lbs (1360.8 kgs) of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

          Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

          With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBUSP1 provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBSP1 meets all requirements toward PCI DSS compliance.

          The top panel of the SR45UBSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR45UBSP1 is open-bottom.

          All components of the SR45UBSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

          The SR45UBSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.

          This special version of Tripp Lite's SR45UB SmartRack Enclosure ships mounted on a "shock pallet" that features additional reinforcement and shock-absorbing material for safe loading and re-shipping

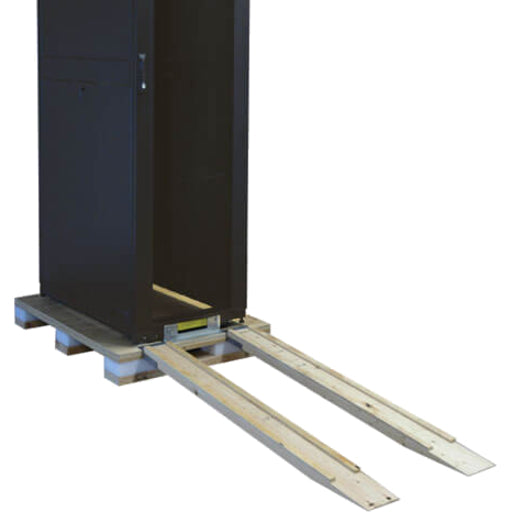

          Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration
          Shipping Capacity: shock-pallet supports up to 1250 lbs (566.9 kgs) (281 lbs (127.5 kgs) SmartRack Enclosure weight + up to 969 lbs (439.5 kgs) of additional equipment), enabling safe loading and re-shipping
          Final Installation Capacity: SmartRack Enclosure supports up to 3000 lbs (1360.8 kgs) of equipment stationary and 2250 lbs (1020.6 kgs) rolling.
          Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters. (casters are removable)

          Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
          Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
          Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws.
          Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
          Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
          Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
          Front door is locking, reversible and removable.

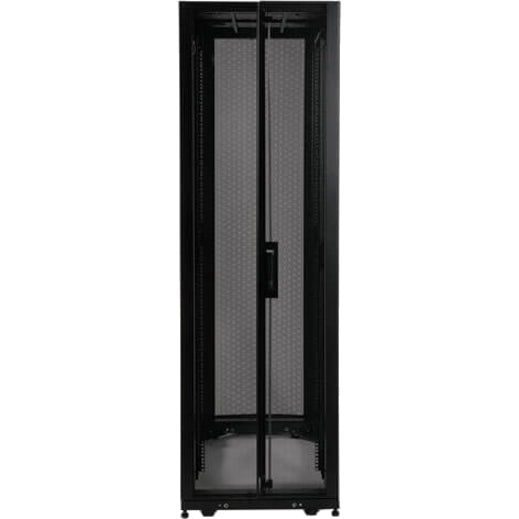

          Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.

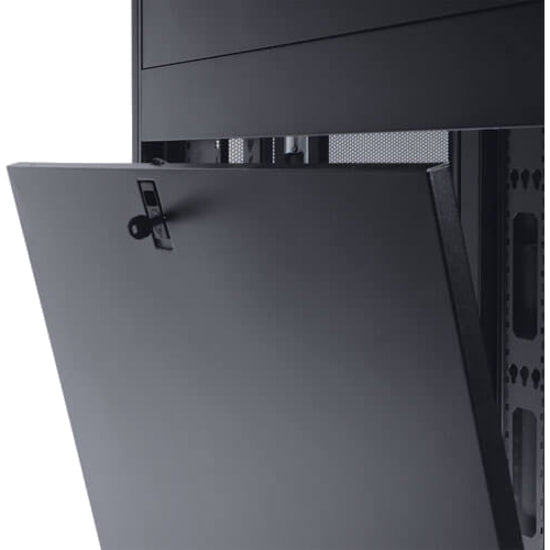

          Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors.
          Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 29.5" to match standard data center floor tiles.

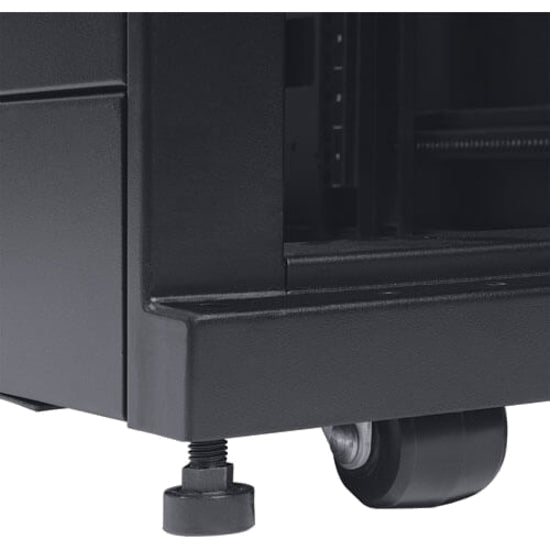

          Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.

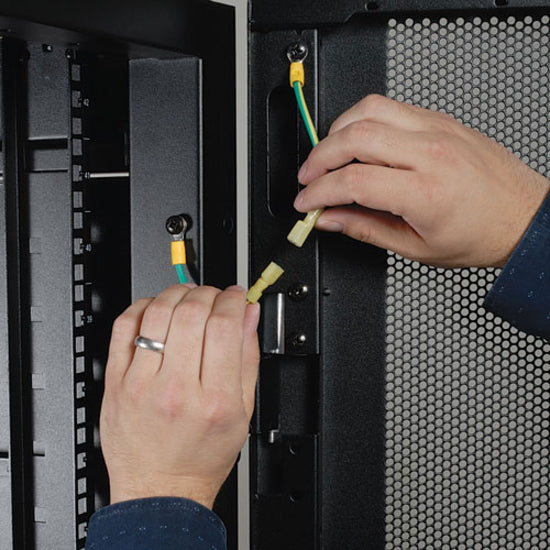

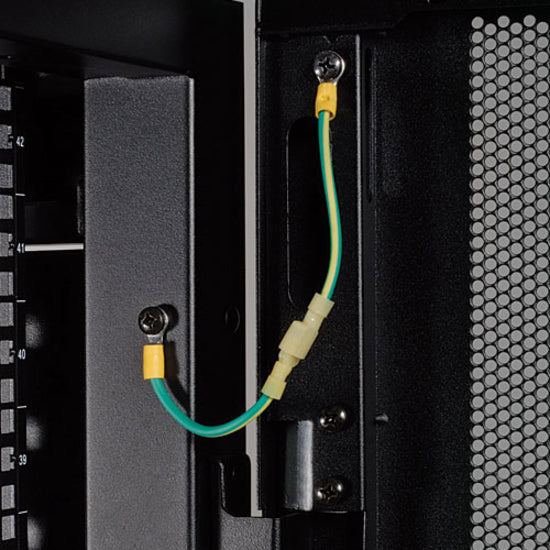

          Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.
          Open bottom for cable access.

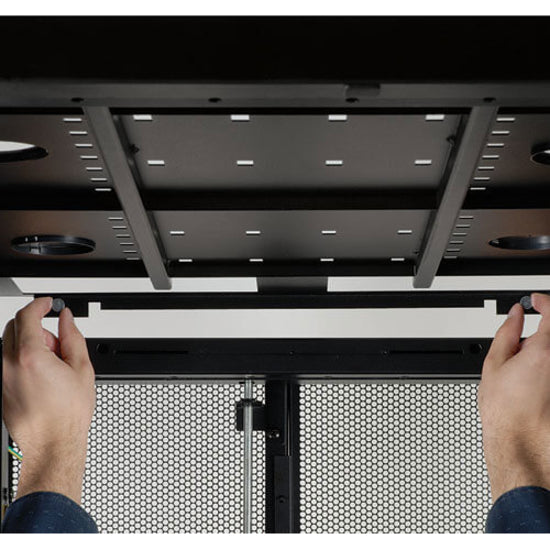

          Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.

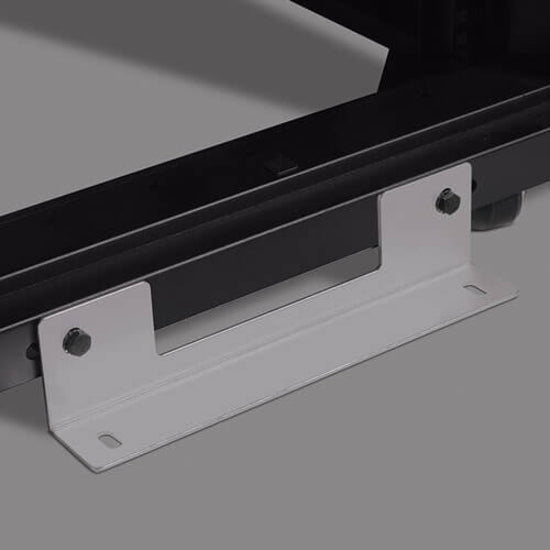

          Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.
          Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
          Compatibility with airflow optimization accessories as well as cable management accessories.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SR45UBSP1
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SR45UBSP1
          Product Name SmartRack SR45UBSP1 Rack Cabinet
          Product Type Rack Cabinet
          UPC 0037332174864

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height83.8"
          Width23.6"
          Depth43"
          Weight (Approximate)306.44 lb

          Miscellaneous

          Package Contents
          • SmartRack SR45UBSP1 Rack Cabinet
          • Owner's Manual
          • 50 x M6 Screws
          • 50 x M6 Washers
          • 50 x M6 Cage Nuts
          • 4 x Side Panels
          • 4 x Side Panel Locks
          • 2 x Door and Side Panel Keys
          • Stabilizing Bracket
          • Mounting Hardware
          Environmentally FriendlyYes
          Environmental CertificationRoHS

          Warranty

          Limited Warranty5 Year
