Tripp Lite by Eaton

Tripp Lite Smartpro 208/120V 5Kva 3.75Kw Line-Interactive Sine Wave Ups, Extended Run, Snmp, Webcard, 3U Rack/Tower, Usb, Db9 Serial

Tripp Lite Smartpro 208/120V 5Kva 3.75Kw Line-Interactive Sine Wave Ups, Extended Run, Snmp, Webcard, 3U Rack/Tower, Usb, Db9 Serial

SKU:SMART5000XFMRXL-teci

Regular price $3,448.92
Regular price Sale price $3,448.92
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

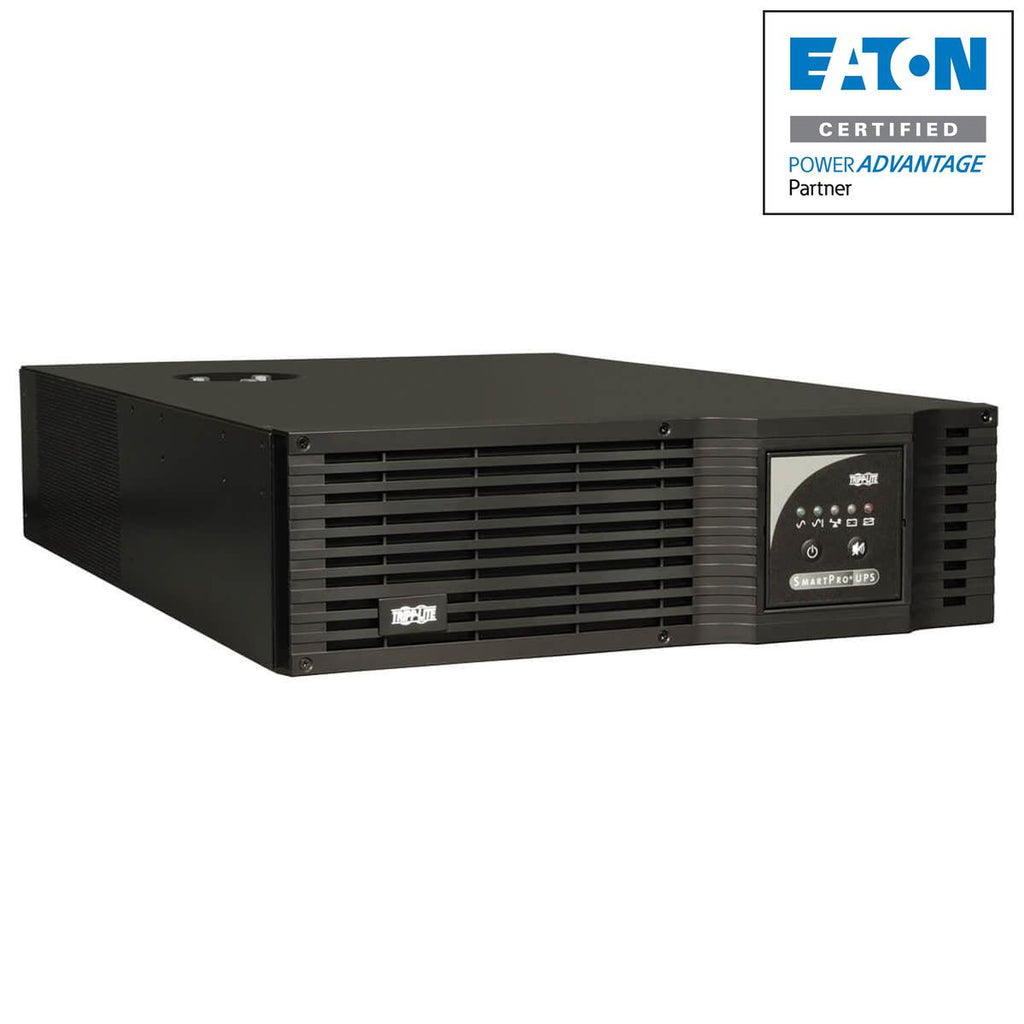

          SmartPro 208/120V 5kVA 3.75kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial

          Tripp Lite SmartPro 208/120V 5kVA 3.75kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 5 kVA, Output power: 3750 W. AC outlet types: NEMA 5–20R,NEMA L6-20R,NEMA L6-30R, Power plug: NEMA L6-30P, AC outlets quantity: 11 AC outlet(s). Typical backup time at full load: 8.5 min, Typical backup time at half load: 20 min, Battery recharge time: 4 h. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 444.5 mm, Depth: 635 mm, Height: 133.4 mm

          Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
          - 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
          - Supports full output at either 208V or 120V
          - 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
          - Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
          - Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
          - AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
          - Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
          - Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
          - Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
          - Built-in Emergency Power Off (EPO) interface with cable
          - Sine wave output in AC and battery mode
          - Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
          - Half/full load runtime of 20/8.5 minutes with internal batteries
          - Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)

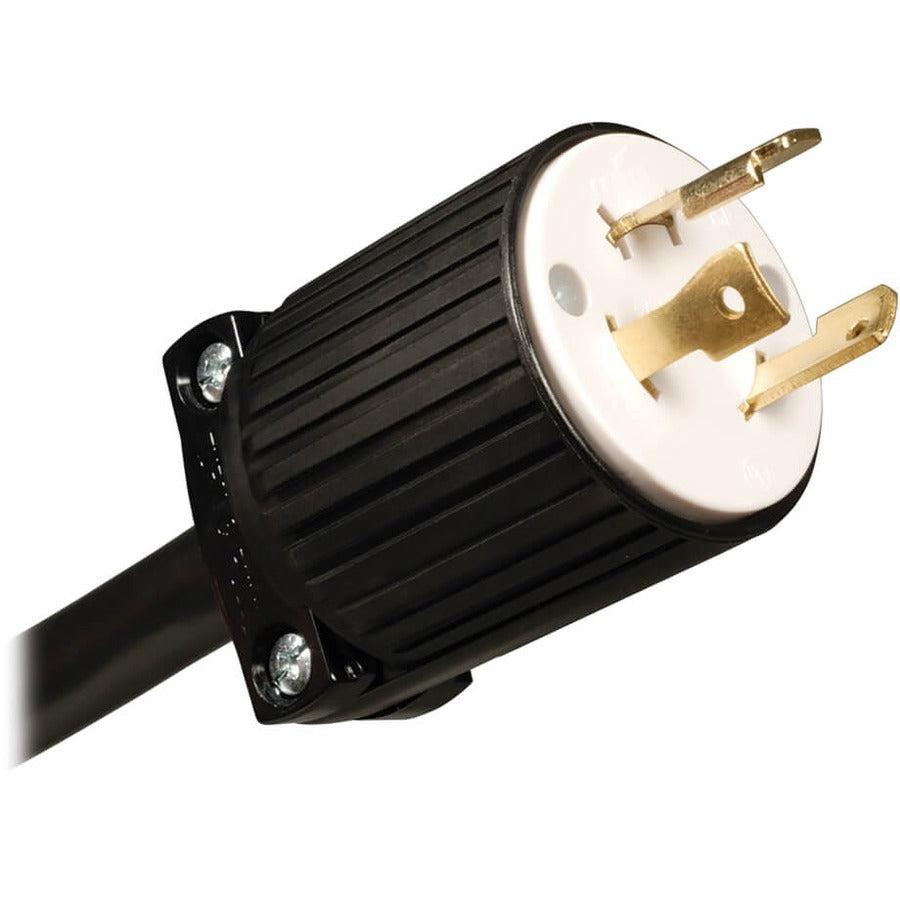

          - Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
          - Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
          - 3 stage metered LEDs offer current monitoring and battery charge level
          - Mains power and voltage regulation LEDs offer at-a-glance power status information
          - Front panel switches support self-test and alarm cancel functions

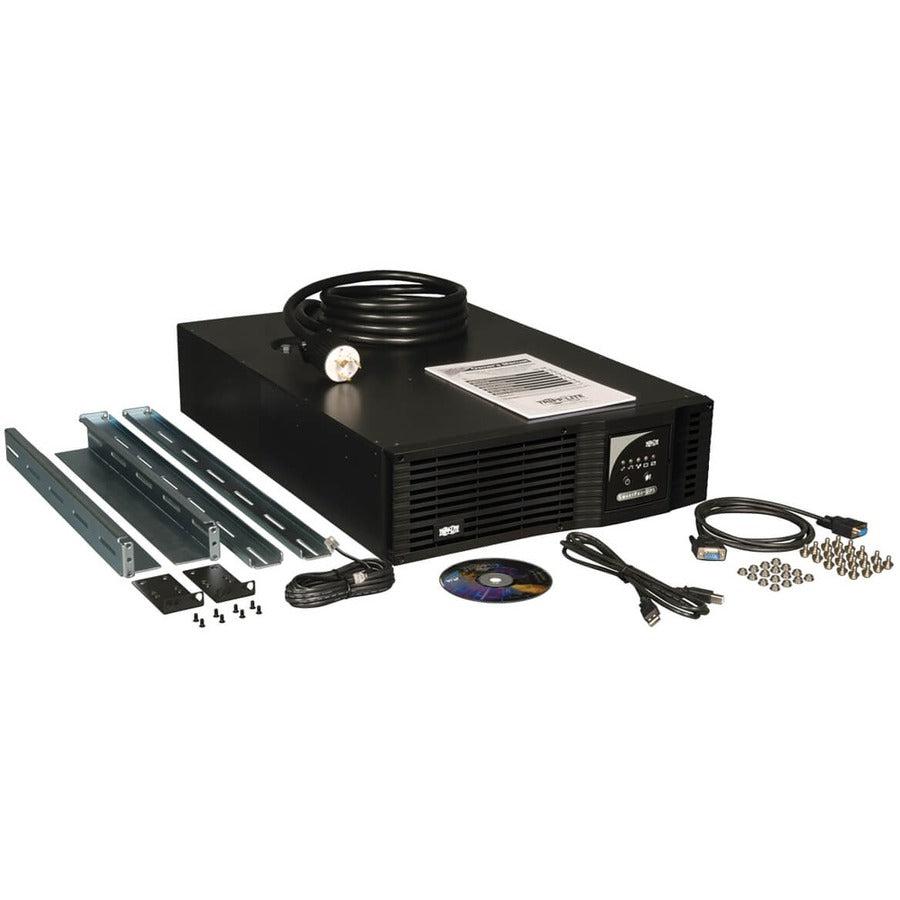

          - Included adjustable mounting rails support installation in 4 post 19 inch racks
          - UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
          - Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
          - Supports upright tower placement with optional 2-9USTAND accessory
