Tripp Lite by Eaton

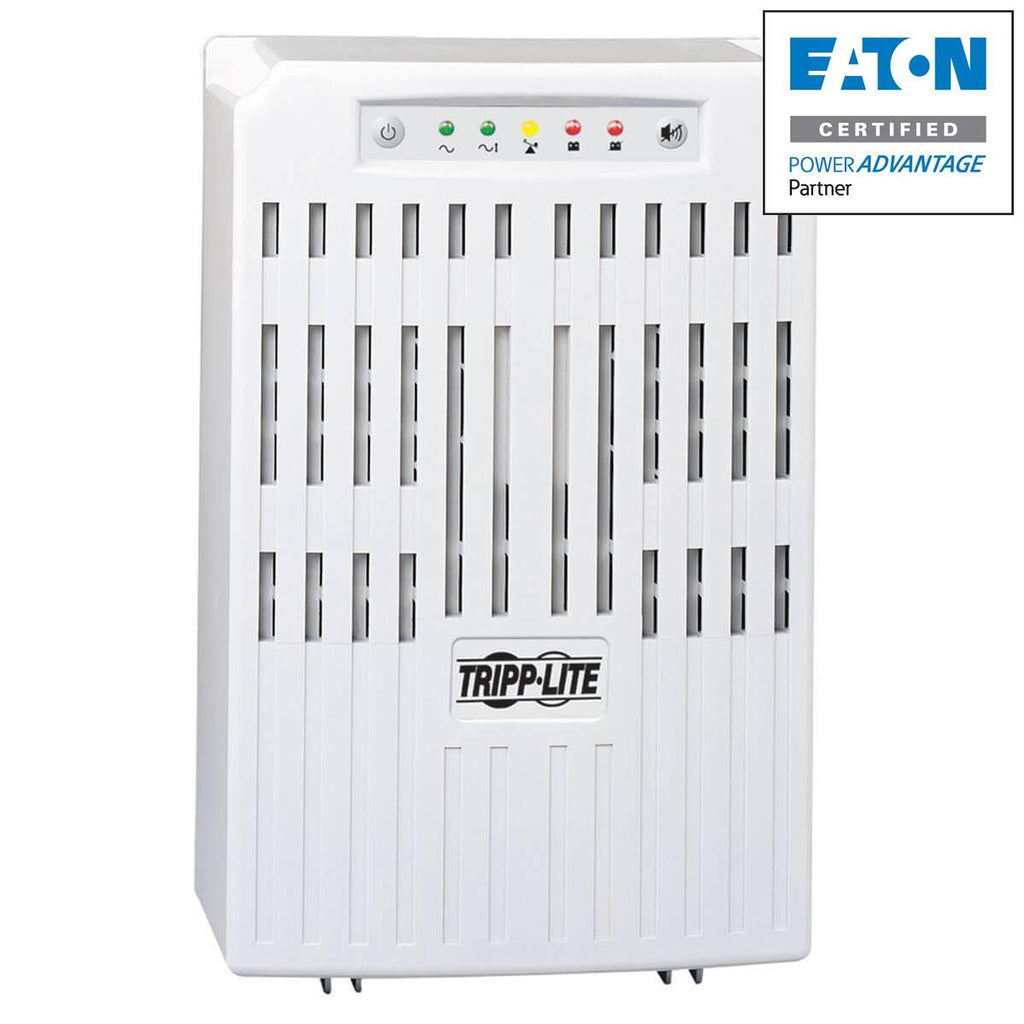

Tripp Lite Smartpro 120V 3Kva 2.25Kw Line-Interactive Ups, Extended Run, Snmp, Webcard, Tower, 120V, Usb, Db9 Serial

Tripp Lite Smartpro 120V 3Kva 2.25Kw Line-Interactive Ups, Extended Run, Snmp, Webcard, Tower, 120V, Usb, Db9 Serial

SKU:SMART3000VS

Regular price $1,160.31
Regular price Sale price $1,160.31
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartPro 120V 3kVA 2.25kW Line-Interactive UPS, Extended Run, SNMP, Webcard, Tower, 120V, USB, DB9 Serial

          Tripp Lite SmartPro 120V 3kVA 2.25kW Line-Interactive UPS, Extended Run, SNMP, Webcard, Tower, 120V, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2250 W. AC outlet types: NEMA 5–15R,NEMA 5–20R,NEMA L5-30R, Power plug: NEMA L5-30P, AC outlets quantity: 10 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 14 min, Battery recharge time: 4 h. Form factor: Tower, Product colour: White, Housing material: Polycarbonate (PC). Width: 235 mm, Depth: 304.8 mm, Height: 362 mm

          Tripp Lite's SMART 3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA/2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
          - 3000VA/2250 watt output capacity accommodates a variety of server, networking and telecom devices
          - High power density 3kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches
          - Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico
          - Offers 4 minutes runtime with a full load of 3000VA and 14 minutes with a half load of 1500VA
          - Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
          - Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power
          - 10 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R; 1 L5-30R)
          - Includes NEMA L5-30P locking 30 amp input plug connection
          - Notification of system status via 5 LEDs and multi-function audible alarms
          - Included PowerAlert Software provides e-mail notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
          - 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
          - Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments
          - Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
          - Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
          - 3 individual customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or perform "load shedding" of less critical loads to extend battery runtime for the most critical equipment
          - Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
          - Hot-swappable/user replaceable batteries allow on-site battery replacement without powering off connected equipment
          - UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary
          - This product is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartPro
          Product Series VS
          Product Name SmartPro VS Expandable Tower 3000VA UPS
          Product Type Line-interactive UPS
          UPC 037332115867

          Battery Information

          Battery ChemistryLead Acid
          Product ColorGray
          Height14.3"
          Width9.3"
          Depth12"
          Weight (Approximate)59 lb

          Miscellaneous

          Package Contents
          • SmartPro VS Expandable Tower 3000VA UPS
          • SMART 3000VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual

          Warranty

          Limited Warranty2 Year
