Tripp Lite by Eaton

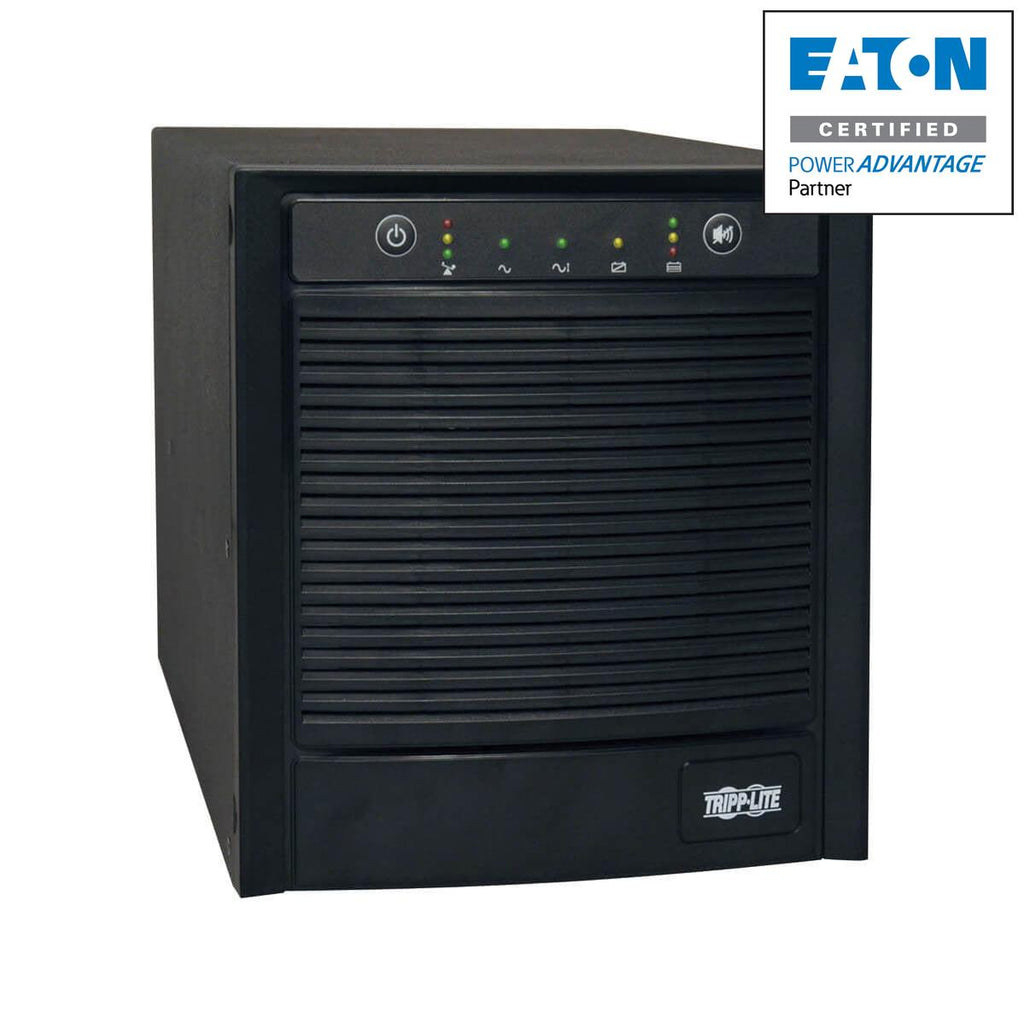

Tripp Lite Smartpro 120V 2.2Kva 1.6Kw Line-Interactive Sine Wave Ups, Tower, Snmp, Webcard, Usb, Db9 Serial

Tripp Lite Smartpro 120V 2.2Kva 1.6Kw Line-Interactive Sine Wave Ups, Tower, Snmp, Webcard, Usb, Db9 Serial

SKU:SMART2200SLT

Regular price $903.44
Regular price Sale price $903.44
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartPro 120V 2.2kVA 1.6kW Line-Interactive Sine Wave UPS, Tower, SNMP, Webcard, USB, DB9 Serial

          Tripp Lite SmartPro 120V 2.2kVA 1.6kW Line-Interactive Sine Wave UPS, Tower, SNMP, Webcard, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1600 W. AC outlet types: NEMA 5–15,NEMA 5–20R,NEMA L5-20R, Power plug: NEMA 5-20P, AC outlets quantity: 7 AC outlet(s). Typical backup time at full load: 5 min, Typical backup time at half load: 13 min, Battery recharge time: 4.5 h. Form factor: Tower, Product colour: Black, Cable length: 3 m. Width: 225.4 mm, Depth: 317.5 mm, Height: 266.7 mm

          2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. Includes PowerAlert power management software and complete cabling. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.
          - SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
          - Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V
          - Enables continuous operation through blackouts, voltage fluctuations and surges
          - Line-interactive automatic voltage regulation (AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages
          - Standard internal battery set offers 13 min. runtime at half load (800W) and 5 min. at full load (1600W)
          - Space-saving upright tower format
          - Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
          - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
          - UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control
          - NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles
          - Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information
          - UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SMART2200SLT
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartPro
          Product Model SMART2200SLT
          Product Name SmartPro SMART2200SLT 2200VA Tower UPS
          Product Type Line-interactive UPS
          UPC 037332125774
          Height10.5"
          Width8.9"
          Depth12.5"
          Weight (Approximate)57 lb

          Miscellaneous

          Package Contents
          • SmartPro SMART2200SLT 2200VA Tower UPS
          • SMART2200SLT UPS System
          • PowerAlert Software and cabling
          • Owner's manual with warranty information

          Warranty

          Limited Warranty3 Year
