Tripp Lite by Eaton

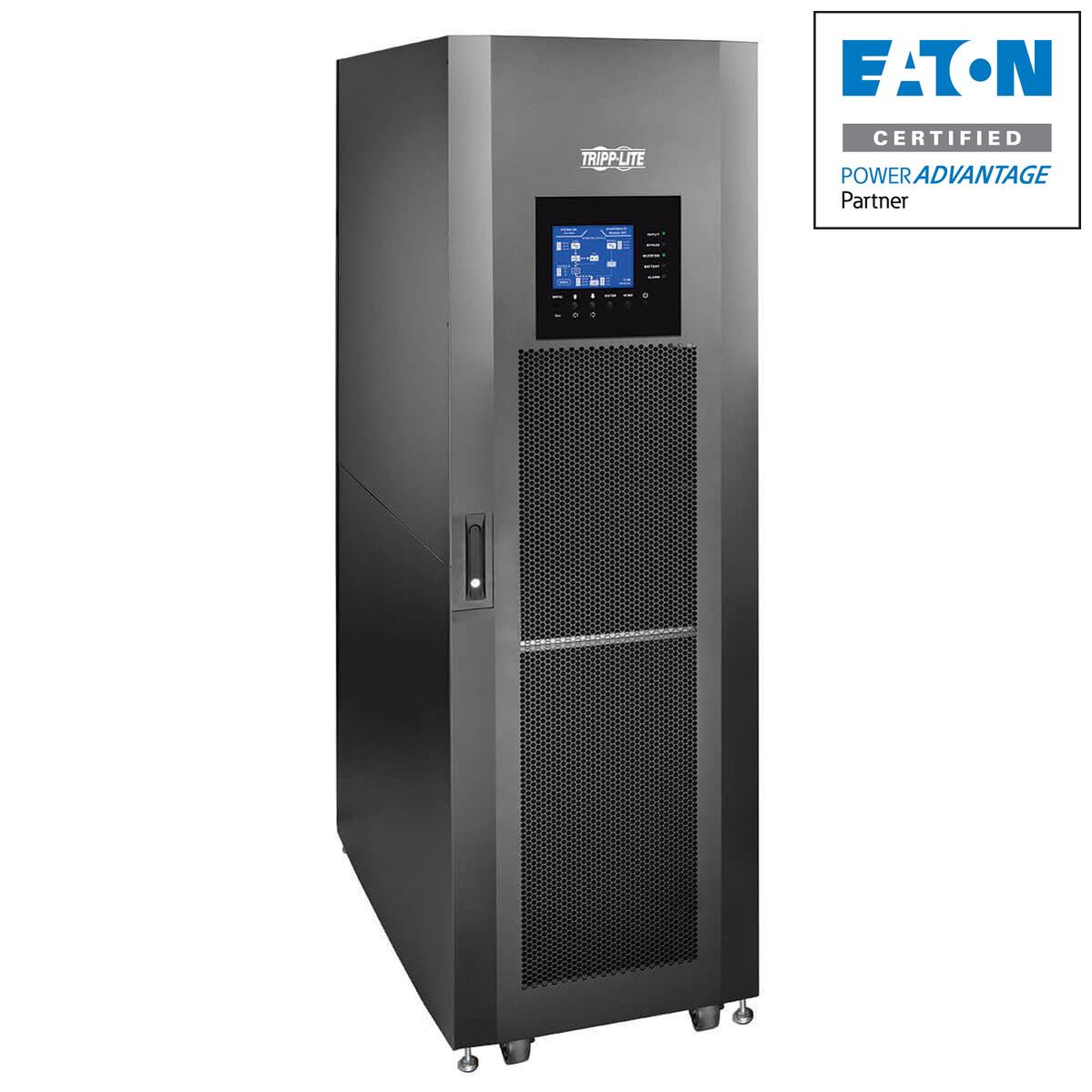

Tripp Lite Smartonline Sv Series 60Kva Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz Ups System

Tripp Lite Smartonline Sv Series 60Kva Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz Ups System

SKU:SV60KL

Regular price $25,699.11
Regular price Sale price $25,699.11
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline SV Series 60kVA Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System

          Tripp Lite SmartOnline SV Series 60kVA Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System. UPS topology: Double-conversion (Online), Output power capacity: 60 kVA, Output power: 54000 W. Form factor: Tower, Product colour: Black, Housing material: Steel. Width: 490 mm, Depth: 736.3 mm, Height: 2009.9 mm. Package width: 579.9 mm, Package depth: 870 mm, Package height: 2174.7 mm. Master (outer) case width: 579.9 mm, Master (outer) case length: 870 mm, Master (outer) case height: 249.9 mm

          The SV60KL SmartOnline® SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

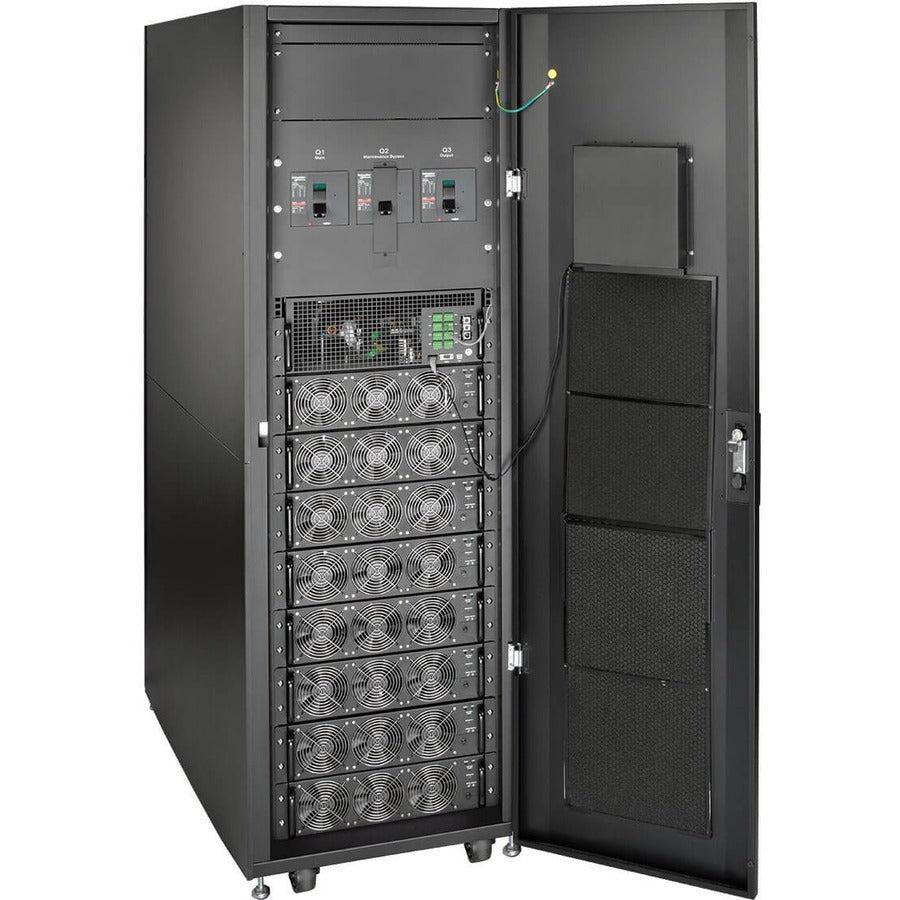

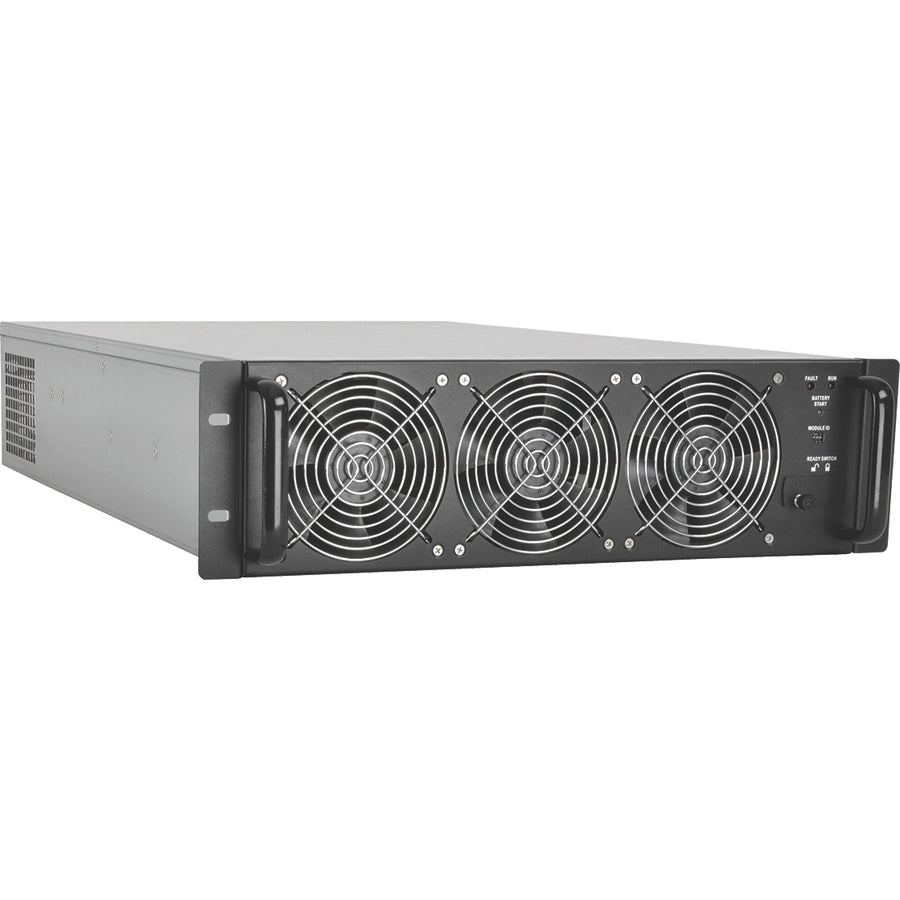

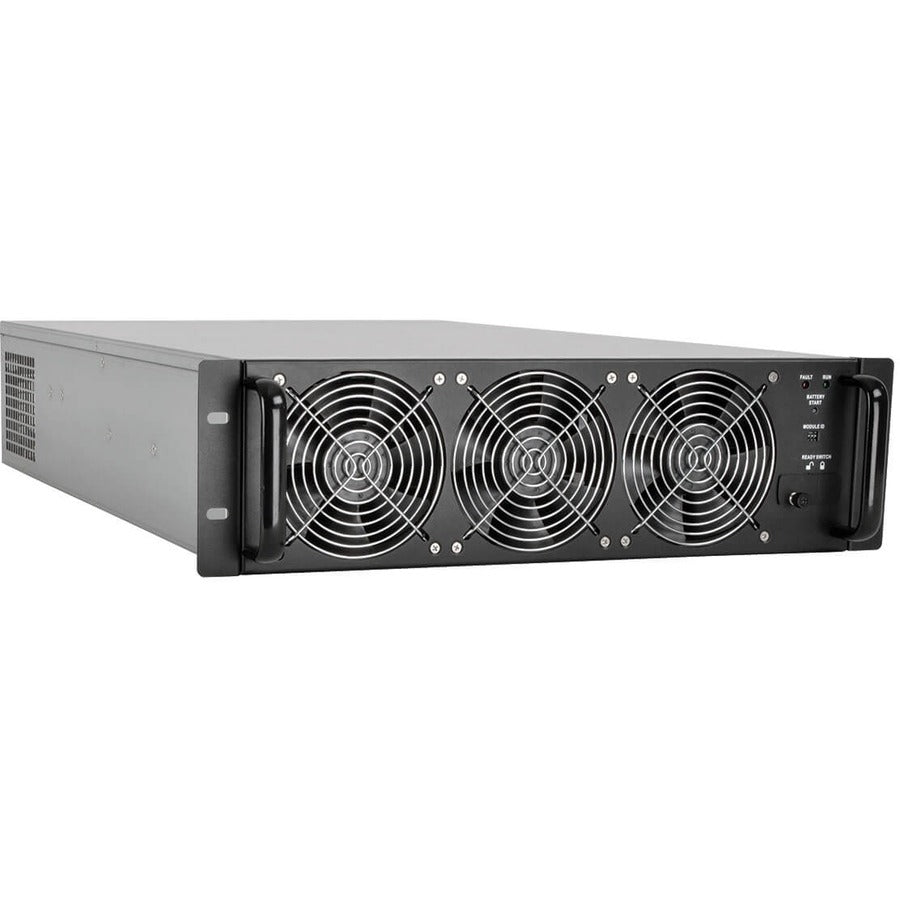

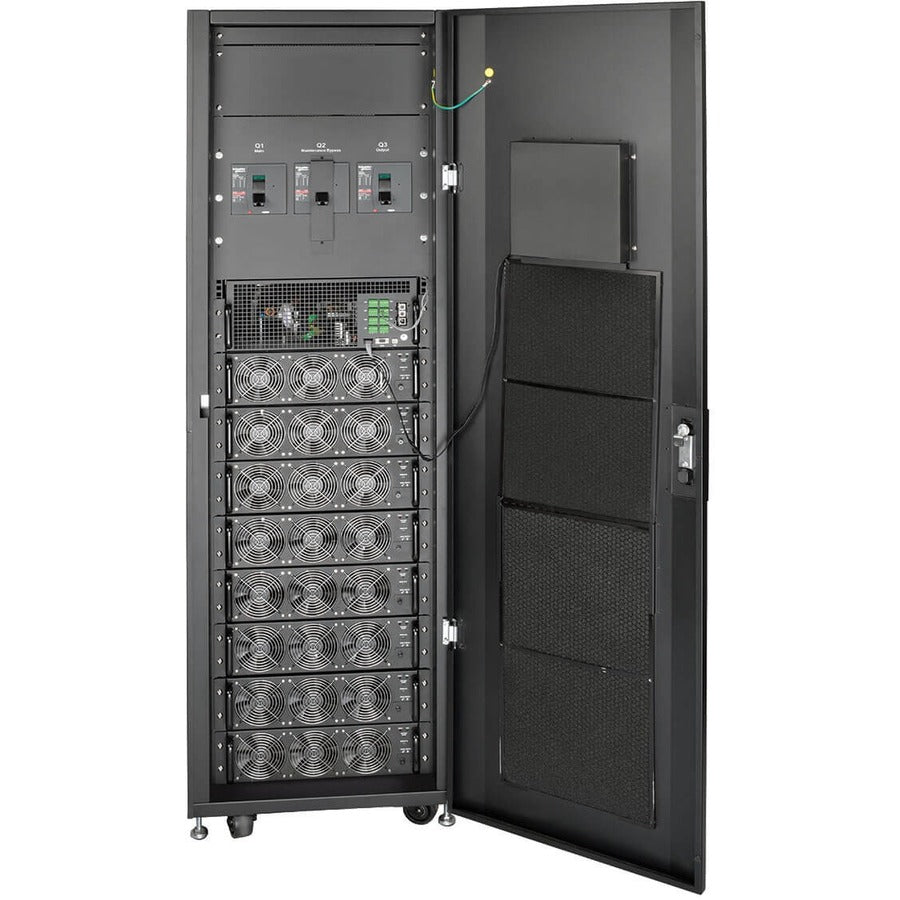

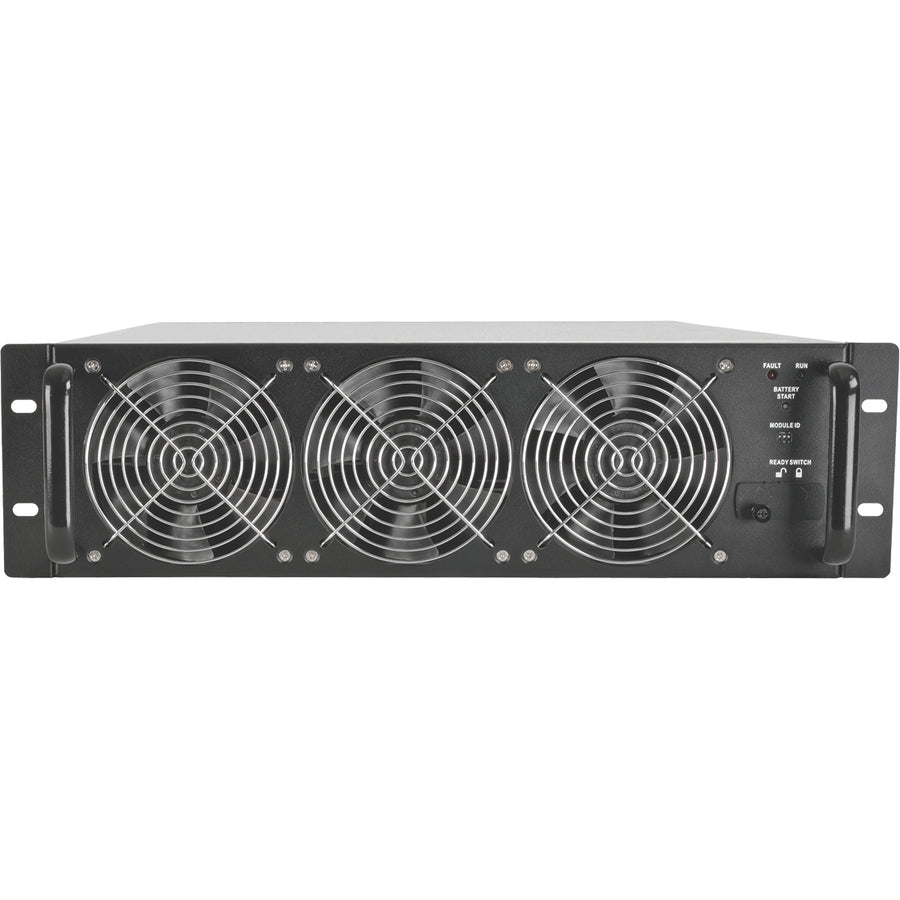

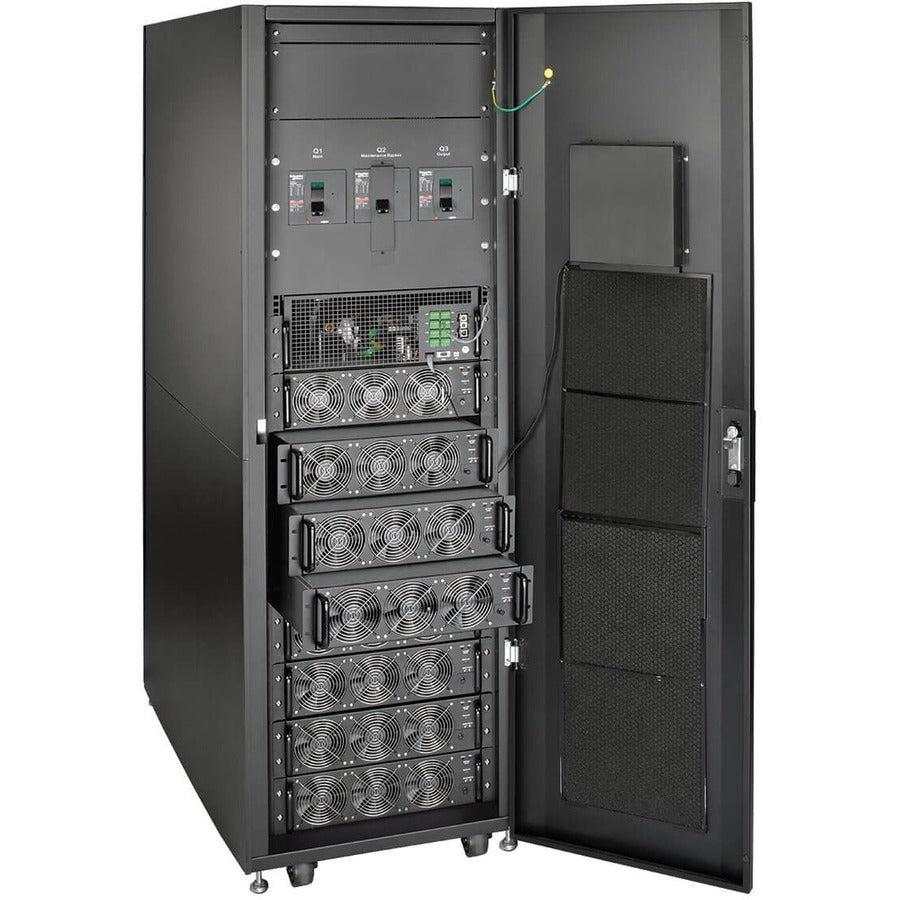

          The SV60KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and three included 20kVA SV20PM power modules. Space is included for up to five additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

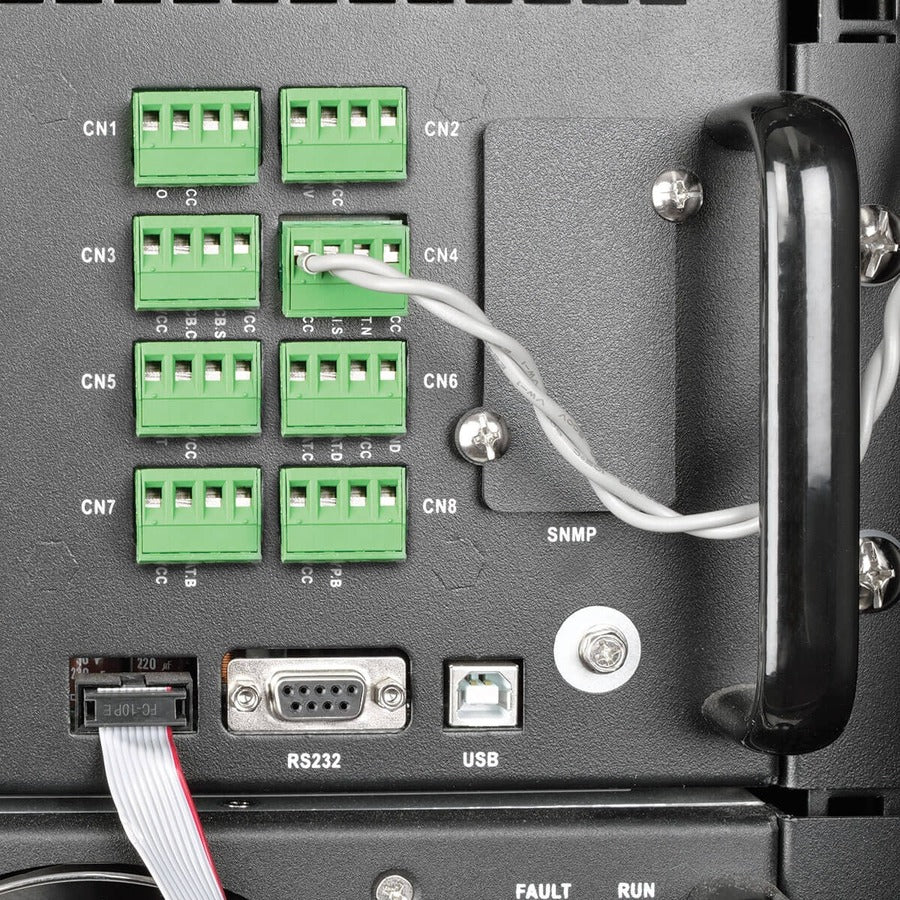

          The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

          With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite’s BP240V370, are sold separately.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SV60KL
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Series SV
          Product Model SV60KL
          Product Name SmartOnline SV60KL 60kVA Tower UPS
          Product Type Double Conversion Online UPS
          UPC 037332210272
          Height79.1"
          Width23.6"
          Depth43.3"
          Weight (Approximate)830 lb

          Miscellaneous

          Package Contents
          • SmartOnline SV60KL 60kVA Tower UPS
          • Pre-installed network interface
          • 3 X SV20PM 20kVA power modules
          • Owner's manual
          • DB9 cabling
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
