Tripp Lite by Eaton

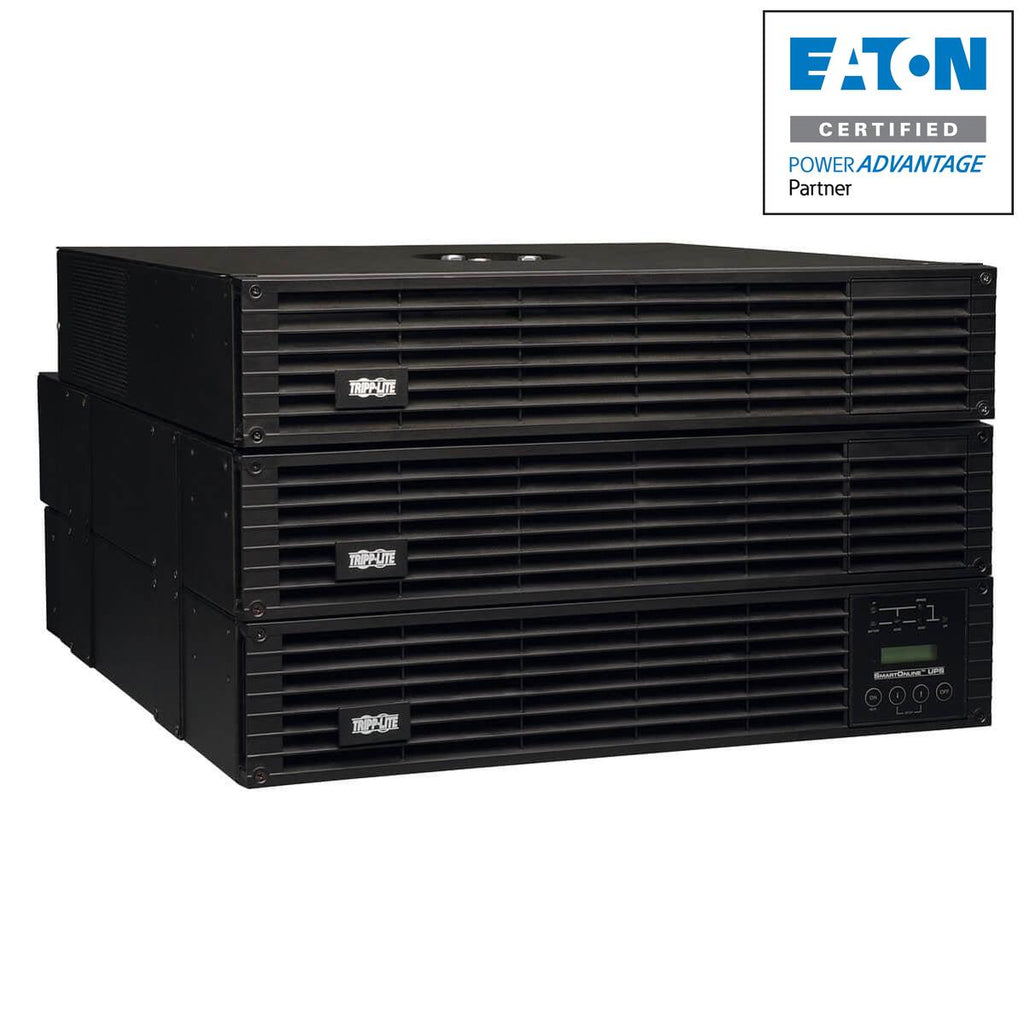

Tripp Lite Smartonline 208/120V Or 240/120V 6Kva 5.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 6U Rack/Tower, Lcd, Usb, Db9 Serial

Tripp Lite Smartonline 208/120V Or 240/120V 6Kva 5.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 6U Rack/Tower, Lcd, Usb, Db9 Serial

SKU:SU6000RT4UTFHW-teci

Regular price $4,402.16
Regular price $7,832.44 Sale price $4,402.16
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          SmartOnline 208/120V or 240/120V 6kVA 5.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 6U Rack/Tower, LCD, USB, DB9 Serial

          Tripp Lite SmartOnline 208/120V or 240/120V 6kVA 5.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 6U Rack/Tower, LCD, USB, DB9 Serial. Output power capacity: 6 kVA, Output power: 5400 W, Input operation voltage (min): 208 V. AC outlets quantity: 13 AC outlet(s). Typical backup time at full load: 8.5 min, Typical backup time at half load: 2 min, Battery recharge time: 6 h. Form factor: Rackmount, Product colour: Black, Display: LED. Width: 445 mm, Depth: 526 mm, Height: 174 mm

          Tripp Lite SU6000RT4UTFHW 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower compatible configuration. Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Detachable back panel PDU with manual bypass switch supports hot-swappable UPS power module replacement with no interruption to connected equipment. 4U UPS power module and included 2U low-voltage transformer install in only 6 rack spaces total (6U) with a maximum installed depth of only 21.8 in. / 55.3 cm. Maintains full-time sine wave output within 2% of selectable 208/240V and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Expandable runtime is supported with optional BP192V12-3U external battery packs. Battery independent restart ensures automatic UPS power-up without userinteraction after lengthy power outages, even when batteries are expired and require replacement. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs. Network-grade AC surge and noise suppression. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces. Optional SNMP/Web and contact-closure communications card accessories available. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted. Included software packages include PowerAlert Local, PowerAlert Network Shutdown Agent and PowerAlert Network Management System for complete support for a wide variety of application types. Supports Emergency Power Off (EPO) via built-in interface. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS for a variety of control options to support advanced UPS settings and configurations. LED / LCD display panel rotates for viewing in rackmount or tower configurations. Hardwire input. Hardwire UPS output, plus 1 L6-30R, 8 5-15/20R and 4 5-15R outlets. External battery packs are field replaceable and hot swappable. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

          - Tripp Lite SU6000RT4UTFHW 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system in a 6U rack/tower compatible configuration (4U power module plus 2U low-voltage transformer)
          - Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - Detachable back panel PDU contains input line cord connection, output receptacles and manual bypass switch to support hot-swappable whole UPS replacement with no interruption to connected equipment
          - Hardwire input (208/240V L1, L2 + G)
          - Hardwire high and low voltage output, plus 8 5-15/20R and 4 5-15R 120V outlets
          - Included rail kit supports 4U 19 inch rackmount installation in 4 post racks
          - Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (2 required for SU6000RT4UTFHW)
          - Optional 2-9USTAND supports upright tower placement (1 required for SU6000RT4UTFHW)
          - Maximum installed rack depth of only 21.8 in. / 55.3 cm
          - Maintains full-time sine wave output within 2% of selected 208/240V and 120V nominal at 60Hz in double conversion mode
          - Corrects brownouts to 156V at full load (100V at 50% load or less)
          - Corrects overvoltages to 290V at full load (300V at 90% load or less)
          - Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
          - High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs
          - Network-grade AC surge and noise suppression
          - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and optional SNMP card slot interfaces
          - UPS card slot supports one card-based network interface option (part # SNMPWEBCARD) or dry-contact monitoring accessory (part # RELAYIOCARD)
          - Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
          - Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification
          - Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
          - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
          - Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a variety of control options to support advanced UPS settings and configurations
          - LED/LCD display panel rotates for viewing in rackmount or tower configurations
          - Supports Emergency Power Off (EPO) via built-in interface
          - Battery independent restart ensures automatic UPS power-up without userinteraction after lengthy power outages, even when batteries areexpired and require replacement
          - BP192V12-3U external battery packs are field replaceable and hot swappable
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
