Tripp Lite by Eaton

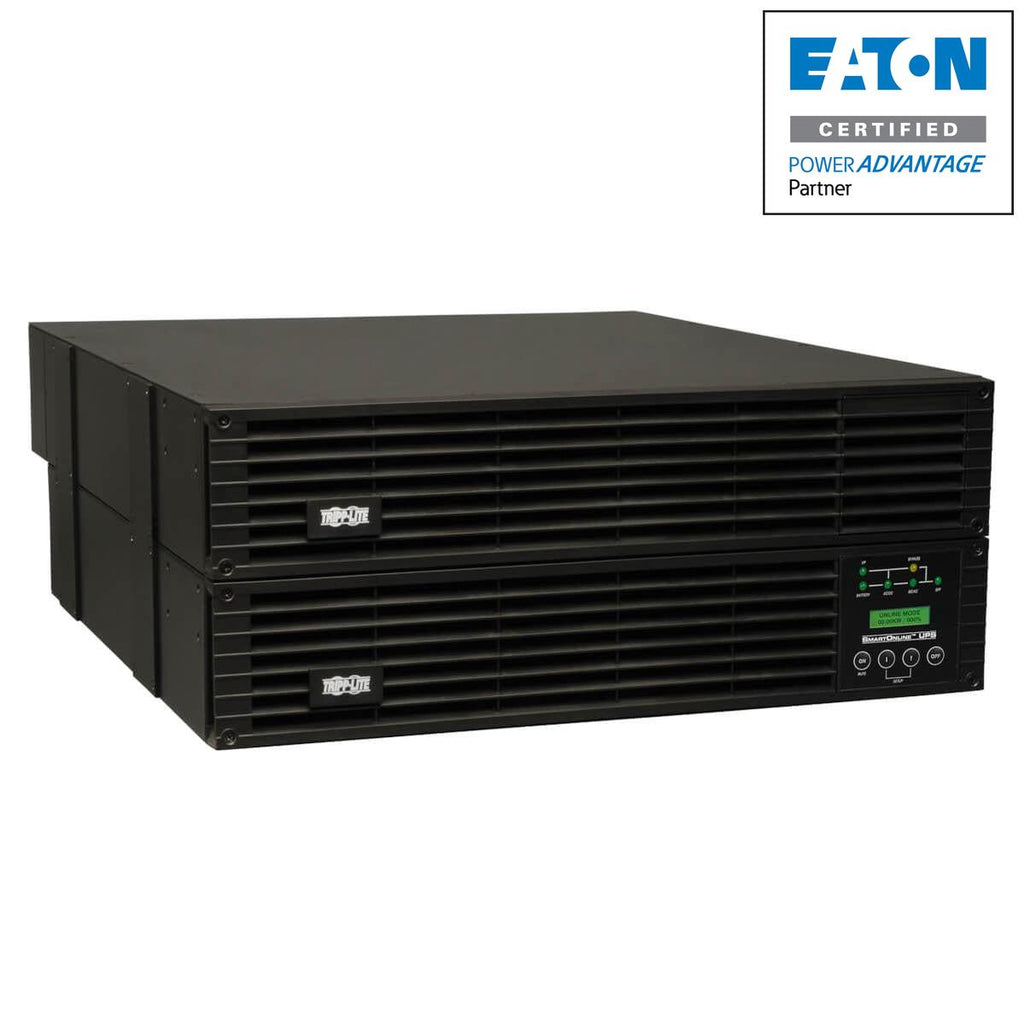

Tripp Lite Smartonline 200-240V 5Kva 4.5Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 4U Rack/Tower, Usb, Db9 Serial

Tripp Lite Smartonline 200-240V 5Kva 4.5Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 4U Rack/Tower, Usb, Db9 Serial

SKU:SU5000RT4UHV-teci

Regular price $3,209.93
Regular price Sale price $3,209.93
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          SmartOnline 200-240V 5kVA 4.5kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 4U Rack/Tower, USB, DB9 Serial

          Tripp Lite SmartOnline 200-240V 5kVA 4.5kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 4U Rack/Tower, USB, DB9 Serial. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: NEMA L6-20R,NEMA L6-30R, Power plug: NEMA L6-30P, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 3.5 min, Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 4U. Width: 444.5 mm, Depth: 525 mm, Height: 174 mm

          Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6 cm. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Expandable runtime is supported with optional BP192V12-3U external battery packs. Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs. Network-grade AC surge and noise suppression. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces. Optional SNMP/Web and contact-closure communications card accessories available. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted. Included software packages include PowerAlert Local, PowerAlert Network Shutdown Agent and PowerAlert Network Management System for complete support for a wide variety of application types. Supports Emergency Power Off (EPO) via built-in interface. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS for a variety of control options to support advanced UPS settings and configurations. LED / LCD display panel rotates for viewing in rackmount or tower configurations. L6-30P input, plus two L6-30R and two L6-20R outlets. External battery packs are field replaceable and hot swappable. $250,000 connected equipment insurance;
          - Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system in a single 4U rack/tower compatible housing
          - Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - L6-30P input plug; 2 L6-30R and 2 L6-20R UPS supported outlets
          - Included rail kit supports 4U 19 inch rackmount installation in 4 post racks
          - Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (1 required for SU5000RT4UHV)
          - Optional 2-9USTAND supports upright tower placement (1 required for SU5000RT4UHV)
          - Maximum installed rack depth of only 20.7 in. / 52.6cm inches
          - Maintains full-time sine wave output within 2% of selected 200/208/220/230/240V nominal in double conversion mode
          - Corrects brownouts to 156V at full load (100V at 50% load or less)
          - Corrects overvoltages to 290V at full load (300V at 90% load or less)
          - Supports 50/60Hz operation for worldwide frequency compatibility
          - Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
          - High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs
          - Network-grade AC surge and noise suppression
          - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and optional SNMP card slot interfaces
          - UPS card slot supports one card-based network interface option (part # SNMPWEBCARD) or dry-contact monitoring accessory (part# RELAYIOCARD)
          - Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
          - Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification
          - Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
          - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
          - Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a variety of control options to support advanced UPS settings and configurations
          - LED/LCD display panel rotates for viewing in rackmount or tower configurations Supports Emergency Power Off (EPO) via built-in interface
          - Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
          - BP192V12-3U external battery packs are field replaceable and hot swappable
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
          - $250,000 connected equipment insurance
