Tripp Lite by Eaton

Tripp Lite Smartonline 120V 2.2Kva Taa-Compliant Ups – On-Line Double Conversion, 1.8Kw, 2U, Network Card Option

Tripp Lite Smartonline 120V 2.2Kva Taa-Compliant Ups – On-Line Double Conversion, 1.8Kw, 2U, Network Card Option


Regular price $1,514.46
Regular price Sale price $1,514.46
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

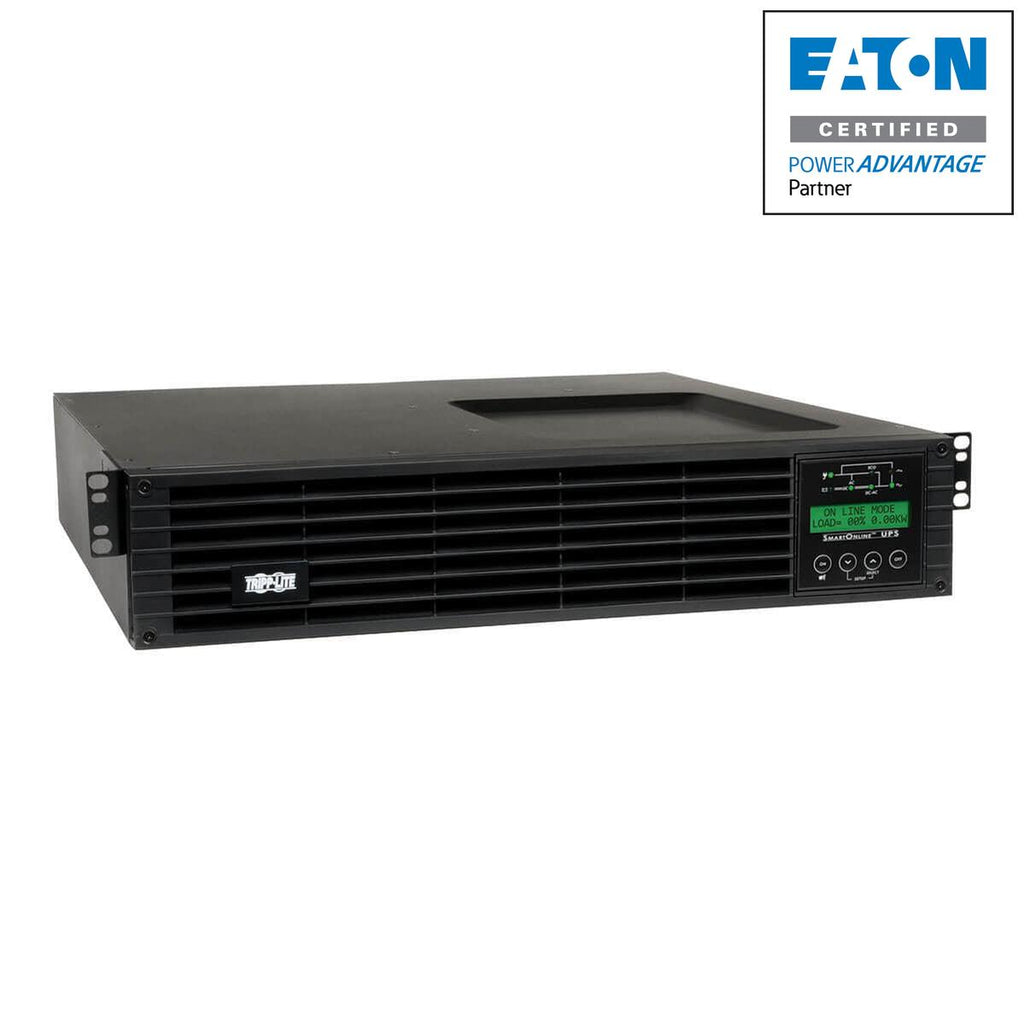

          SmartOnline 120V 2.2kVA TAA-Compliant UPS – On-Line Double Conversion, 1.8kW, 2U, Network Card Option

          Tripp Lite SmartOnline 120V 2.2kVA TAA-Compliant UPS – On-Line Double Conversion, 1.8kW, 2U, Network Card Option. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA 5-20P, AC outlets quantity: 7 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Form factor: Rackmount, Product colour: Black, Housing material: Steel. Width: 444.5 mm, Depth: 482.6 mm, Height: 88.9 mm

          Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss
          This 2200VA UPS system protects connected equipment against equipment damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Featuring a 1800W capacity, high 0.8 power factor, true on-line operation with pure sine wave output and zero transfer time to battery, the SU2200RTXLCDTAA provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment.

          Reliable, Expandable Battery Backup
          UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 12 minutes of support at half load and four minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. For mission-critical applications demanding continuous uptime, the fully scalable 2.2kVA UPS can provide expandable runtime with optional external battery packs, such as Tripp Lite’s BP48V242UTAA (sold separately). A battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.

          ENERGY STAR Certification Helps the Environment and Your Cash Flow
          Operating with a high 94% efficiency in optional economy mode, the ENERGY STAR-certified 2200VA UPS system can save BTU heat output and energy costs by meeting strict EPA guidelines.

          6 Outlets in Dual Switchable Load Banks for Remote Control
          Six NEMA 5-15/20R outlets are divided into two switchable breakered load banks. Each numbered load bank may be individually powered on and off remotely to reset or reboot connected equipment. This UPS system also features one non-breakered NEMA L5-20R outlet.

          Intuitive Front-Panel LCD Interface
          Operating the UPS system and monitoring connected equipment is easy with this interactive LCD screen. It reports operating mode and nine selectable data screens, including load, voltage and battery information. It also gives you 16 screens worth of configuration and setup options.

          Optional WEBCARDLX Network Interface Offers 24/7 Access
          An accessory slot accommodates the optional Java-free HTML5-based WEBCARDLX interface, which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.

          Advanced Communications Ports
          USB and DB9 ports (cables are included) enable data-saving unattended shutdown when used with Tripp Lite’s free downloadable PowerAlert® software. Capabilities include UPS and line power status messaging, timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices.

          Versatile Installation Options
          Hardware is included for mounting the 2.2kVA UPS system in 2U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITWM for 2-post rack mounting or wall mounting. Use the optional 2-9USTAND for mounting in an upright tower position.

          TAA-Compliant for GSA Schedule Purchases
          The SU2200RTXLCDTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible Design
          The SU2200RTXLCDTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU2200RTXLCDTAA
          Manufacturer Website Address
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU2200RTXLCDTAA
          Product Name SmartOnline SU2200RTXLCDTAA 2200VA Tower/Rack Mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332230928
          Network (RJ-45)Yes
          Weight (Approximate)49 lb

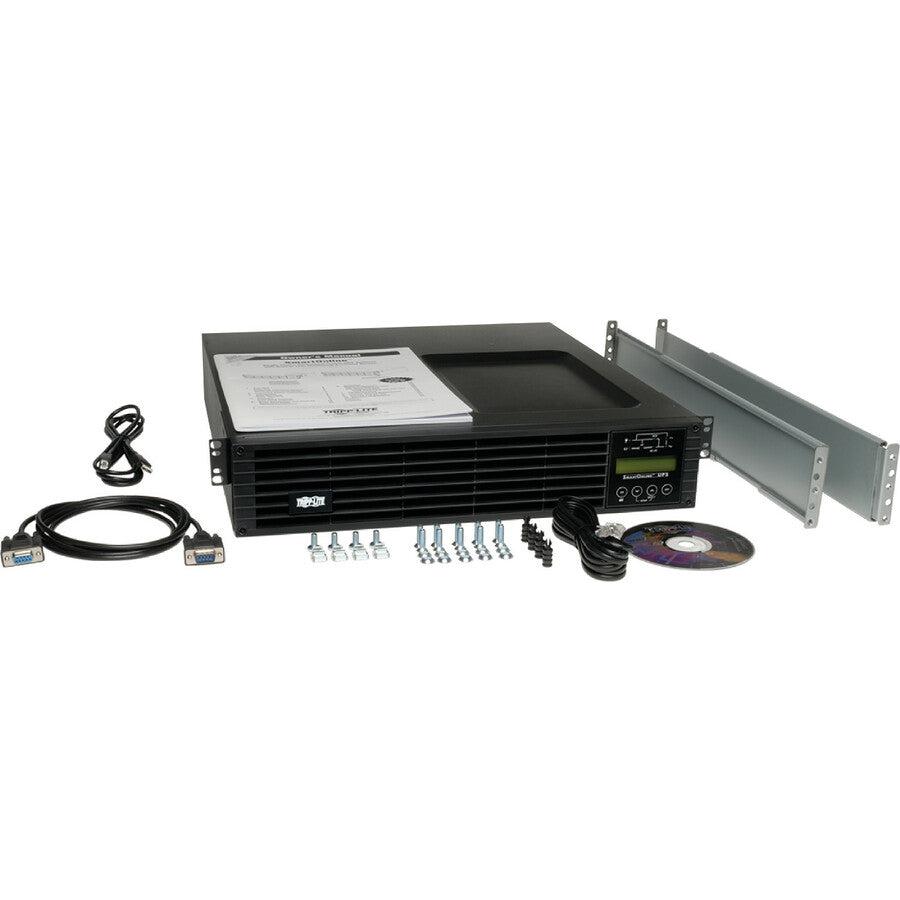

          Package Contents
          • SmartOnline SU2200RTXLCDTAA 2200VA Tower/Rack Mountable UPS
          • USB Cable
          • DB9 Cable
          • EPO Cable
          • Rack-Mounting Hardware
          • Owner's Manual
          Environmentally FriendlyYes


          Limited Warranty2 Year
