Tripp Lite by Eaton

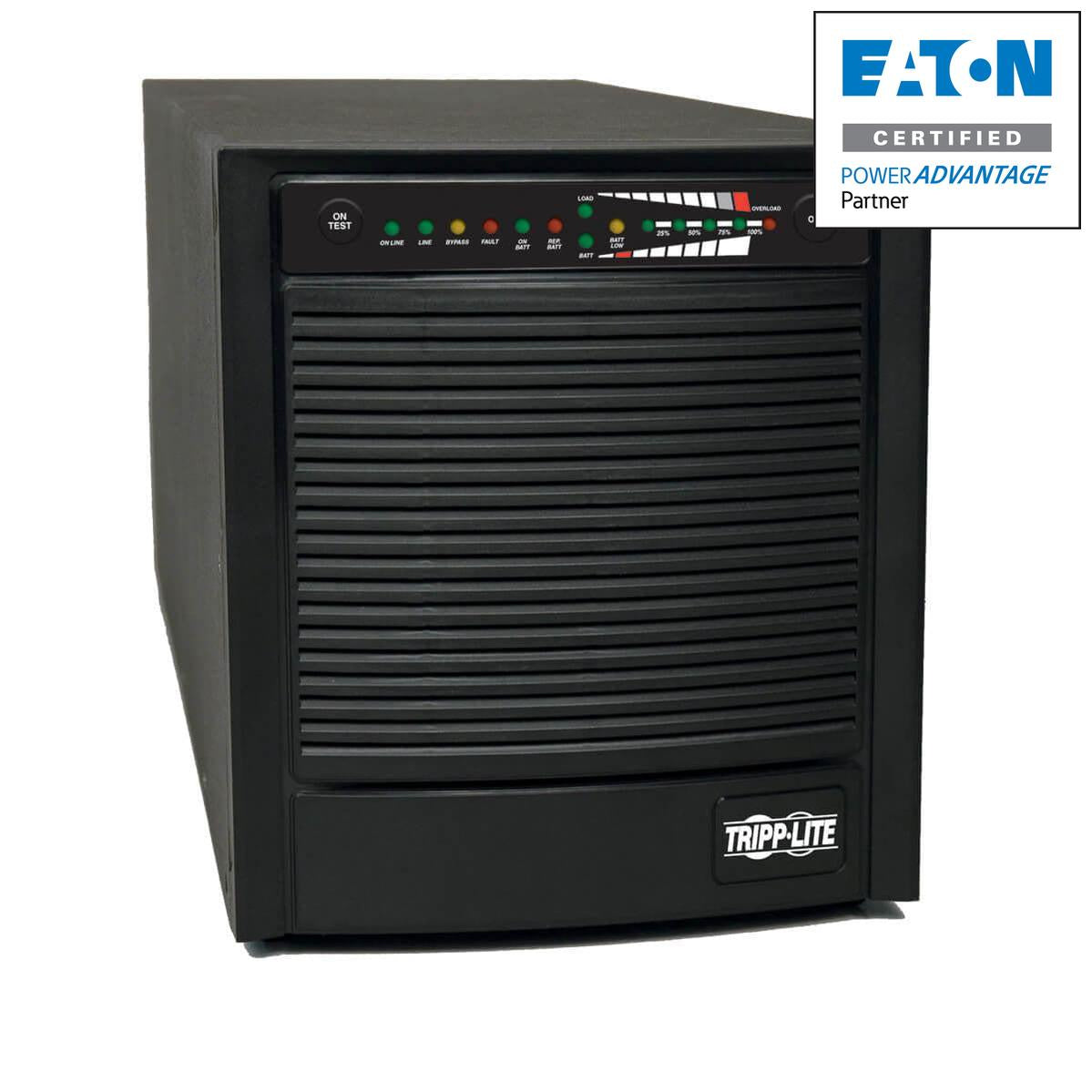

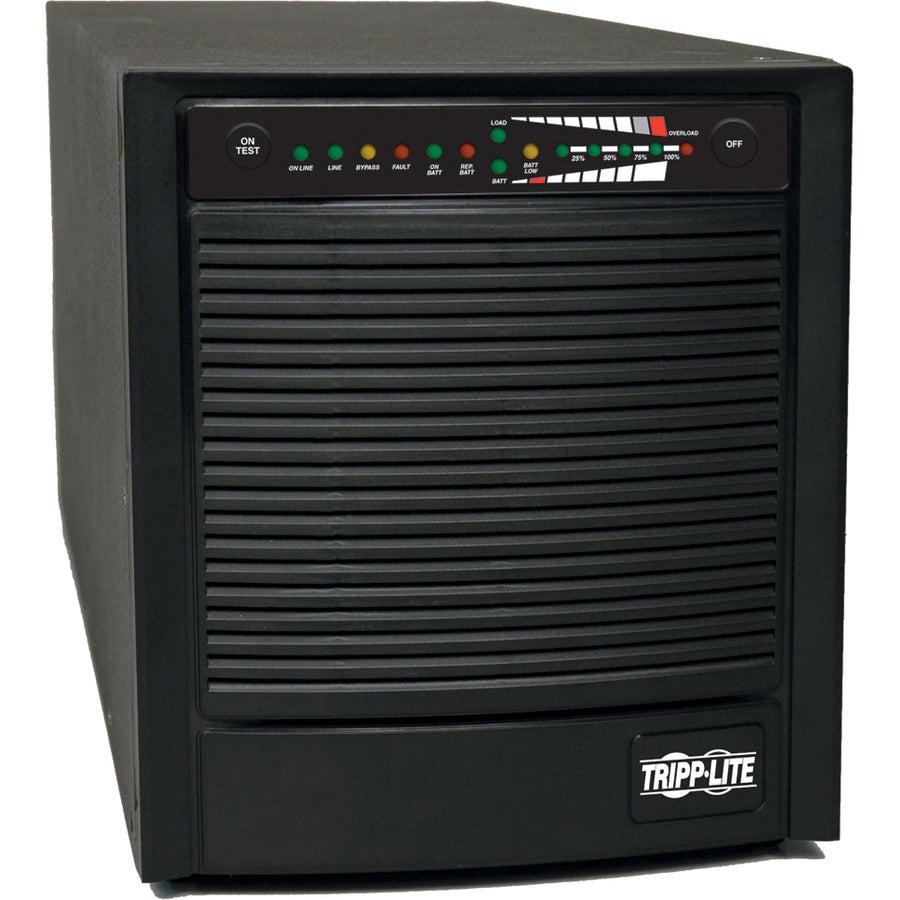

Tripp Lite Smartonline 110-120V 3Kva 2.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, Tower, Usb, Db9 Serial

Tripp Lite Smartonline 110-120V 3Kva 2.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, Tower, Usb, Db9 Serial

SKU:SU3000XL

Regular price $1,331.17
Regular price Sale price $1,331.17
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 110-120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial

          Tripp Lite SmartOnline 110-120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: NEMA 5–15R,NEMA 5–20R,NEMA L5-30R, Power plug: NEMA L5-30P, AC outlets quantity: 9 AC outlet(s). Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Form factor: Tower, Product colour: Black, Cable length: 3 m. Width: 228.6 mm, Depth: 520.7 mm, Height: 260.4 mm

          3000VA / 3kVA / 2400 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. Attractive upright tower format. Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110/120V output with +/-2% voltage regulation. Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Up to 97% efficiency in optional economy mode saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA L5-30R, NEMA 5-15/20R and NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two bank PDU switching supports automated load shedding and remote-reboot of connected equipment. Multi-stage metered current monitoring and battery charge status LEDs. Mains power and voltage regulation LEDs. Audible Alarm. Self-test. Fault-tolerant auto-bypass mode. Field replaceable, hot swappable internal batteries and external battery packs. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
          - SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial network applications
          - Optional economy-mode operation with 97% efficiency for reduced power consumption and cooler operation
          - Economy mode is schedulable via PowerAlert UPS management software for daily or weekly hours of operation to enable precision output during peak operating hours and high efficiency, low BTU emission operation during off-peak times
          - Maintains continuous operation through blackouts, voltage fluctuations and surges
          - On-line, double-conversion mode provides perfectly regulated sine wave output within 2% of 110/120V (user selectable) with zero transfer time
          - Supports operation at 50/60Hz (auto-sensing)
          - Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
          - Corrects line voltage conditions as low as 65V and as high as 150V to within 2% of selected nominal voltage
          - Standard internal battery set offers 14 minutes runtime at half load (1200W) and 5 minutes at full load (2400W)
          - Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - Network interfaces support simultaneous communications via built-in USB, DB9 serial / contact-closure and SNMPWEBCARD slot
          - HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
          - UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test, load bank output power control, remote reboot and UPS nominal voltage adjustment
          - Built-in Emergency Power Off (EPO) interface with cable
          - NEMA L5-30P input plug / NEMA 5-15R, 5-15/20R & L5-30R output receptacles
          - Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks
          - Front panel LEDs offer current monitoring and battery charge level information
          - Network grade AC, TEL/DSL or ethernet line surge suppression
          - Field replaceable, hot swappable internal batteries and external battery packs
          - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Name SmartOnline SU3000XL UPS
          Product Type Double Conversion Online UPS
          UPC 037332119926

          Battery Information

          Battery ChemistryLead Acid
          Height14.8"
          Width5.5"
          Depth16.8"
          Weight (Approximate)66 lb

          Miscellaneous

          Package Contents
          • SmartOnline SU3000XL UPS
          • SU3000XL Online, Double-Conversion UPS System
          • PowerAlert Software and cabling
          • Instruction manual with warranty information

          Warranty

          Limited Warranty2 Year
