Tripp Lite by Eaton

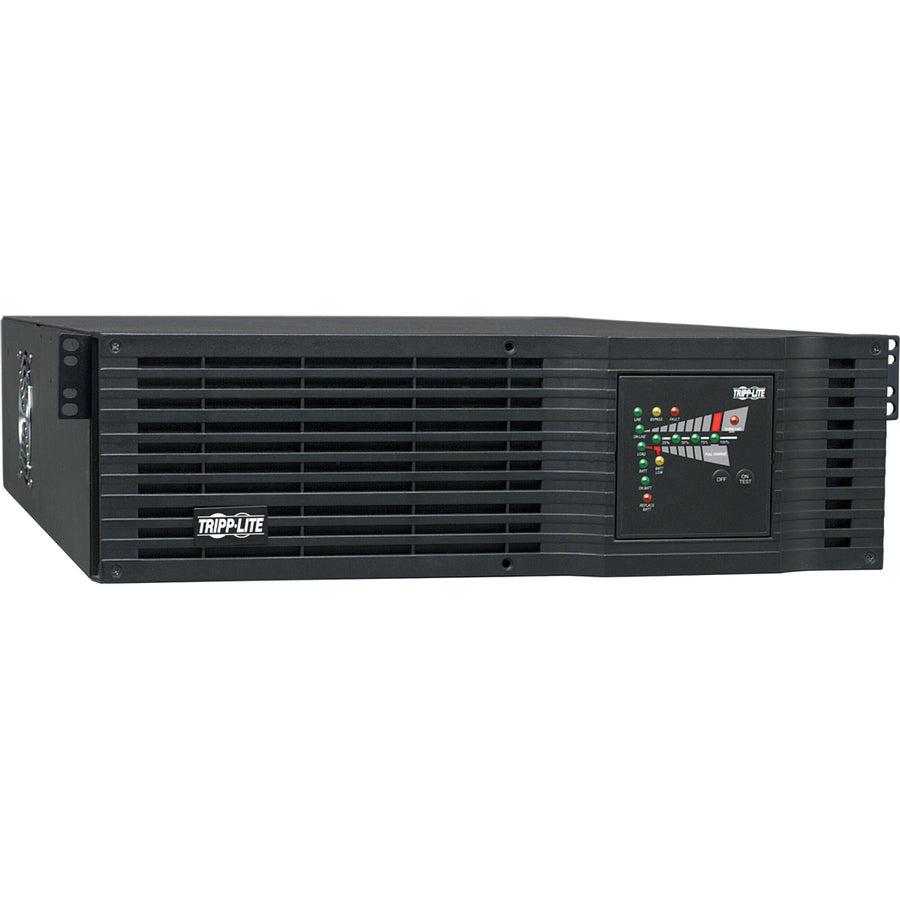

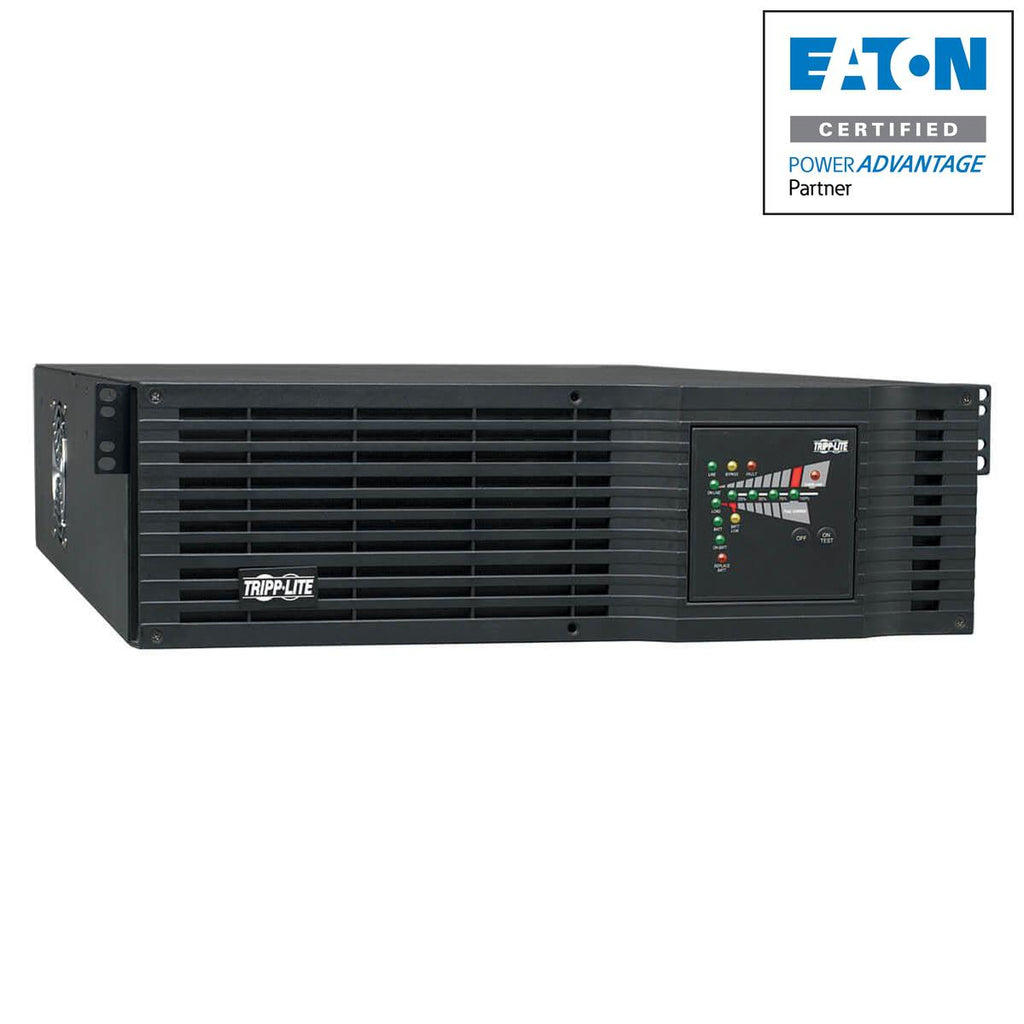

Tripp Lite Smartonline 110-120V 3Kva 2.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 3U Rack/Tower, Usb, Db9 Serial, Hardwire

Tripp Lite Smartonline 110-120V 3Kva 2.4Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 3U Rack/Tower, Usb, Db9 Serial, Hardwire

SKU:SU3000RTXR3UHW

Regular price $1,887.63
Regular price Sale price $1,887.63
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 110-120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial, Hardwire

          Tripp Lite SmartOnline 110-120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial, Hardwire. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: Terminal, Power plug: Terminal. Typical backup time at full load: 12 min, Typical backup time at half load: 30 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Width: 450.8 mm, Depth: 660.4 mm, Height: 133.4 mm

          3000VA / 3kVA online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications equipment. 3U rackmount form factor with an installed depth of 29.5 inches (75cm). Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Hardwired AC input and output (L-N-G, 120V). Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Multi-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for better viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network ethernet connection. Mains power and voltage regulation LEDs. Audible Alarm. Self-test. Fault-tolerant auto-bypass mode. 4 post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field replaceable, hot swappable internal batteries and external battery packs. Attractive all-black UPS design. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
          - 3000VA / 3kVA / 2400 watt online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications equipment
          - True online, double-conversion UPS provides perfectly regulated sine wave output within 2% of 110/120V (user selectable) under all usage conditions
          - Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
          - Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
          - Corrects line voltage conditions as low as 65V and as high as 150V back to selectable 110/120V (+/-2%) values
          - Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs
          - Internal battery set offers 30 minutes runtime at half load (1200W) and 12 minutes at full load (2400W)
          - Optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Compact rackmount form factor installs using only 3 rack spaces (3U) with a maximum installed depth of 26 inches
          - Ships with all mounting accessories for 4 post rackmount installation
          - Optional 2POSTRMKITHD enables 2 post rackmount installation
          - Optional 2-9USTAND accessory enables small-footprint upright tower placement
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - Network interfaces support simultaneous communications via built-in USB, DB9 serial/contact-closure and SNMPWEBCARD slot
          - HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
          - UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test, load bank output power control and remote reboot, UPS nominal voltage adjustment and UPS line to battery power voltage setpoints
          - Built-in Emergency Power Off (EPO) interface with cable
          - Hardwire 120V AC input/output (L-N-G)
          - Front panel LEDs offer current monitoring and battery charge level information
          - Single line TEL/DSL or network ethernet line surge suppression
          - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU3000RTXR3UHW
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU3000RTXR3UHW
          Product Name SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332164636
          Height5.2"
          Width17.8"
          Depth29.5"
          Weight (Approximate)111.30 lb

          Miscellaneous

          Package Contents
          • SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS
          • PowerAlert Software CD
          • USB Cable
          • Serial Cable
          • Owner's Manual with Warranty Information
          • 4 Post Rackmount Kit
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
