NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 17-in. LCD
Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 17-in. LCD. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: LCD. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, UL, cUL, CE, FCC. Power consumption (typical): 22.8 W, AC adapter input voltage: 120 - 230 V, AC adapter frequency: 50 Hz. Dimensions (WxDxH): 425.4 x 609.6 x 44.4 mm. Width: 431.8 mm, Height: 44.4 mm, Depth: 609.6 mm

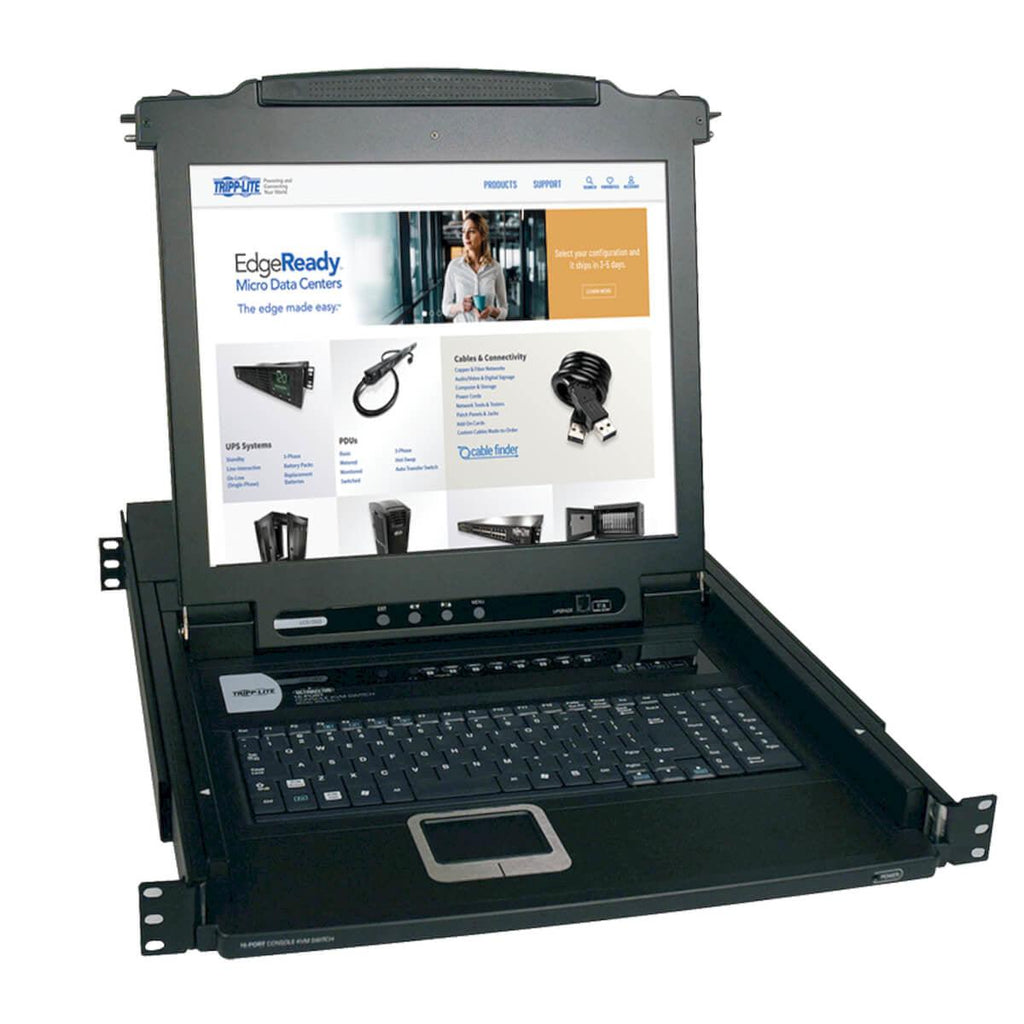

Tripp Lite’s B020-008-17 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
The B020-008-17 has a built-in 17” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.
This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit (one of each is included). An extra HD15 port allows an additional VGA monitor to be connected. Two PS/2 ports also are included on the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. When not in use, the B020-008-17 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported). Heavy-duty steel housing stands up to frequent use.
Saves Valuable Space and Money
● Combines an 8-port KVM switch, 17" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer ● Mounts into 19”-wide rack, 24”-37” deep ● Gives you control of up to 8 computers/servers from a single, easily accessible console – ideal when rack space is at a premium ● Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use ● Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server
Simplifies IT Tasks
● Switch quickly and easily between the 8 ports via on-console buttons, on-screen display or keyboard hot key commands ● Hot pluggable; add or remove computers without having to power down the switch ● Auto-scan mode automatically sequences through all active ports that are accessible to the user
Large 17” LCD
● Wide display makes multitasking easier ● Supports video resolutions up to 1280 x 1024 ● DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD
Multi-Level Password Security
● Enhances security by limiting access to an administrator and up to 4 local users ● Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
Expandability and Long-Lasting Reliability
● Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches ● Includes additional HD15 VGA monitor port and PS/2 keyboard/mouse ports for connecting an external console or a Tripp Lite B051-000 IP Remote Access Unit ● Compatible with all major operating systems for easy integration into your existing structure (special keys on Mac and Sun keyboards are not supported) ● Firmware is easily upgradable with included cable and utility ● Heavy-duty steel housing stands up to frequent use
● Occupies just 1U of space in a rack-mountable drawer
● 17” LCD screen supports video resolutions up to 1280 x 1024
● Simplifies IT tasks with easy switching between all 8 ports
● Provides 2-level password security (administrator and user)
● Compatible with all operating systems
System Requirements
● PS/2 or USB computer ● (1) P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit is required for each connected computer/server ● Compatible with all major operating systems (special keys on Mac and Sun keyboards are supported) ● Power consumption: 120V, 60Hz, 22.8W; 230V, 50Hz, 24W
Package Includes
● B020-008-17 8-Port Console KVM Switch with 17" LCD ● P774-Series 6 ft. PS/2 KVM Cable Kit ● P776-Series 6 ft. USB KVM Cable Kit ● C13 to 5-15P power cord ● RJ11 to DB9 firmware upgrade cable ● Owner’s Manual CD
