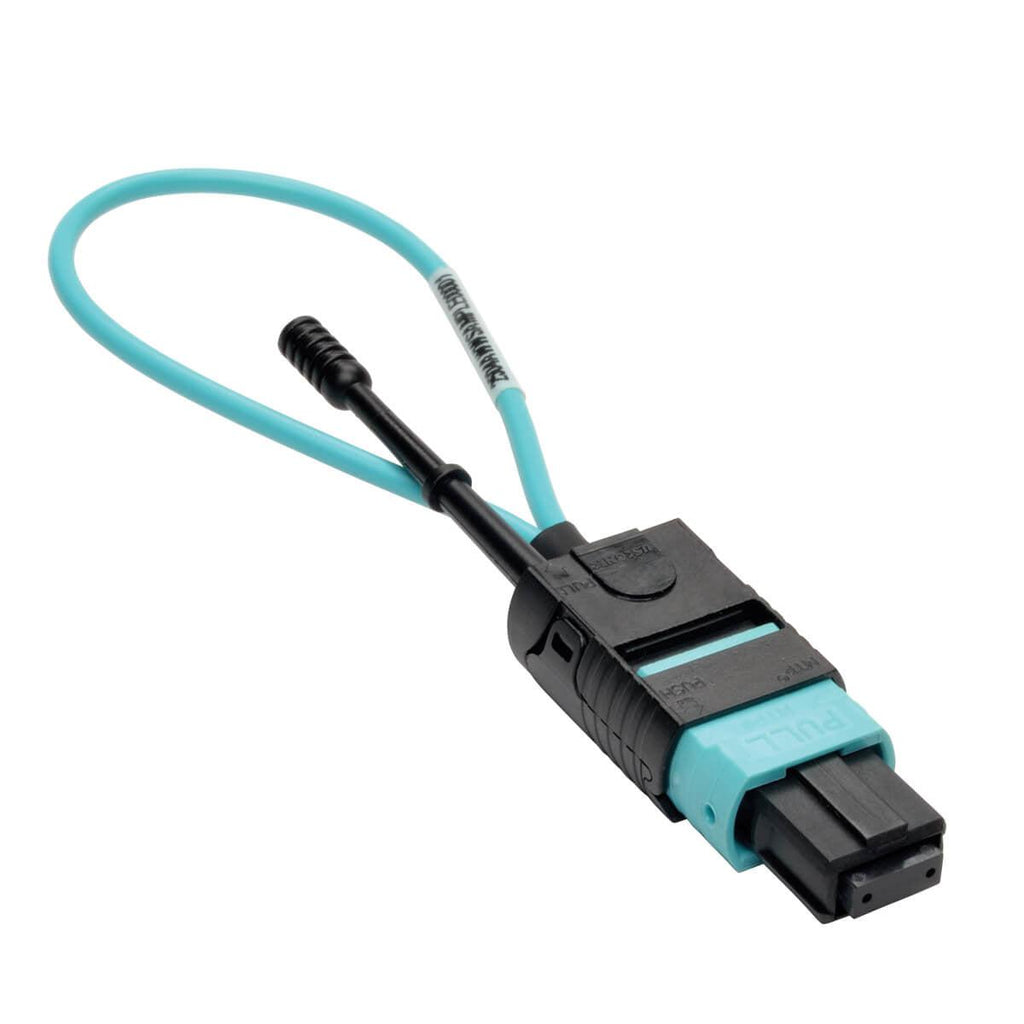

Tripp Lite N844-Loop-12F Mtp / Mpo Fiber Optic Loopback Tester (Multimode 50/125Um, Om3) - Female
Tripp Lite N844-Loop-12F Mtp / Mpo Fiber Optic Loopback Tester (Multimode 50/125Um, Om3) - Female
SKU:N844-LOOP-12F
Regular price
$63.98
Regular price
Sale price
$63.98
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - FemaleTripp Lite N844-LOOP-12F MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - Female. Package width: 101.6 mm, Package depth: 12.7 mm, Package height: 149.9 mm. Country of origin: China, Master (outer) case width: 91.4 mm, Master (outer) case length: 25.4 mm
Tripp Lite N844-LOOP-12F MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor. Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.
MTP / MPO OM3 Loopback Tester
Push-pull tab for quick disconnect
Protective dust cover included for protection during storage
4-inch overall length
Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7
Specifications :
General Information
| Manufacturer | Tripp Lite by Eaton |
|---|---|
| Manufacturer Part Number | N844-LOOP-12F |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N844-LOOP-12F |
| Product Name | MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - Female |
| Product Type | Network Testing Device |
| UPC | 037332188205 |
| Ethernet Technology | 40 Gigabit Ethernet |
|---|
| HDMI | No |
|---|---|
| Network (RJ-45) | No |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | Lifetime |
|---|
