HDMI over Cat5/Cat6 Active Extender, Wallplate Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 61 m (200-ft.)
Tripp Lite HDMI over Cat5/Cat6 Active Extender, Wallplate Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 61 m (200-ft.). Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5,Cat5e,Cat6. Operating voltage: 5 V, Current: 2 A. Dimensions (WxDxH): 27.5 x 10 x 45 mm. Package width: 160 mm, Package depth: 182.9 mm, Package height: 55.9 mm. Master (outer) case width: 337.8 mm, Master (outer) case length: 579.1 mm, Master (outer) case height: 228.6 mm
The B126-1A0-WP-1 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite’s B126-002 or B126-004 transmitter to extend an HDMI signal to a projector, monitor or television. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.
The receiver uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the monitor and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). No 110 punchdown connection is required.
The B126-1A0-WP-1 can extend a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.) You can connect up to three B126-110 remote repeaters in the chain for a total of four HDMI displays and full signal extension of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) or 122 m (400-ft.) (3D).

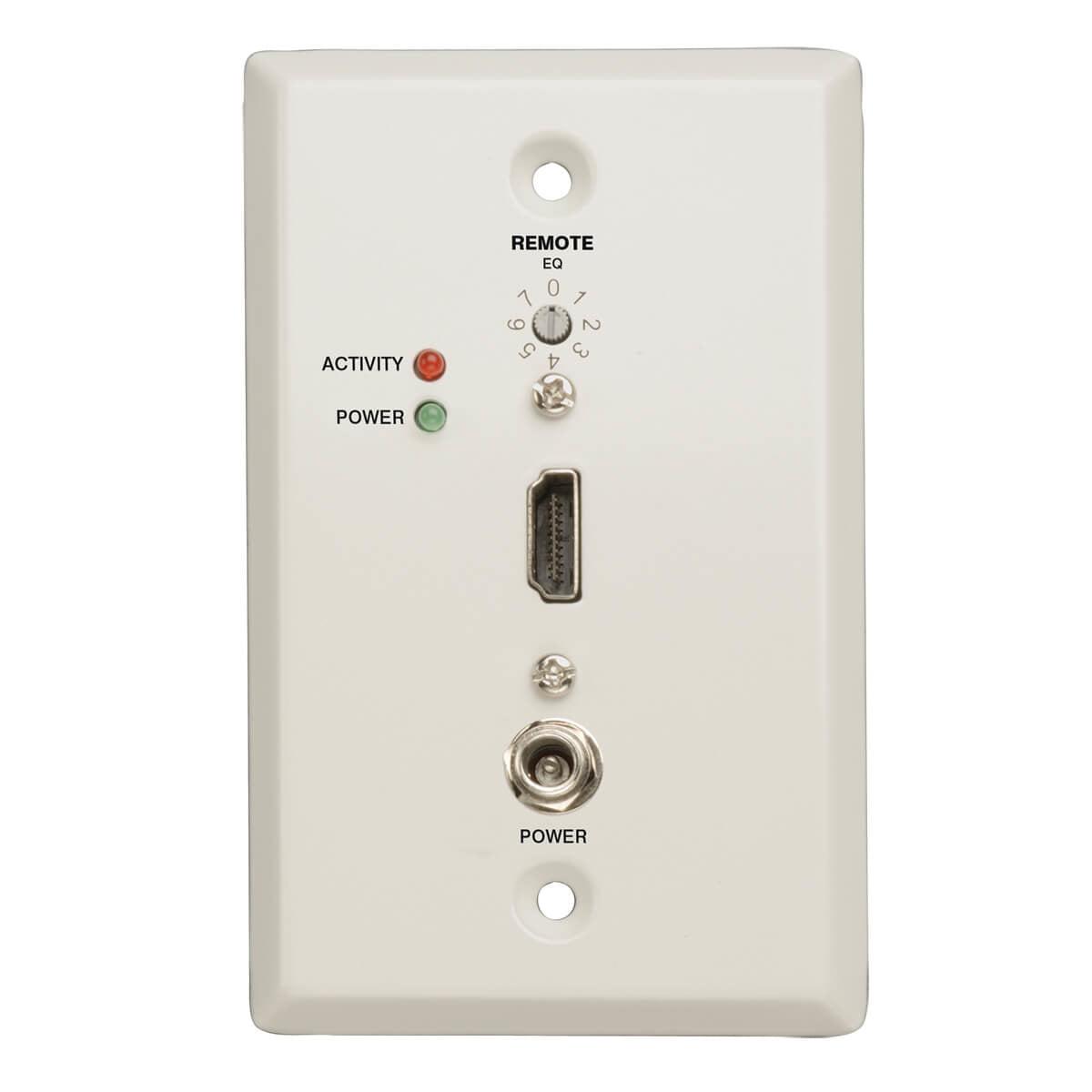

In addition to crystal-clear video, the B126-1A0-WP-1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall using the included hardware. - Supports high-definition video resolutions up to 1080p (60 Hz) - Supports stereo and 7.1-channel surround sound audio - Works with all operating systems and HDMI video sources - Plug and play—no software or drivers to install - Built-in equalization control lets you adjust monitor image
System Requirements - For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia

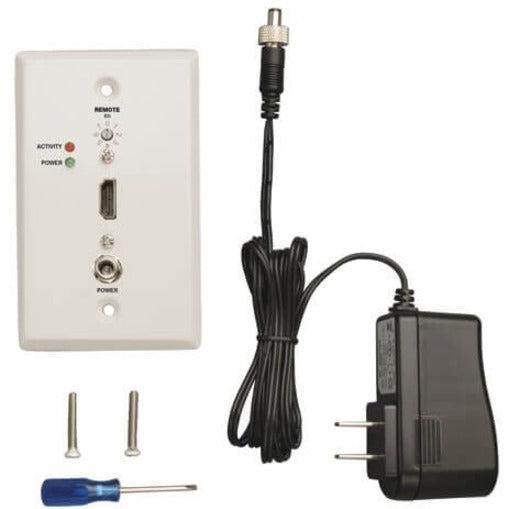

- B126-1A0-WP-1 HDMI over Cat5/Cat6 Active Remote Receiver - Screwdriver for adjusting equalization - External Power Supply with NEMA 1-15P Plug(Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.) - Mounting hardware - Owner’s Manual
- Works in tandem with Tripp Lite’s B126-002 or B126-004 transmitter unit - Extends a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.) - Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) and 122 m (400-ft.) (3D) - Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) - No 110 punchdown connection required Supports the Latest Video and Audio Resolutions - Works with all operating systems and HDMI video sources - Supports HD resolutions up to 1080p (60 Hz) - Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter - Supports 24-bit True Color (8 bits per channel) and HDCP - Built-in equalization control lets you adjust the image on the local monitor Easy to Set Up and Use - Plug-and-play engineering—no software or drivers to download and install - Connects quickly to local monitor with HDMI cable, such as Tripp Lite’s P568-Series - LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain - Included mounting hardware lets you install the unit on a wall
