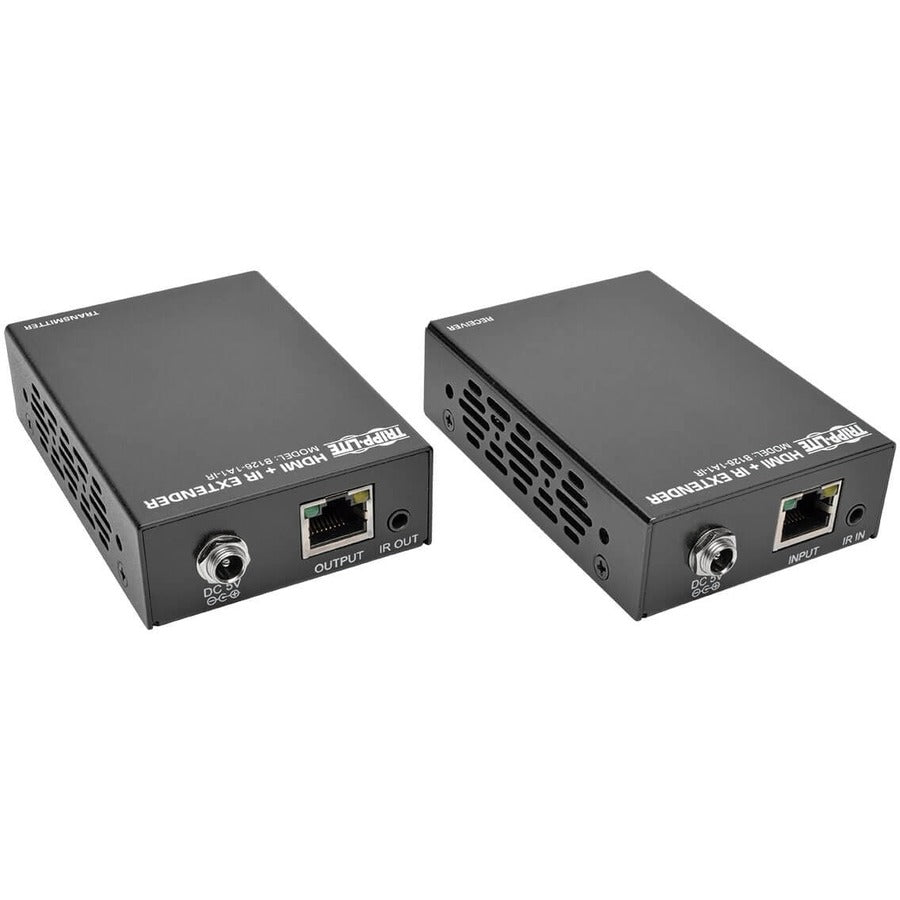

Tripp Lite Hdmi Over Cat5/6 Active Extender Kit W/ Ir Control, Box-Style Transmitter & Receiver, Video/Audio, 1080P, Up To 125-Ft.

Description :

HDMI over Cat5/6 Active Extender Kit w/ IR Control, Box-Style Transmitter & Receiver, Video/Audio, 1080p, Up to 125-ft.

Tripp Lite HDMI over Cat5/6 Active Extender Kit w/ IR Control, Box-Style Transmitter & Receiver, Video/Audio, 1080p, Up to 125-ft.. Type: AV transmitter & receiver, Maximum resolution: 1600 x 1200 pixels, Cable types supported: Cat5e,Cat6. Package width: 165.1 mm, Package depth: 55.9 mm, Package height: 214.1 mm. Cables included: IR. Master (outer) case width: 175 mm, Master (outer) case length: 227.1 mm, Master (outer) case height: 573 mm

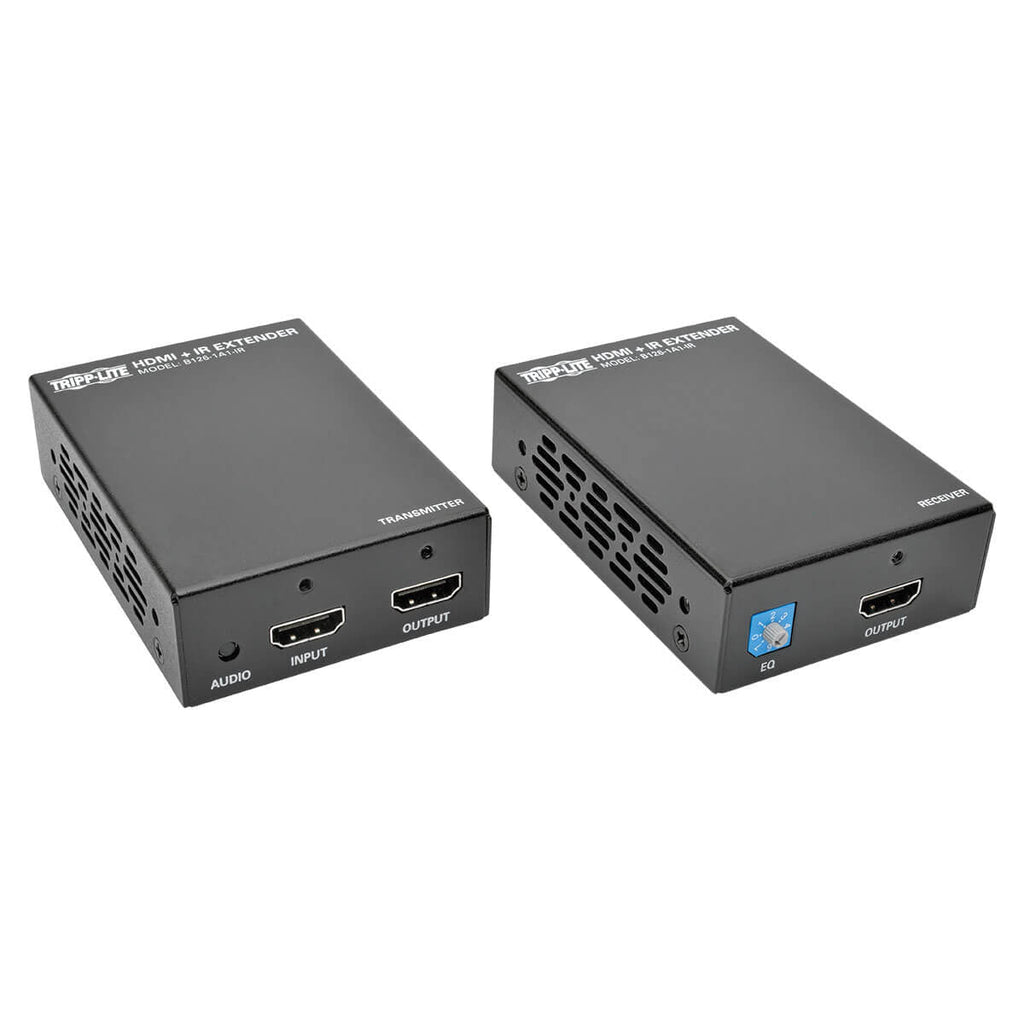

The B126-1A1-IR HDMI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend HDMI audio/video and IR remote control signals to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

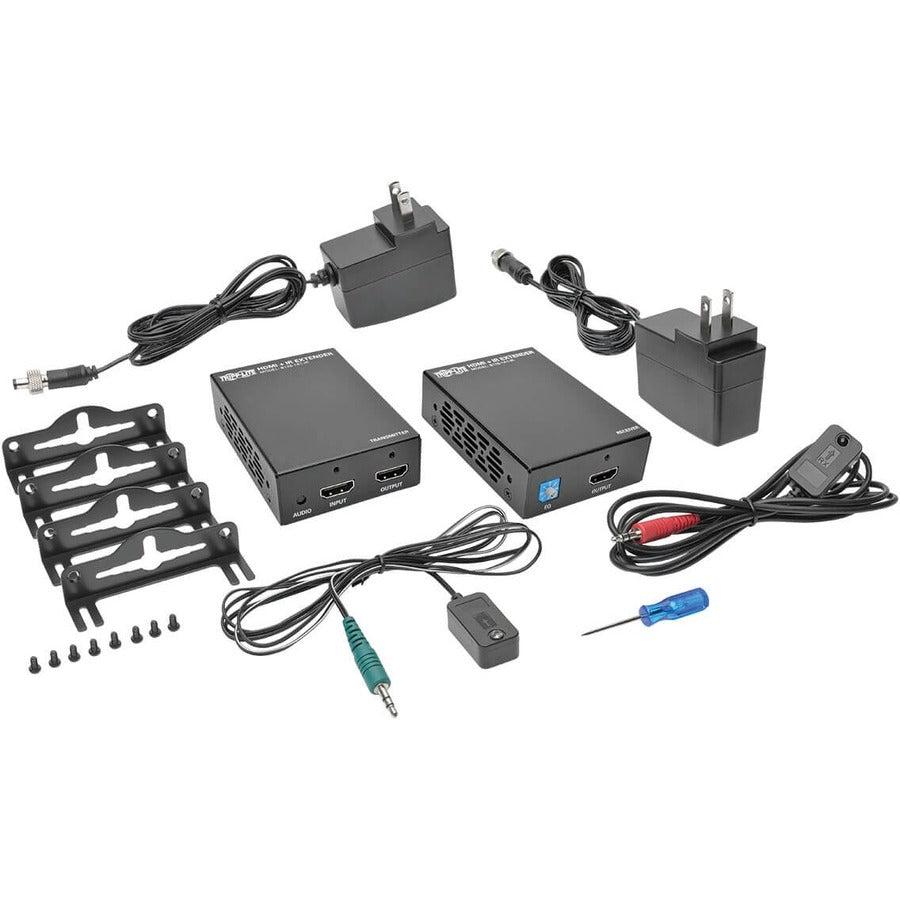

HDMI cable (see Tripp Lite’s P569-Series) connects a local display and the audio/video source to the transmitter unit and a remote display to the receiver unit. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). Included IR-IN and IR-OUT cables allow you to control the video source, such as a Blu-ray™ player, while standing at the remote display.

The B126-1A1-IR can extend a 1080p (60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-IR delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.


Extends High-Definition Signals
- Extends a 1080p (60 Hz) signal up to 125 ft.
- IR functionality lets you control your Blu-ray player while standing at the remote display
- Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use
- Plug-and-play engineering—no software or drivers to download and install
- Works with all operating systems and HDMI sources
- Units connect quickly to source and displays with HDMI cable, such as Tripp Lite’s P569-Series
- Units install on a wall, rack or pole with the included hardware

TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
