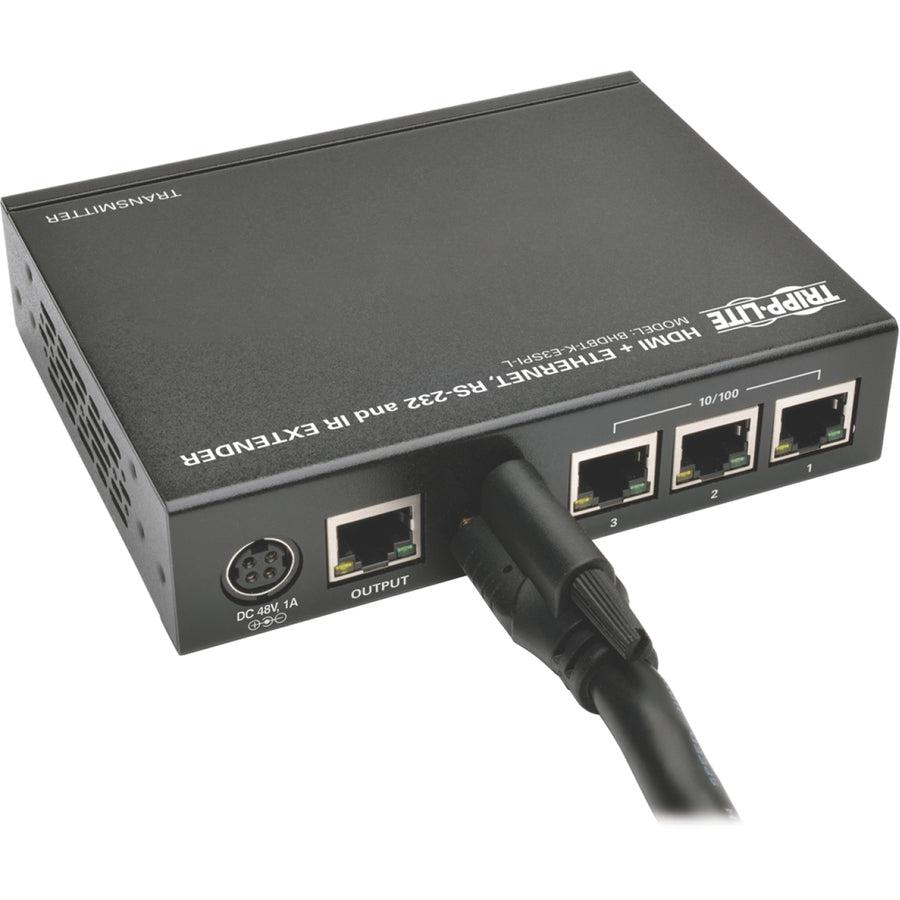

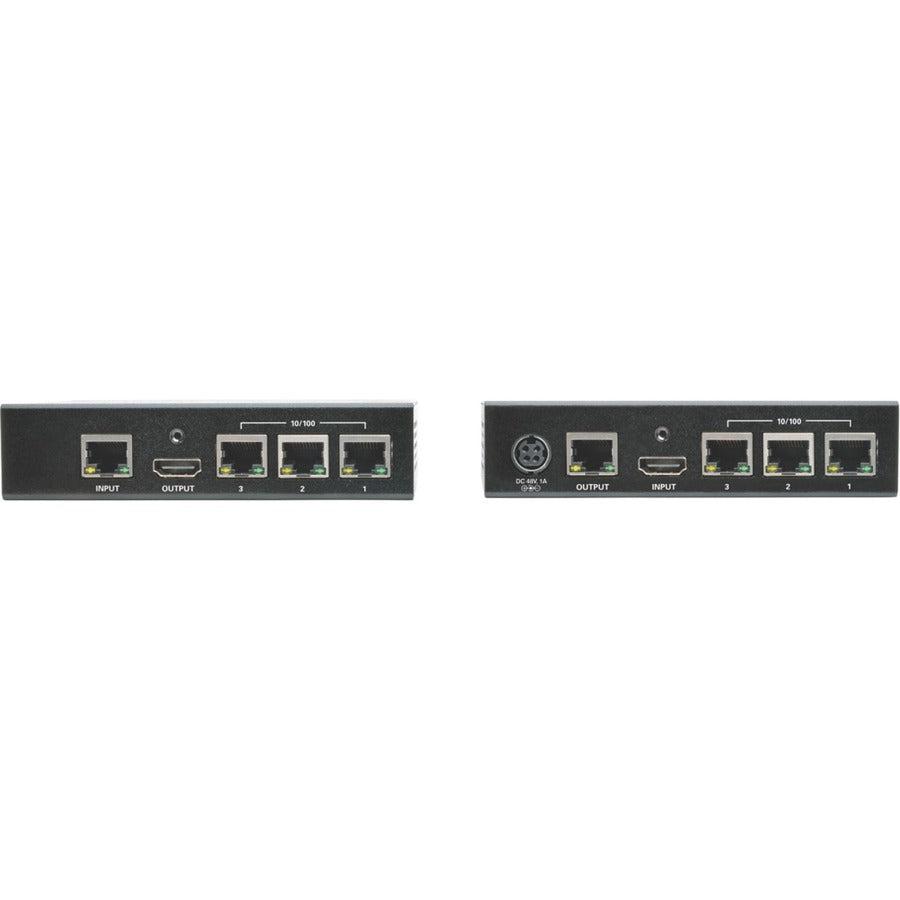

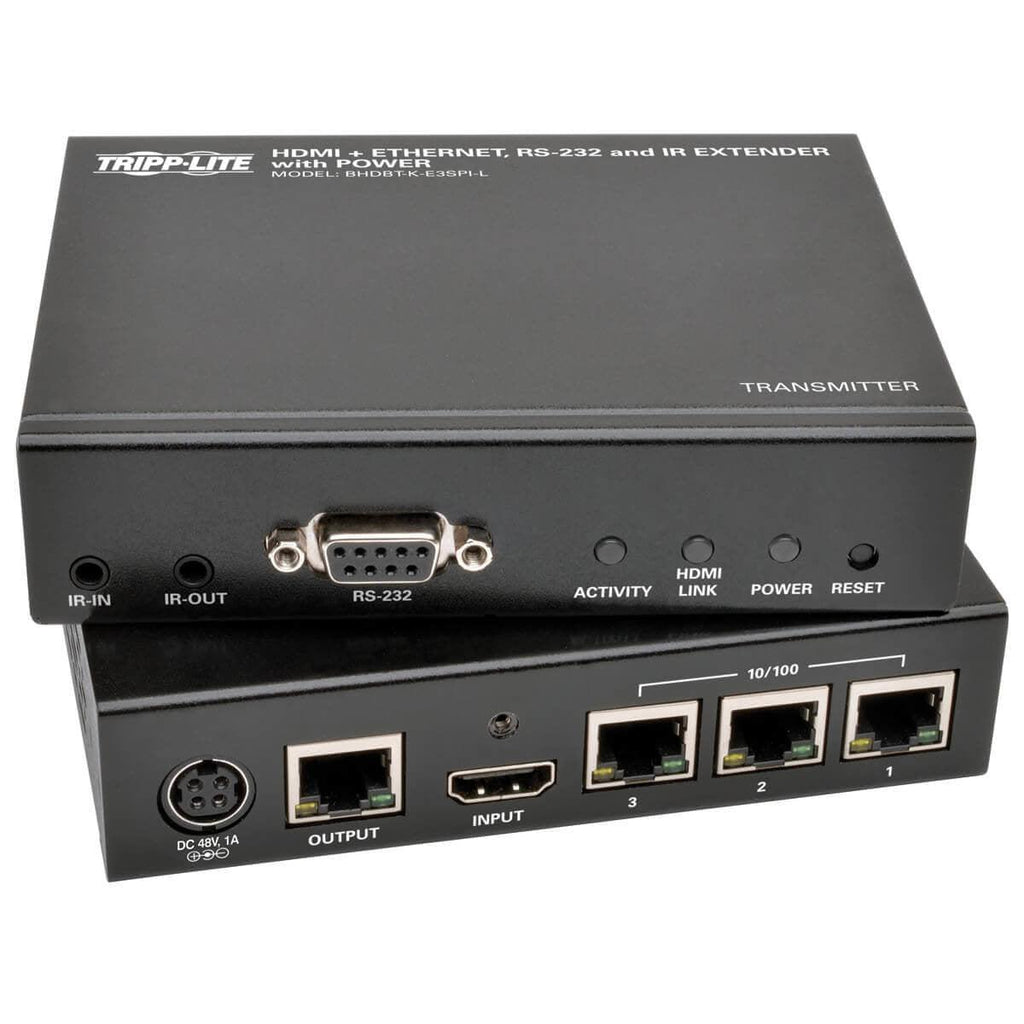

Tripp Lite Hdbaset Hdmi Over Cat5E/6/6A Extender Kit With Ethernet, Power, Serial & Ir Control, 4K X 2K Uhd / 1080P, Up To 99.97 M (328-Ft.)

Description :

HDBaseT HDMI over Cat5e/6/6a Extender Kit with Ethernet, Power, Serial & IR Control, 4K x 2K UHD / 1080p, Up to 99.97 m (328-ft.)

Tripp Lite HDBaseT HDMI over Cat5e/6/6a Extender Kit with Ethernet, Power, Serial & IR Control, 4K x 2K UHD / 1080p, Up to 99.97 m (328-ft.). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. Serial interface type: RS-232. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 48 V. Package width: 150.1 mm, Package depth: 81 mm, Package height: 214.1 mm. Cables included: IR

The BHDBT-K-E3SPI-L HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 99.97 m (328-ft.) over a single Cat5e/6/6a cable, including an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal. In addition to HDMI, RS-232 and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. Three built-in 10/100 Ethernet ports on both the transmitter and receiver allow connected devices, such as a Blu-ray™ player, cable/satellite box, and HDMI television, to communicate with each other and access online content via LAN. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SPI-L supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.

- Ideal for digital signs, classrooms and trade show booths
- Built-in 10/100 Ethernet ports on transmitter and receiver
- Extends a 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Built-in PoE technology powers receiver over Cat5e/6/6a cable

- Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
- Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 3D video, EDID and HDCP
- Reduces cable clutter and installation costs
- Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source
- Allows connected devices to communicate with each other and access online content via LAN
- 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
- RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
- Prevent cables from coming loose or disconnected, ensuring an intact signal
- Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors
- Plug and play with no software or drivers to download and install
- Includes mounting hardware for installing each unit on a wall, rack or pole
