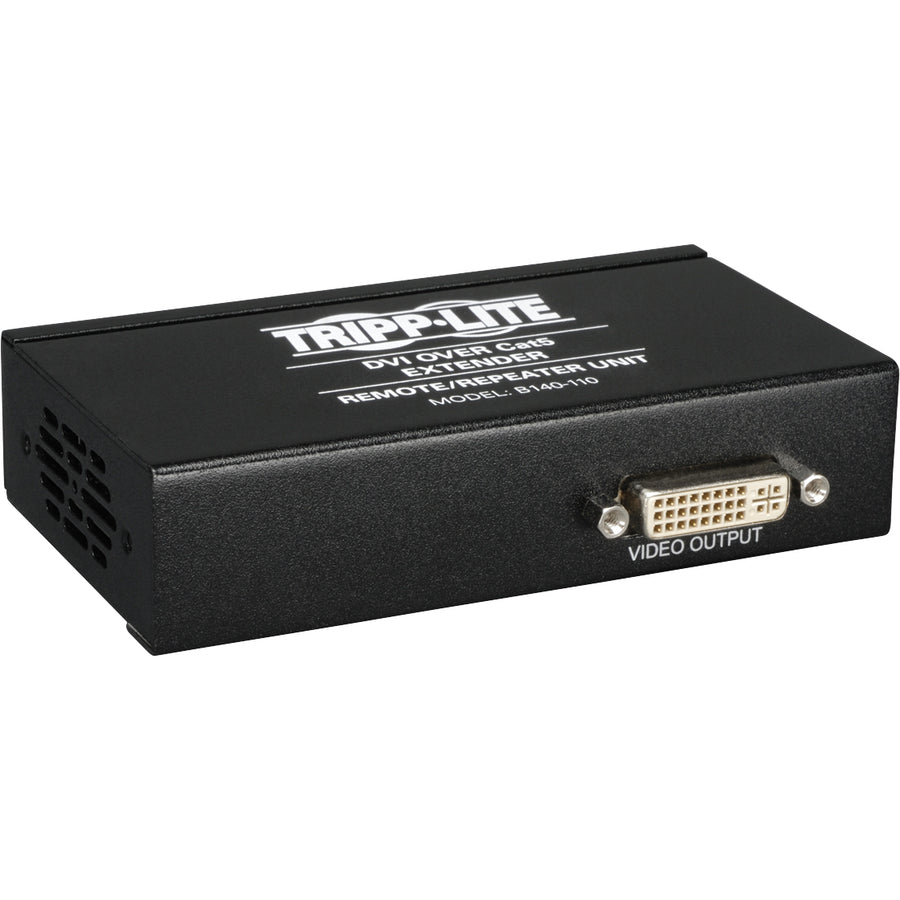

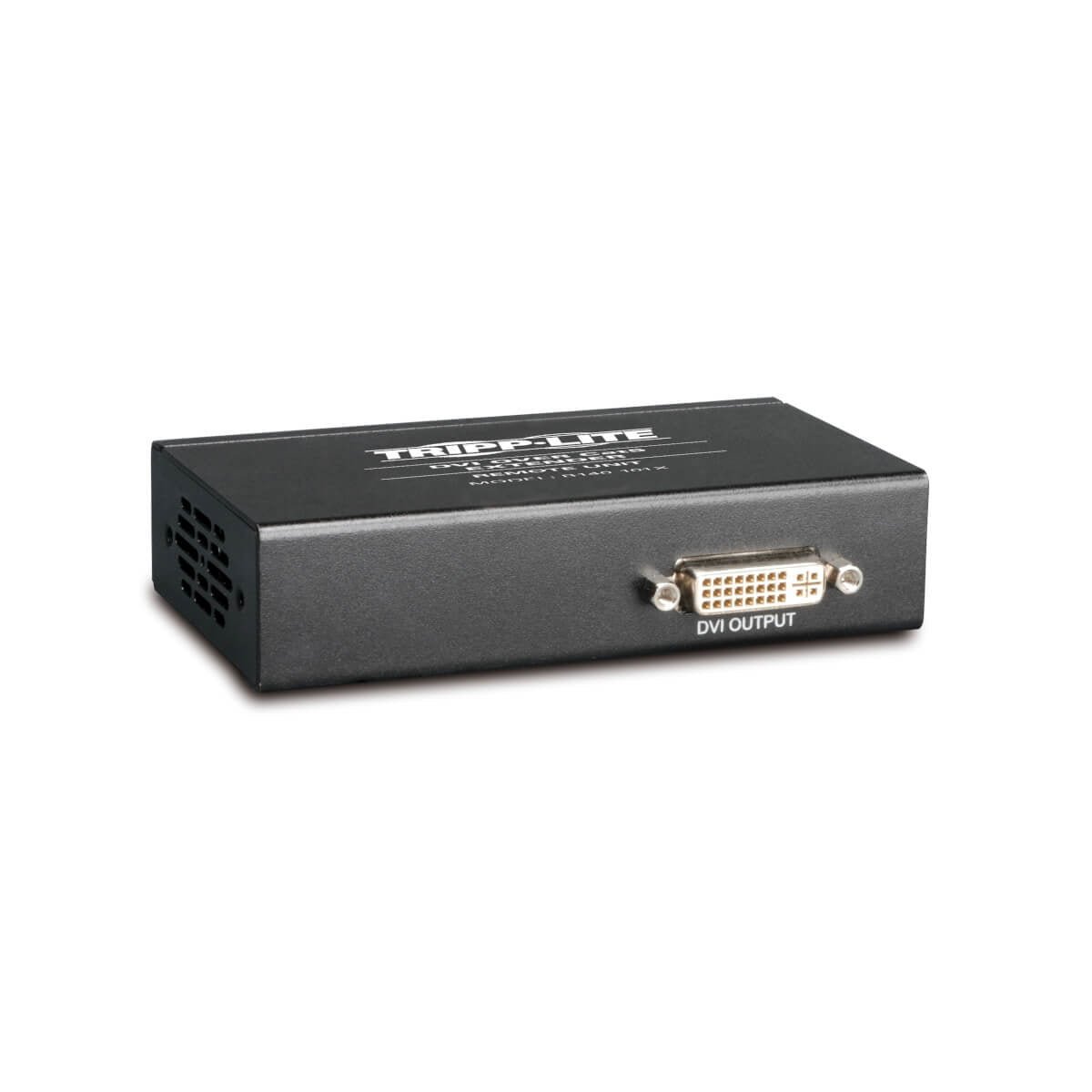

Tripp Lite Dvi Over Cat5 / Cat6 Extender, Box-Style Repeater, 1920 X 1080 At 60Hz, Up To 53.34 M (175-Ft.)

Description :

DVI over Cat5 / Cat6 Extender, Box-Style Repeater, 1920 x 1080 at 60Hz, Up to 53.34 m (175-ft.)

Tripp Lite DVI over Cat5 / Cat6 Extender, Box-Style Repeater, 1920 x 1080 at 60Hz, Up to 53.34 m (175-ft.). Type: AV repeater, Cable types supported: Cat5, Maximum transfer distance: 213.36 m. Operating voltage: 5 V, Current: 2 A. Dimensions (WxDxH): 114.3 x 63.5 x 25.4 mm, Width: 114.3 mm, Depth: 63.5 mm. Package width: 182.9 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 589.3 mm, Master (outer) case length: 348 mm, Master (outer) case height: 221 mm

The B140-110 remote repeater unit can be added to your Tripp Lite B140-Series HDMI over Cat5 installation to expand the range and number of monitors. It transmits a DVI-D Single-Link signal up to 53.34 m (175-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-110 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Installation is simple; just insert the B140-110 repeater into the middle of your installation (Cannot be used with Passive extender kits or Passive receiver units). In the case of a B140-101X active extender kit, the built-in DVI connector on the transmitter is connected to the DVI source. It is then connected via Cat5e/6 cable to the B140-110, which is connected via Cat5e/6 cable to the B140-101X receiver unit. Finally, a monitor is connected to both the repeater and receiver units using Tripp Lite P561-Series DVI cable (not included). Connect up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain)
A 1920 x 1080 @ 60Hz signal can be extended up to 38.1 m (125-ft.) from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 53.34 m (175-ft.)

- Insert into your Tripp Lite B140-Series DVI over Cat5 installation to expand the range and number of monitors (Cannot be used with Passive extender kits or Passive receiver units)
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 38.1 m (125-ft.), or a 1024 x 768 @ 60Hz signal up to 53.34 m (175-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Compatible with all operating systems
- Plug and play, no software or drivers required

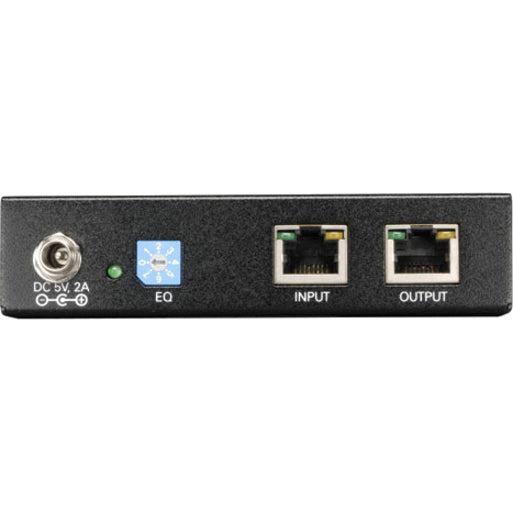

- Features a built-in Equalization control for adjustment of the video image

- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 38.1 m (125-ft.), or a 1024 x 768 @ 60Hz signal up to 53.34 m (175-ft.)
- Insert into your Tripp Lite B140-Series DVI over Cat5 installation to expand the range and number of monitors (Cannot be used with Passive extender kits or Passive receiver units)
- Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain)
- A 1920 x 1080 @ 60Hz signal can be extended up to 38.1 m (125-ft.) from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 53.34 m (175-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Features a built-in Equalization control for adjustment of the video image
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no software or drivers required
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
