Tripp Lite Dvi Over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, 1920X1080 At 60Hz, Up To 61 M (200-Ft.)

Tripp Lite by EatonSKU: B140-101X

Price:
Sale price$189.10
 More payment options

Description

DVI over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, 1920x1080 at 60Hz, Up to 61 m (200-ft.)

Tripp Lite DVI over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, 1920x1080 at 60Hz, Up to 61 m (200-ft.). Video port type: DVI, Cable types supported: Cat5e,Cat6. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, Supported graphics resolutions: 1024 x 768 (XGA). AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Package width: 157.5 mm, Package depth: 210.8 mm, Package height: 50.8 mm. Master (outer) case width: 342.9 mm, Master (outer) case length: 574 mm, Master (outer) case height: 241.3 mm

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 46 m (150-ft.) from the source,, or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)

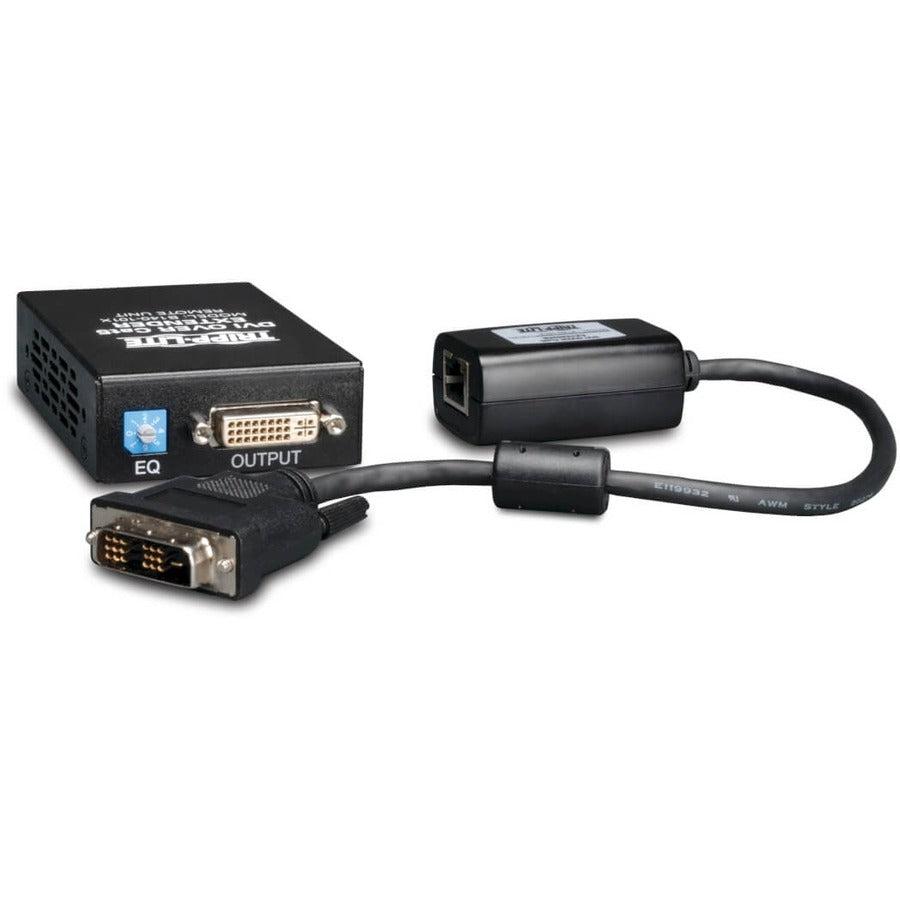

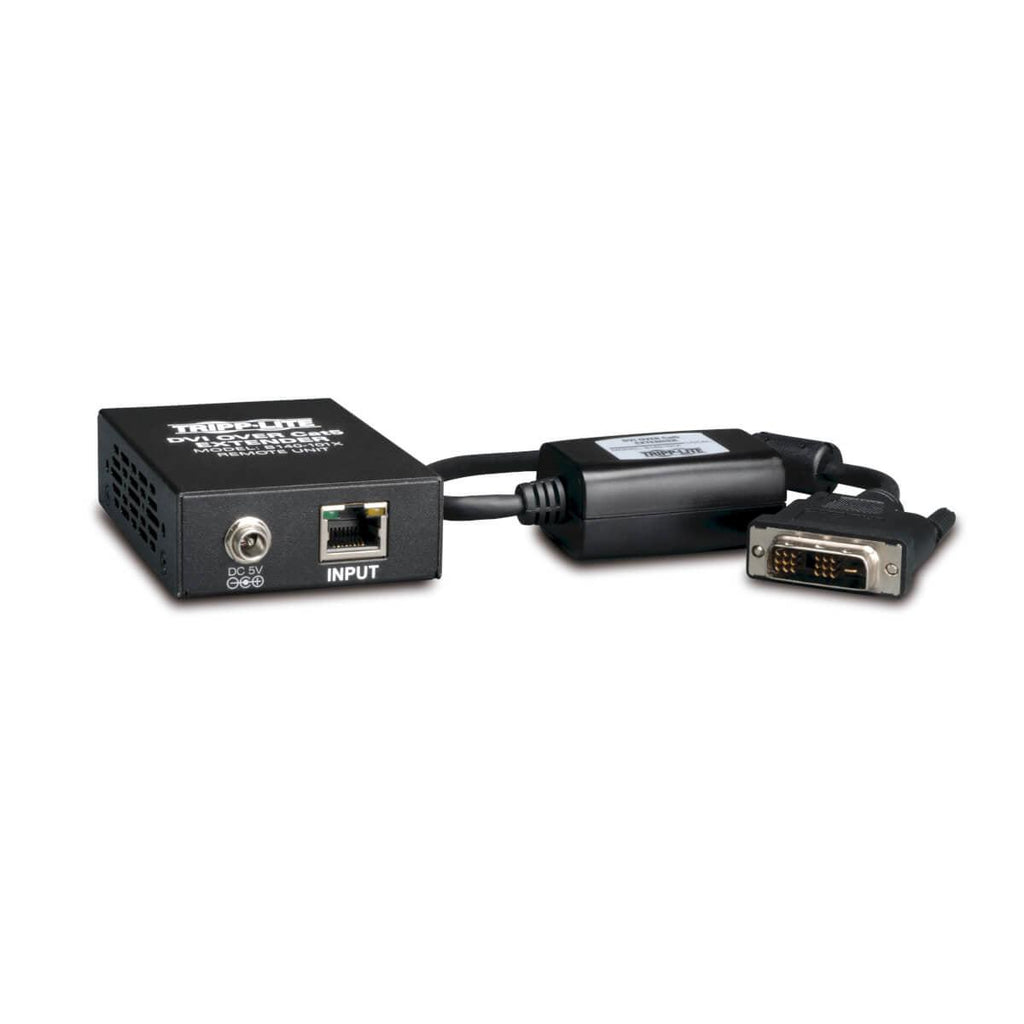

- Extender kit comes with transmitter and receiver units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required
- Features a built-in Equalization control for adjustment of the video image
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections

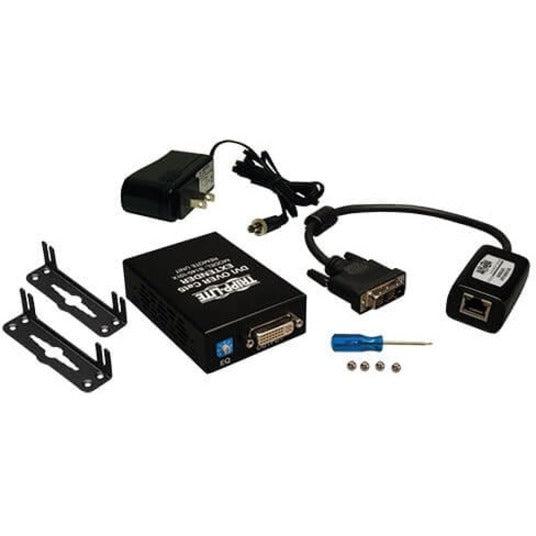

- B140-101X local transmitter unit

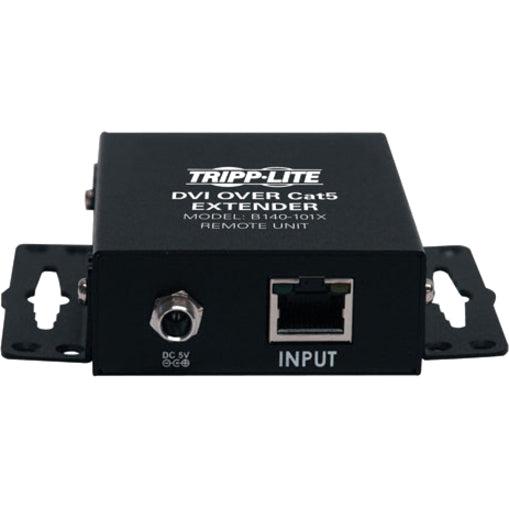

- B140-101X remote receiver unit
- Screwdriver (used for Equalization control)
- Mounting hardware for receiver unit
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Owner’s manual
- Extender kit comes with transmitter and receiver units
- Transmit a DVI-D Single-Link signal up to 61 m (200-ft.) away using a single Cat5e/6 patch cable
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Features a built-in Equalization control for adjustment of the video image
- Further expand the range and number of monitors by using a B140-110 repeater unit
- Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a channel)
- A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no software or drivers required

General Information

Manufacturer Tripp Lite by Eaton
Manufacturer Part Number B140-101X
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Model B140-101X
Product Name DVI over Cat5 Active Extender Kit
Product Type Video Extender Transmitter/Receiver
UPC 037332154095
Network (RJ-45)Yes

Physical Characteristics

Color FamilyMulticolor
Product ColorBlack

Miscellaneous

Package Contents
  • B140-101X Local Transmitter Unit
  • B140-101X Remote Receiver Unit
  • Screwdriver (used for Equalization control)
  • Mounting Hardware for Receiver Unit
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Environmentally FriendlyYes

Warranty

Limited Warranty1 Year
