Tripp Lite

Tripp Lite Displayport Extender Equalizer, Repeater For Video & Audio 1920 X 1200 At 60Hz / 1080P (Displayport F/F), Up To 45.72 M (150-Ft.)

SKU: B121-000

Regular price $121.52
Regular price Sale price $121.52
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          DisplayPort Extender Equalizer, Repeater for Video & Audio 1920 x 1200 at 60Hz / 1080p (Displayport F/F), Up to 45.72 m (150-ft.)

          Tripp Lite DisplayPort Extender Equalizer, Repeater for Video & Audio 1920 x 1200 at 60Hz / 1080p (Displayport F/F), Up to 45.72 m (150-ft.). Type: AV transmitter, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 45.75 m. Operating voltage: 240 V, Current: 0.5 A, Power requirements: 100-240V, 50/60Hz. Width: 63.5 mm, Depth: 50.8 mm, Height: 22.9 mm. Package width: 57.2 mm, Package depth: 182.9 mm, Package height: 152.4 mm. Master (outer) case width: 340.4 mm, Master (outer) case length: 576.6 mm, Master (outer) case height: 228.6 mm

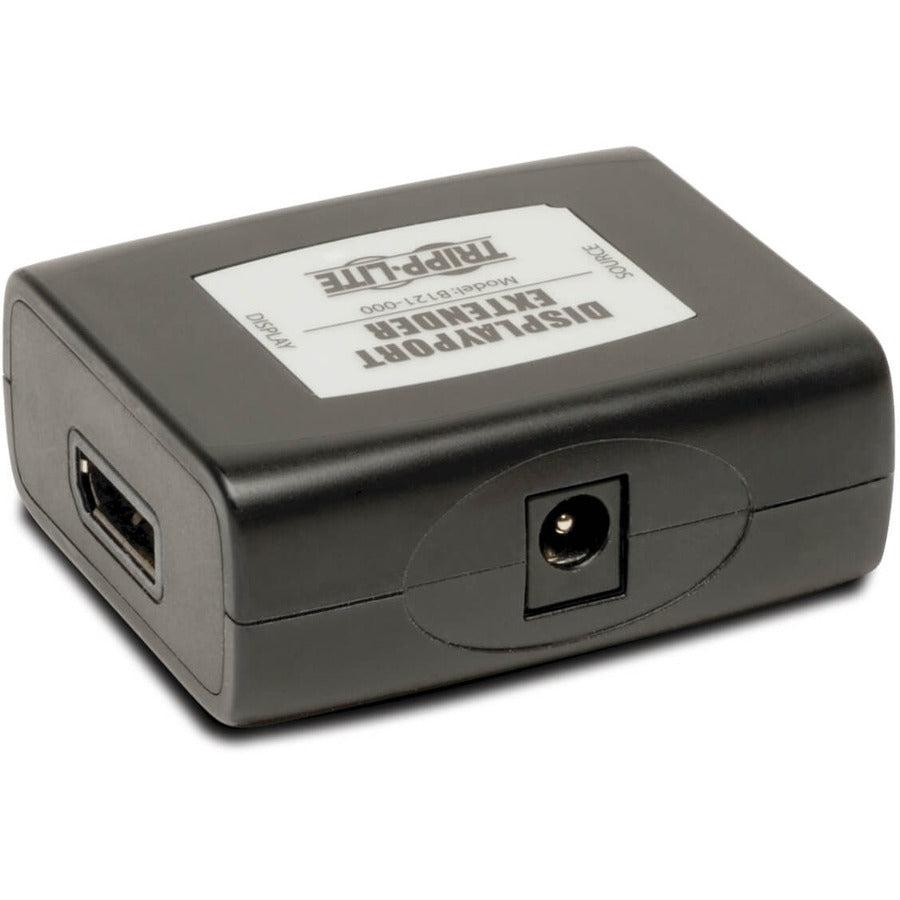

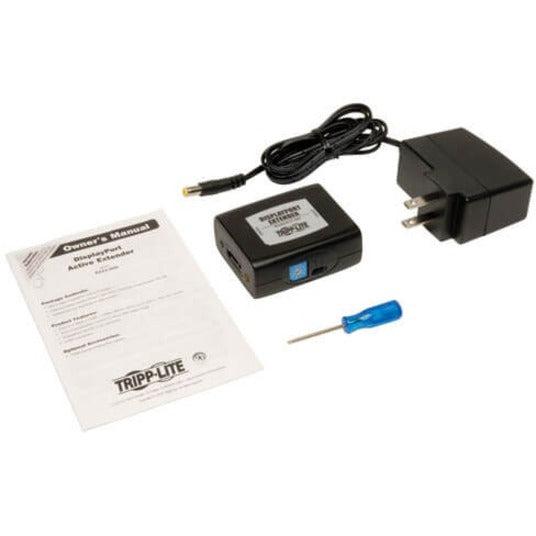

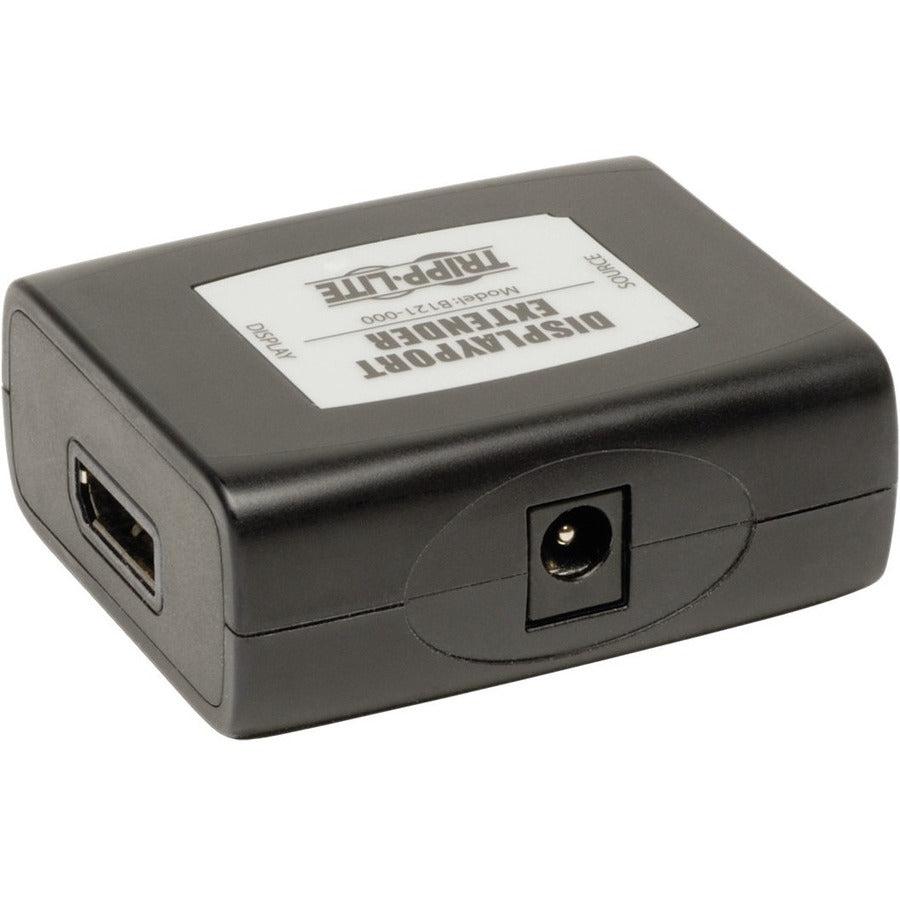

          Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 45.72 m (150-ft.) from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (4.88 m (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant.

          - Extend a Displayport signal up to 45.72 m (150-ft.) from the source
          - Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
          - When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) signal more than 30.5 m (100 ft.), use cable made with 24Awg wiring

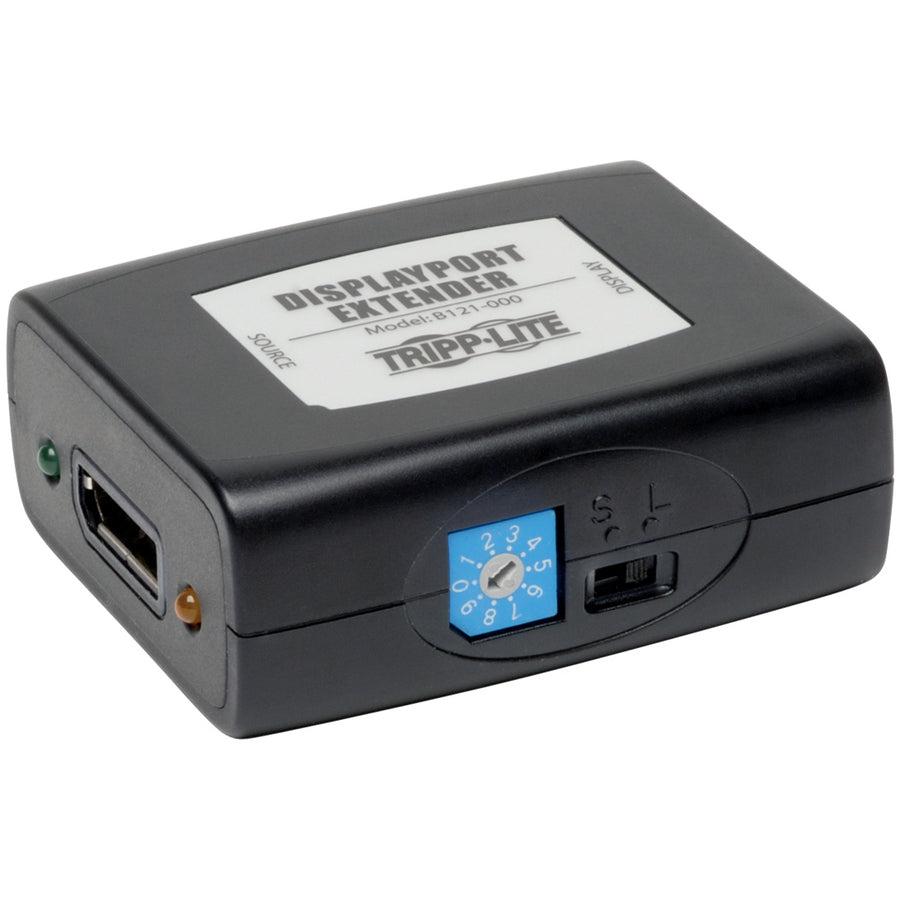

          - Built-in Equalization control to adjust the video image
          - Displayport v1.1a compliant

          - Extend a Displayport signal up to 45.72 m (150-ft.) from the source
          - Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
          - Use P580-Series Displayport Cables
          - When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
          - Built-in Equalization control to adjust the video image
          - HDCP compliant
