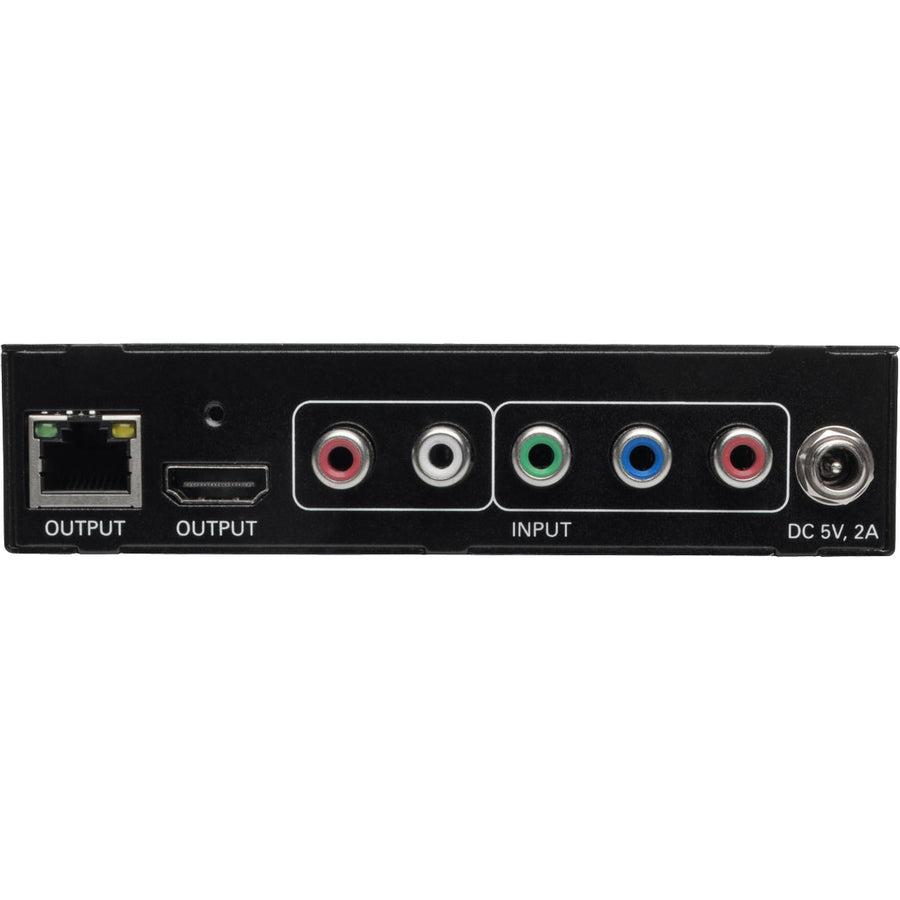

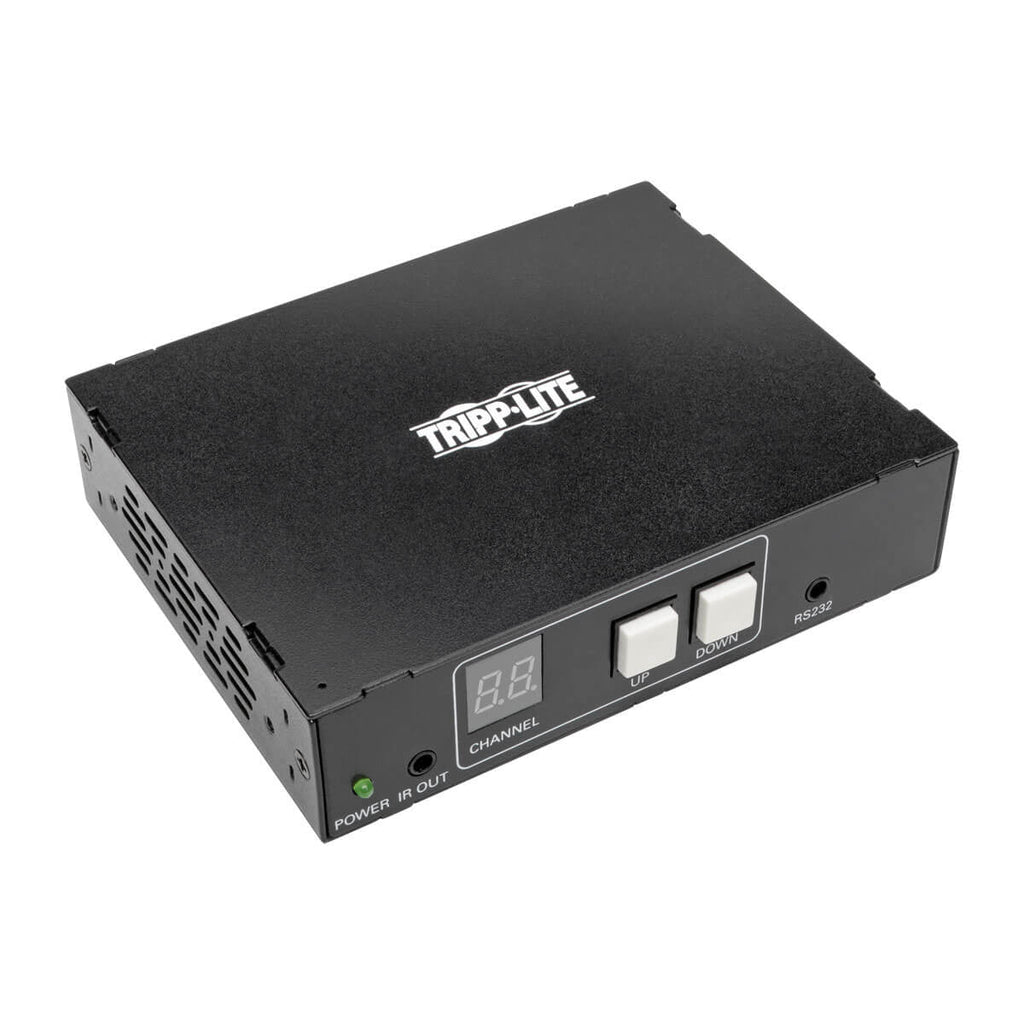

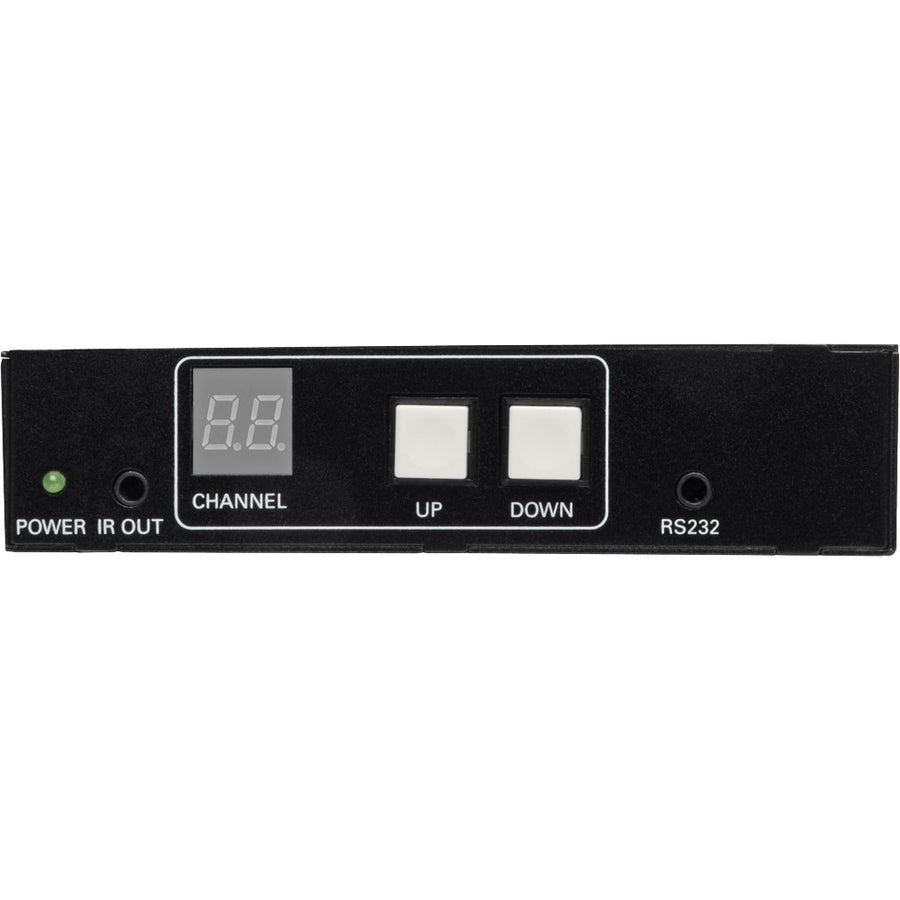

Tripp Lite B160-001-Csi Component Video (Rca) Over Ip Extender Transmitter Over Cat5/Cat6, Rs-232 And Ir Control, 1080I, 328 Ft. (100 M), Taa

Description :

Component Video (RCA) over IP Extender Transmitter over Cat5/Cat6, RS-232 and IR Control, 1080i, 328 ft. (100 m), TAA

Tripp Lite B160-001-CSI Component Video (RCA) over IP Extender Transmitter over Cat5/Cat6, RS-232 and IR Control, 1080i, 328 ft. (100 m), TAA. Type: AV transmitter, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Dimensions (WxDxH): 128 x 100 x 29.7 mm, Weight: 720 g. Package width: 160 mm, Package depth: 256.5 mm, Package height: 50.8 mm. Cables included: Audio (3.5mm), IR

Distributes Component Video, Stereo Audio, Serial and IR Control Signals over Cat5/6 Cabling
Converts audio and video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
HDMI output for connecting a local display

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
IGMP-enabled switches allow centralized control over which sources show on which displays
Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors

Enhanced Technical Features
Supports video resolutions up to 1080i
Uses H.264 video compression standard
Transmits on 20–60 kHz IR frequency
Sends IR control signals that control a source from a remote display
Supports RS-232 serial baud rates up to 57600 Bps
HDCP and 3D compatible


Plug-and-Play Functionality
Plug and play—no software or drivers required

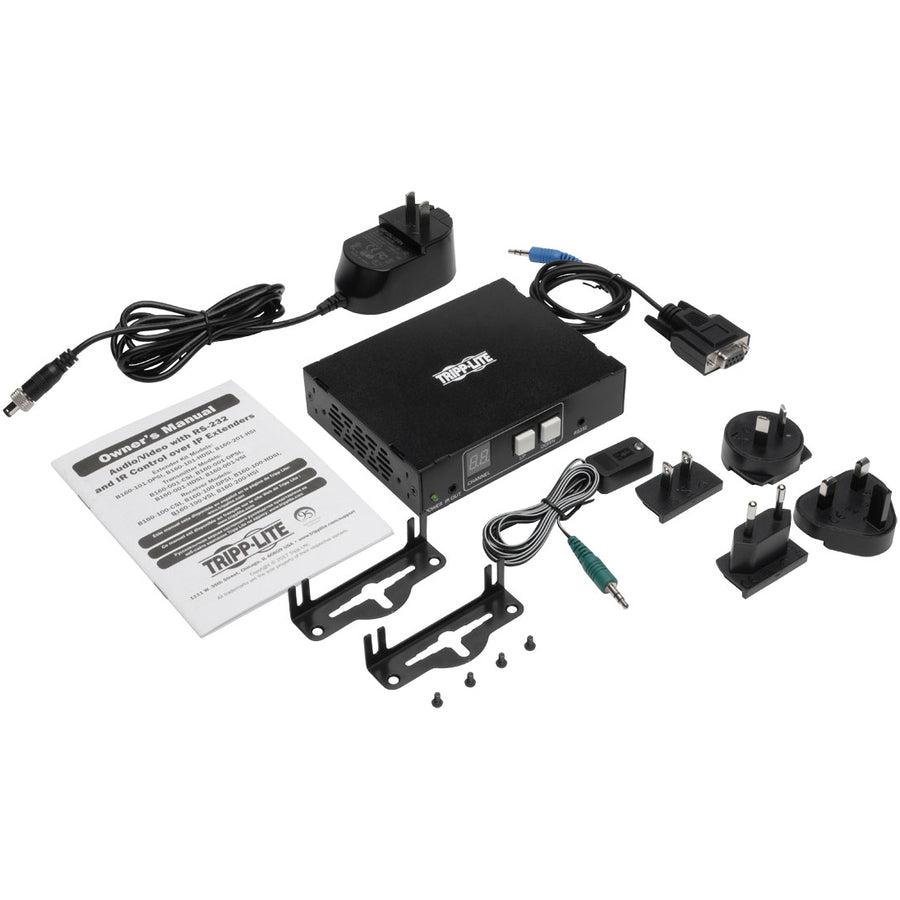

Hardware included for mounting on wall, rack or pole
Compatible with all Tripp Lite B160-Series A/V over IP receivers

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
