Tripp Lite by Eaton

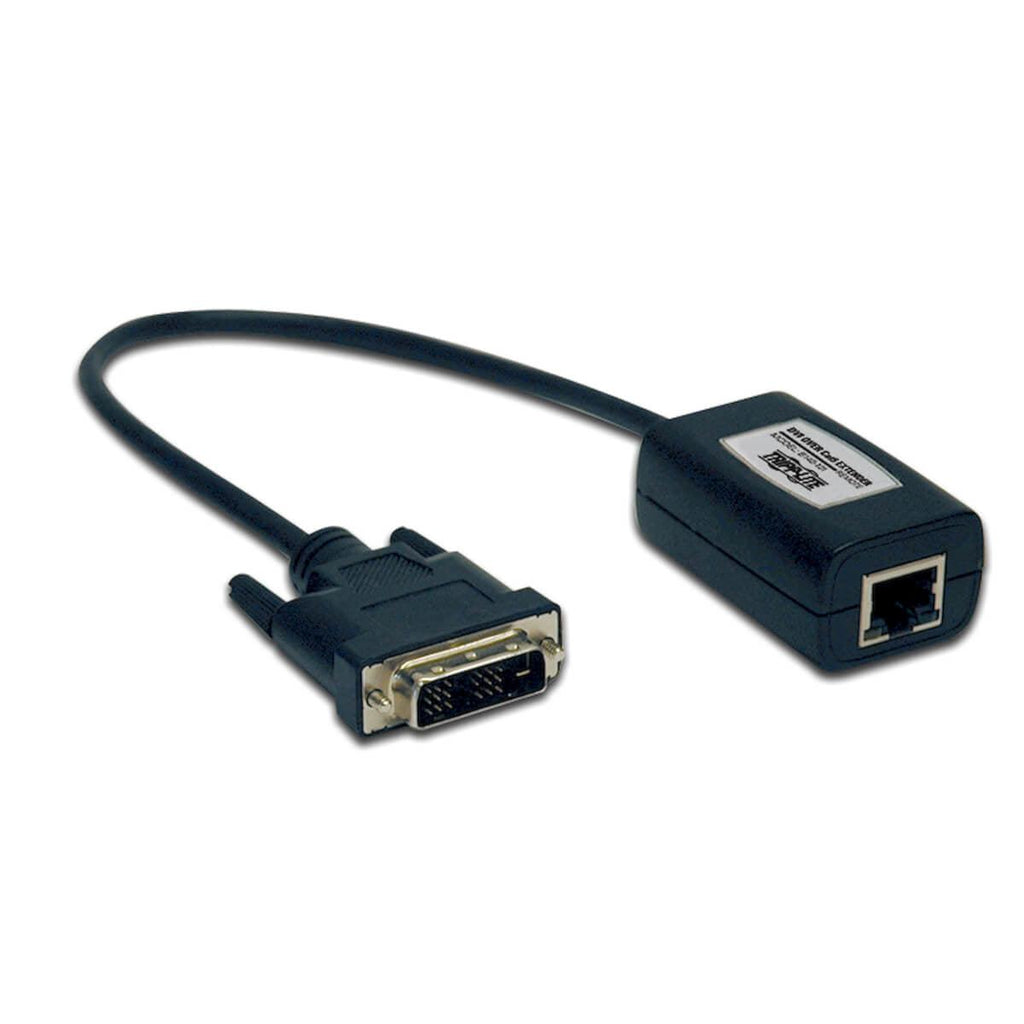

Tripp Lite B140-1P0 Dvi Over Cat5/6 Passive Extender, Remote Receiver For Video, Dvi-D Single Link, Up To 100 Ft. (30 M), Taa

Tripp Lite B140-1P0 Dvi Over Cat5/6 Passive Extender, Remote Receiver For Video, Dvi-D Single Link, Up To 100 Ft. (30 M), Taa

SKU:B140-1P0

Regular price $19.60
Regular price Sale price $19.60
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

          Tripp Lite B140-1P0 DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA. Video port type: DVI, Cable types supported: Cat5e,Cat6. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, Maximum refresh rate: 60 Hz. Package width: 160 mm, Package depth: 182.9 mm, Package height: 50.8 mm. Master (outer) case width: 368 mm, Master (outer) case length: 329.9 mm, Master (outer) case height: 277.1 mm

          The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1P0 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50-ft. (15.24 m) from the source, or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)

          Transmit a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable
          For use with B140-002 or B140-004 extender/splitter transmitter units
          Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
          Extends a 1920 x 1080 @ 60Hz signal up to 50-ft. (15.24 m), or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)
          Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
          HDCP compatible
          Compatible with all operating systems
          Plug and play; no external power, software or drivers required
          Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
