Tripp Lite by Eaton

Tripp Lite B127-2A1-Hh 1X2 Hdmi Over Cat6 Extender/Splitter Kit, Transmitter/Receiver, 4K 60 Hz, Poc, Hdr, 4:4:4, 125 Ft., Taa

Tripp Lite B127-2A1-Hh 1X2 Hdmi Over Cat6 Extender/Splitter Kit, Transmitter/Receiver, 4K 60 Hz, Poc, Hdr, 4:4:4, 125 Ft., Taa

SKU:B127-2A1-HH

Regular price $242.29
Regular price Sale price $242.29
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          1x2 HDMI over Cat6 Extender/Splitter Kit, Transmitter/Receiver, 4K 60 Hz, PoC, HDR, 4:4:4, 125 ft., TAA

          Tripp Lite B127-2A1-HH 1x2 HDMI over Cat6 Extender/Splitter Kit, Transmitter/Receiver, 4K 60 Hz, PoC, HDR, 4:4:4, 125 ft., TAA. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Operating voltage: 24 V. Package width: 260.1 mm, Package depth: 164.1 mm, Package height: 55.1 mm. Included power plug types: AU,EU,NA,UK

          HDMI Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
          This complete transmitter and receiver system is recommended for home theaters and video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-2A1-HH splits and extends a 4K video and stereo audio signal from an HDMI source device to two HDMI displays up to 125 feet (38 meters) away via user-supplied Cat6 cabling.

          Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

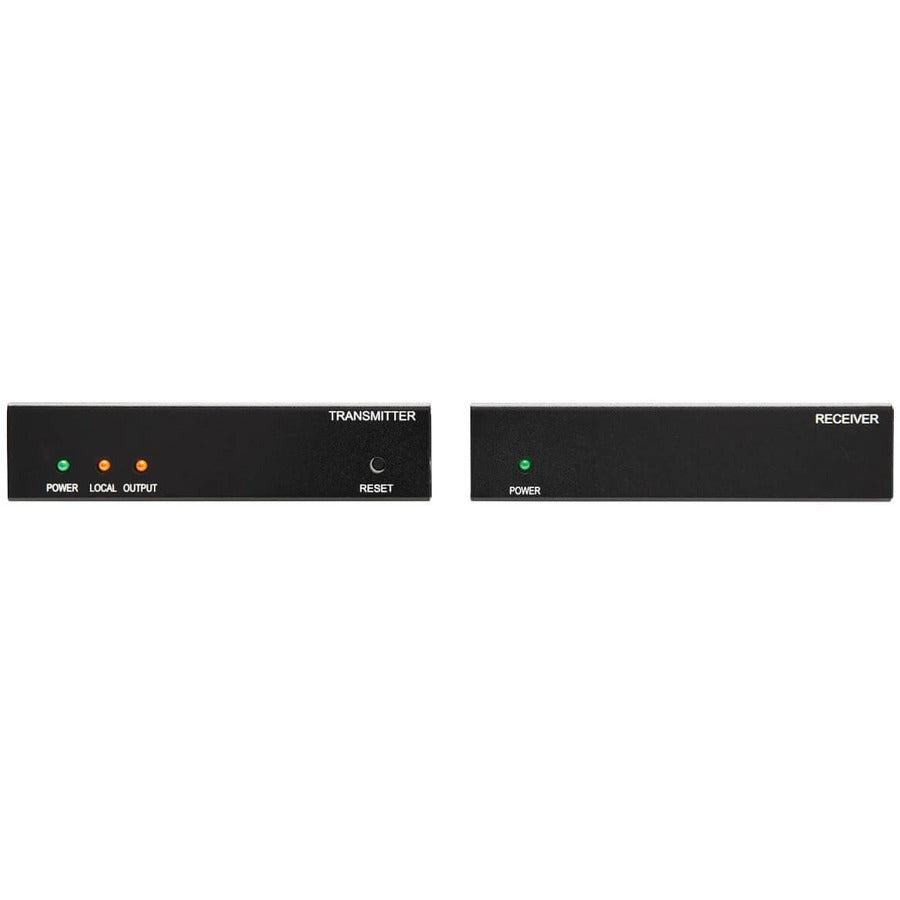

          Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

          Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio, HDR and 4:4:4 Color
          The B127-2A1-HH supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. High Dynamic Range (HDR) signals provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the displays with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 Ethernet cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 125 feet away.

          TAA-Compliant for GSA Schedule Purchases
          The B127-2A1-HH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127-2A1-HH
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127-2A1-HH
          Product Name B127-2A1-HH Video Extender Transmitter/Receiver
          Product Type Video Extender Transmitter/Receiver
          UPC 037332253880
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack

          Miscellaneous

          Package Contents
          • Transmitter Unit
          • Receiver Unit
          • External power supply (Input: 100-240V)
          • 4 x International plug adapters (North America, Europe, U.K. and Australia)
          • Mounting Hardware
          • Owner's Manual

          Warranty

          Limited Warranty1 Year
