Tripp Lite by Eaton

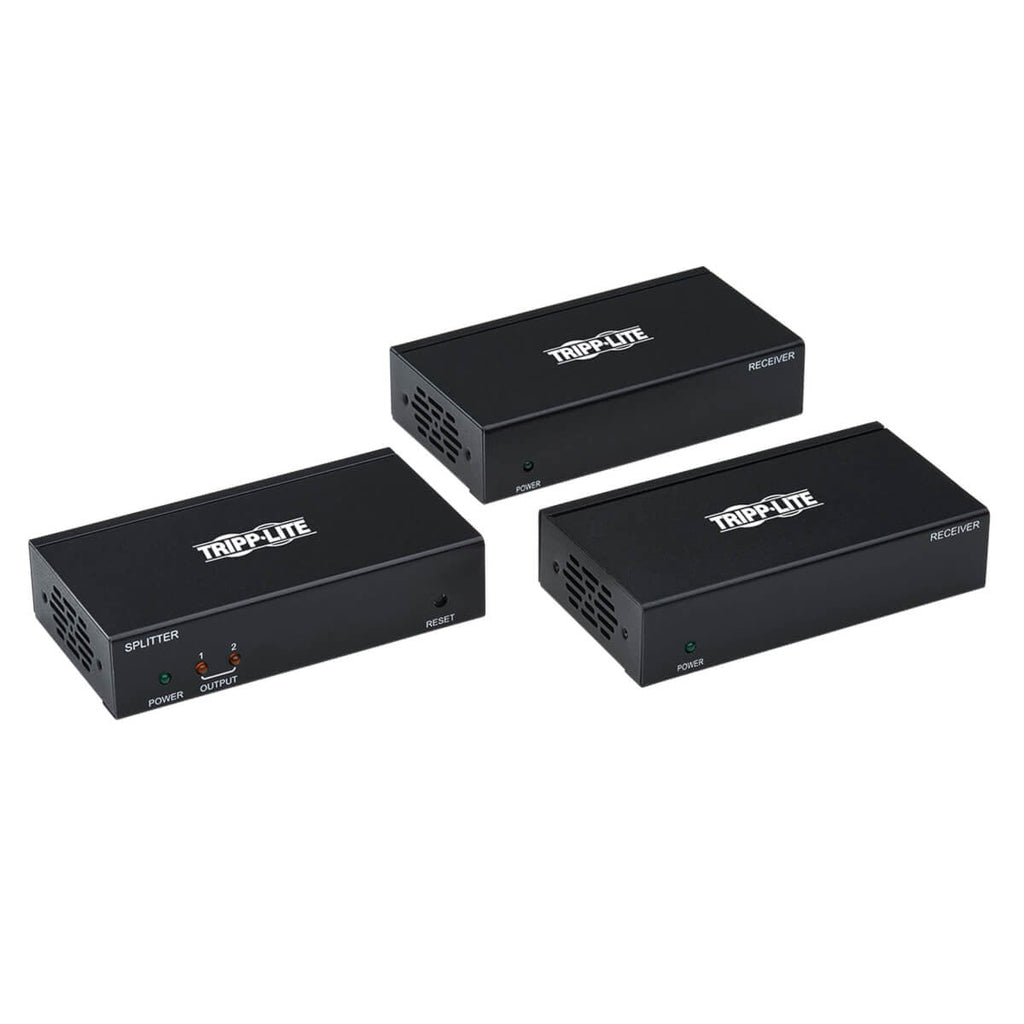

Tripp Lite B127-002-D2H 2-Port Displayport To Hdmi Over Cat6 Splitter/Extender Kit, Transmitter/Dual Receivers, 4K 60 Hz, Poc, 125 Ft., Taa

Tripp Lite B127-002-D2H 2-Port Displayport To Hdmi Over Cat6 Splitter/Extender Kit, Transmitter/Dual Receivers, 4K 60 Hz, Poc, 125 Ft., Taa

SKU:B127-002-D2H-teci

Regular price $221.38
Regular price Sale price $221.38
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Reviews, Que. & Ans.

          Description :

          2-Port DisplayPort to HDMI over Cat6 Splitter/Extender Kit, Transmitter/Dual Receivers, 4K 60 Hz, PoC, 125 ft., TAA

          Tripp Lite B127-002-D2H 2-Port DisplayPort to HDMI over Cat6 Splitter/Extender Kit, Transmitter/Dual Receivers, 4K 60 Hz, PoC, 125 ft., TAA. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 24 V. Package width: 352 mm, Package depth: 164.1 mm, Package height: 55.1 mm. Master (outer) case width: 586 mm, Master (outer) case length: 374.9 mm, Master (outer) case height: 197.1 mm

          DP to HDMI Splitter for Digital Signage or Extending Video in Schools or Trade Show Booths
          This complete 2-port transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-002-D2H extends 4K video and stereo audio signals from a DisplayPort (DP) source device to two HDMI displays up to 125 feet (38.1 meters) away via user-supplied Cat6 cabling.

          Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
          The B127-002-D2H supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

          Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

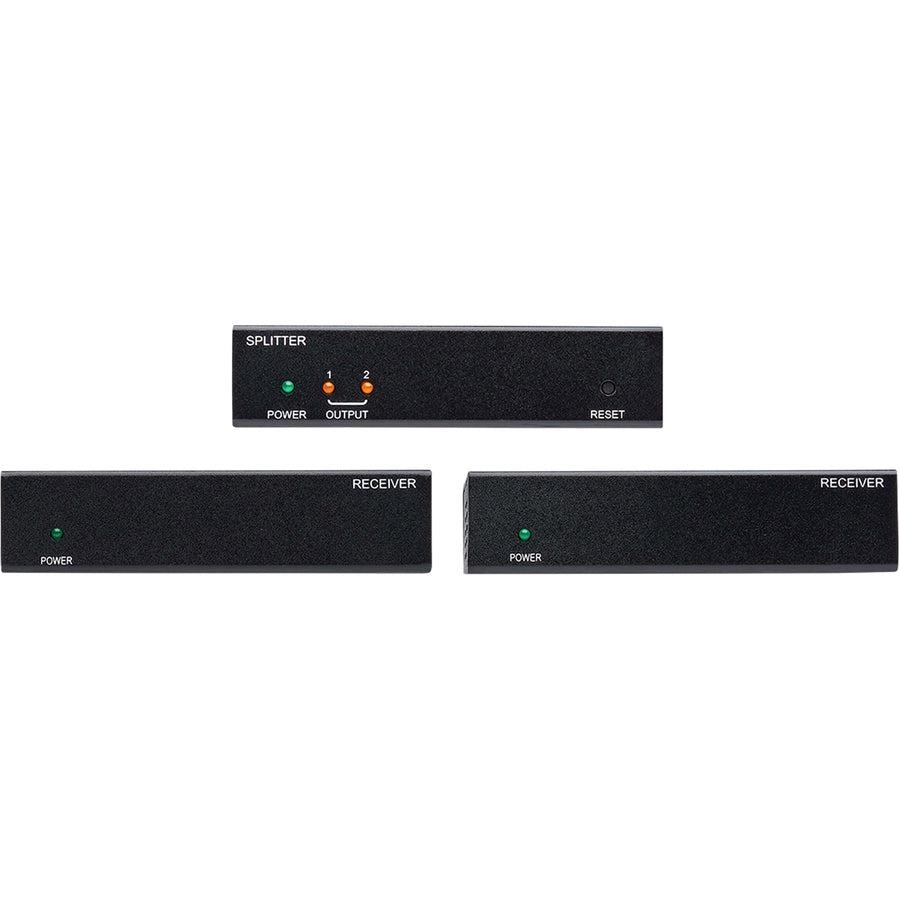

          Built-in Power over Cable (PoC) technology powers the low-profile receivers over Cat6 cable. Green and orange LEDs on the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted.

          Plug-and-Play Operation for Quick Setup and Immediate Use

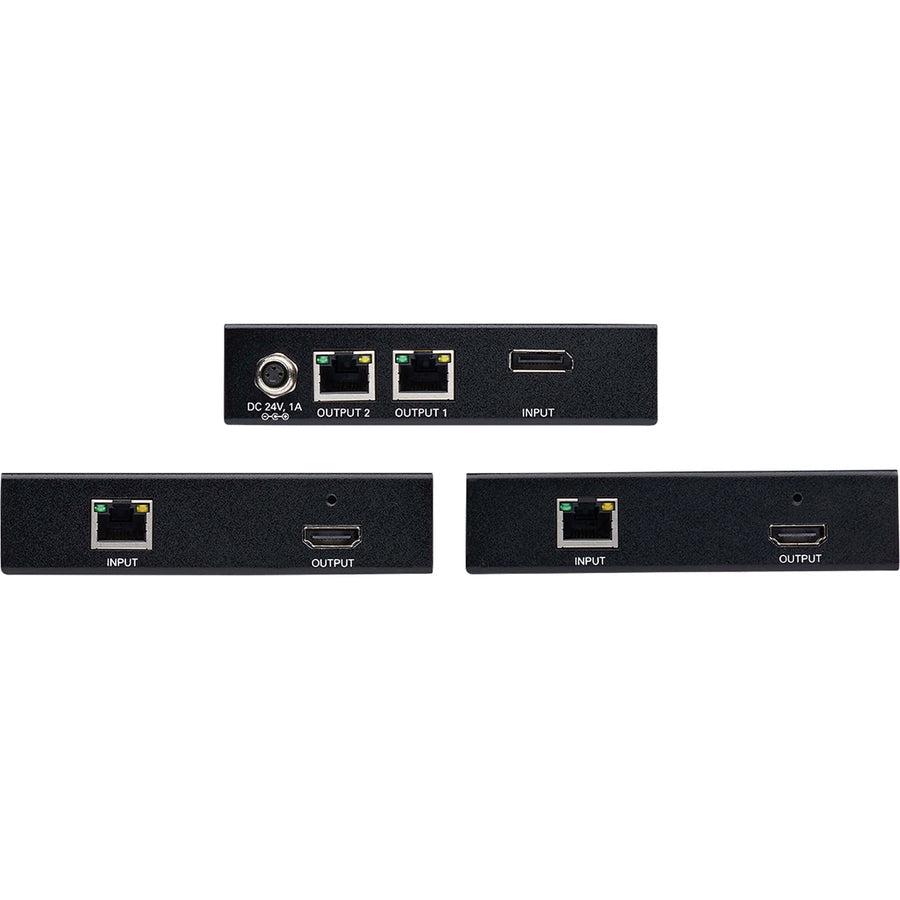

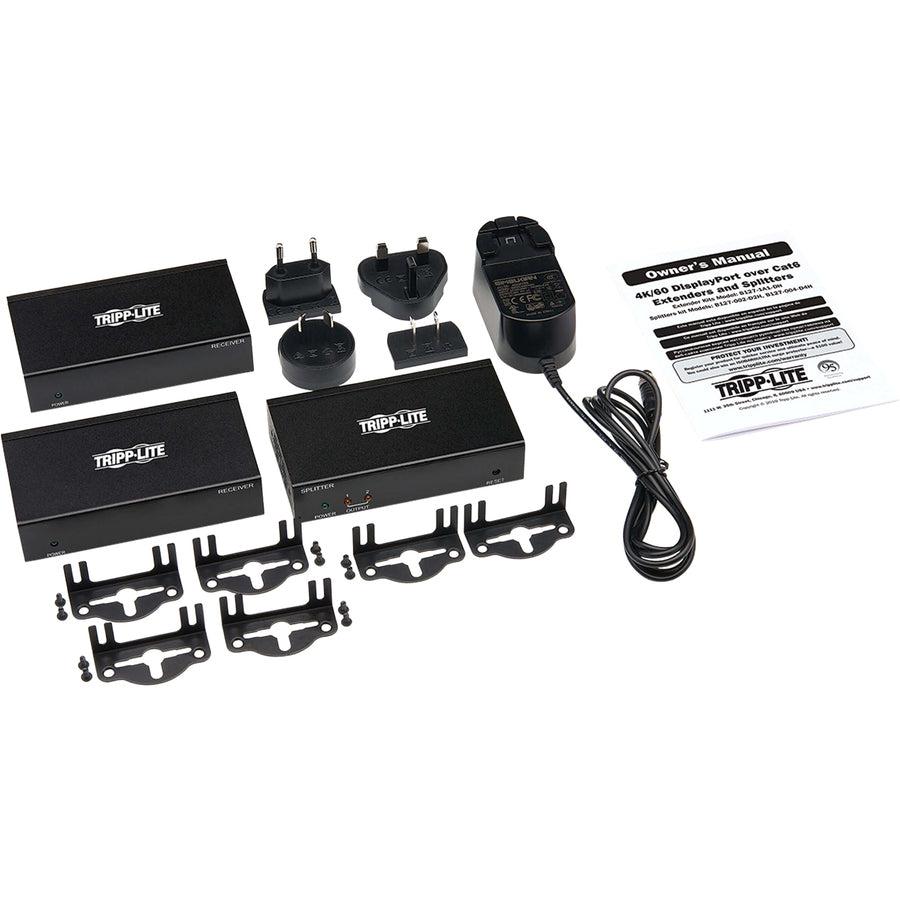

          The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source with a DisplayPort cable (Tripp Lite P580-Series) and the receivers to their displays with HDMI cable (such as Tripp Lite's P568- or P569-Series). Connect the transmitter to the two receivers using Cat6 patch cable (Tripp Lite N202-Series).

          TAA-Compliant for GSA Schedule Purchases
          The B127-002-D2H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
